Disassembly And Assembly Of Subassemblies: Synchronizers: Disassembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: First and second gear synchronizer shown; other synchronizers are similar.

NOTE: Prior to disassembly, note the position of the index marks.

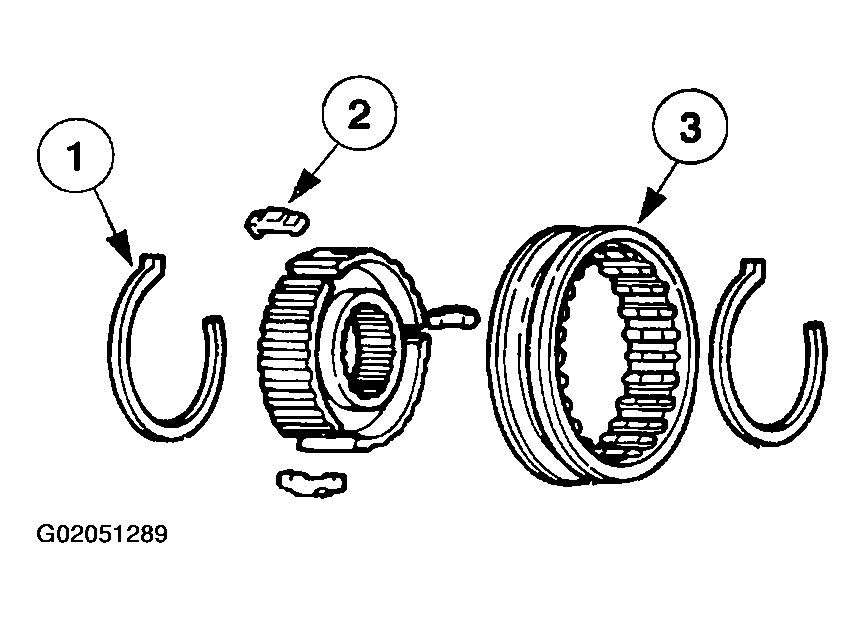

Fig 1: Disassembling Synchronizer Assembly

Courtesy of FORD MOTOR CO.

Disassemble the synchronizer assembly.
1. Remove the synchronizer blocking springs.
2. Remove the synchronizer hub inserts.
3. Separate the synchronizer hub from the sleeve.
Inspect all synchronizer components for wear and damage.
