Connecting Rod - Piston Pin Side Clearance

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
- For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .
- If out of specification, install new components as necessary. For 2.0L Zetec engine procedure see appropriate section in ENGINE - 2.0L ZETEC . For 3.0L (4V) engine procedure see appropriate section in ENGINE - 3.0L (4V) .

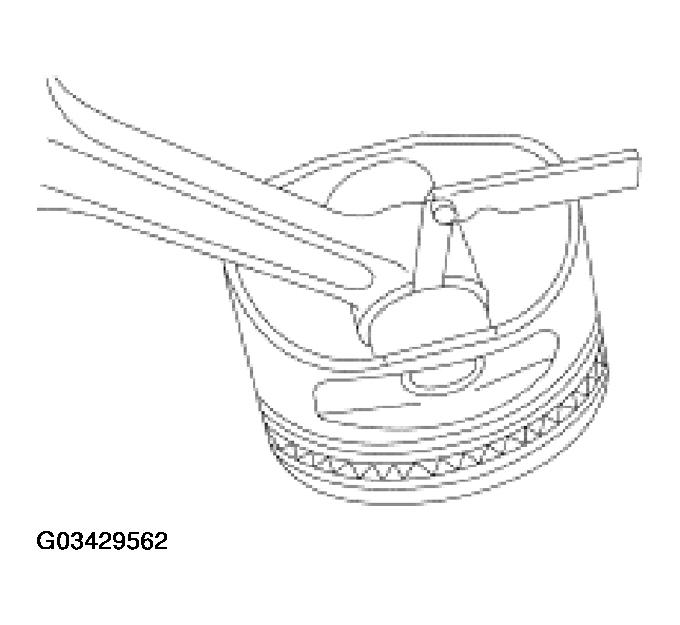

Fig 1: Measuring Clearance Between Connecting Rod And Piston
Courtesy of FORD MOTOR CO.
