Symptom Chart
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

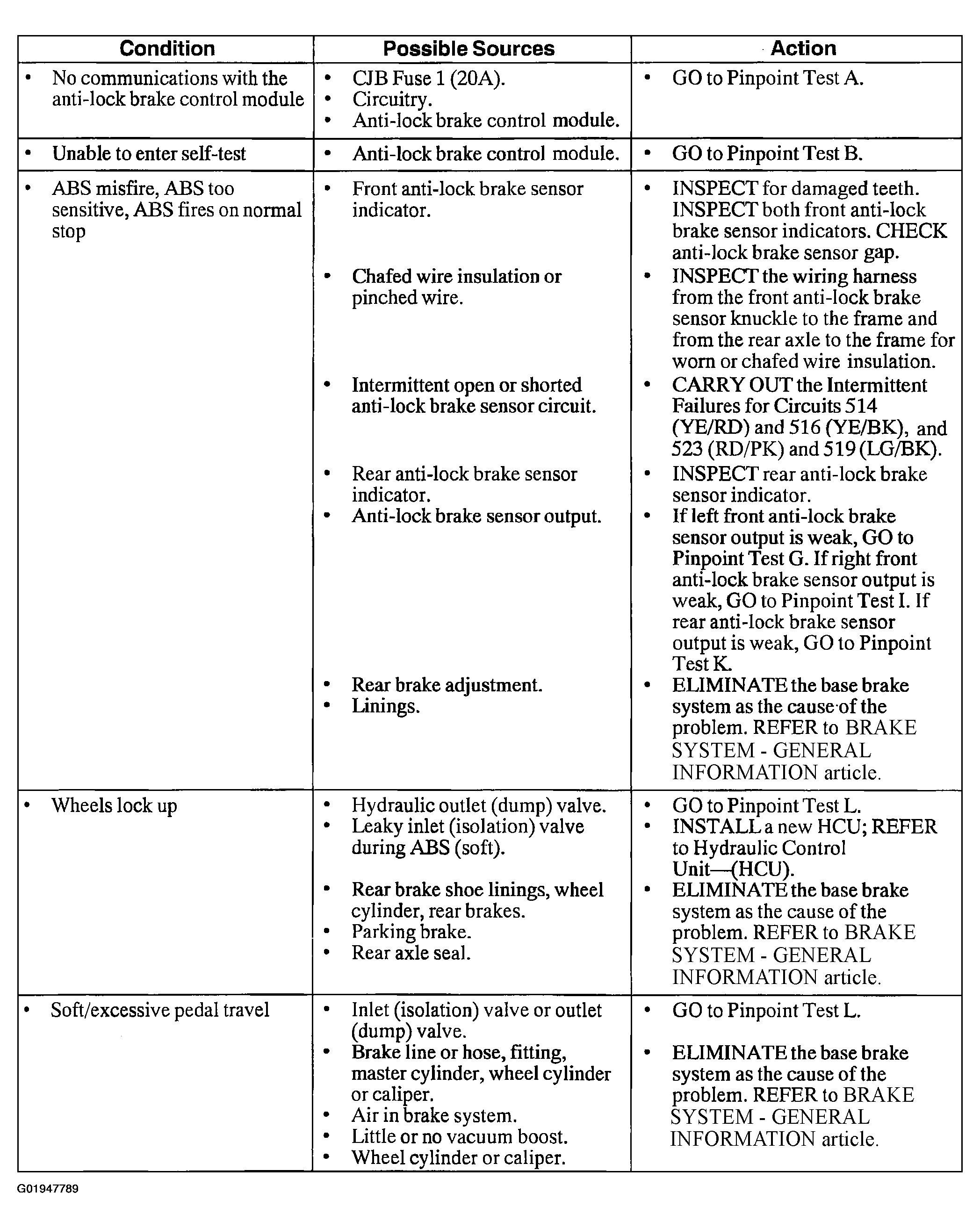

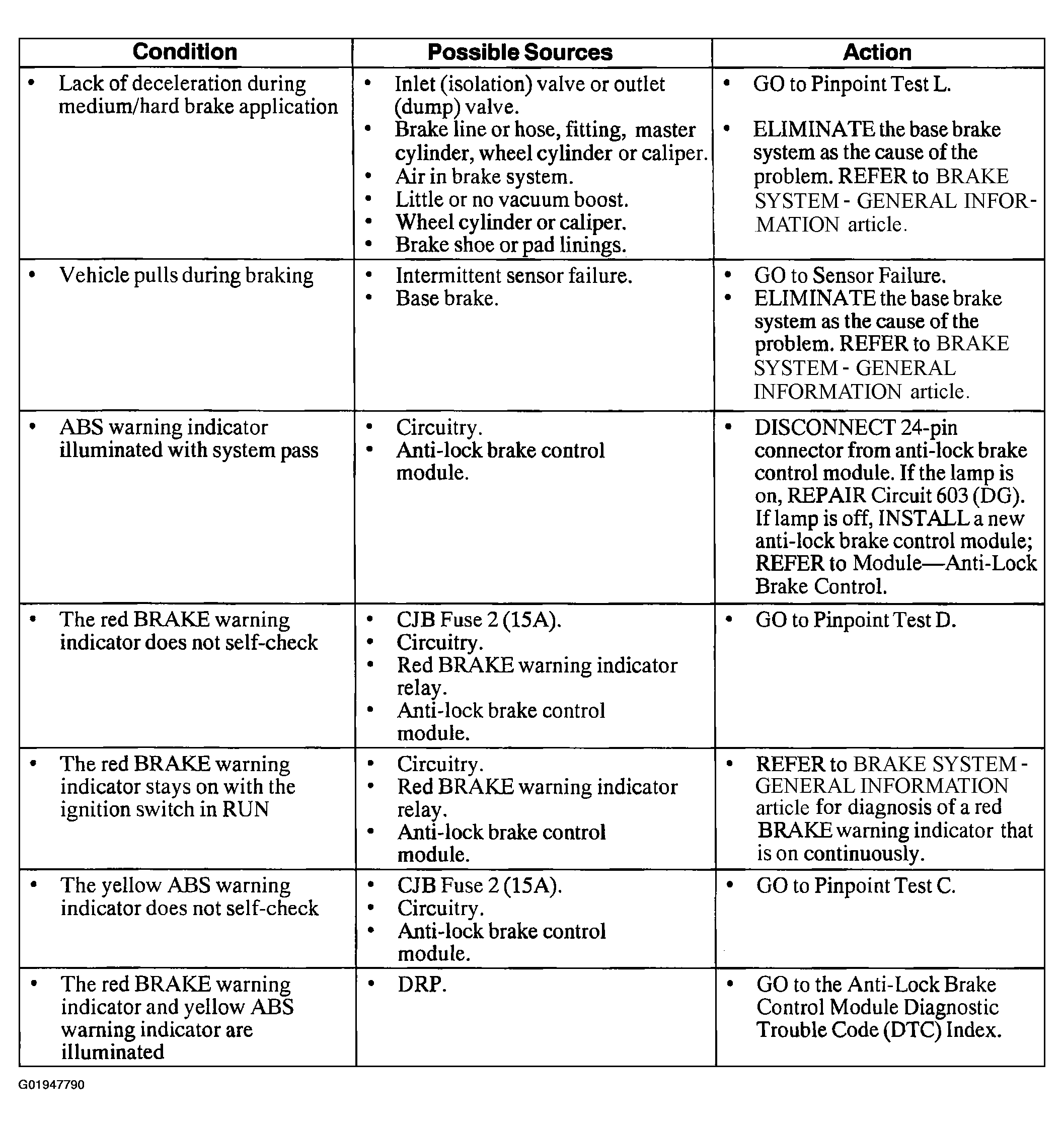

SYMPTOM CHART
NOTE:
Refer to appropriate SYSTEM WIRING DIAGRAMS
for connector numbers stated in the Pinpoint Tests.
