Shift Control Housing: Disassembly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not disassemble the shift bar housing to determine if parts have worn. Note the condition of the shift fork rails and forks by a visual inspection. If the forks have excessive wear or if they bind when shifted into the various positions, disassemble the shift bar housing to carry out repairs.

Inspect the shift control assembly.

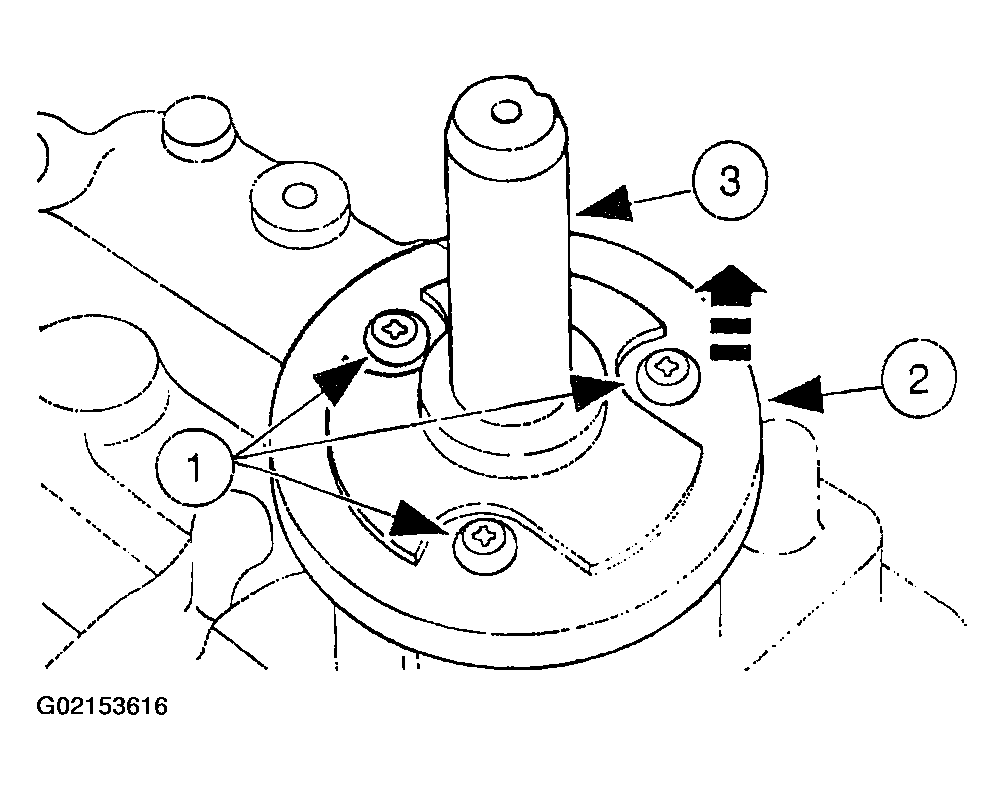

Remove the lower gearshift lever.
1. Remove the dust cover screws.
2. Remove the dust cover.
3. Remove the lower gearshift lever.
Fig 1: Removing Lower Gearshift Lever
Courtesy of FORD MOTOR CO.
Remove the reverse lamp switch and the actuating pin.

Fig 2: Removing Reverse Lamp Switch & Actuating Pin
Courtesy of FORD MOTOR CO.

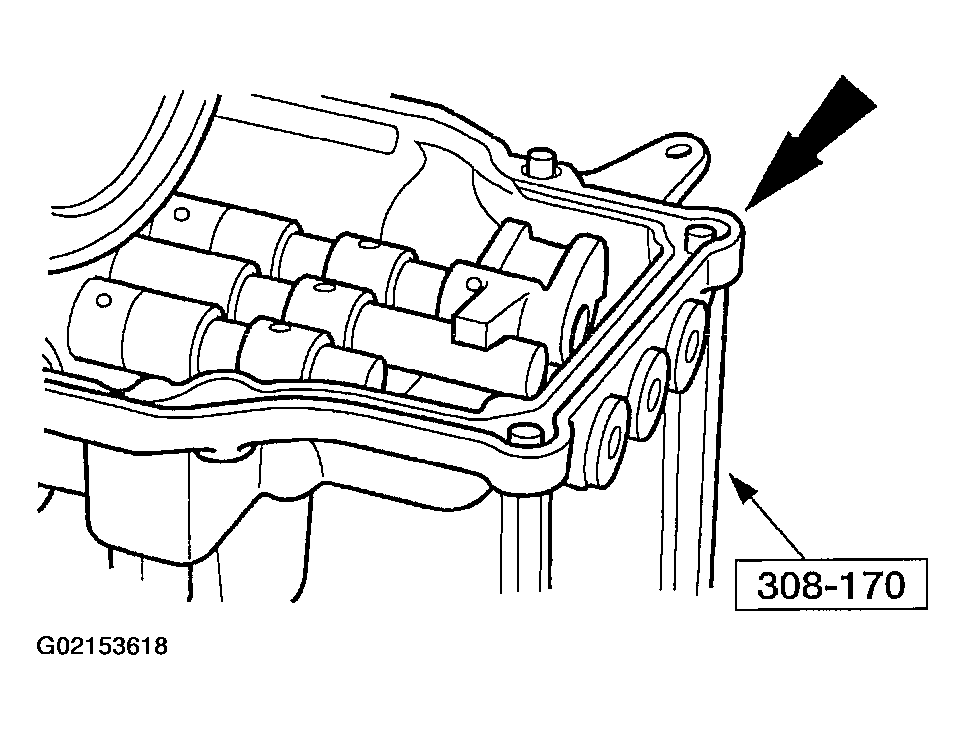

Invert the case cover on the special tool.

Fig 3: Inverting Case Cover On Special Tool
Courtesy of FORD MOTOR CO.

NOTE: Place the shift mechanism in the neutral position.

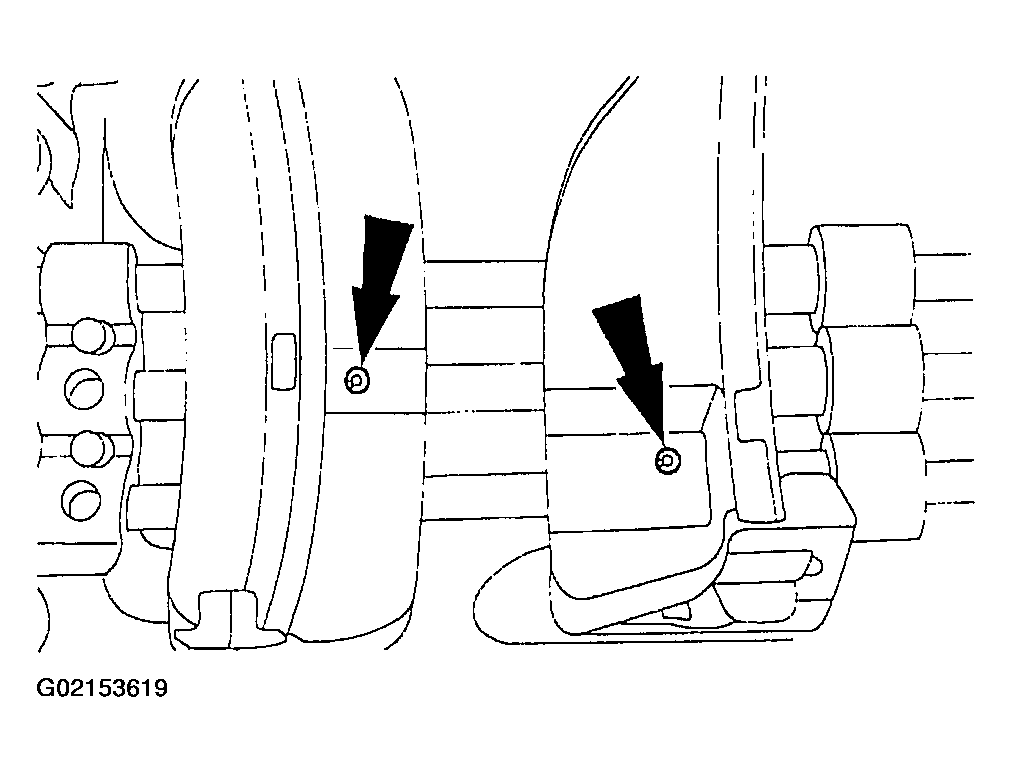

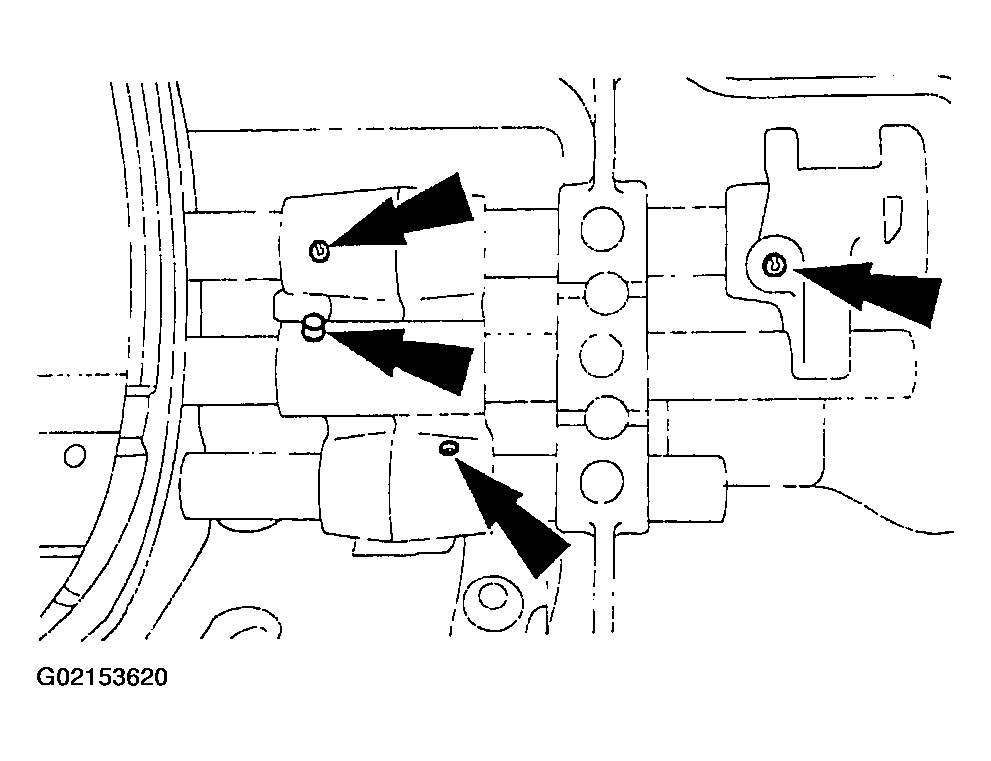

Fig 4: Removing Shift Fork Spring Pins

Courtesy of FORD MOTOR CO.

Remove and discard the shift fork spring pins.
Remove and discard the shift gate spring pins.

Fig 5: Removing Shift Gate Spring Pins
Courtesy of FORD MOTOR CO.

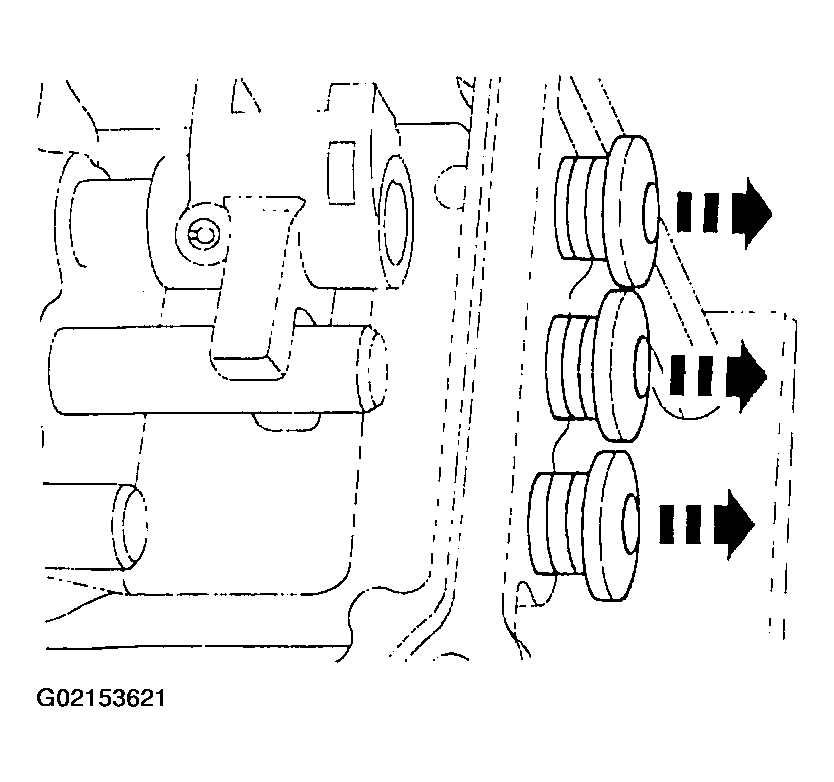

Remove the three rubber service bore plugs.

Fig 6: Removing Rubber Service Bore Plugs
Courtesy of FORD MOTOR CO.

Fig 7: Removing Shift Rail
Courtesy of FORD MOTOR CO.

WARNING: Wear safety glasses while performing shift rail removal procedure.

CAUTION: Perform the following shift rail removal procedure with great care. Cover the lockball and friction device bores and spring seats with a clean cloth held firmly into place during shift rail removal. Failure to cover bores can result in component loss when the ball/friction device and spring forcefully leave their installed positions.

NOTE: When removing the shift rails, collect and separate the interlock pins to ensure installation into their original locations.

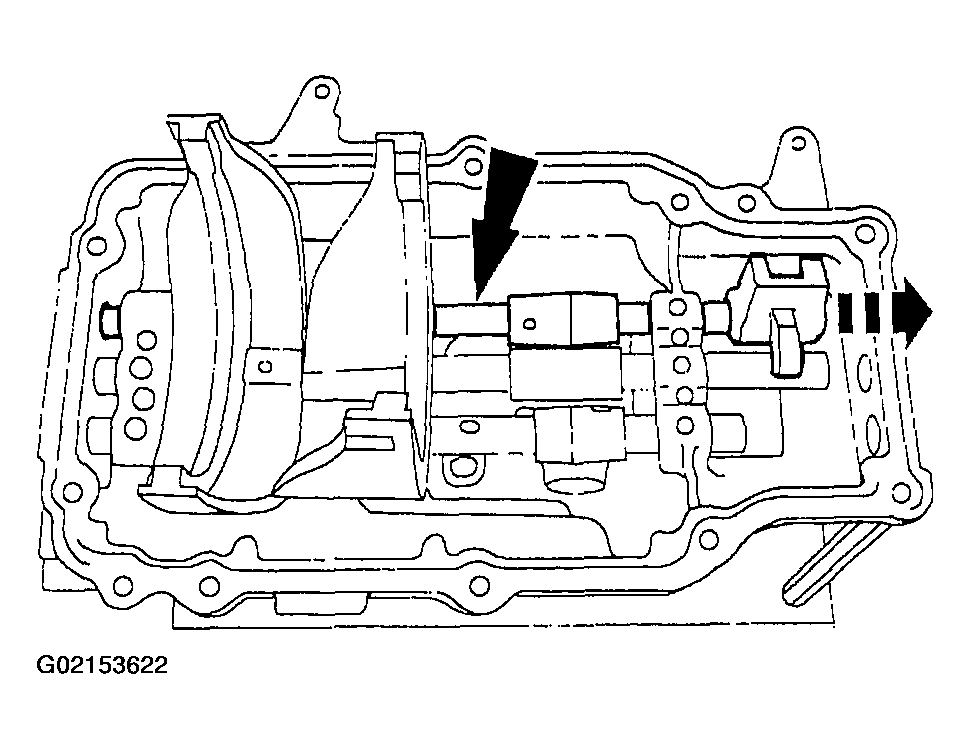

Fig 8: Removing Fifth/Reverse Shift Rail

Courtesy of FORD MOTOR CO.

Use the spring pin bore to remove the fifth/reverse shift rail.

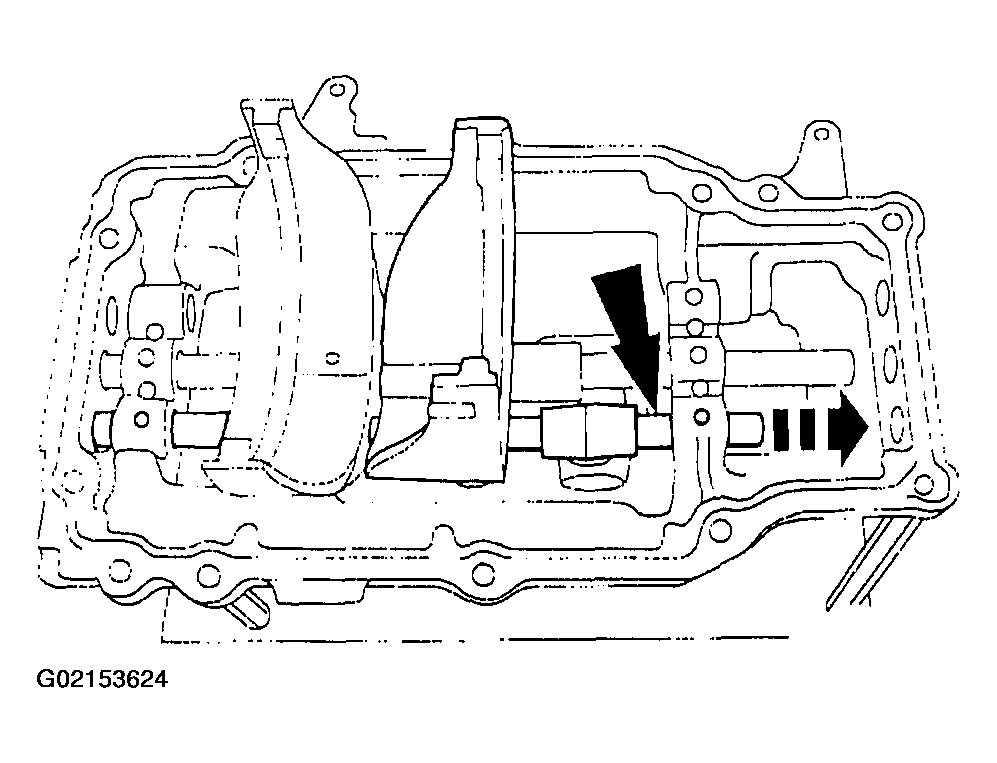

Remove the first/second shift rail.
- Use a suitable punch in the spring pin bore to aid removal.
Fig 9: Removing First/Second Shift Rail
Courtesy of FORD MOTOR CO.

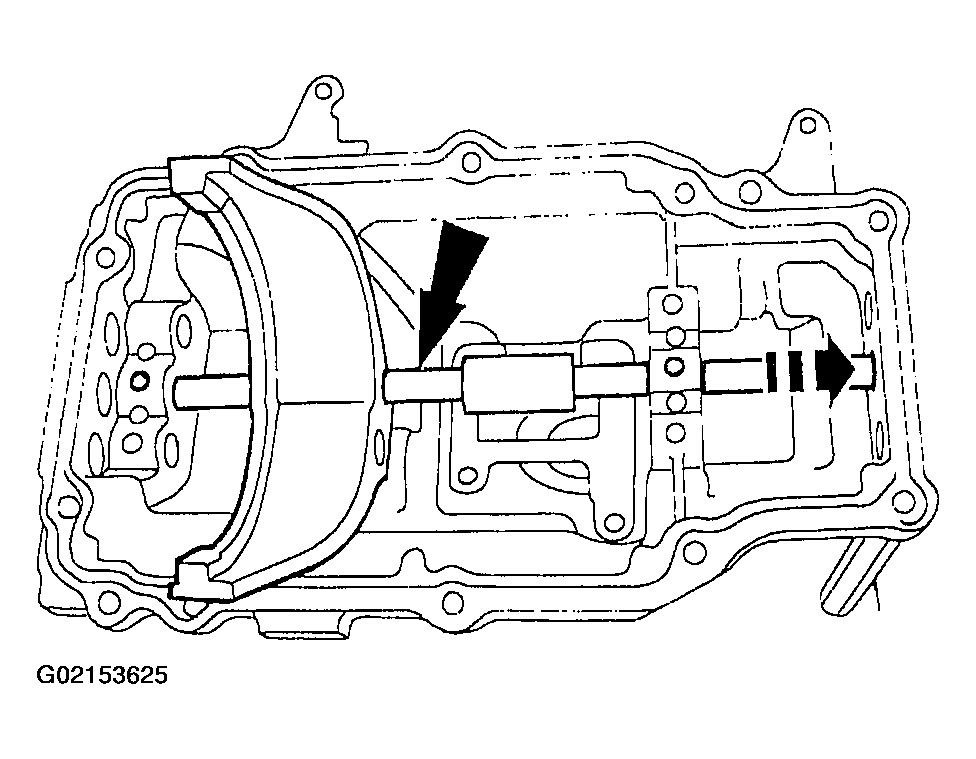

Use the spring pin bore to remove the third/fourth shift rail.

Fig 10: Removing Third/Fourth Shift Rail
Courtesy of FORD MOTOR CO.

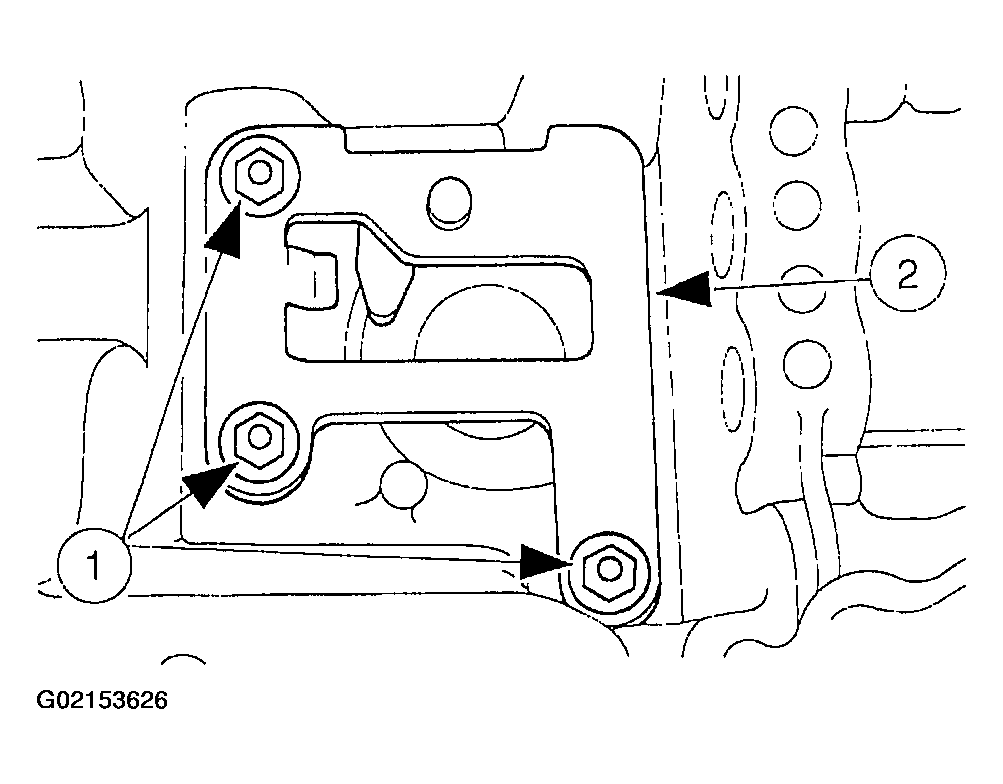

Remove the gear selector interlock sleeve.
1. Remove the bolts.
2. Remove the gear selector interlock sleeve.
Fig 11: Removing Gear Selector Interlock Sleeve
Courtesy of FORD MOTOR CO.
