Disassembly & Assembly Of Subassemblies: Synchronizers: Disassembly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mark parts for assembly.

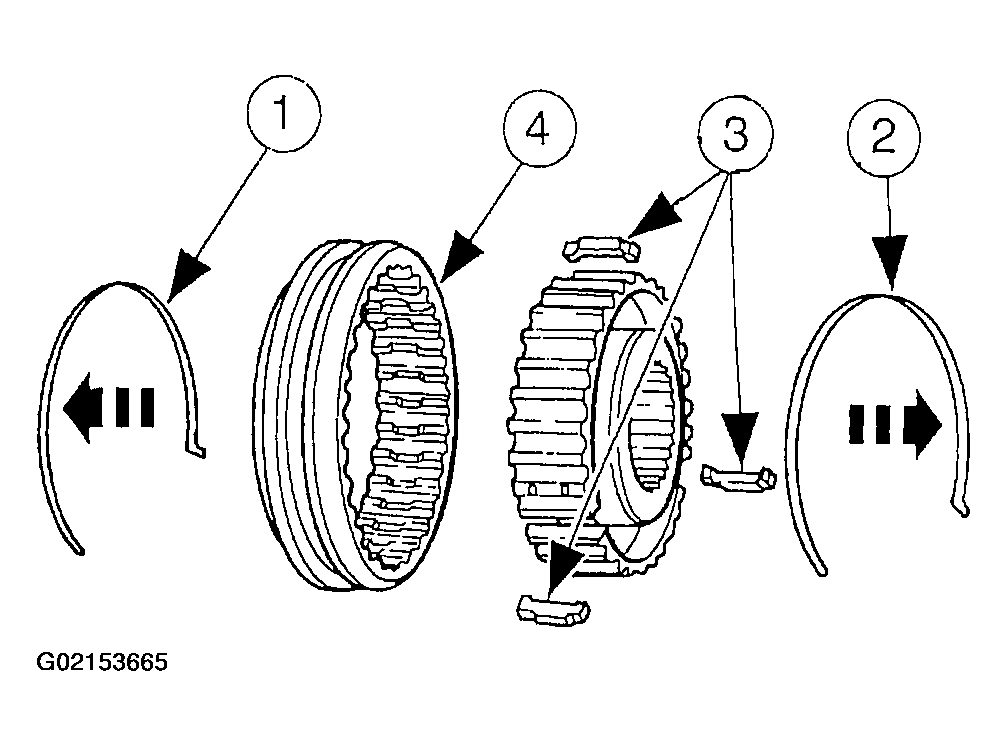

Fig 1: Disassembling Synchronizer

Courtesy of FORD MOTOR CO.

Disassemble the synchronizer.
1. Remove the retaining spring.
2. Flip the synchronizer over and remove the opposite retaining spring.
3. Remove the three insert keys.
4. Remove the sleeve.
Inspect all the synchronizer components for wear and damage.
