Pinpoint Test B: The Key-In-Ignition Chime Does Not Operate Correctly
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

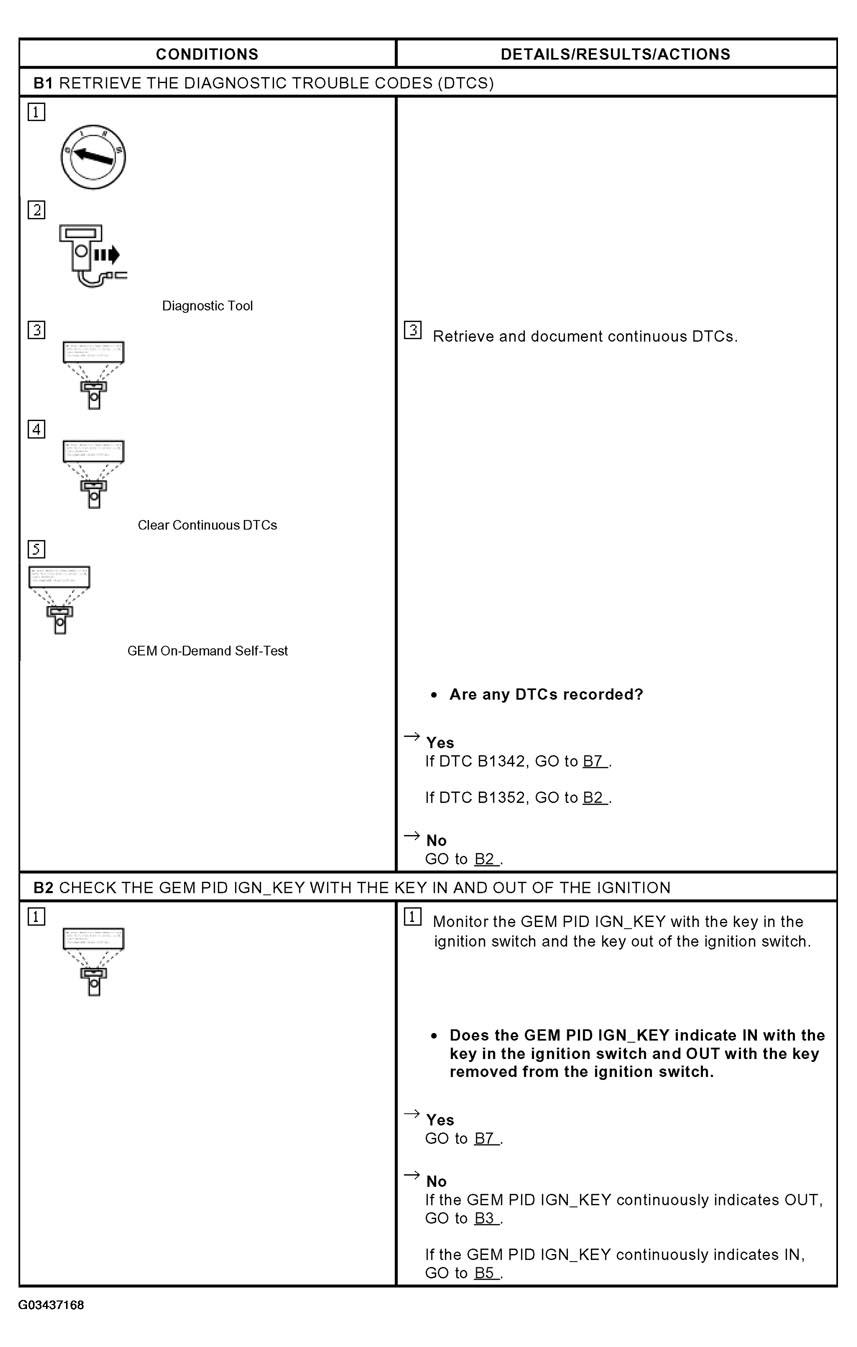

Fig 1: Pinpoint Test B: The Key-In-Ignition Chime Does Not Operate Correctly (B1-B2)
Courtesy of FORD MOTOR CO.

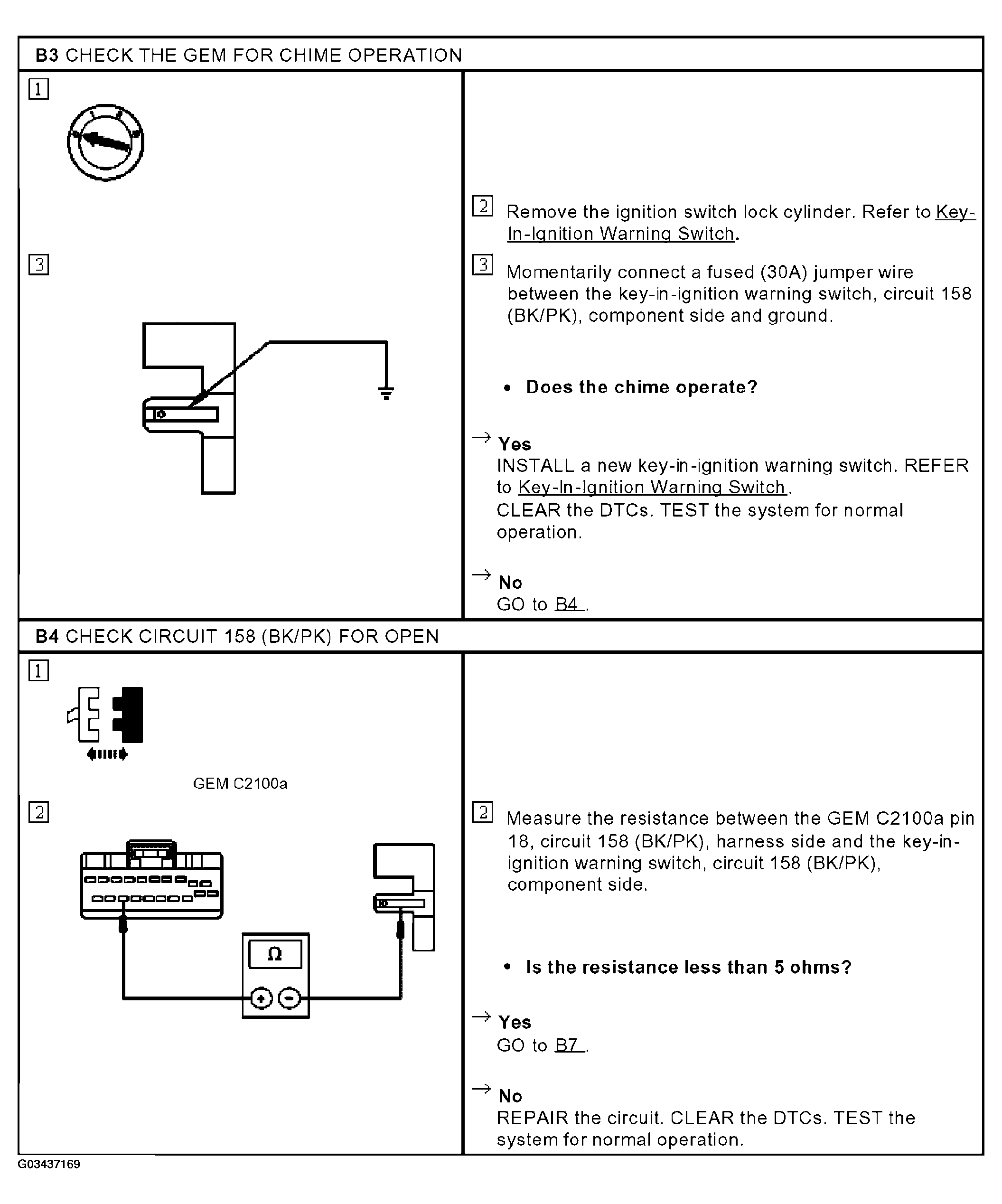

Fig 2: Pinpoint Test B: The Key-In-Ignition Chime Does Not Operate Correctly (B3-B4)
Courtesy of FORD MOTOR CO.

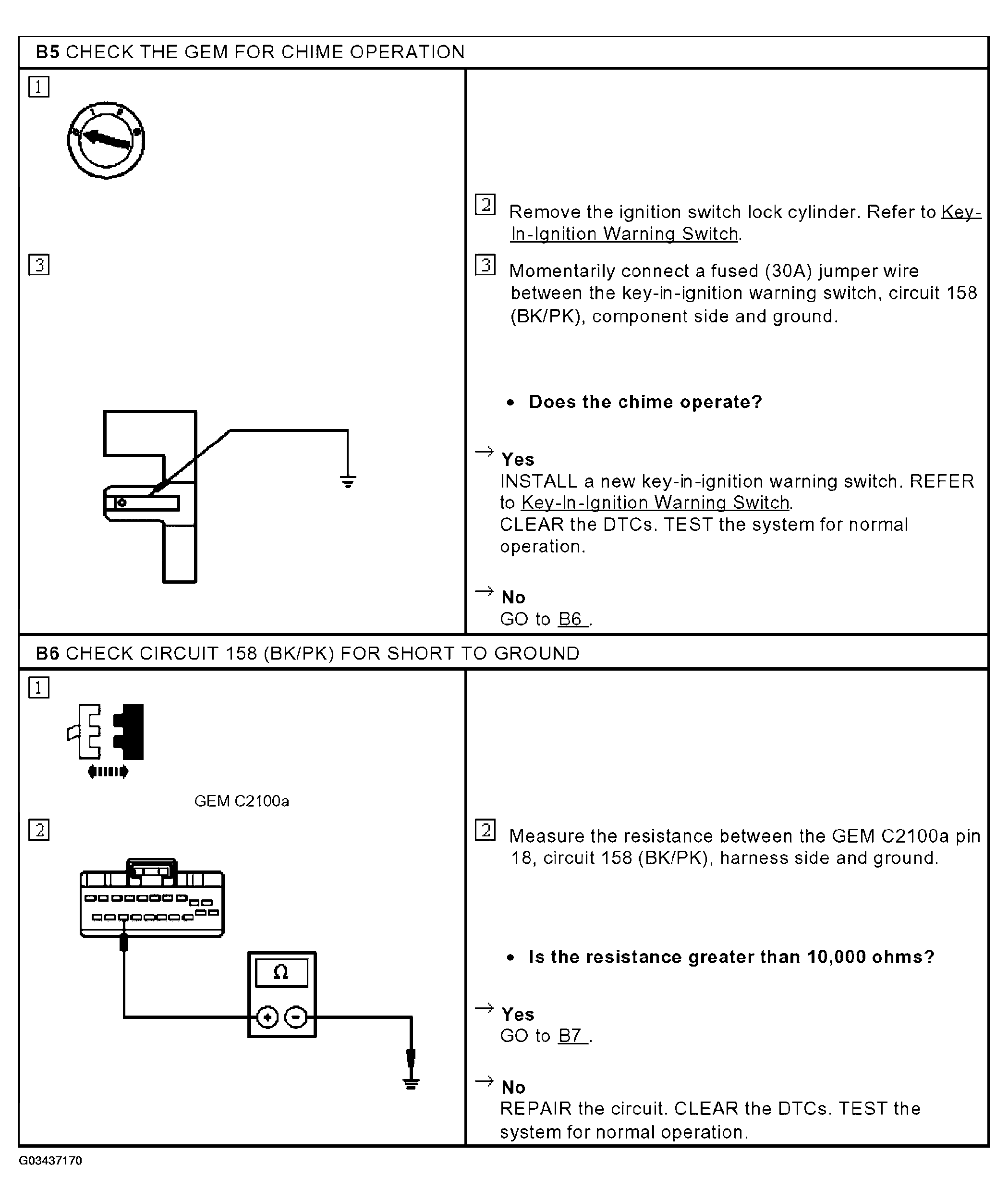

Fig 3: Pinpoint Test B: The Key-In-Ignition Chime Does Not Operate Correctly (B5-B6)
Courtesy of FORD MOTOR CO.

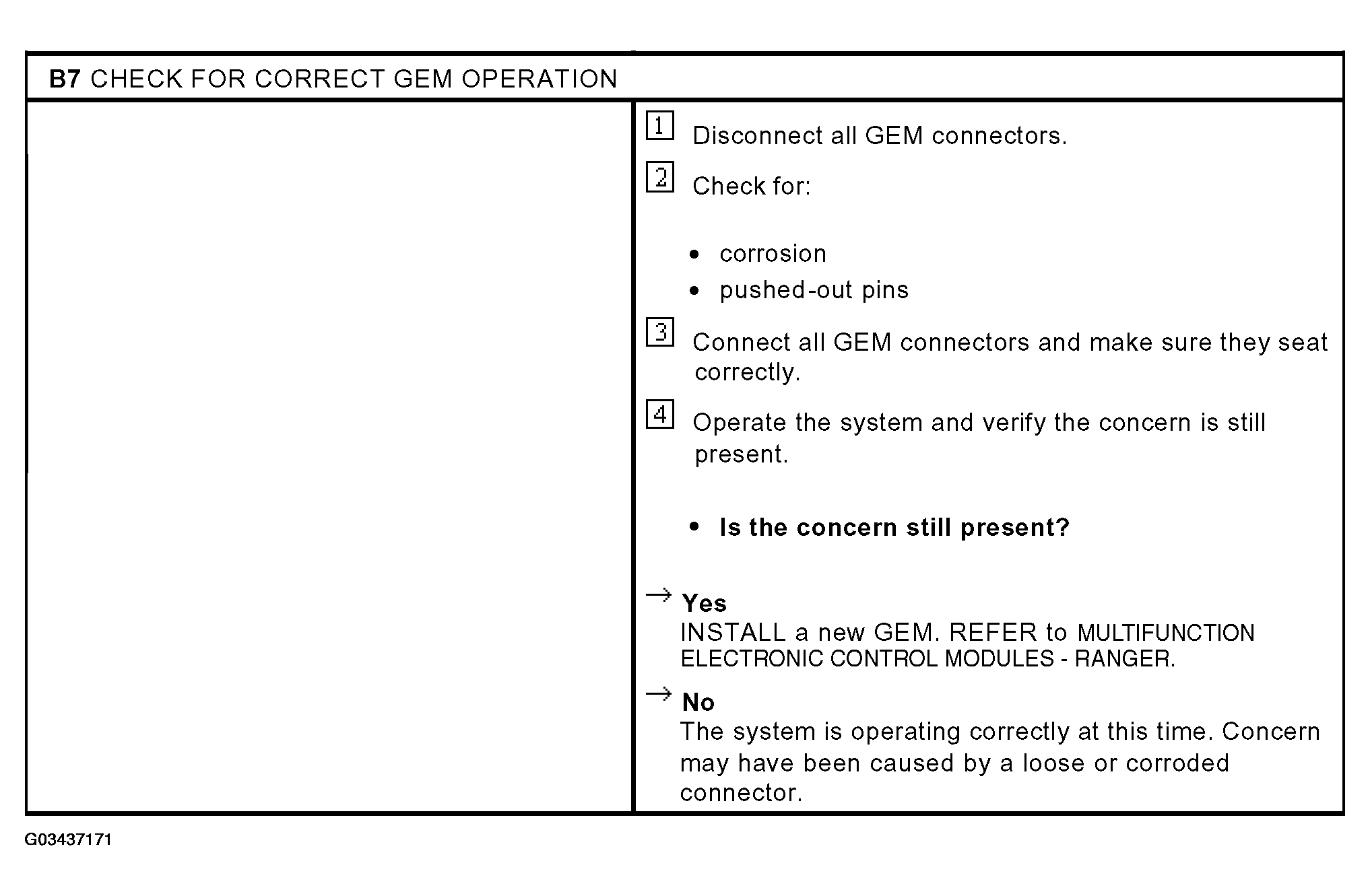

Fig 4: Pinpoint Test B: The Key-In-Ignition Chime Does Not Operate Correctly (B7)
