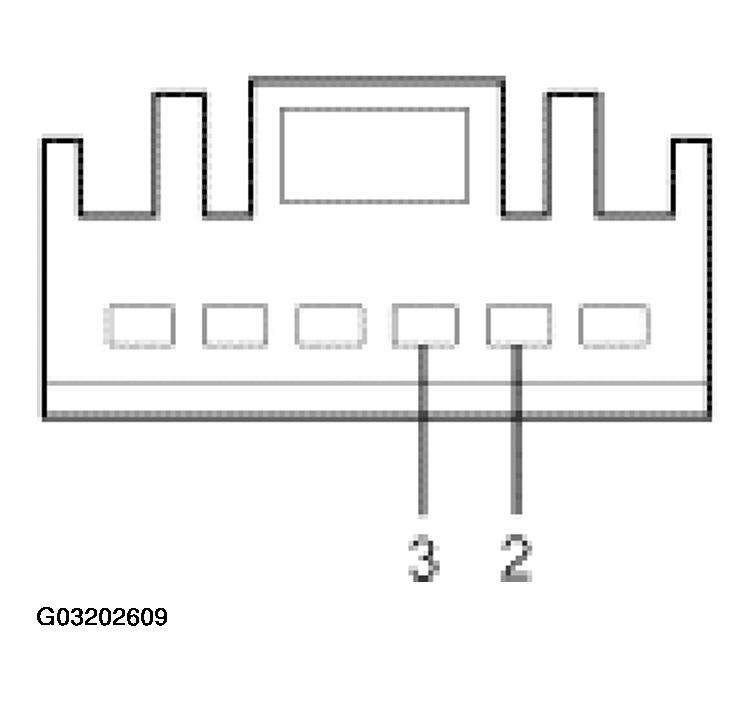

CLOCKSPRING C218B CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | 8-MD26 (WH/BK) auxiliary audio controls, steering wheel, reference voltage. | Greater than 10 volts between audio unit and ground. |
| 3 | 31S-PG1 (BK/BU) steering wheel assembly, switch, common. | Less than 5 ohms between steering wheel switch and the audio unit. |
