Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio unit.
- Insert the removal tool.
- Remove and support the audio unit.

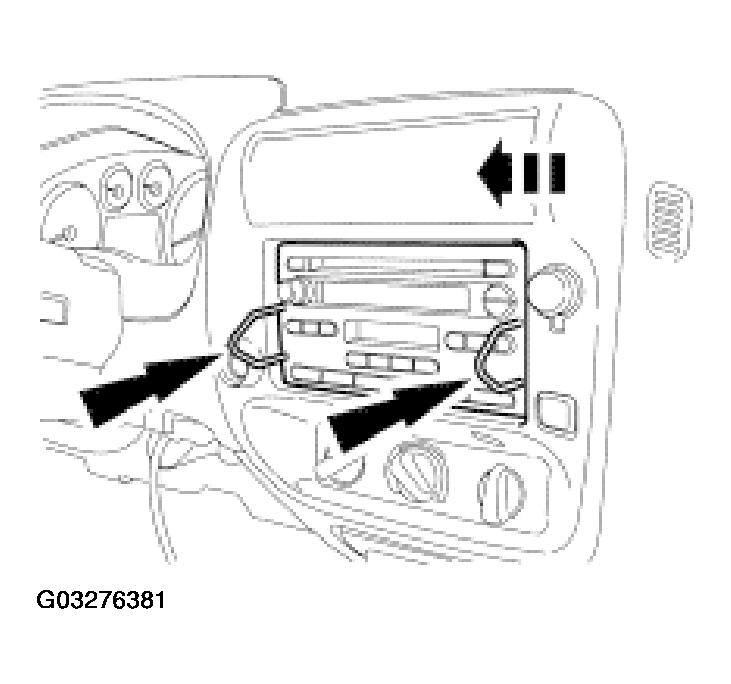

  Fig 1: Removing Audio Unit
  Courtesy of FORD MOTOR CO.
Disconnect the audio unit electrical connector and antenna cable.

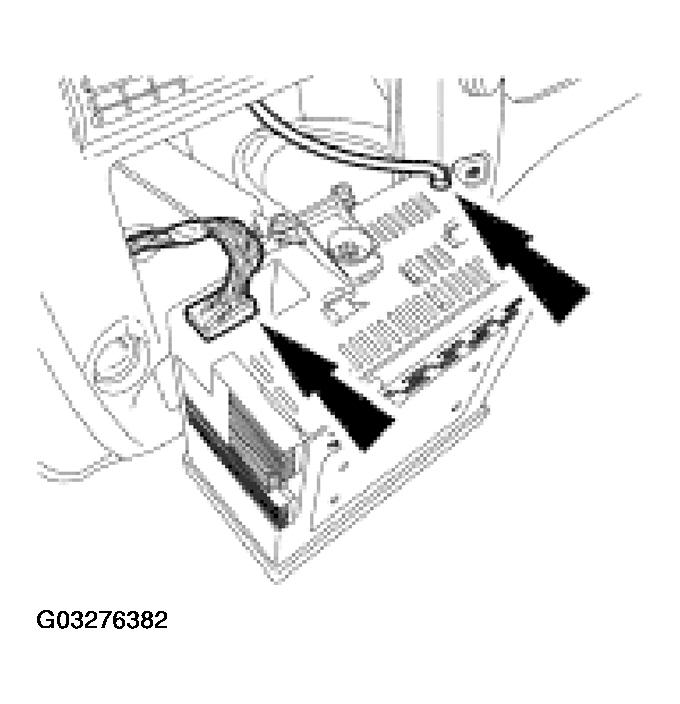

Fig 2: Disconnecting Audio Unit Electrical Connector And Antenna Cable
Courtesy of FORD MOTOR CO.
Remove the screws. Disengage the spring clips. Remove the instrument panel finish panel.

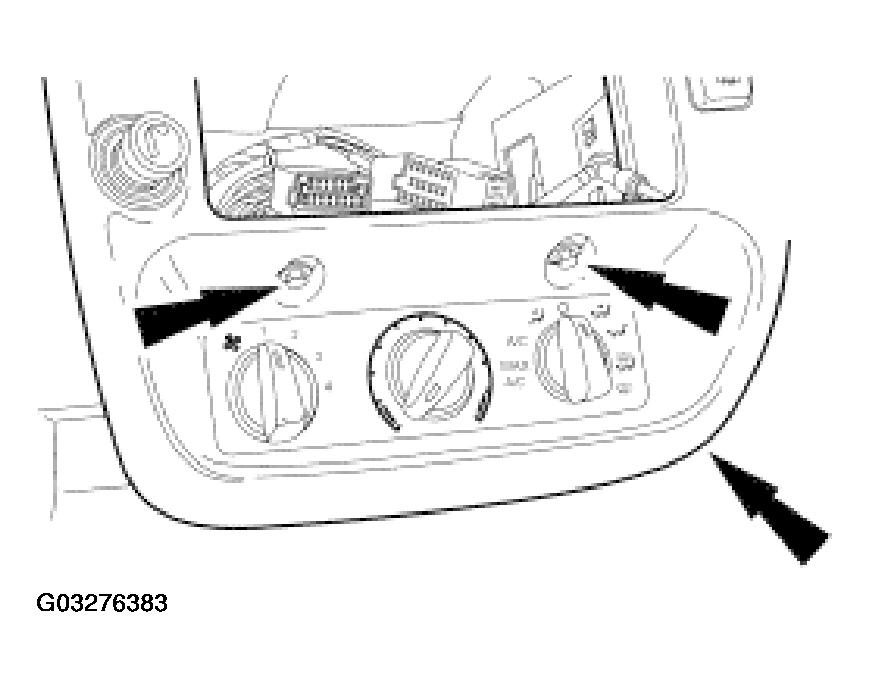

Fig 3: Removing Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Remove the 4WD control module.
- Disengage the locking tangs and remove the harness connectors.
- Remove the screws.
- Remove the 4WD control module.

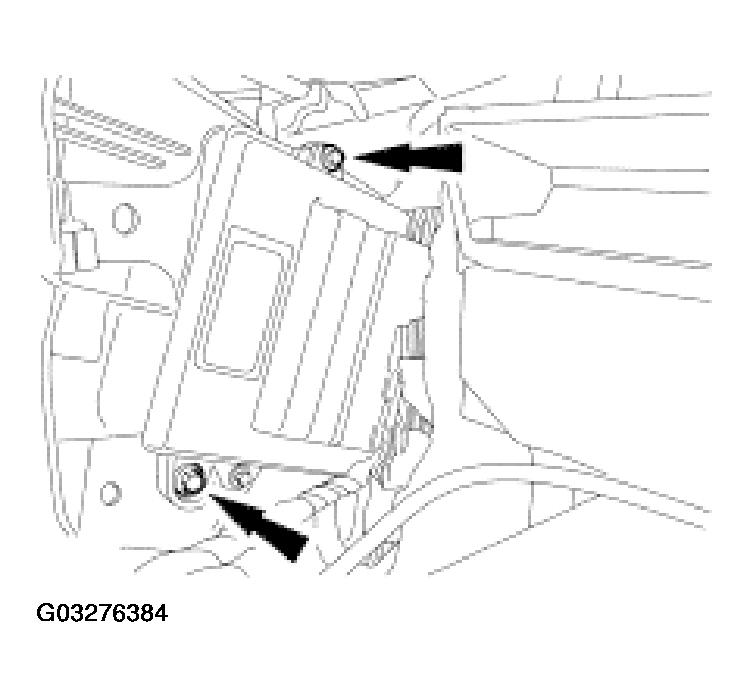

  Fig 4: Removing 4WD Control Module
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
