Keyless Entry Keypad

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration .

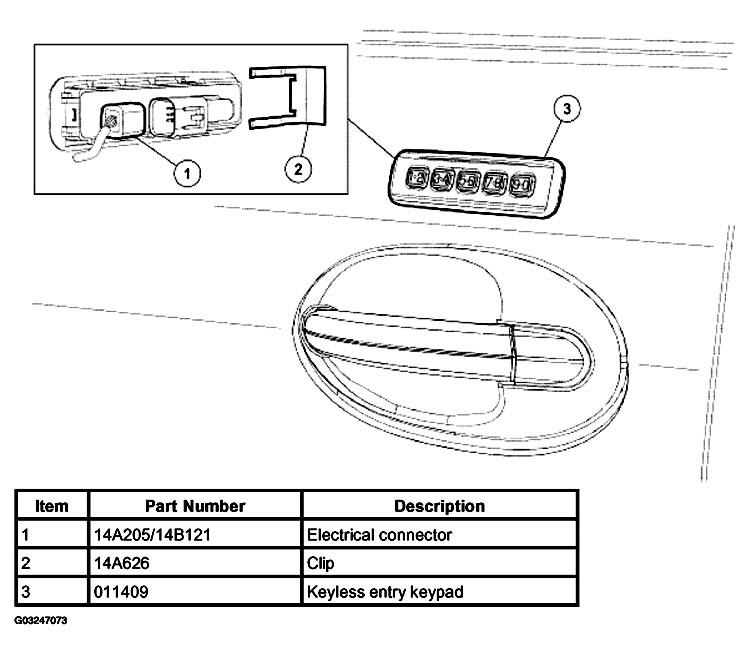

Fig 1: Removing Keyless Entry Keypad
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
