Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the roof opening panel.
- Loosen the four lifter arm bolts.
Fig 1: Loosening Roof Opening Panel
Courtesy of FORD MOTOR CO.
Cycle the moon roof in the following sequence: open, close, vent, close.
Position the roof opening panel to the roof panel as specified.

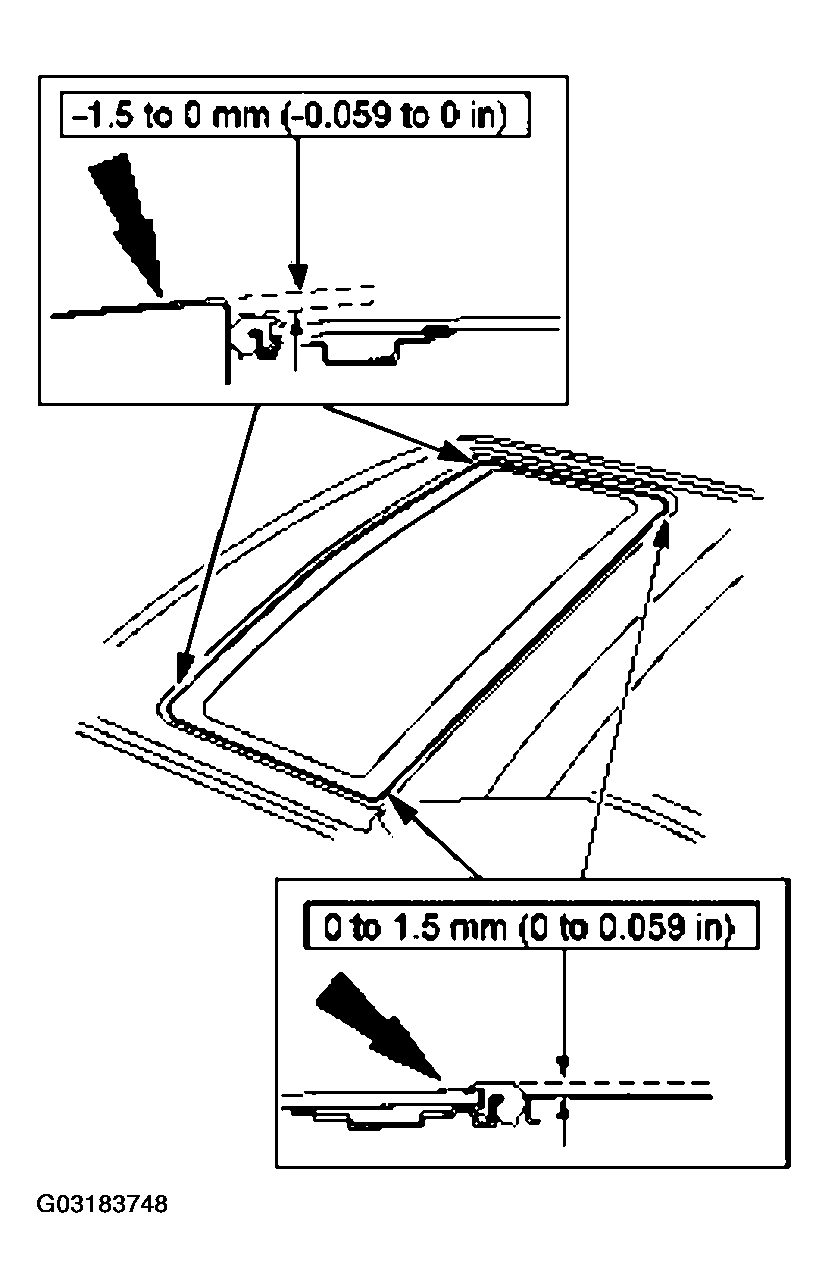

Fig 2: Positioning Roof Opening Panel To Roof Panel
Courtesy of FORD MOTOR CO.
Tighten the four lifter arm bolts.

Fig 3: Tightening Lifter Arm Bolts
Courtesy of FORD MOTOR CO.
