Module - Illuminated Entry: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damages may result.

Disconnect the battery ground cable (14301).

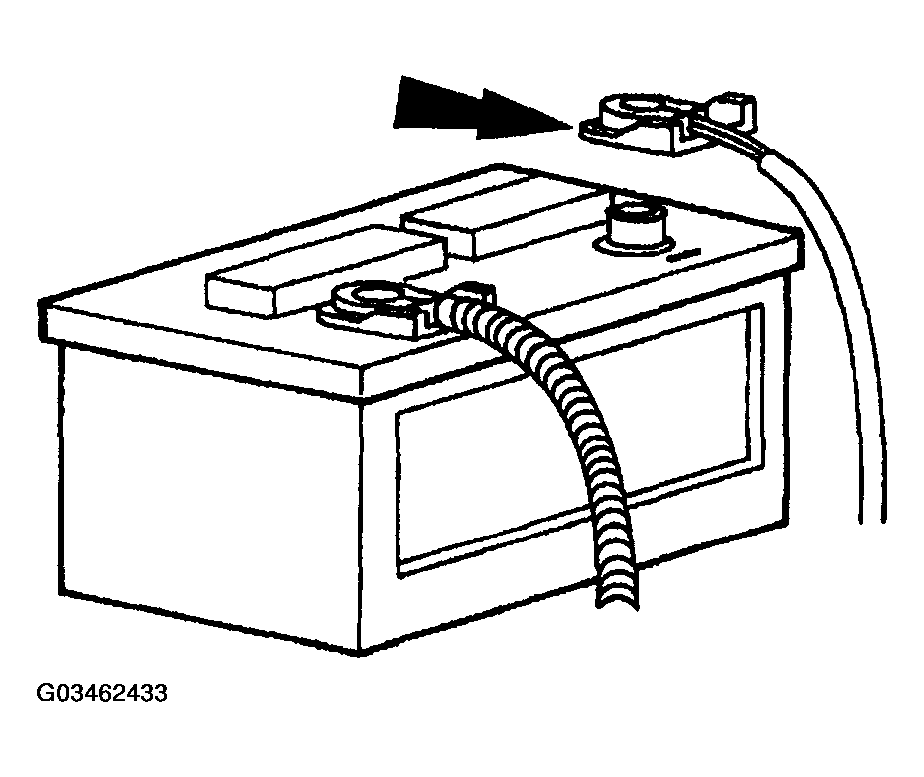

Fig 1: Disconnecting Battery Ground Cable
Courtesy of FORD MOTOR CO.
Remove the engine cover; refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the illuminated entry module.
1. Remove the screws.
2. Disconnect the electrical connector.
3. Remove the illuminated entry module.

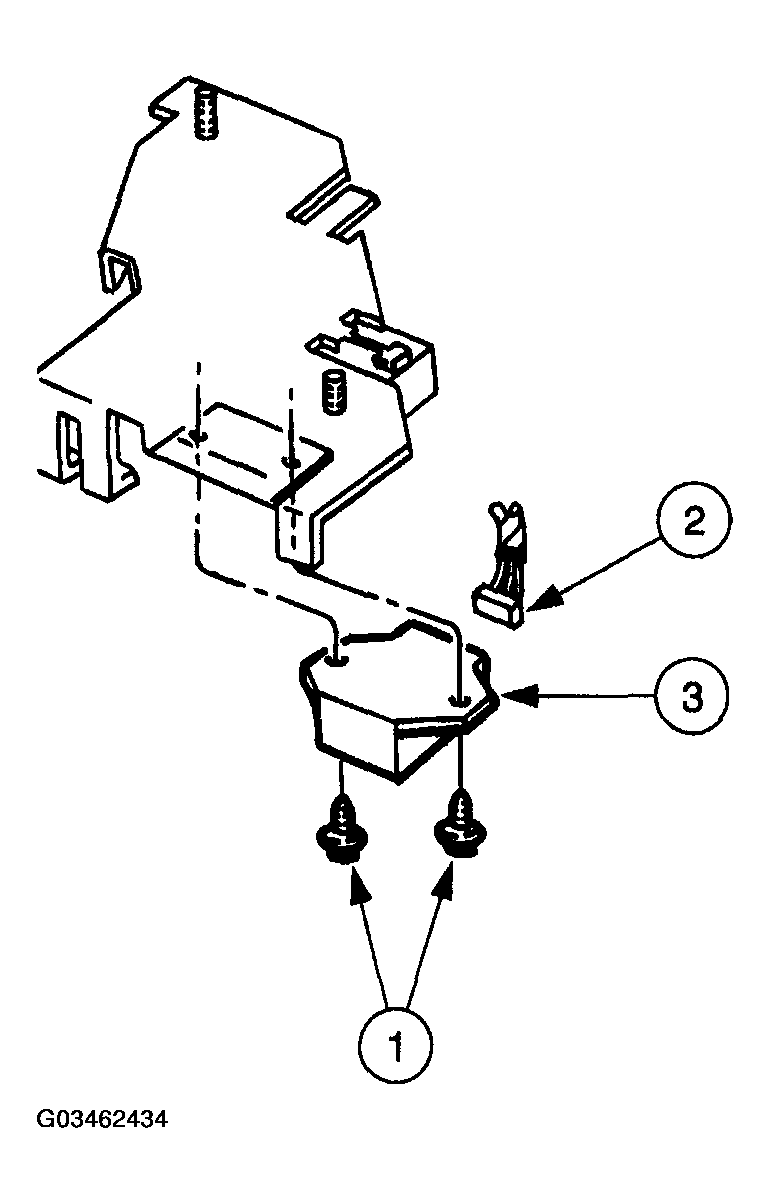

Fig 2: Removing Illuminated Entry Module
Courtesy of FORD MOTOR CO.
