Transmission Range Sensor: Installation
WARNING: This page is about a different car, the 2002 Ford Ranger, 2002 Ford Explorer Sport Trac, and 2002 Ford Explorer Sport. However, it is still accessible from the selected car via links, so may be relevant.

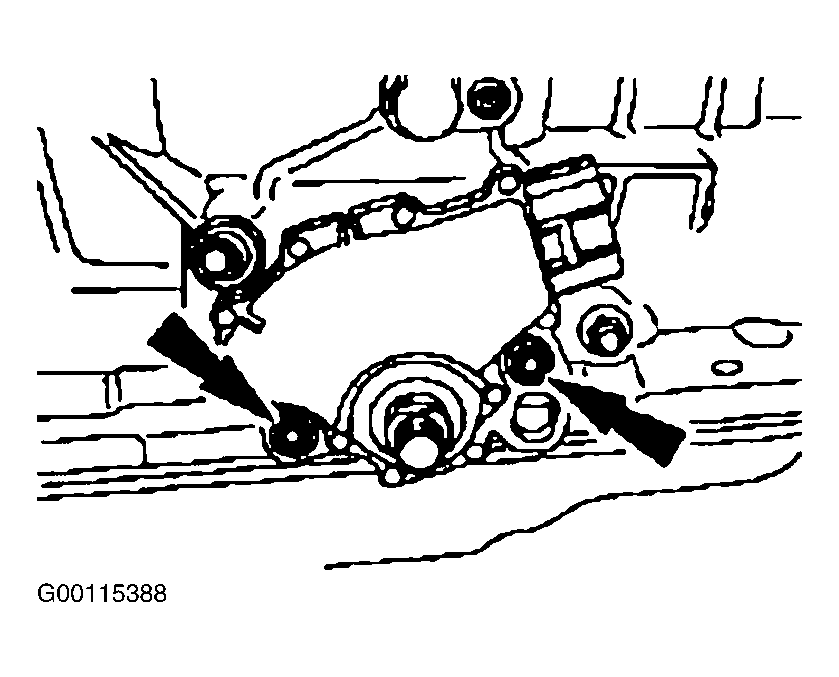

Install TR sensor on manual lever. Install TR sensor bolts and finger tighten them. See Figure . Adjust TR sensor. See TRANSMISSION RANGE SENSOR under ADJUSTMENTS. Tighten TR sensor bolts to specification. See TORQUE SPECIFICATIONS . Install manual selector lever and nut and tighten to specification. See TORQUE SPECIFICATIONS . Connect TR sensor harness connector. Install shift linkage and adjust if necessary.
