Power Door Lock Control Module

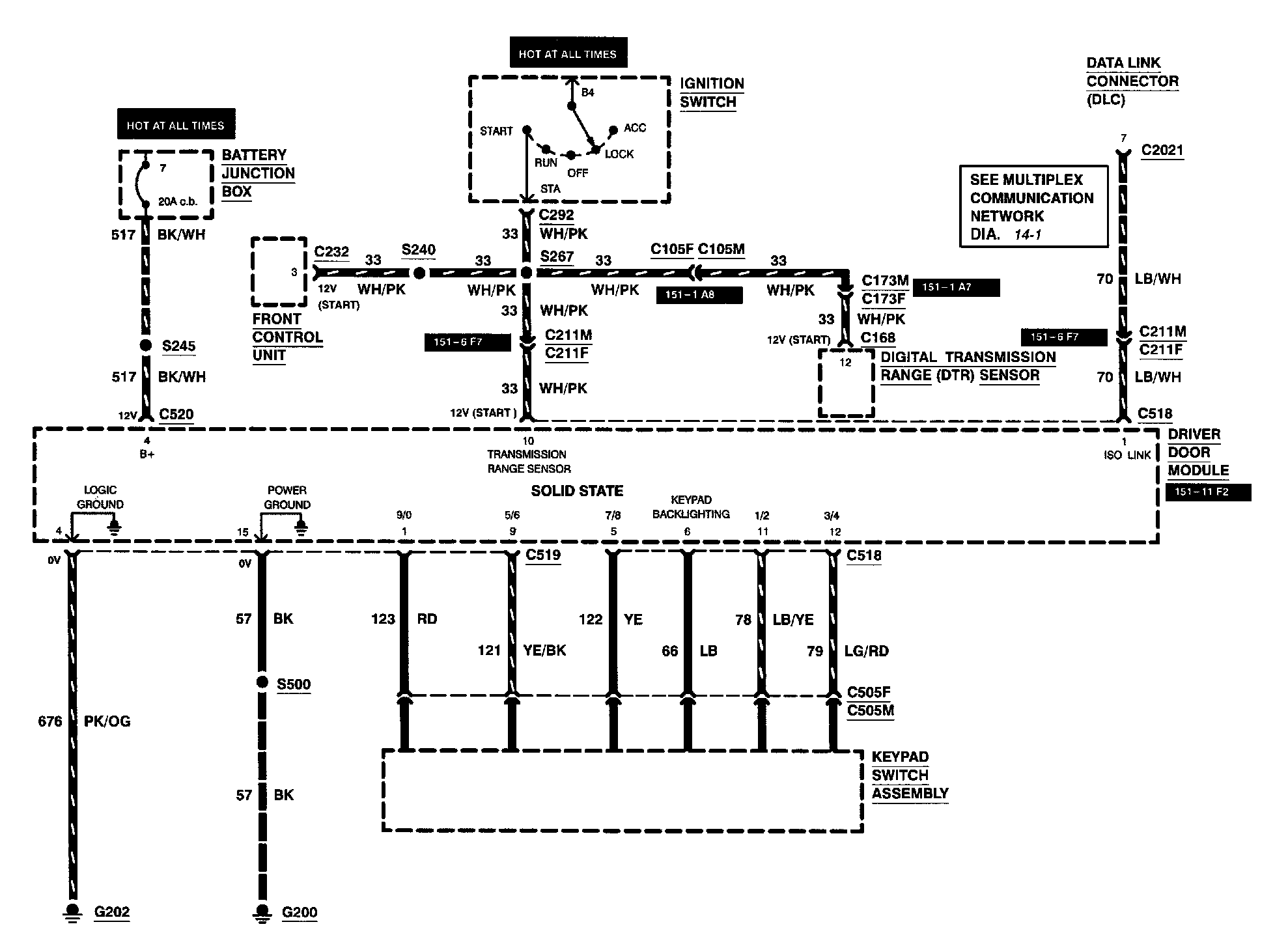

Diagram 57-1:

Battery Junction Box
Circuit Breaker 7
Data Link Connector
Digital Transmission Range Sensor
Driver Door Module
Front Control Unit
Ignition Switch
Keypad Switch Assembly

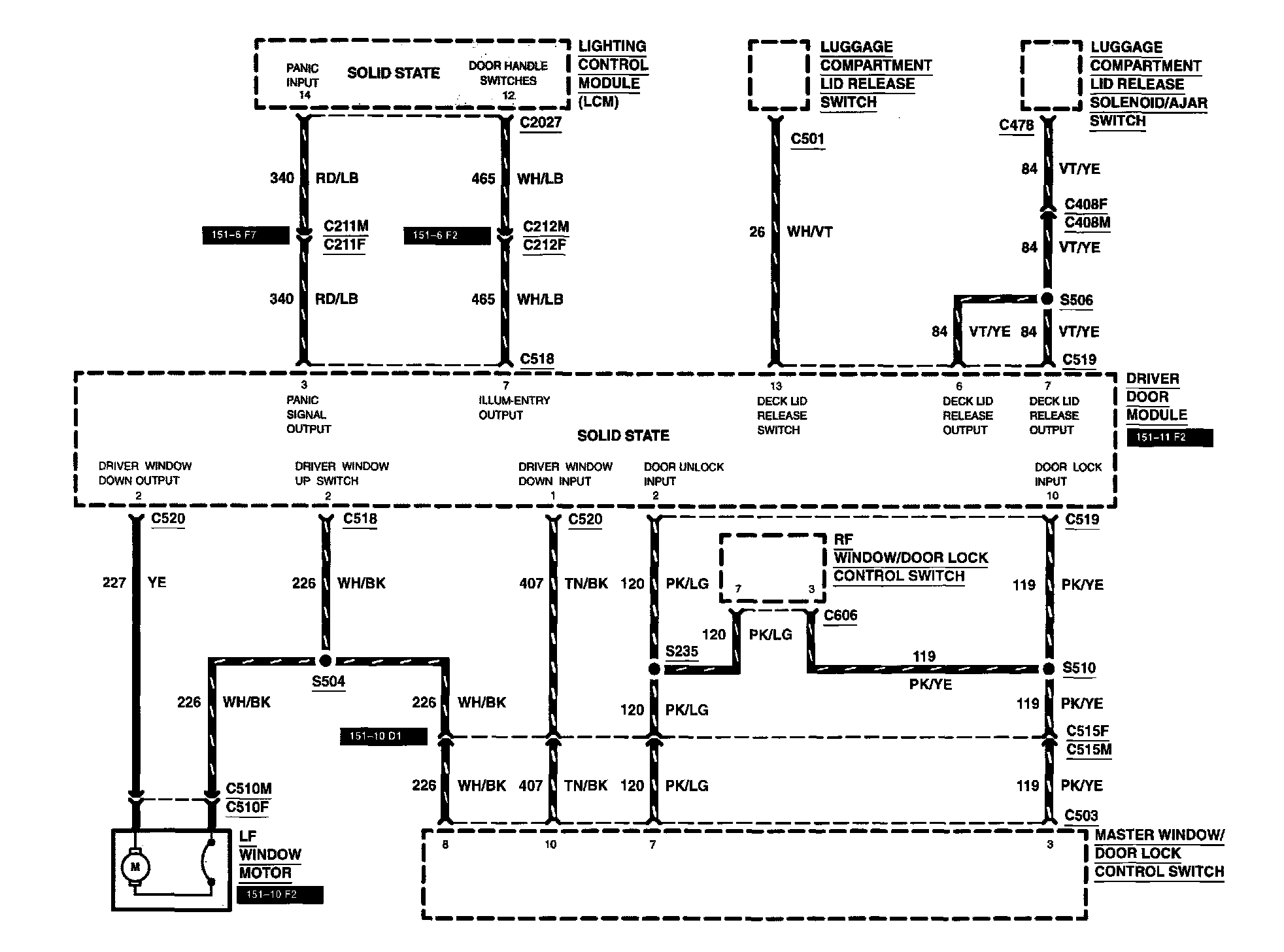

Diagram 57-2:

Driver Door Module
LF Window Motor
Lighting Control Module
Luggage Compartment Lid Release Solenoid/Ajar Switch
Luggage Compartment Lid Release Switch
Master Window/Door Lock Control Switch
RF Window/Door Lock Control Switch

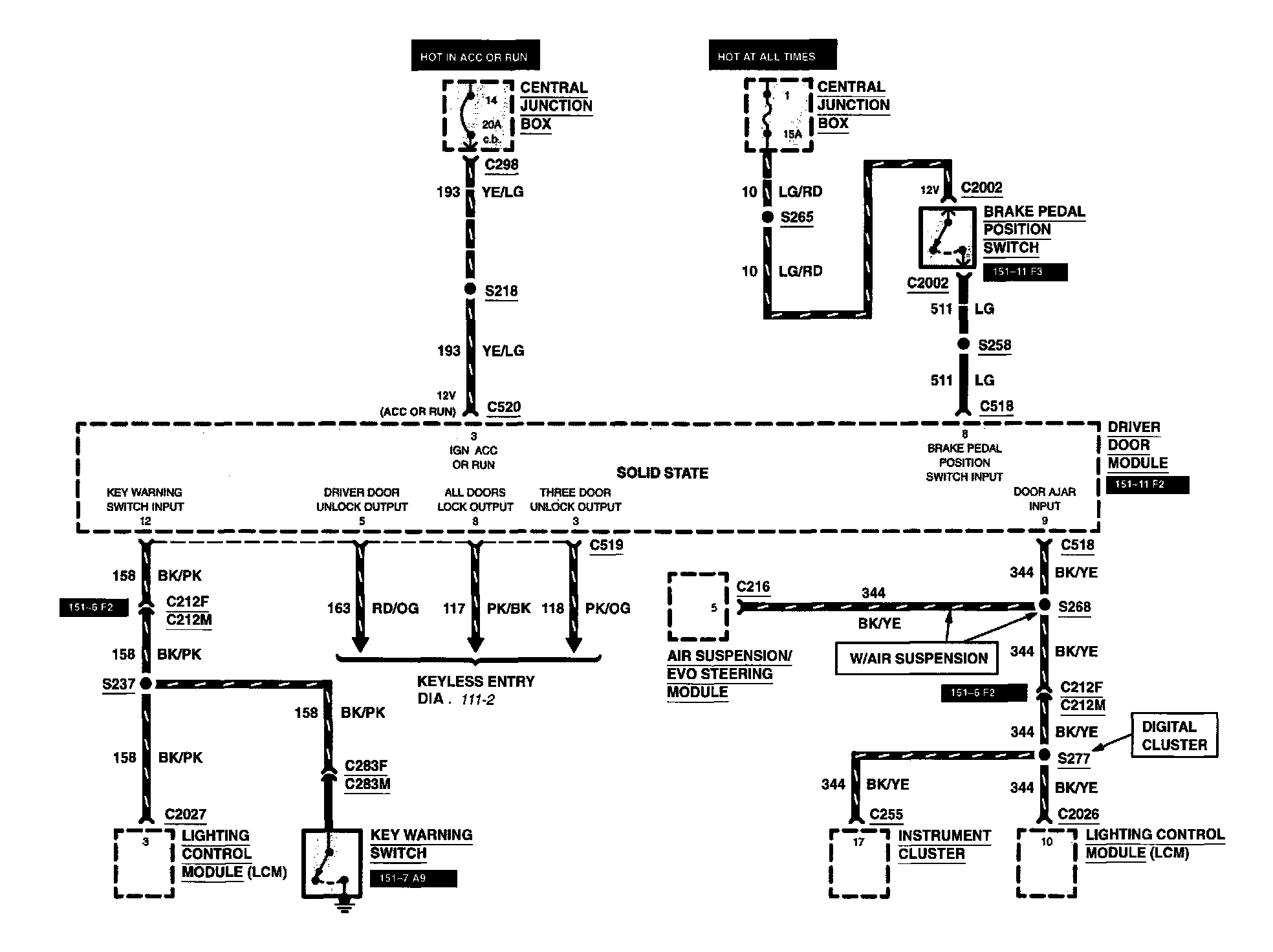

Diagram 57-3:

Air Suspension/Electronic Variable Orifice Steering Module
Brake Pedal Position Switch
Central Junction Box
Circuit Breaker 14
Driver Door Module
Fuse 1
Instrument Cluster
Key Warning Switch
Lighting Control Module
