Exploded Views

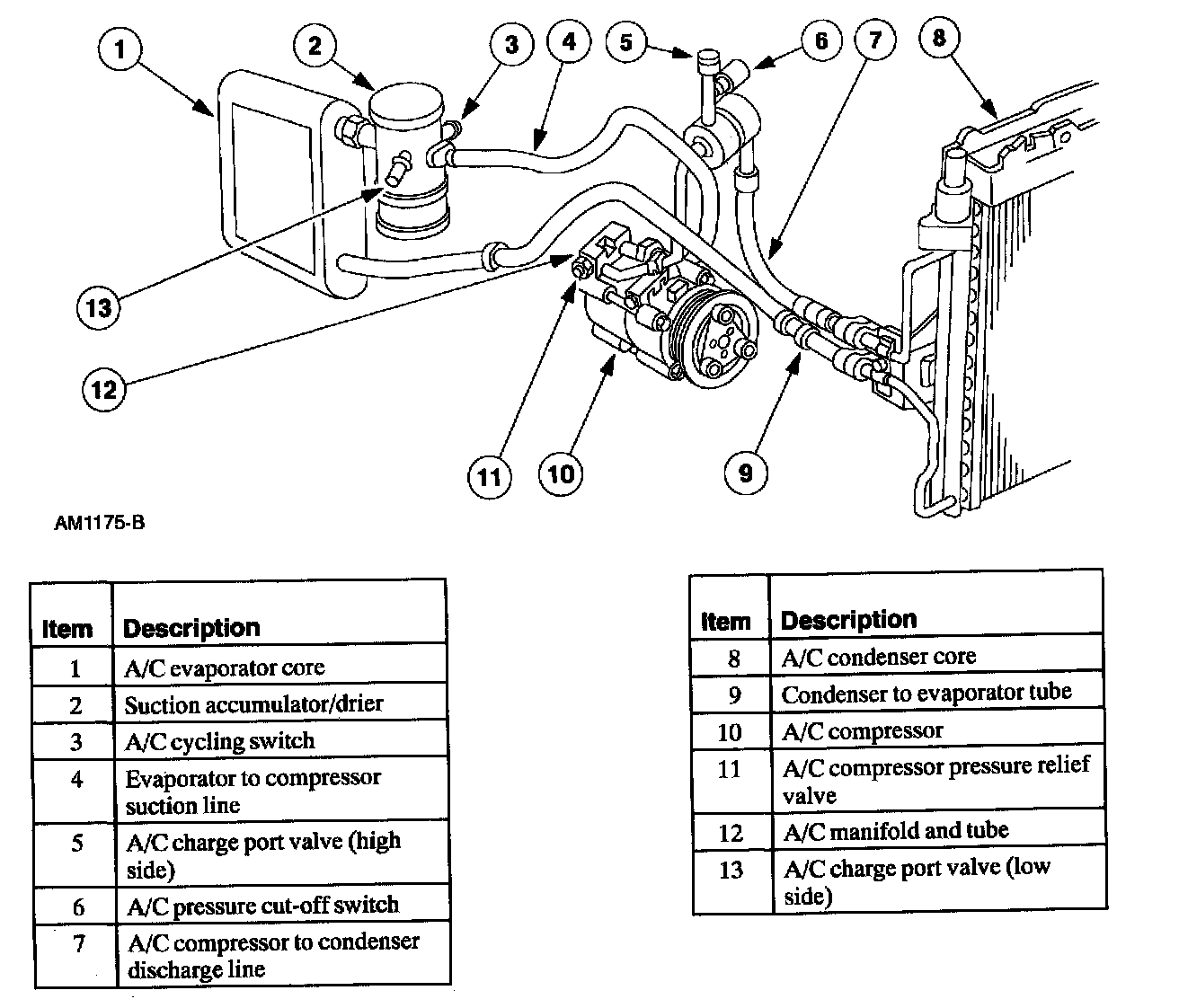

Refrigeration System Components:

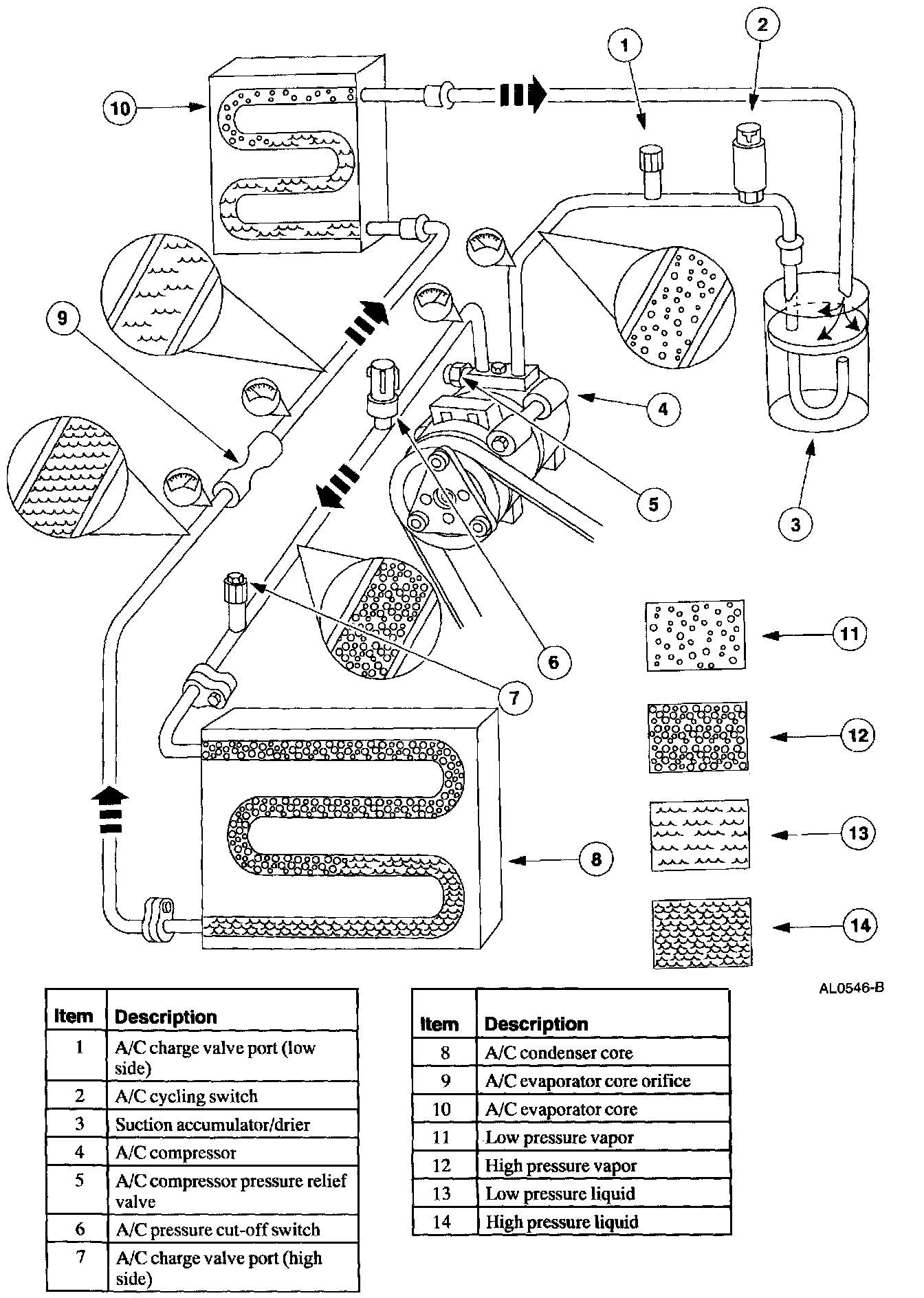

Clutch Cycling Orifice Tube Type Refrigerant System:
