Tests KC: Glow Plug System

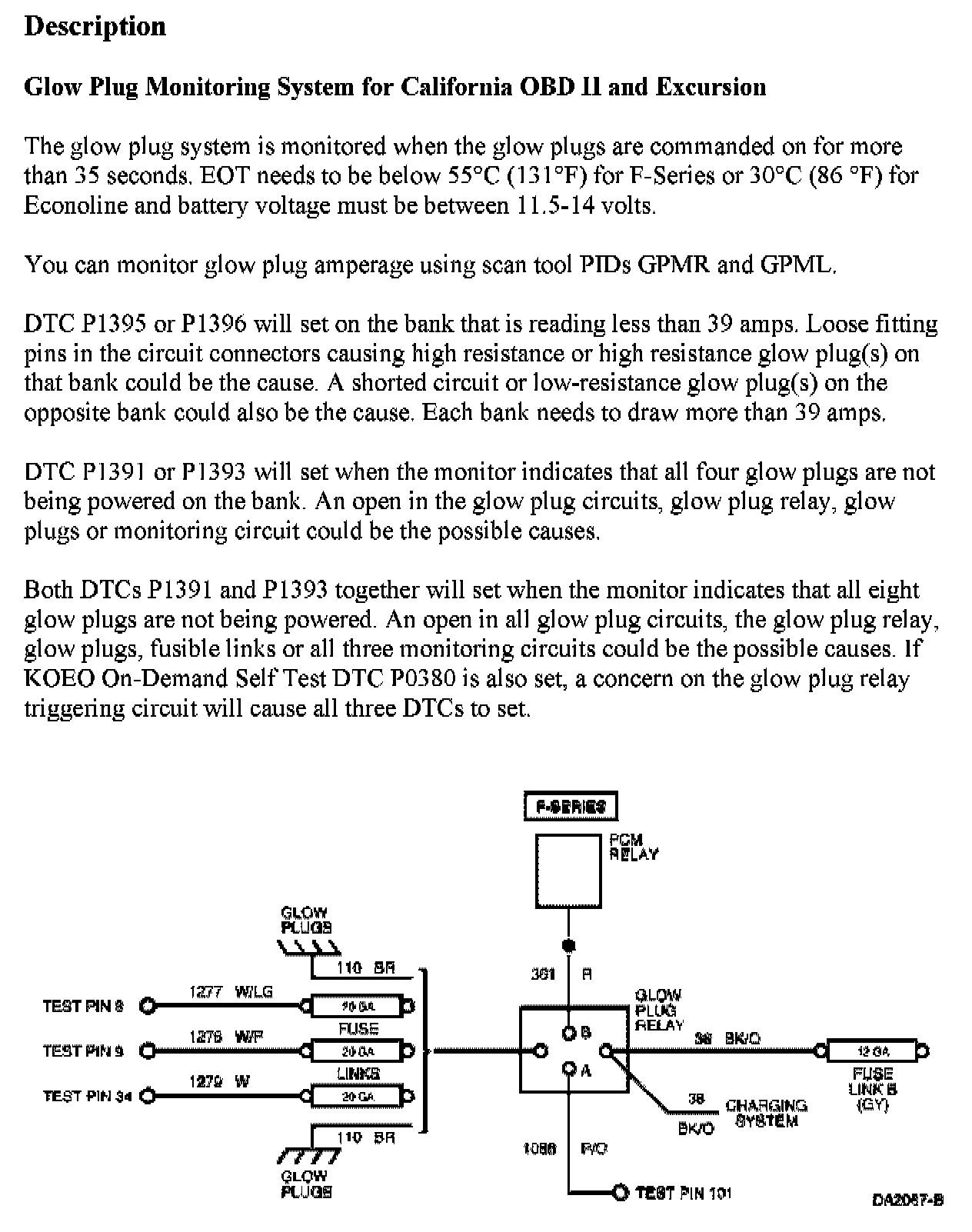

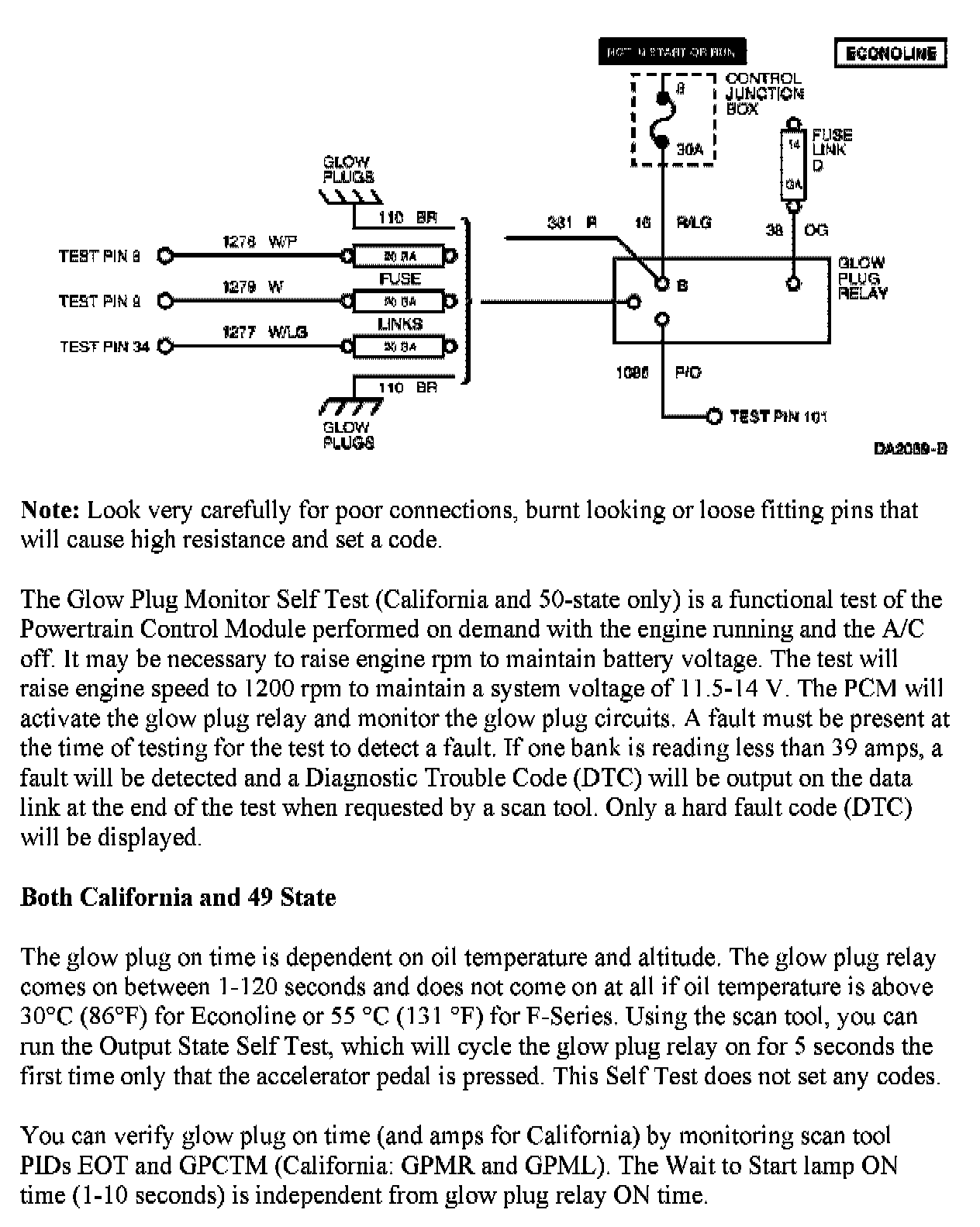

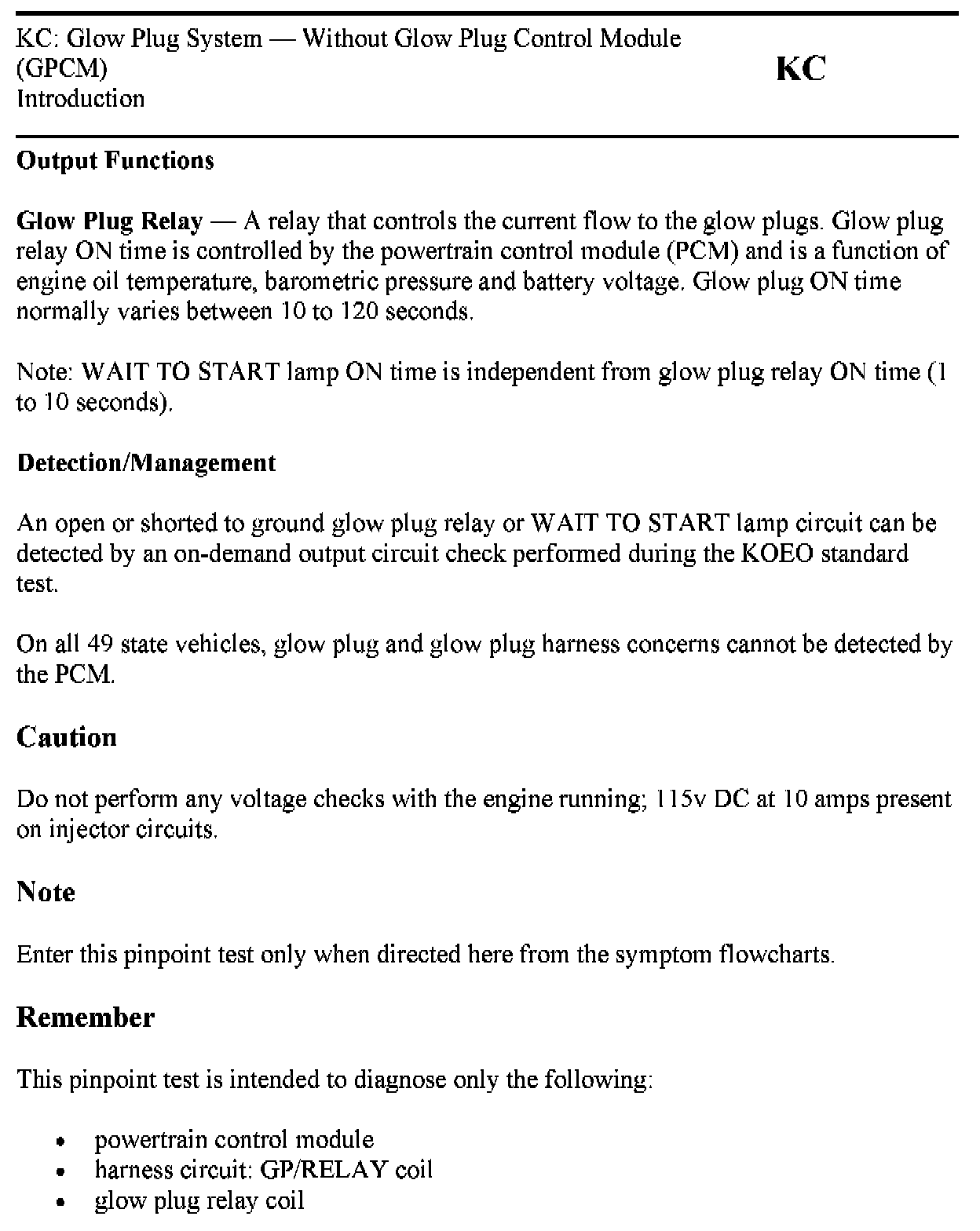

KC: Introduction:





KC: Introduction:





KC: Introduction:





KC: Introduction:

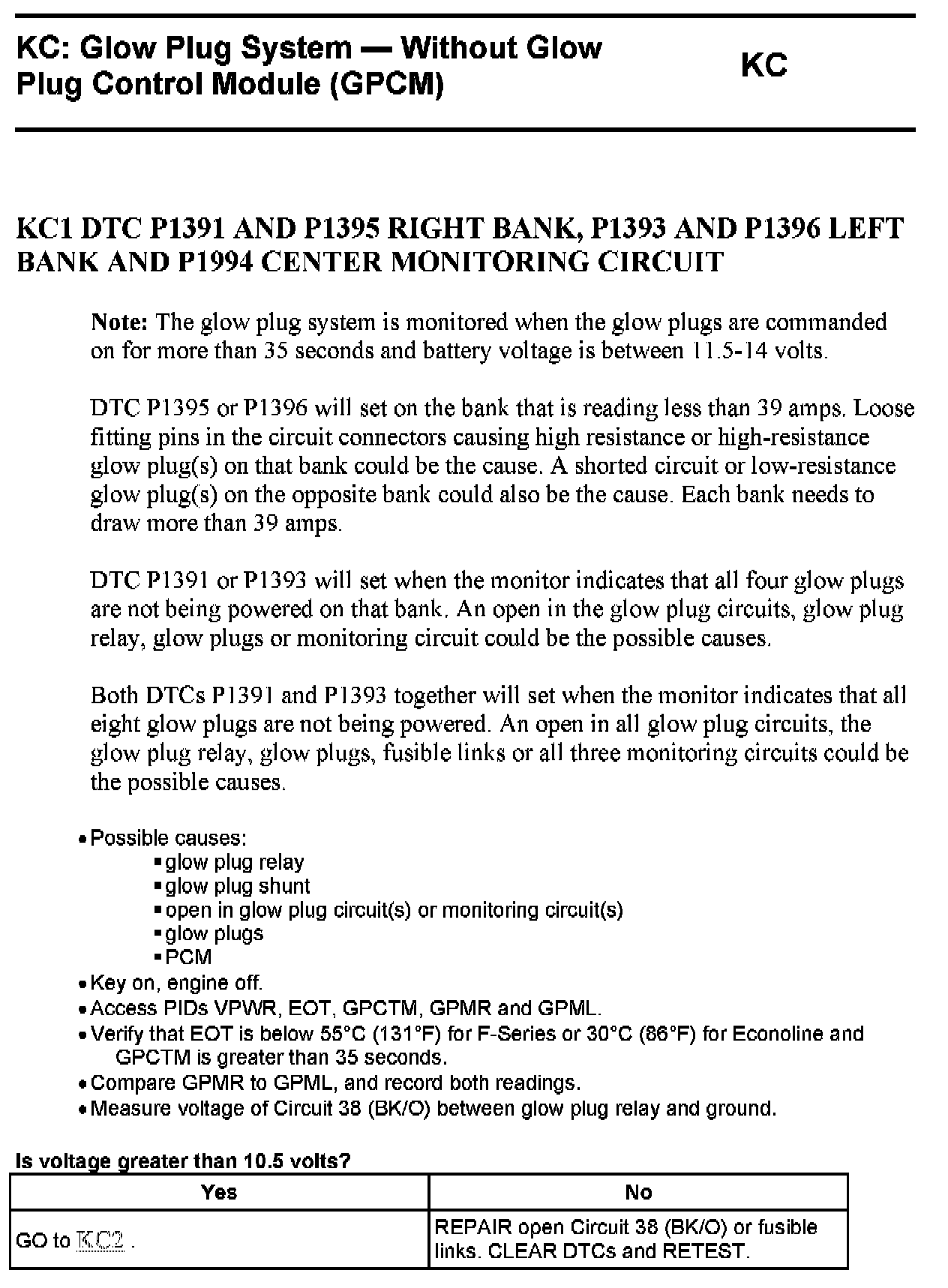

KC1:

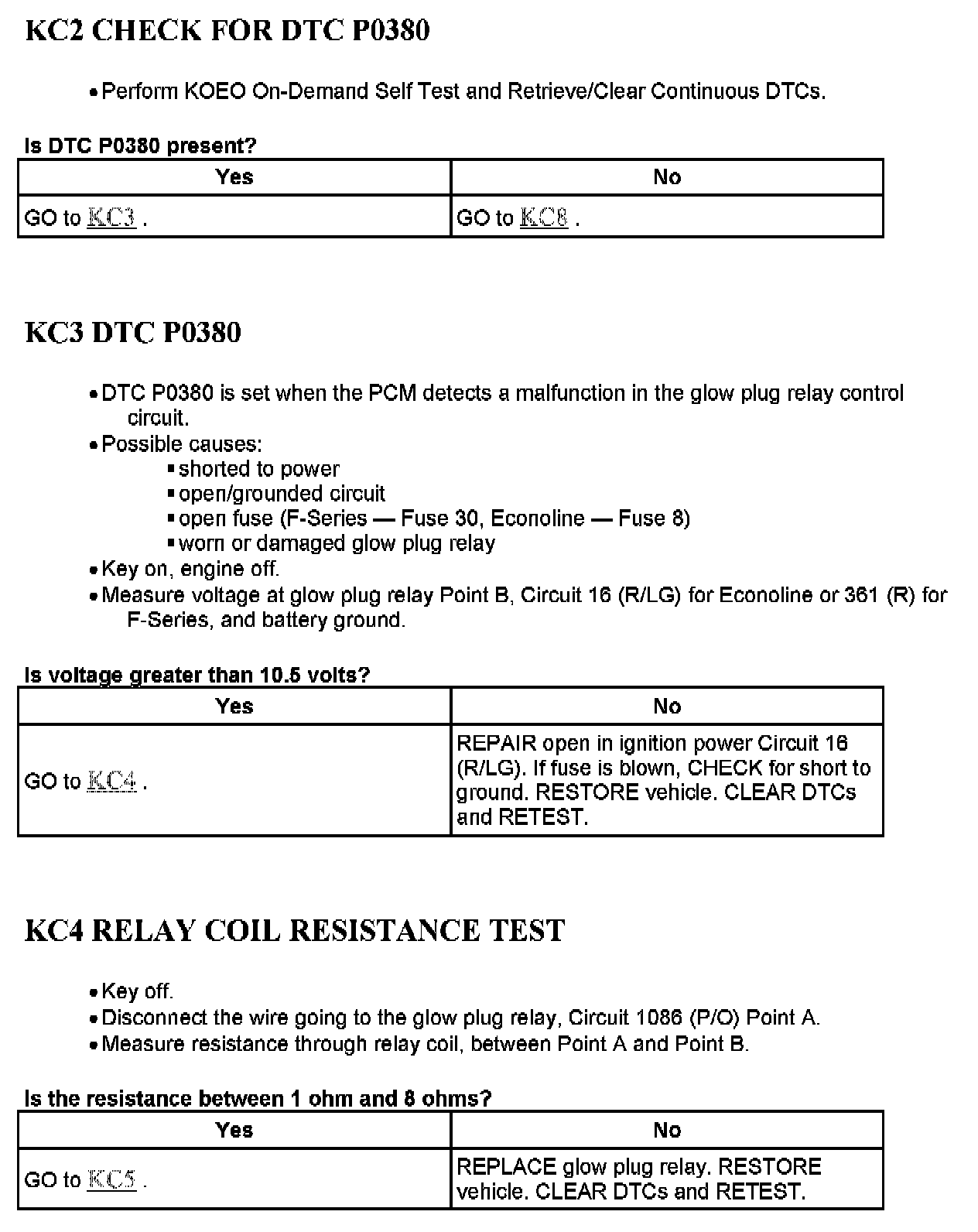

KC2 - KC4:





KC5 - KC7:

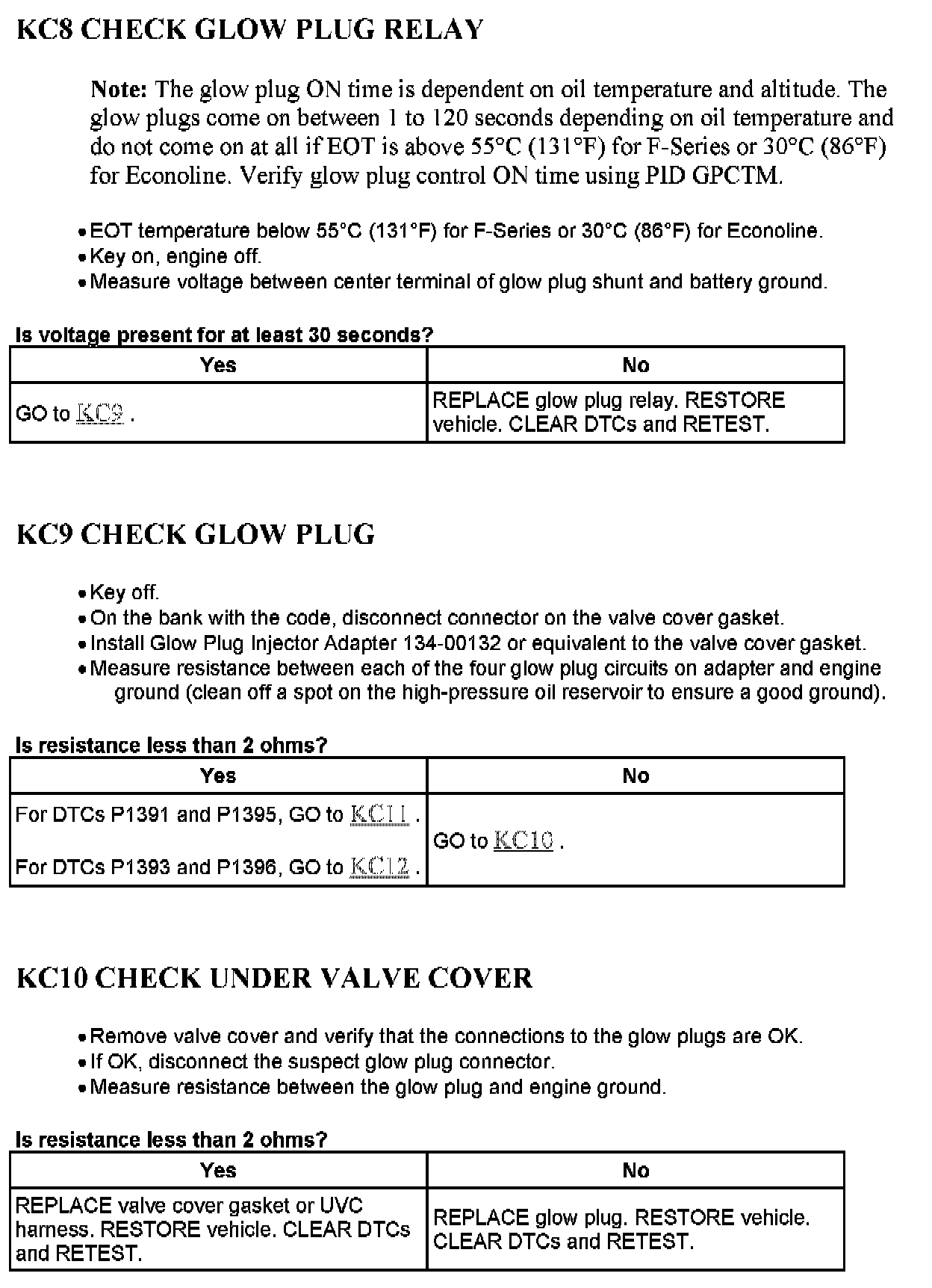

KC8 - KC10:

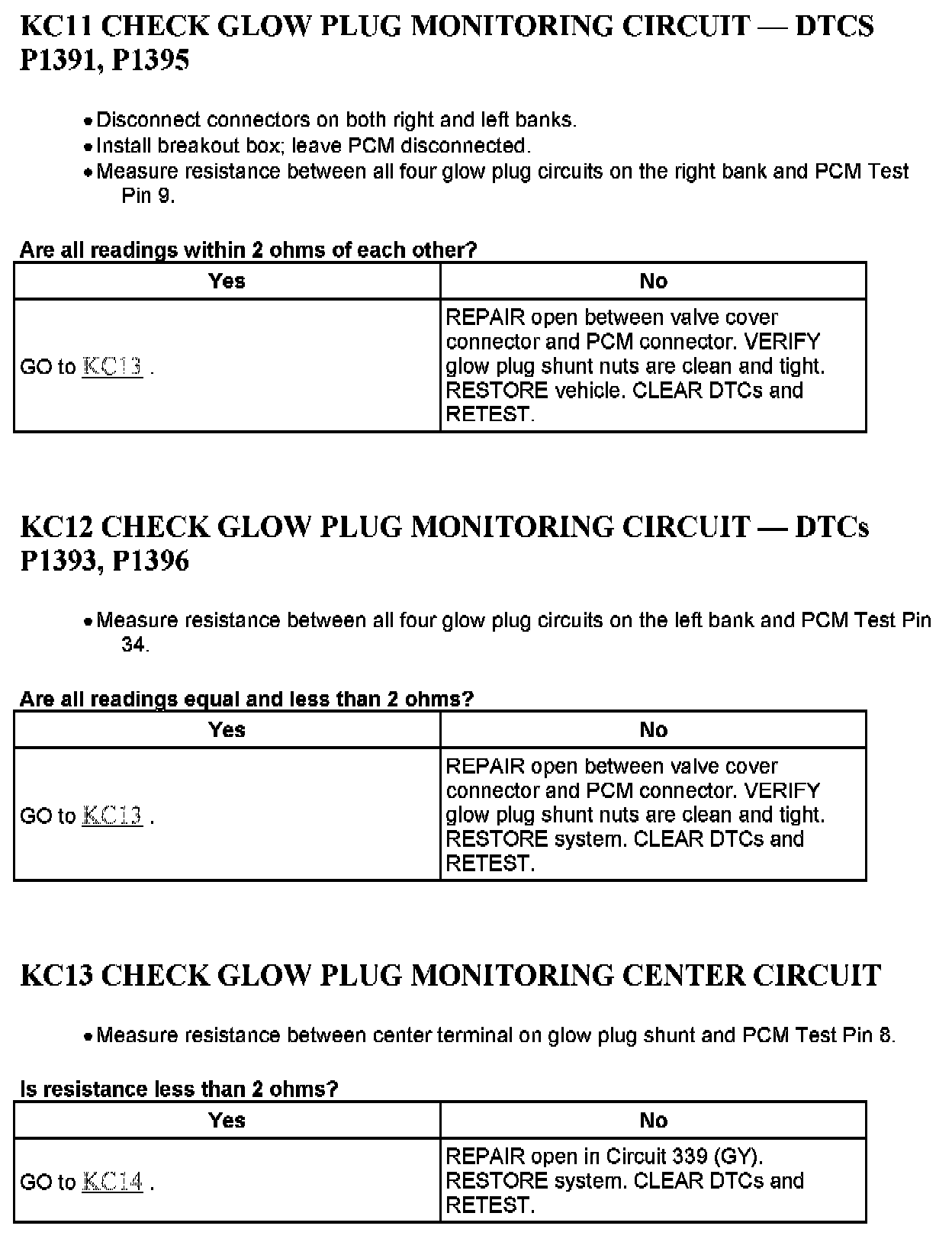

KC11 - KC13:

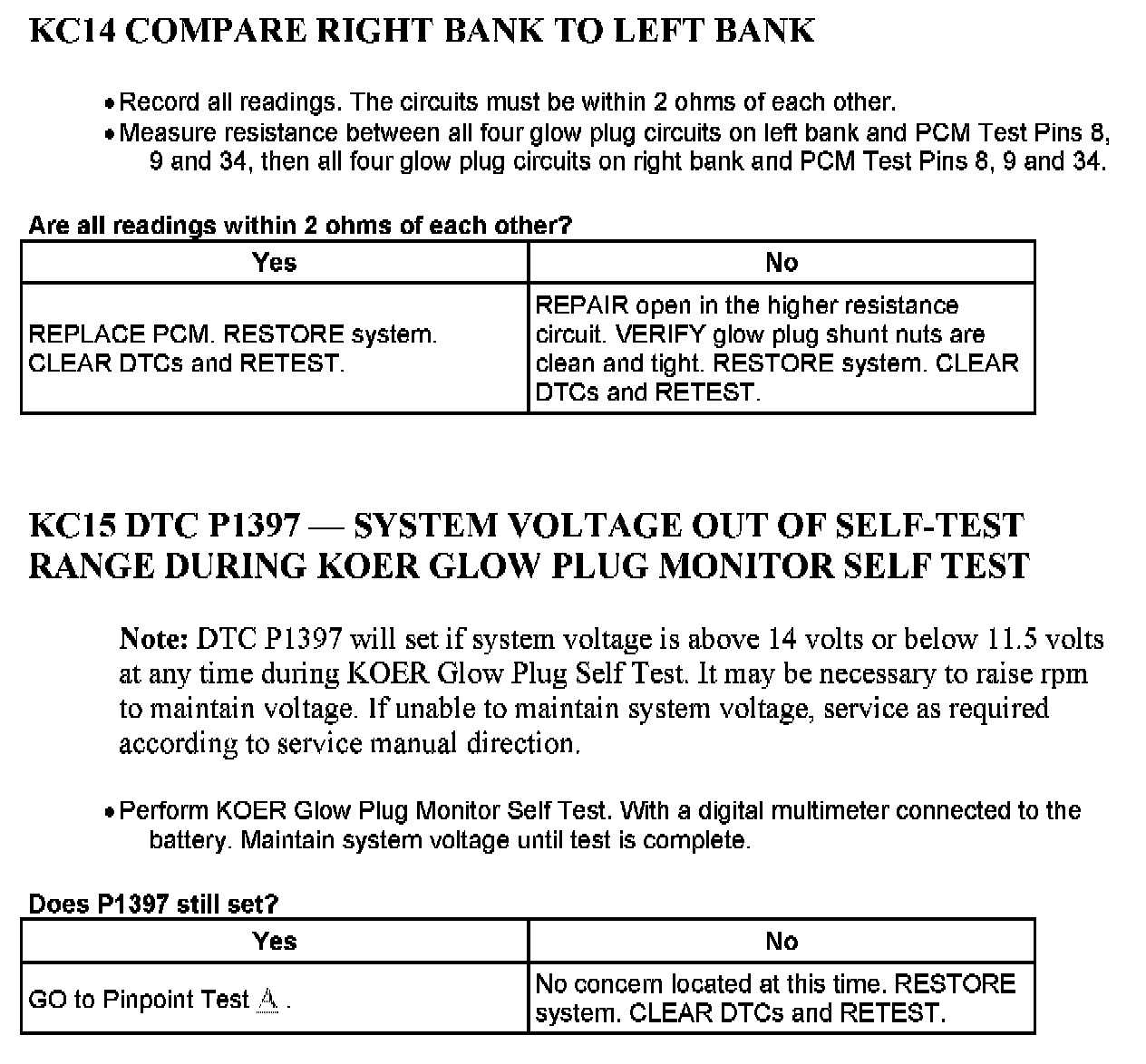

KC14 - KC15:
