Front Suspension

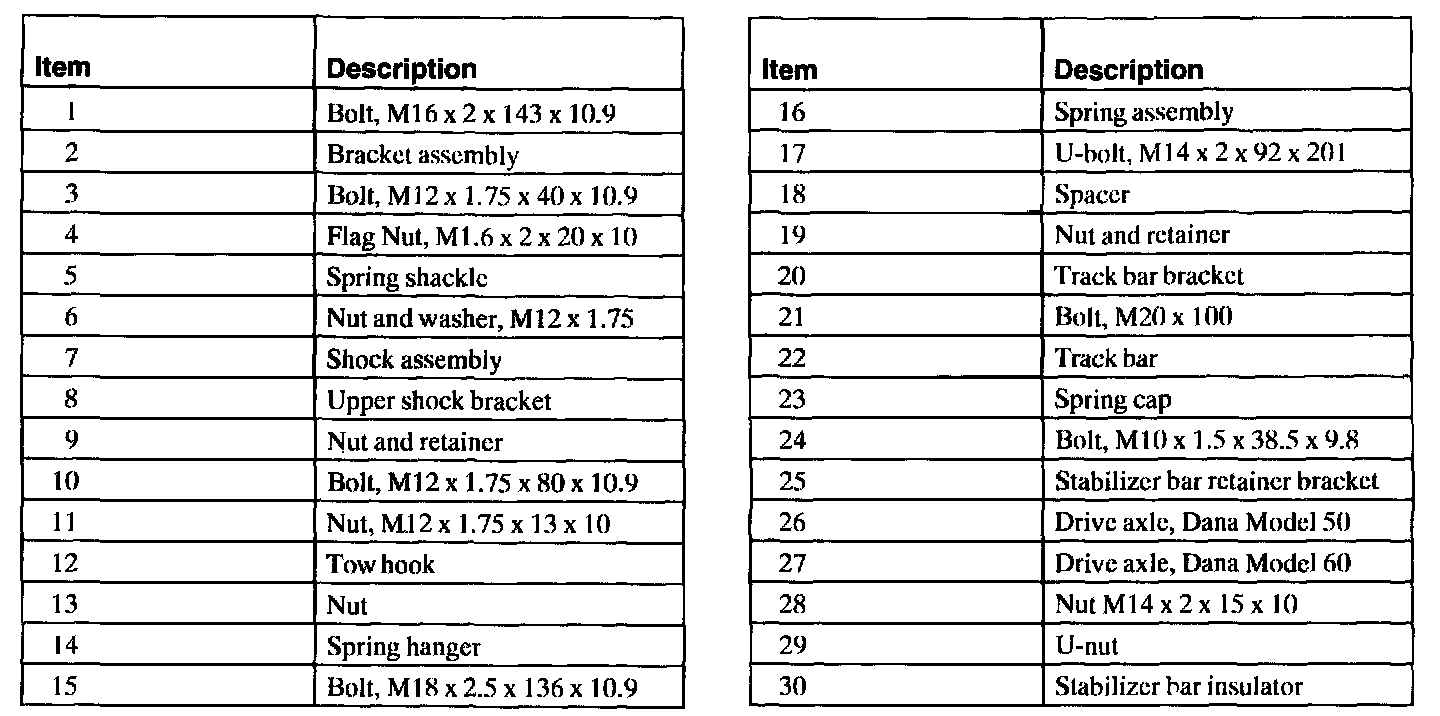

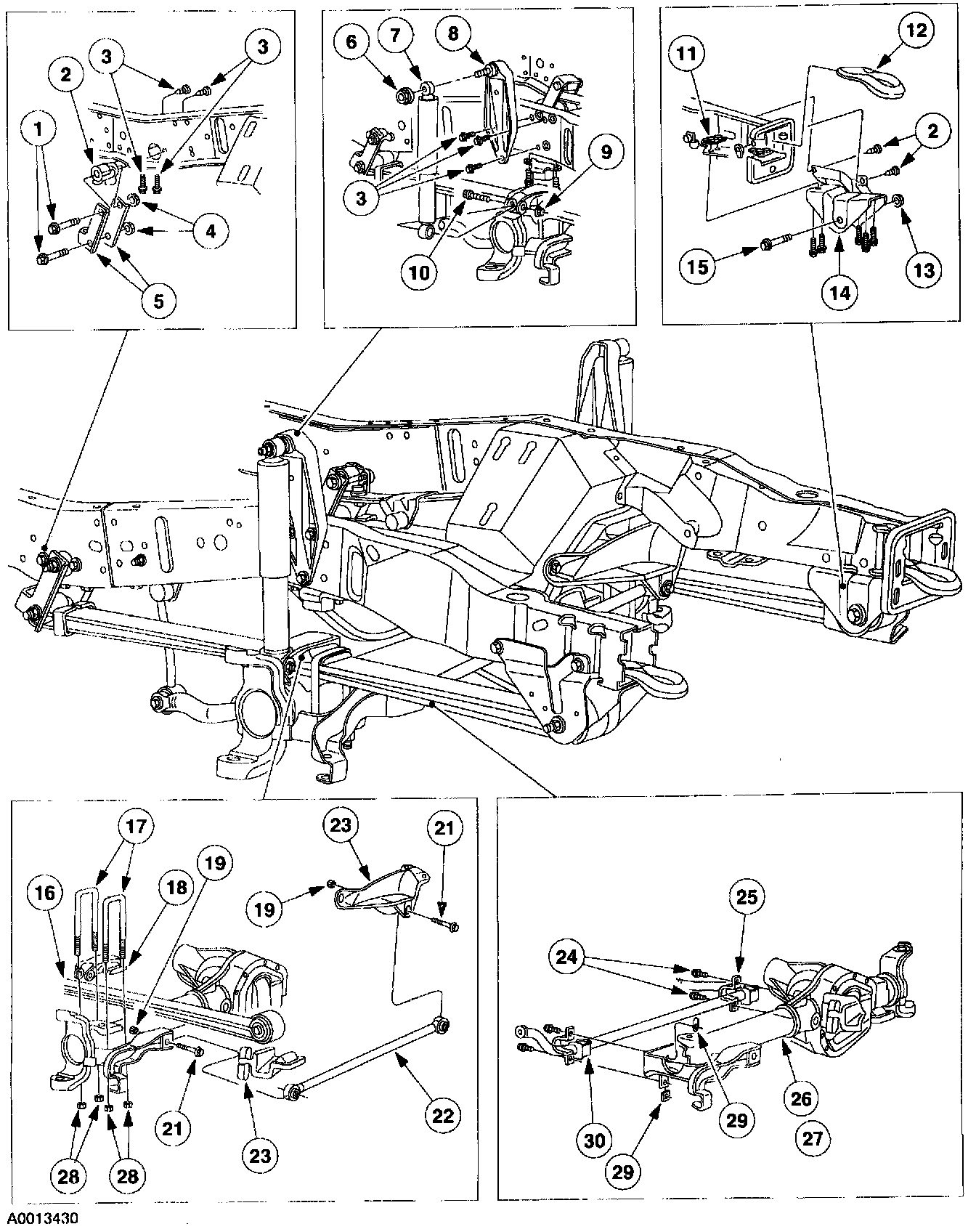

Front Suspension with Dana Model 50 and Dana Model 60 Front Drive Axles

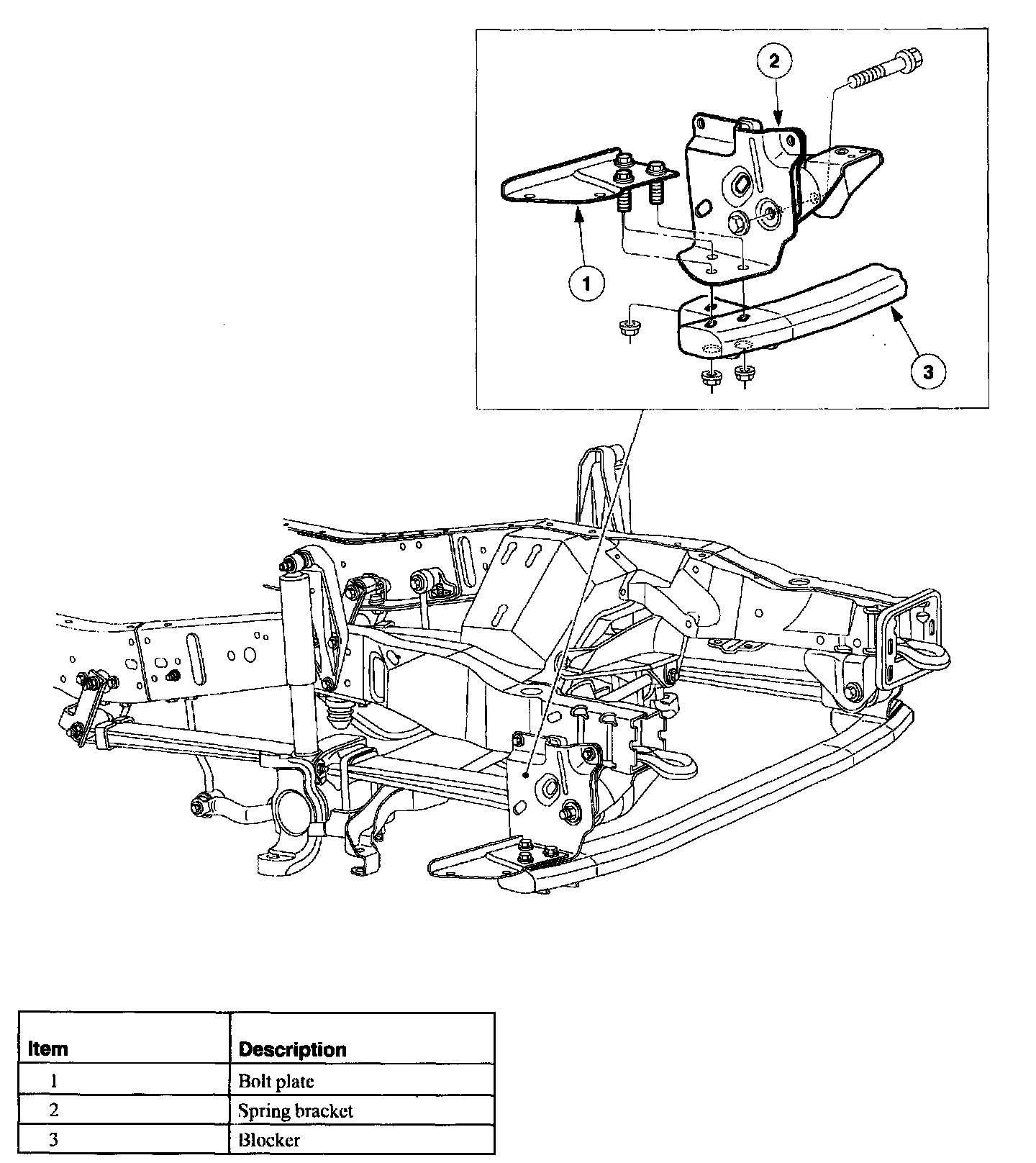

Front Spring Forward Mounting Bracket (Excursion)
