Engine

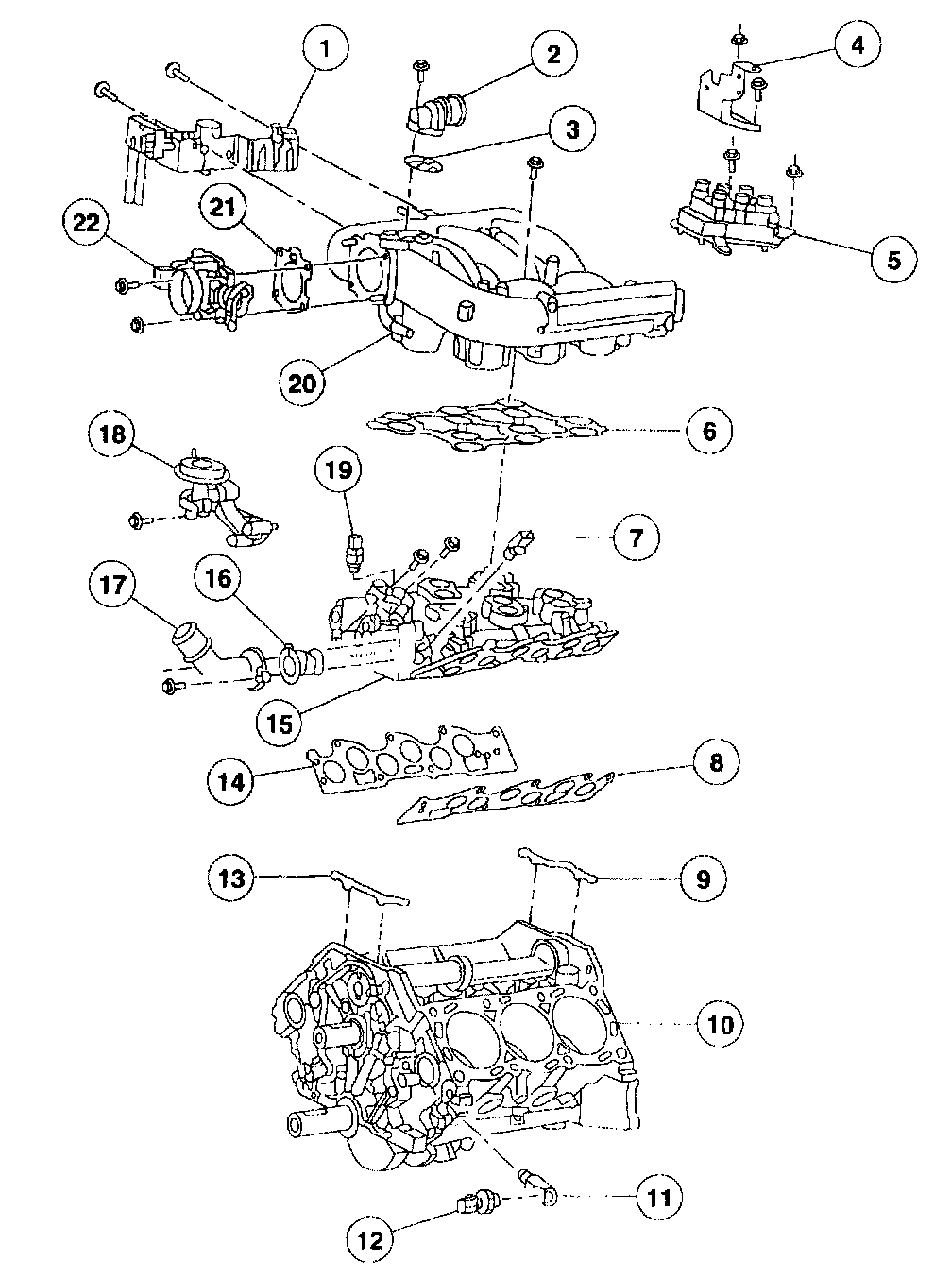

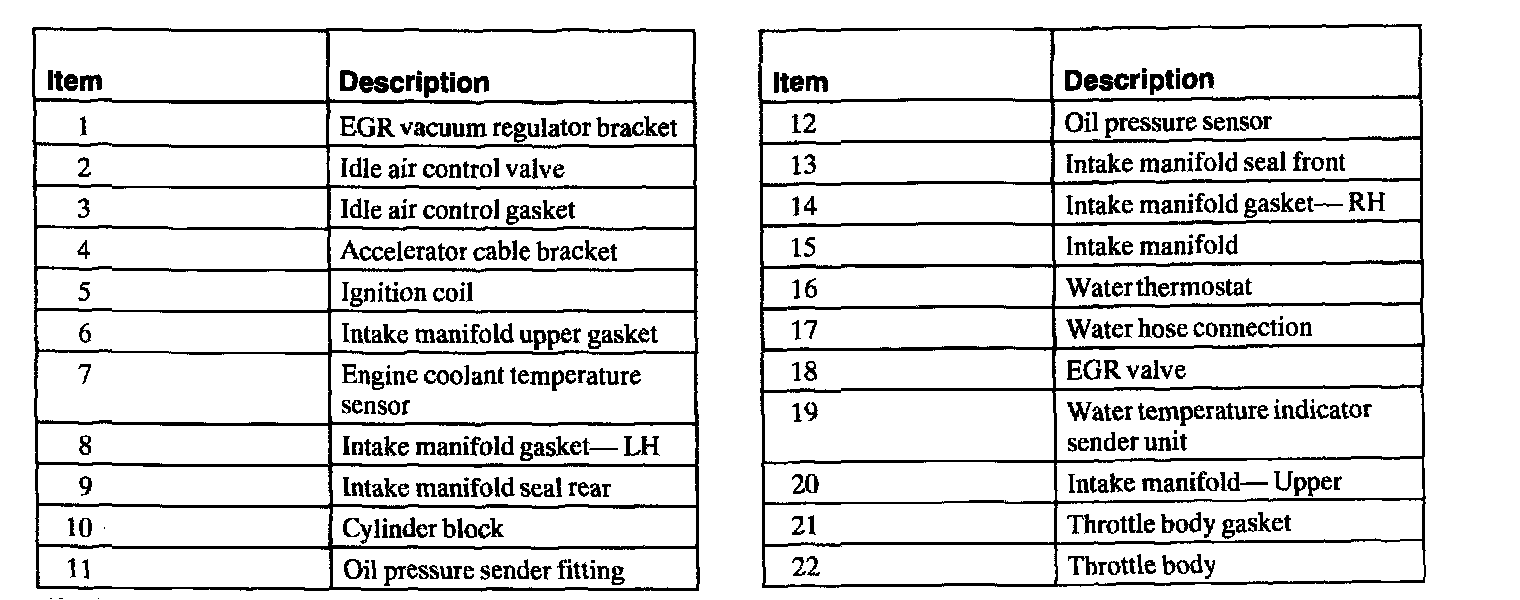

Major Upper Engine Components

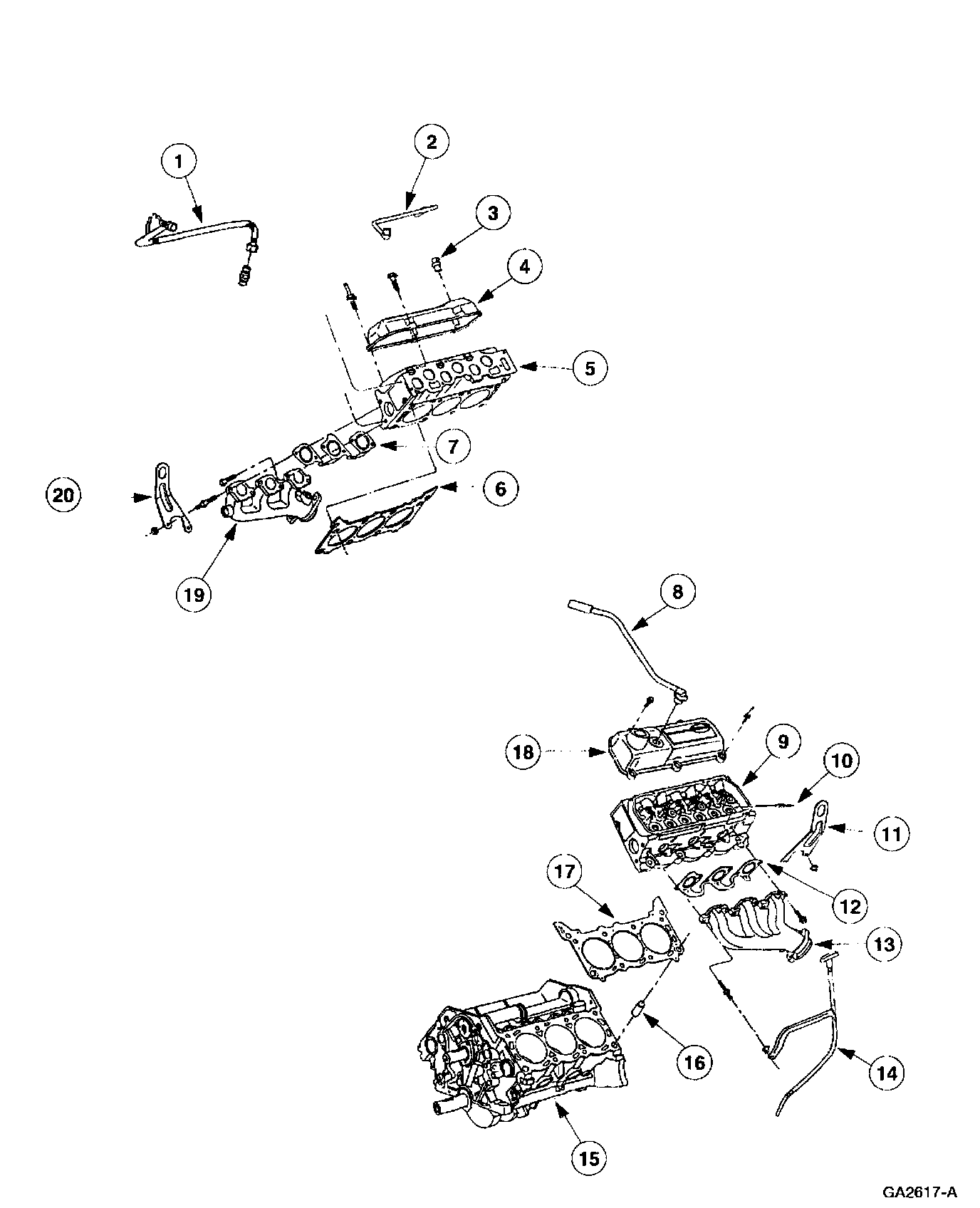

Cylinder Heads and Valve Train

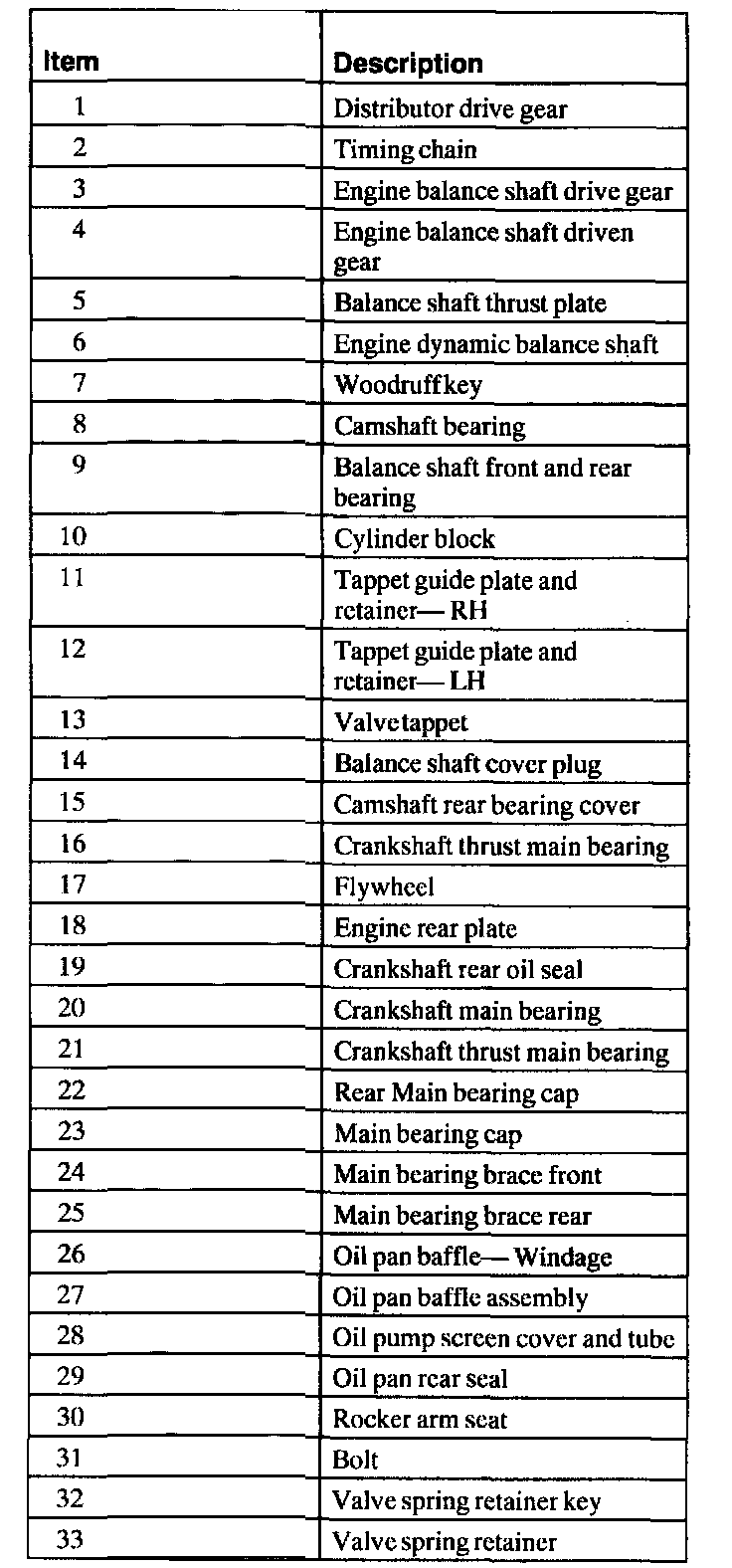

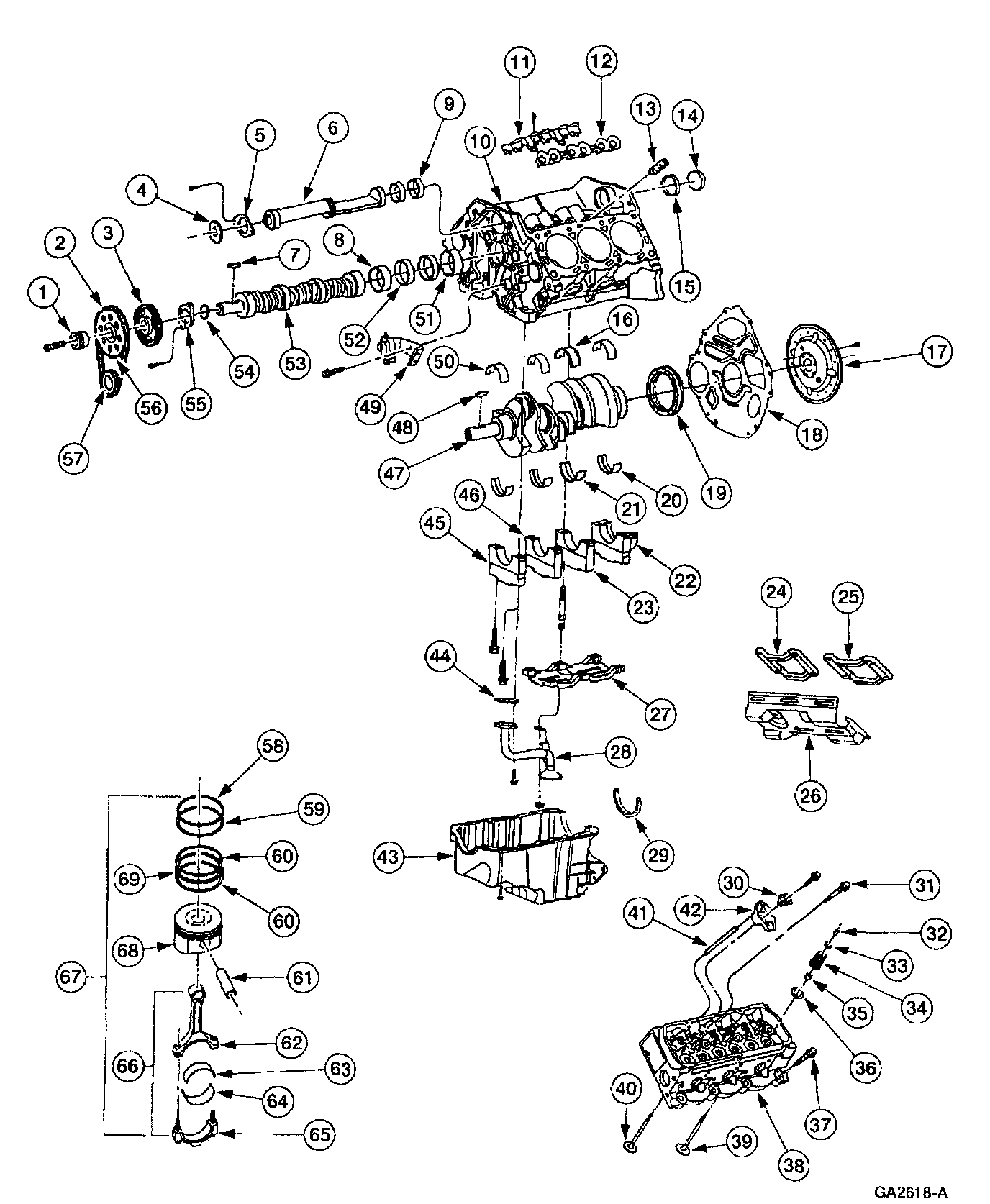

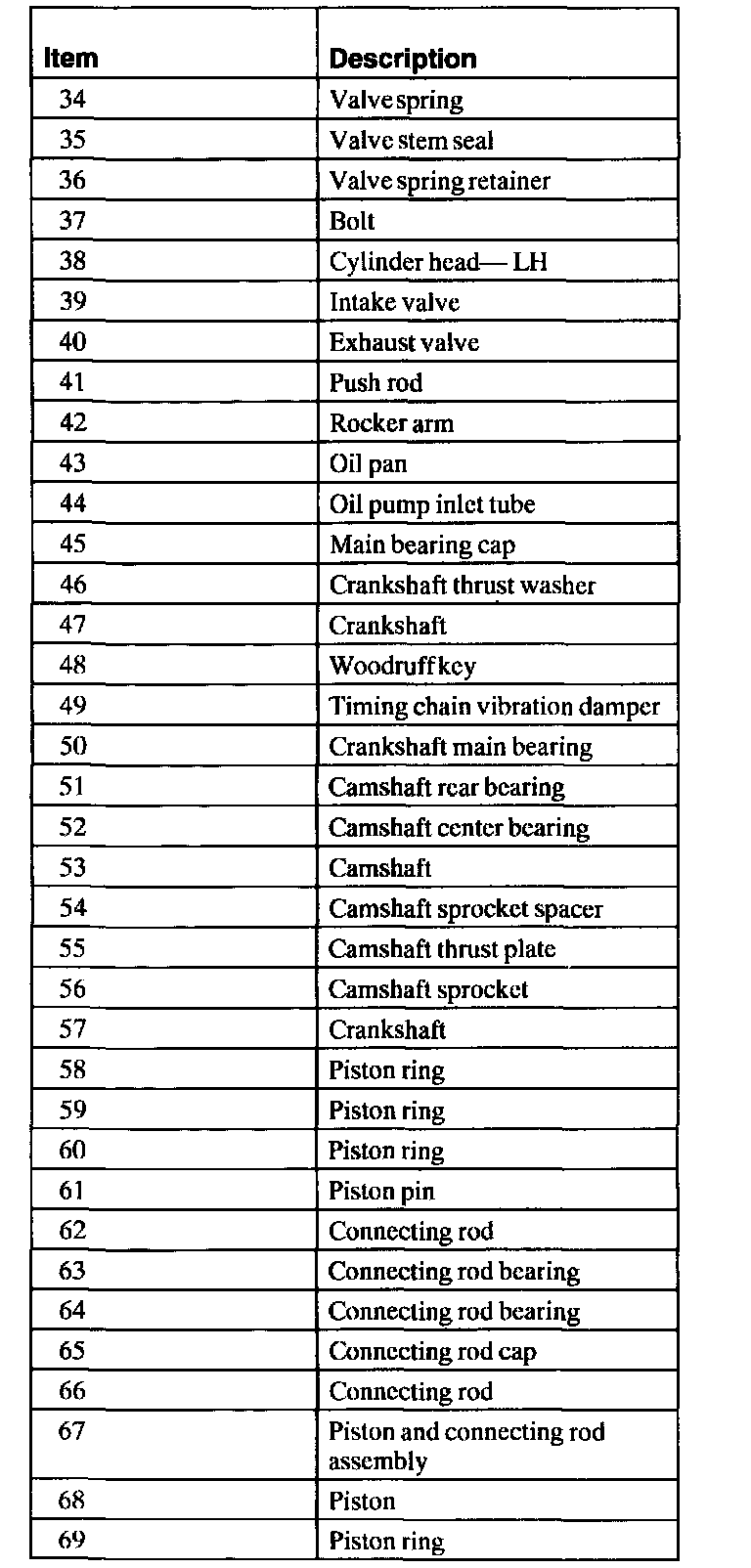

Cylinder Block and Lower End Components

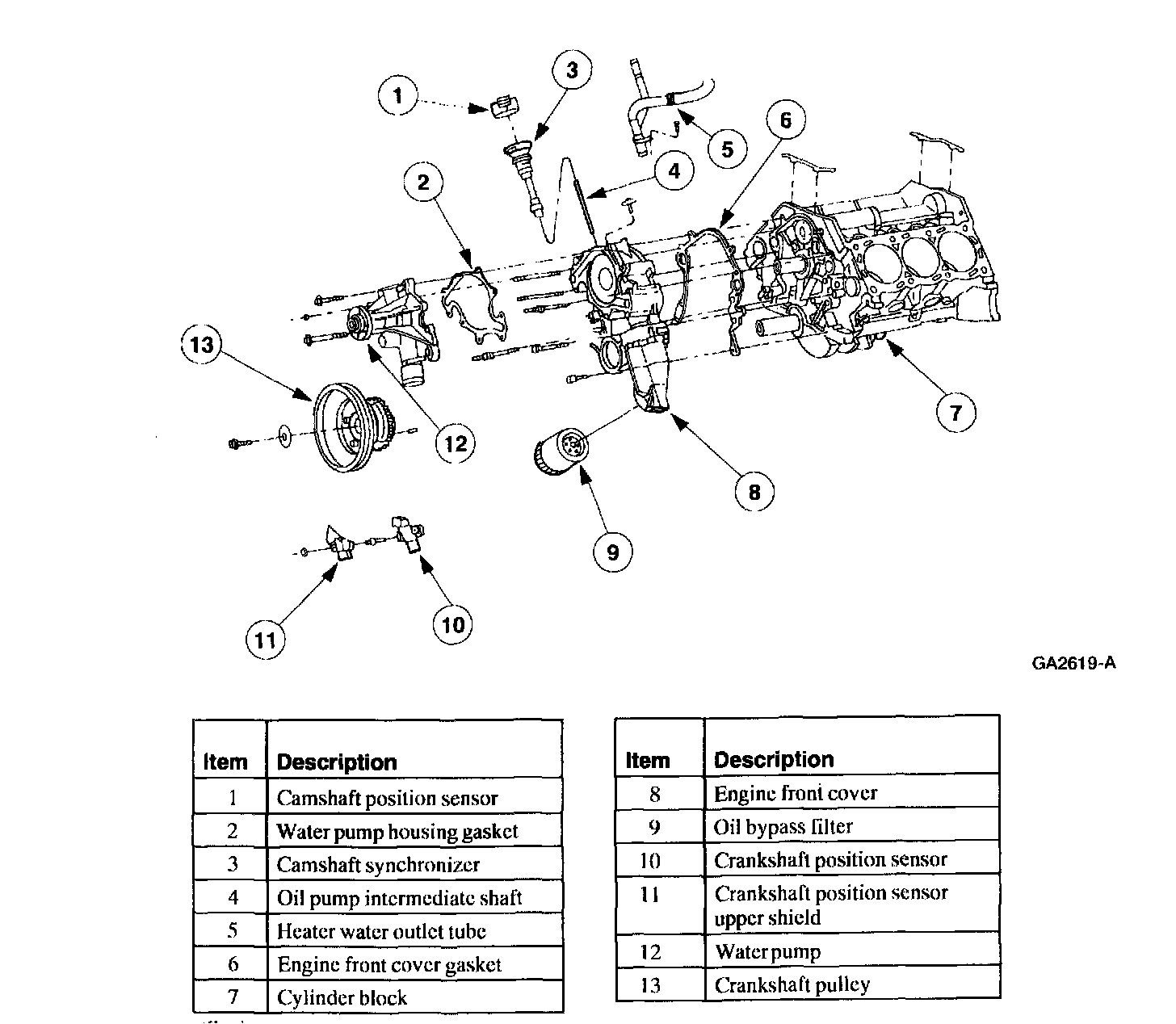

Engine Front Cover Components
