Home >> Ford >> 2000 >> Ranger 4WD V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> 4 Wheel Antilock Brake System Module

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

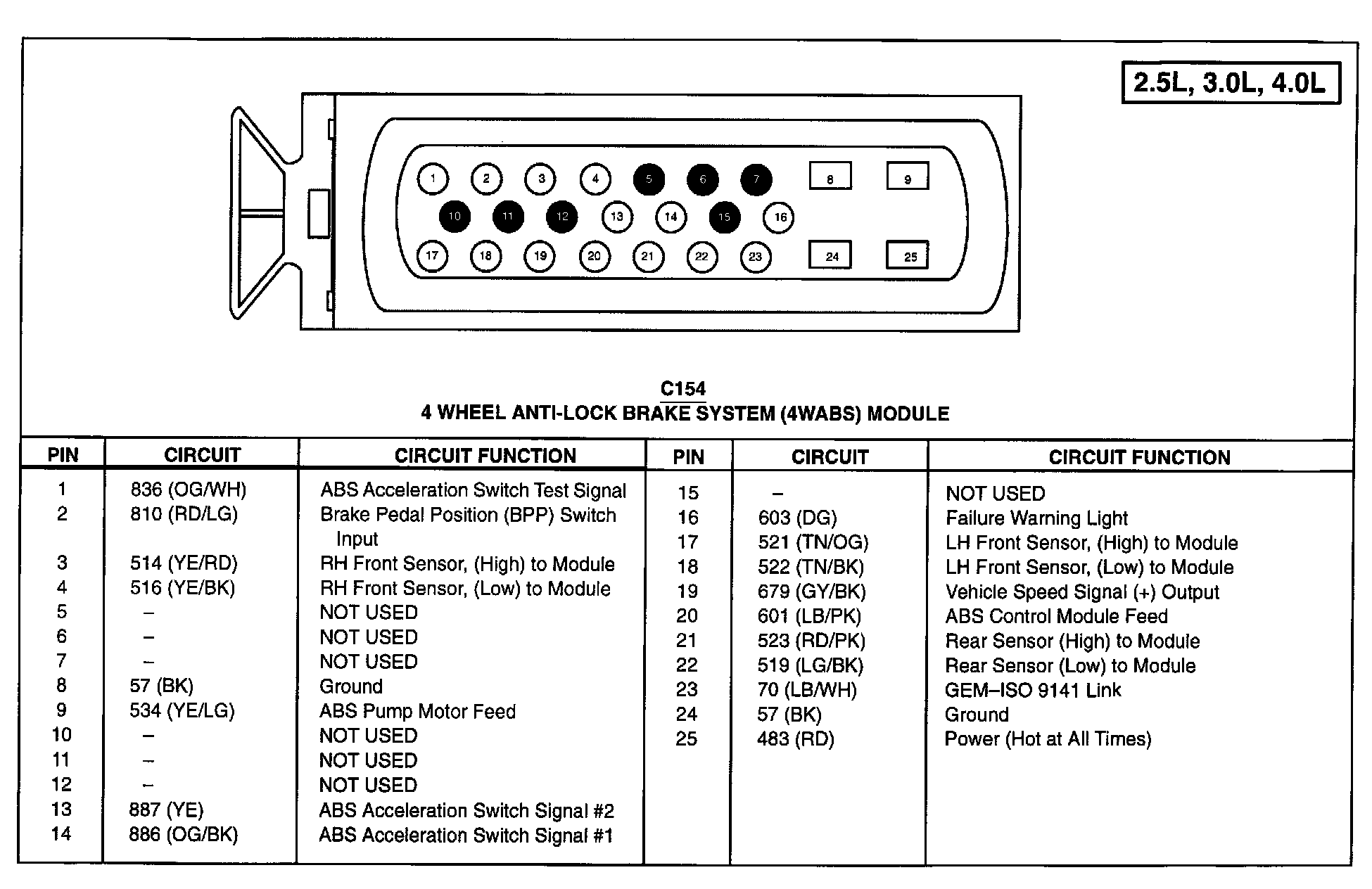

4 Wheel Antilock Brake System Module
