LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
2000
>>
Ranger 4WD V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Disc Brake System
1 Of 2:
2 Of 2:

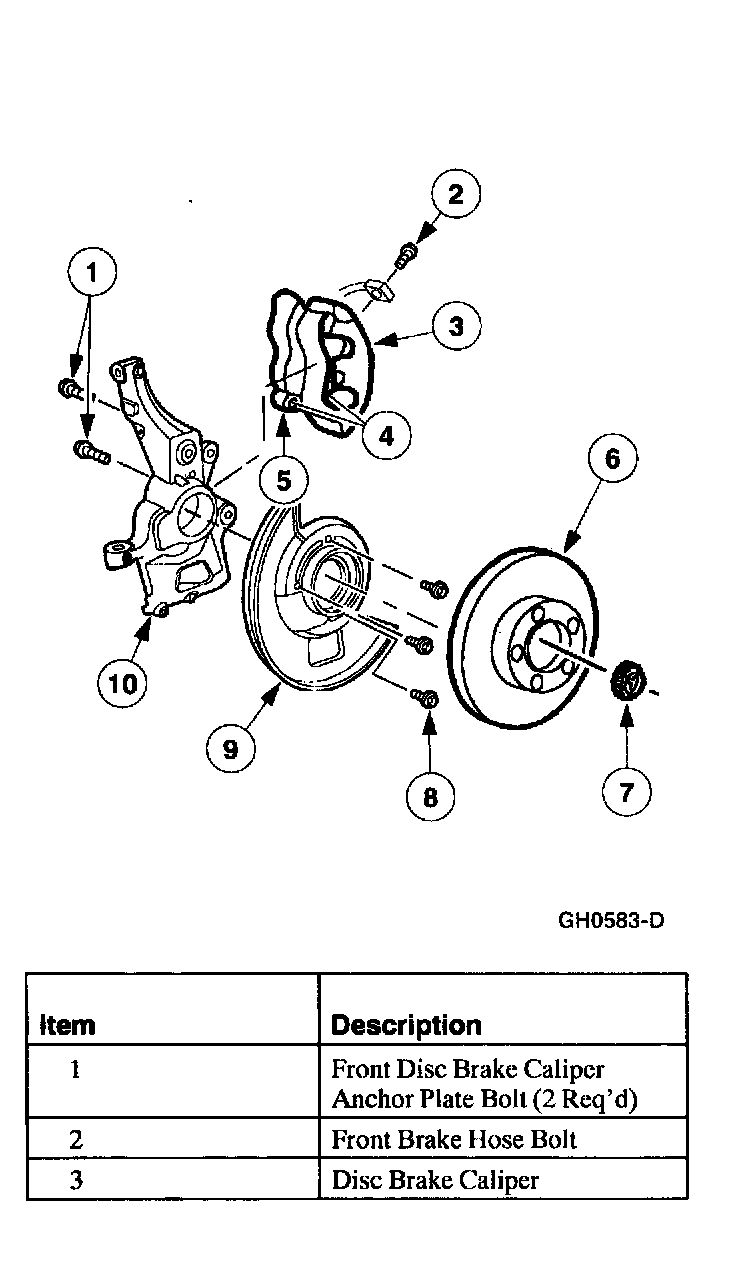

Front Disc Brake Components-4x2
1 Of 2:
2 Of 2:

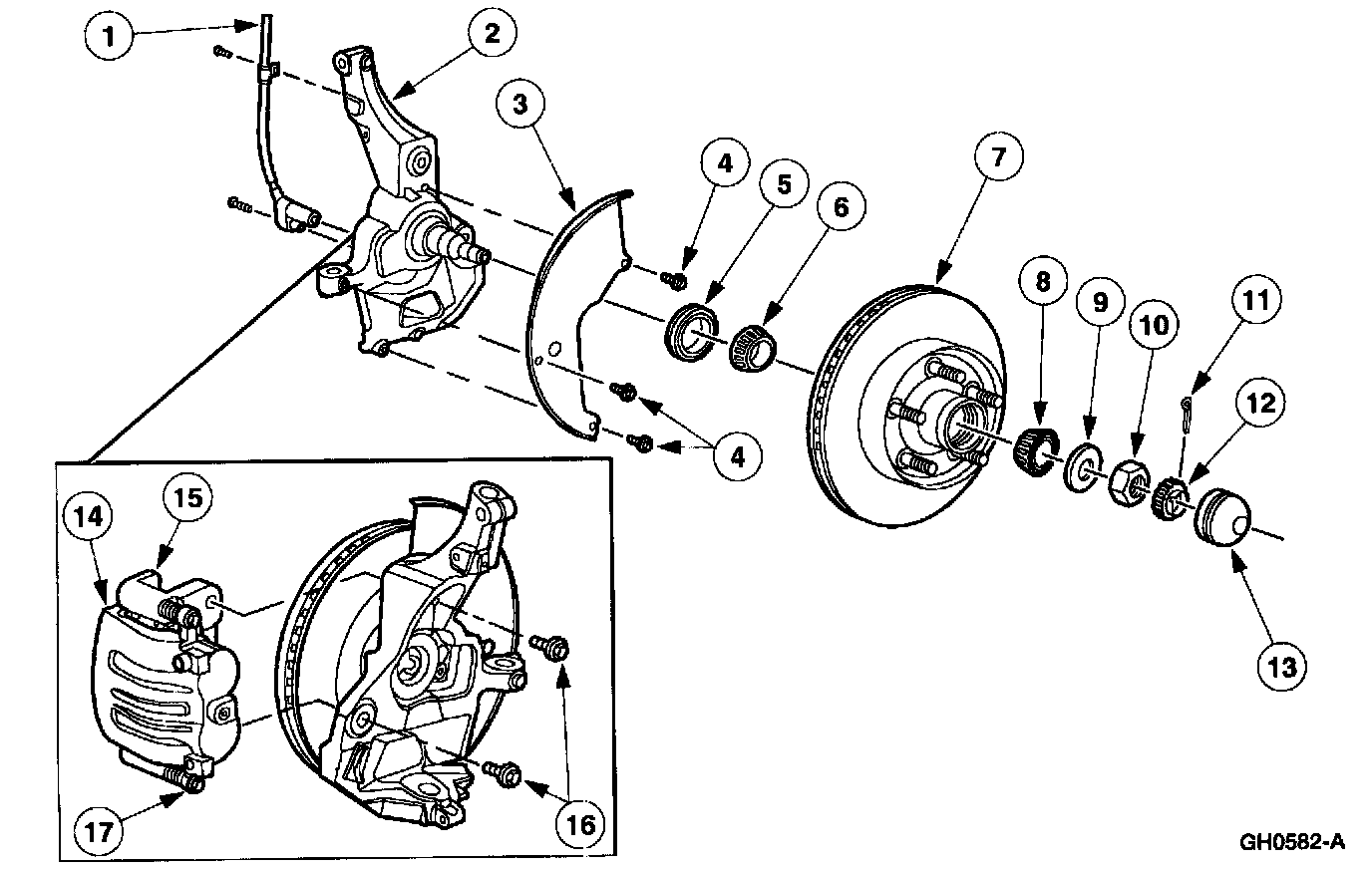

Front Disc Brake Components-4x4
