Exploded Views

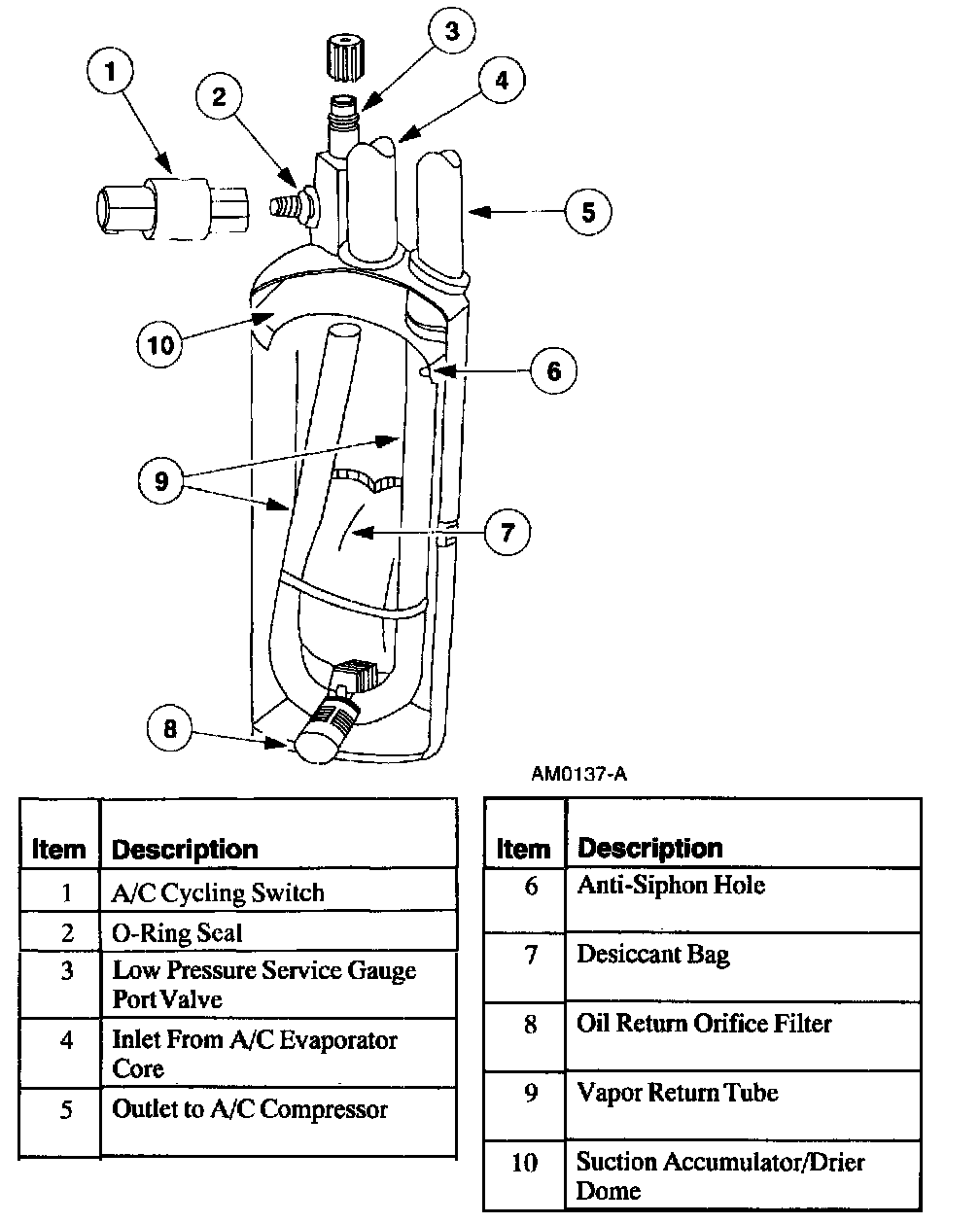

Accumulator:











A/C Evaporator Core Orifice:
















Service Gauge Port Valve:






Spring Lock Coupling:
