General

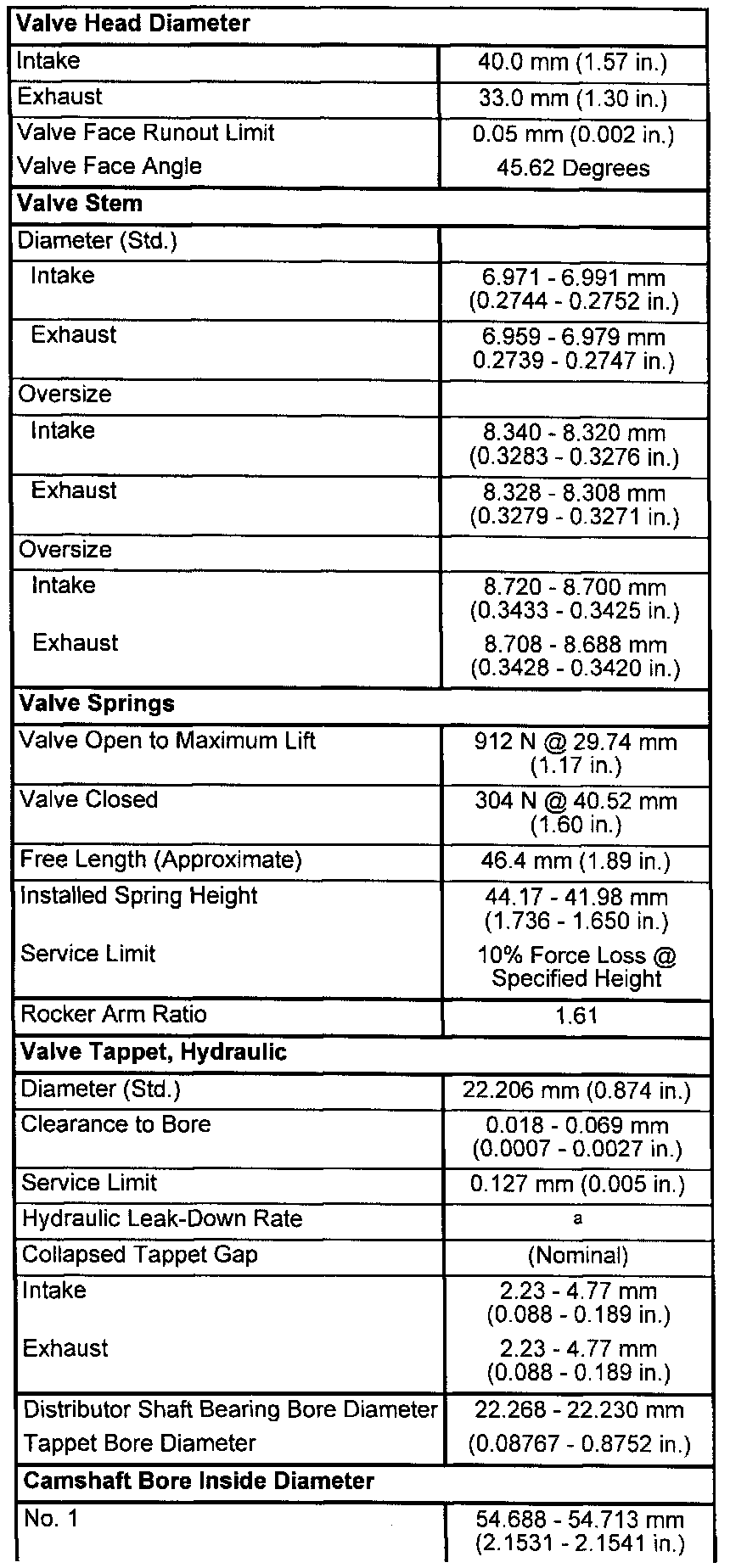

General Specifications (Part 1 0f 6):

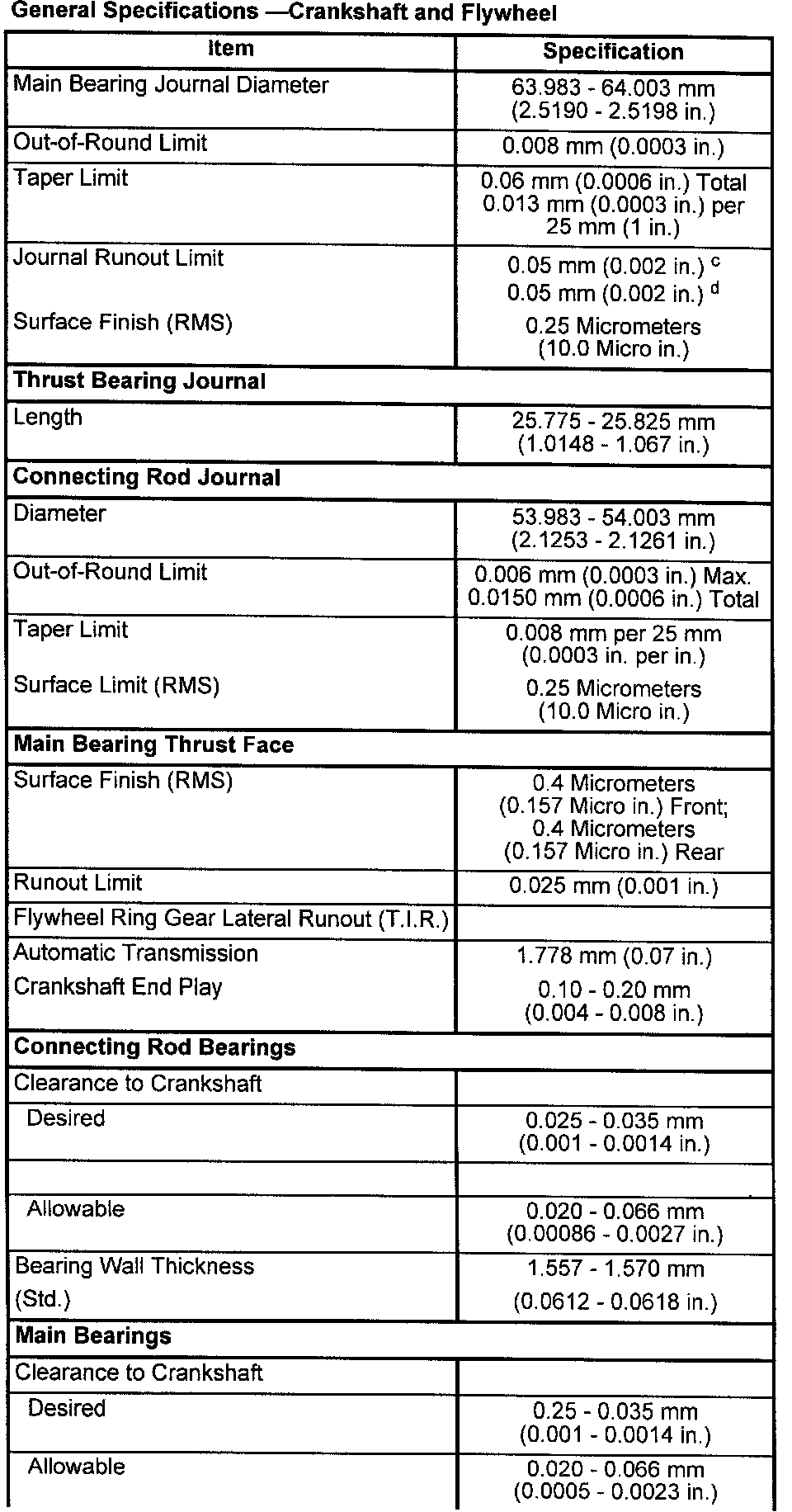

General Specifications (Part 2 0f 6):

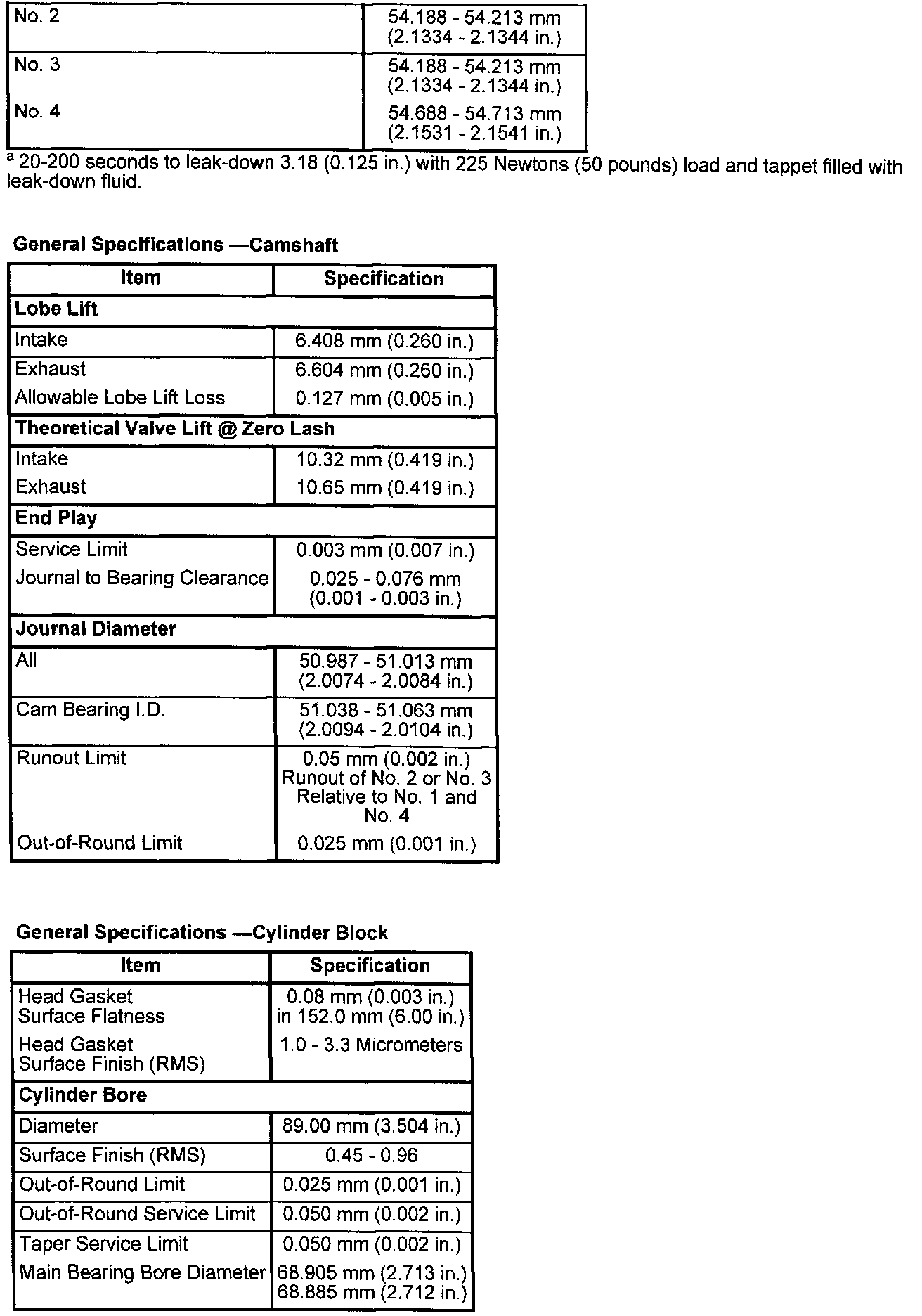

General Specifications (Part 3 0f 6):

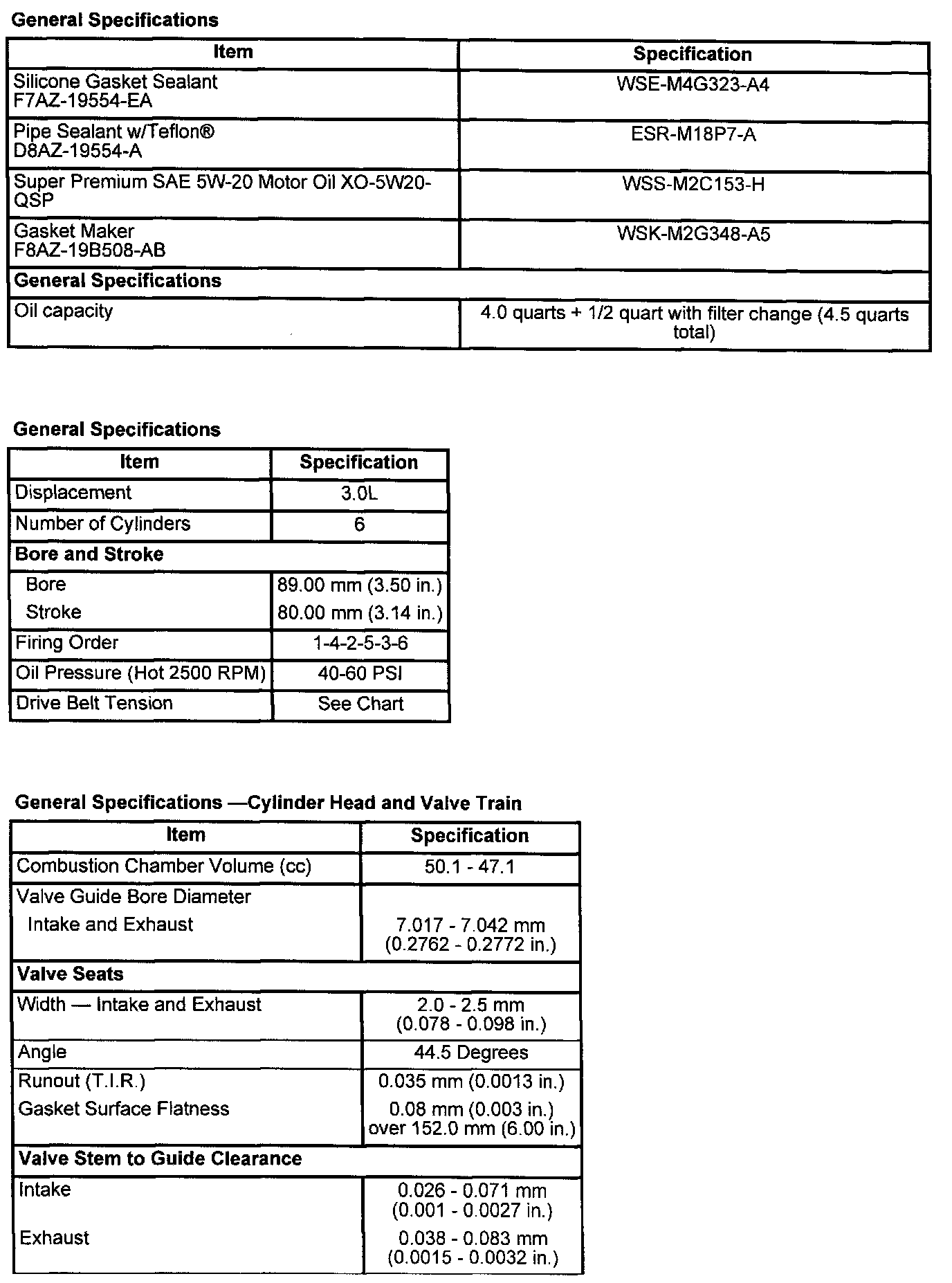

General Specifications (Part 4 0f 6):

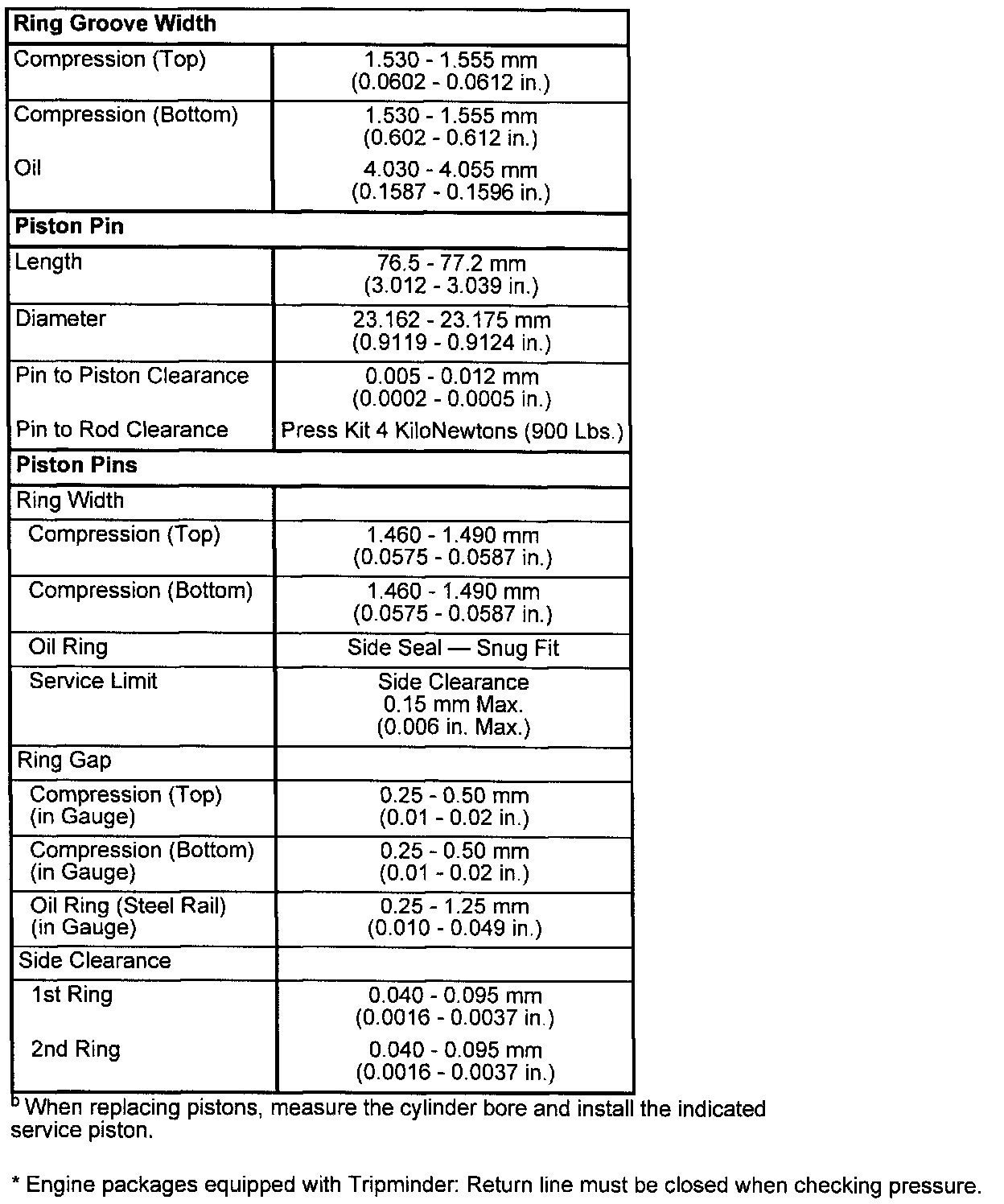

General Specifications (Part 5 0f 6):

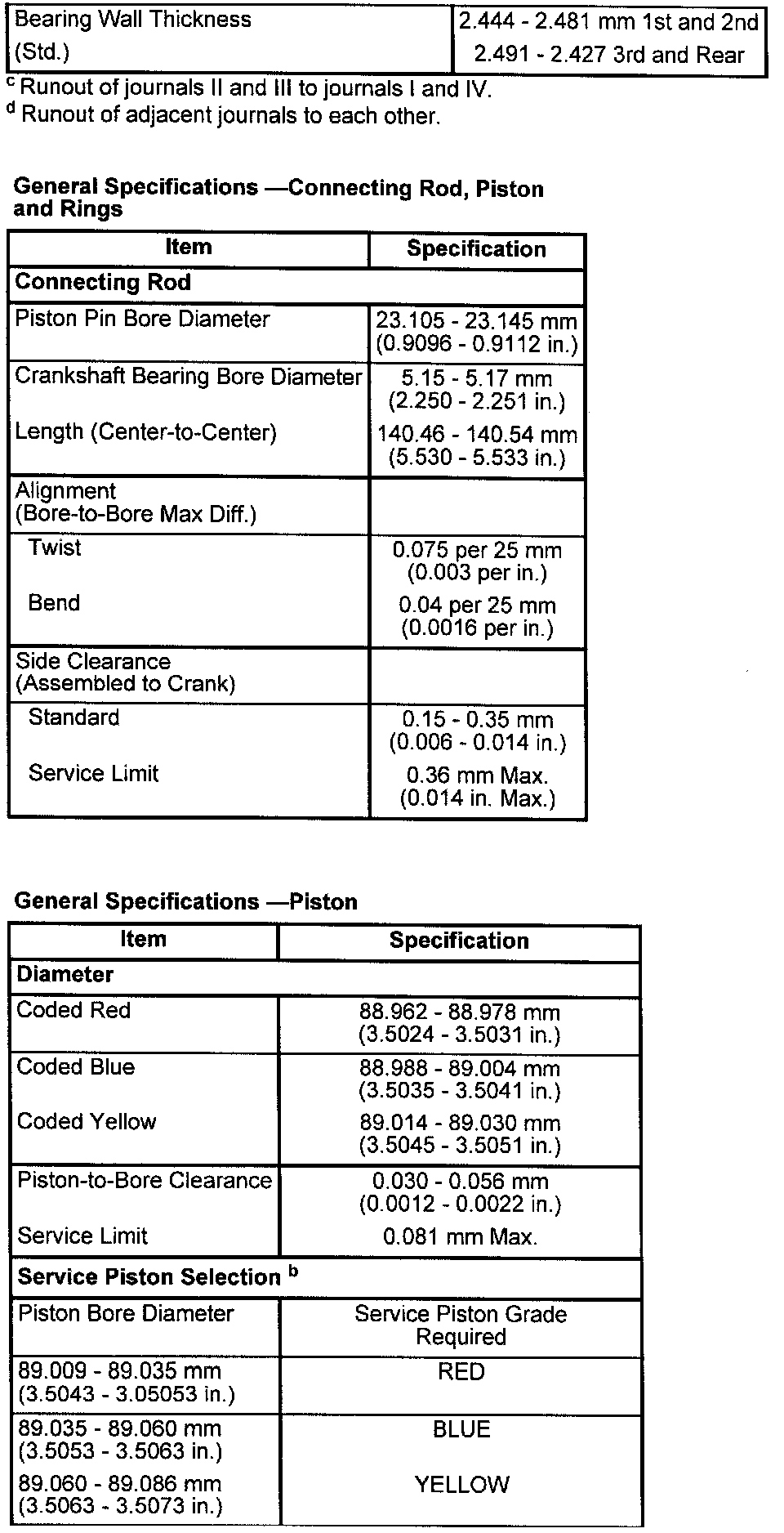

General Specifications (Part 6 0f 6):
