Pinpoint Test J: The Traction Control Switch Indicator Is Never/Always On

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

Fig 1: Pinpoint Test J (Step J1)

Courtesy of FORD MOTOR CO.

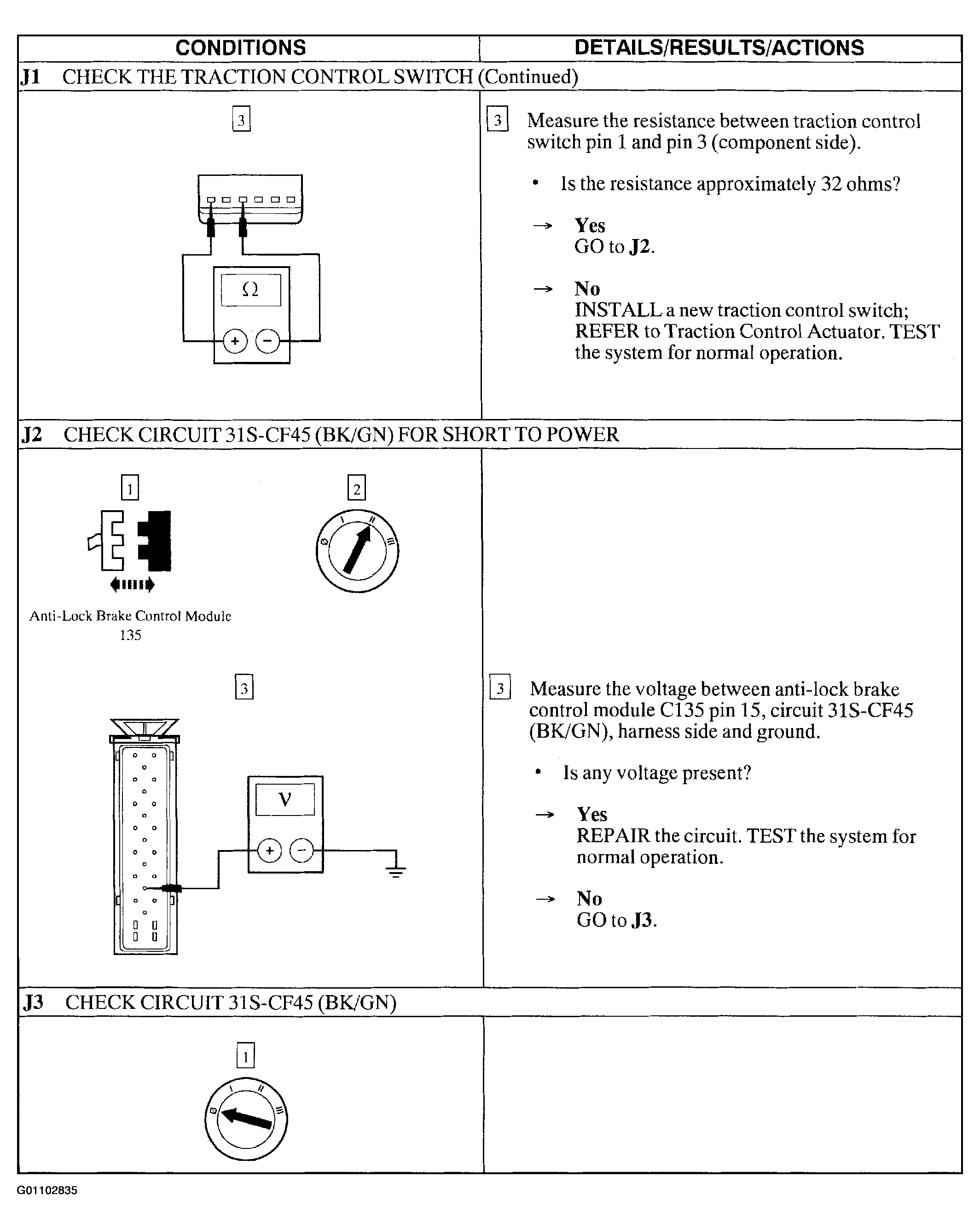

Fig 2: Pinpoint Test J (Steps J1 Cont. - J3)

Courtesy of FORD MOTOR CO.

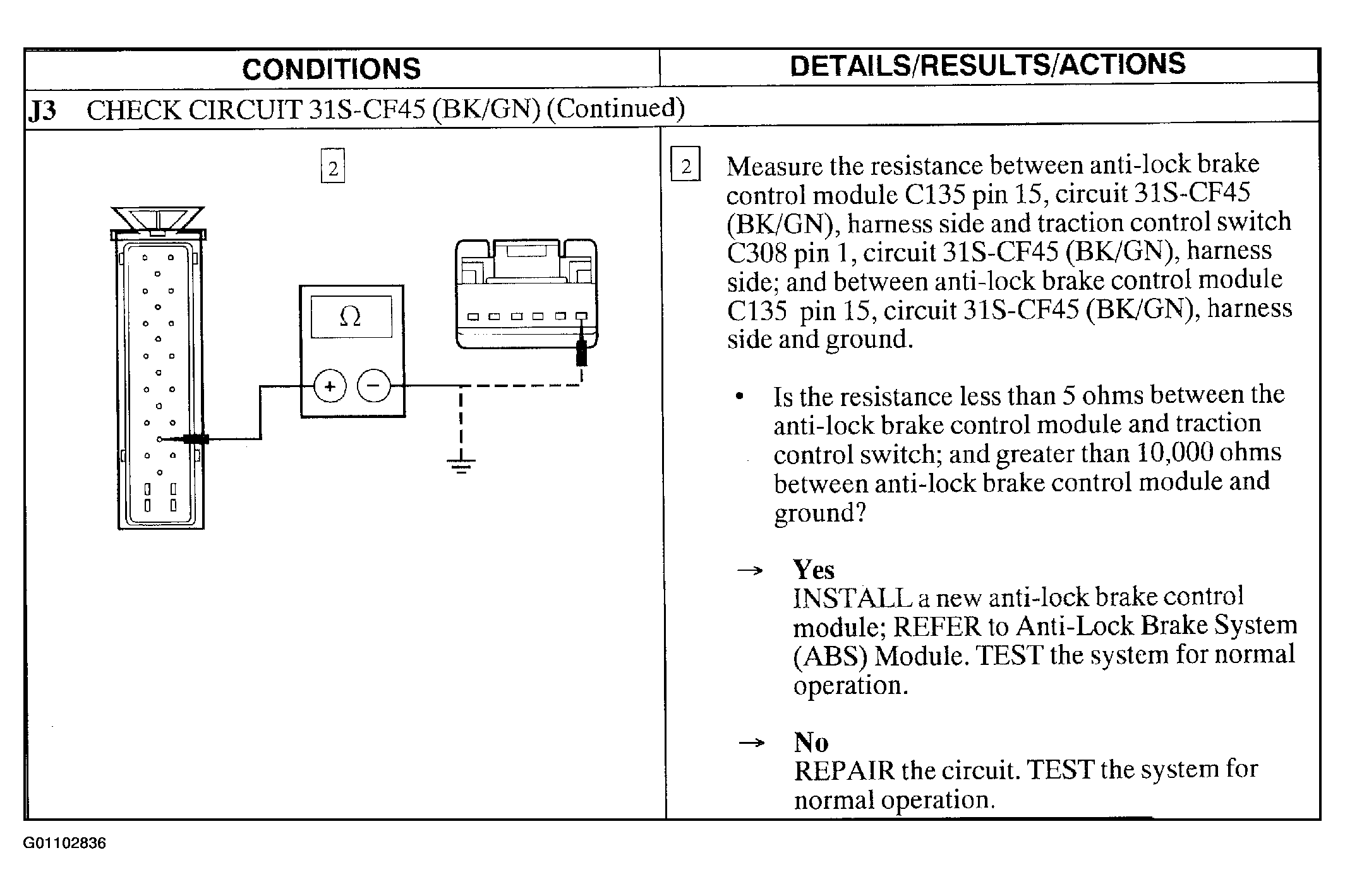

Fig 3: Pinpoint Test J (Step J3 Cont.)

Courtesy of FORD MOTOR CO.
