Ball Joint





Front Lower Ball Joint

Measurement Between lower control arm and knuckle

Deflection 0-0.032 in (0-0.8mm)

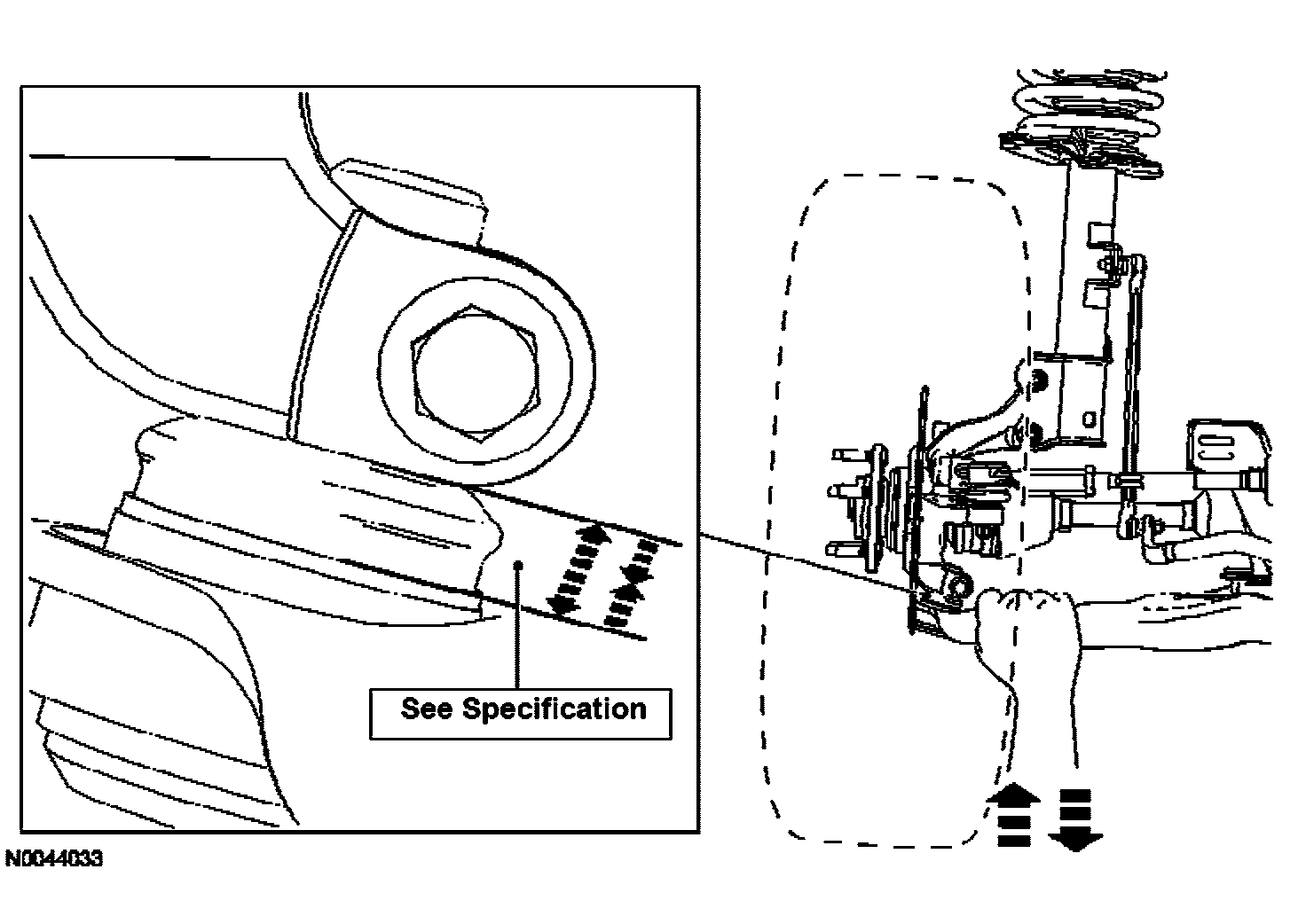

Reference Diagram D
