Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Remover, Tie-Rod End
211-105 (T85M-3395-A)

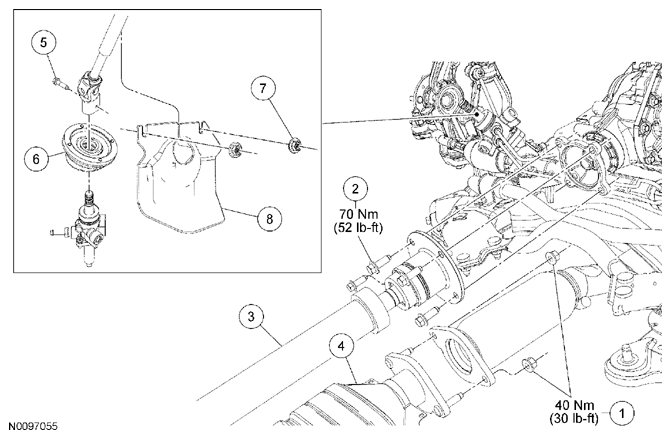

Fig 1: Exploded View Of Stabilizer Bar Components With Torque Specifications - (1 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W705443	Catalytic converter-to-exhaust flexible pipe nuts (2 required)
2	W711918	Rear driveshaft-to-Power Transfer Unit (PTU) bolt (4 required)
3	5006930	Rear driveshaft assembly
4	5E212	Catalytic converter
5	3R827	Steering column shaft bolt
6	3C611B	Steering column shaft-to-dash seal
7	5801691	Lower steering column shaft joint cover nut (2 required)
8	3C611A	Lower steering column shaft joint cover

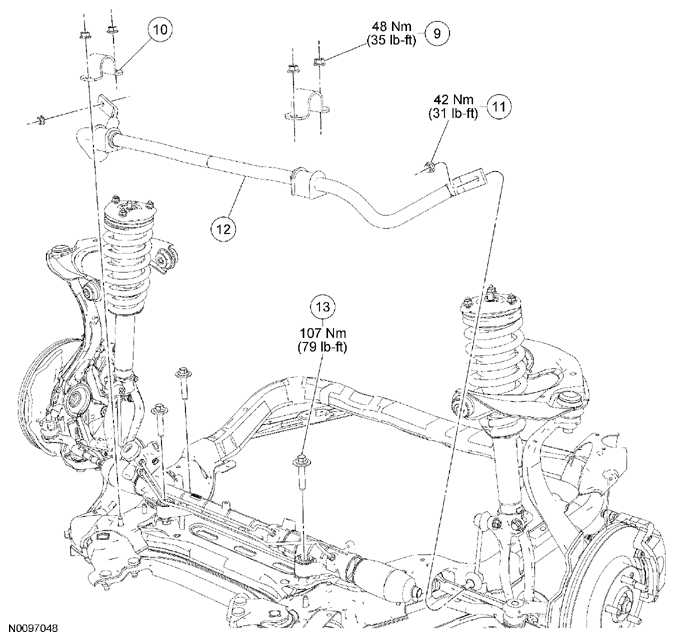

Fig 2: Exploded View Of Stabilizer Bar Components With Torque Specifications - (2 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
9	W520414	Stabilizer bar bracket nut (4 required)
10	5486	Stabilizer bar bracket (2 required)
11	3C494	Stabilizer bar link lower nut (2 required)
12	5494	Stabilizer bar
13	3C497	Steering gear-to-subframe bolt (3 required)

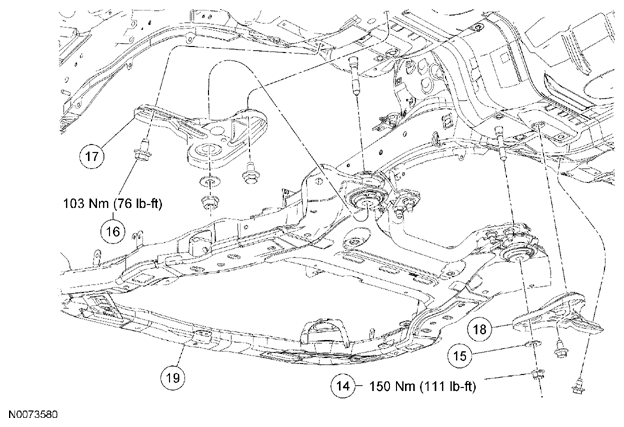

Fig 3: Exploded View Of Stabilizer Bar Components With Torque Specifications - (3 Of 3)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
14	W520416	Subframe bracket-to-subframe nut (4 required)
15	5A552	Front subframe washer (4 required)
16	3C496	Subframe-to-body bolt (4 required)
17	3B154	RH front subframe support bracket
18	3B155	LH front subframe support bracket
19	5C145	Front subframe
