Torque Specifications: Focus
WARNING: This page is about a different car, the 2001 Ford Focus, 2001 Ford Escort, 2000 Ford Focus, and 2000 Ford Escort. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS (FOCUS)
| Application | Ft. Lbs. (N.m) | |||
|---|---|---|---|---|
| A/C Compressor Mounting Bolt | 18 (25) | |||
| Accessory Drive Bracket Bolt | 35 (48) | |||
| Camshaft Sprocket Bolt | 77 (105) | |||
| Connecting Rod Cap Nut | 28 (38) | |||
| Crankshaft Pulley Bolt | 89 (120) | |||
| Crankshaft Rear Seal Retainer Bolt | 18 (25) | |||

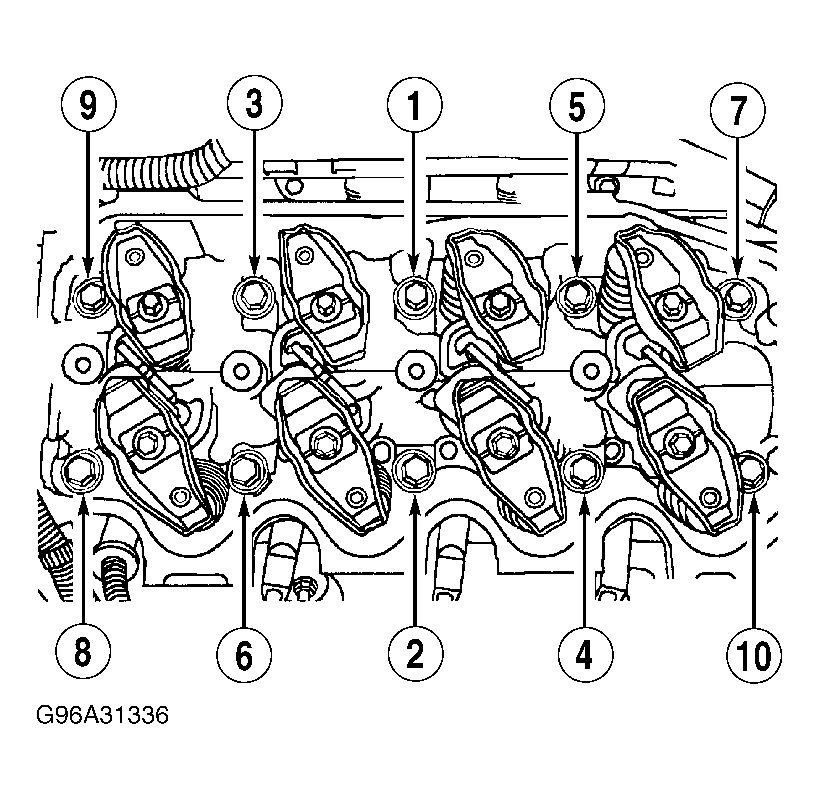

| Cylinder Head Bolt (1) | ||||
| Step 1 | 37 (50) | |||
| Step 2 | Loosen 180 Degrees | |||
| Step 3 | 37 (50) | |||
| Step 4 | Additional 90 Degrees | |||
| Step 5 | Additional 90 Degrees | |||
| Exhaust Manifold Nuts | 20 (27) | |||
| Flywheel Bolt | 60 (82) | |||
| Generator Mounting Bolt | 35 (48) | |||
| Main Bearing Cap Bolt | 73 (99) | |||
| Oil Pan Baffle Bolt | 18 (25) | |||
| Oil Pan Bolt | 18 (25) | |||
| Oil Pump-To-Block | 10 (14) | |||
| Rocker Arm Bolt | 18 (25) | |||
| Spark Plug | 11 (15) | |||
| Timing Belt Tensioner Bolt | 18 (25) | |||
| Transaxle-To-Engine Bolt | 59 (80) | |||
| Upper Timing Belt Cover Bolt | 35 (48) | |||
| Water Pump Bolt | 18 (25) | |||
| Wheel Lug Nut | ||||
| 2000 | 63 (85) | |||
| 2001 | 94 (128) | |||
| INCH Lbs. (N.m) | ||||
| Camshaft Thrust Plate Bolt | 89 (10) | |||
| Intake Manifold Bolt/Nut | ||||
| Stage 1 | 89 (10) | |||
| Stage2 | Additional 90 Degrees | |||
| Timing Belt Cover Bolt | 89 (10) | |||
| Oil Pump Screen Cover & Tube Bolt | 89 (10) | |||
| Valve Cover | 80 (9) | |||
|
||||
