Automatic Transmission/Transaxle

Automatic Transmission - Disassembled View

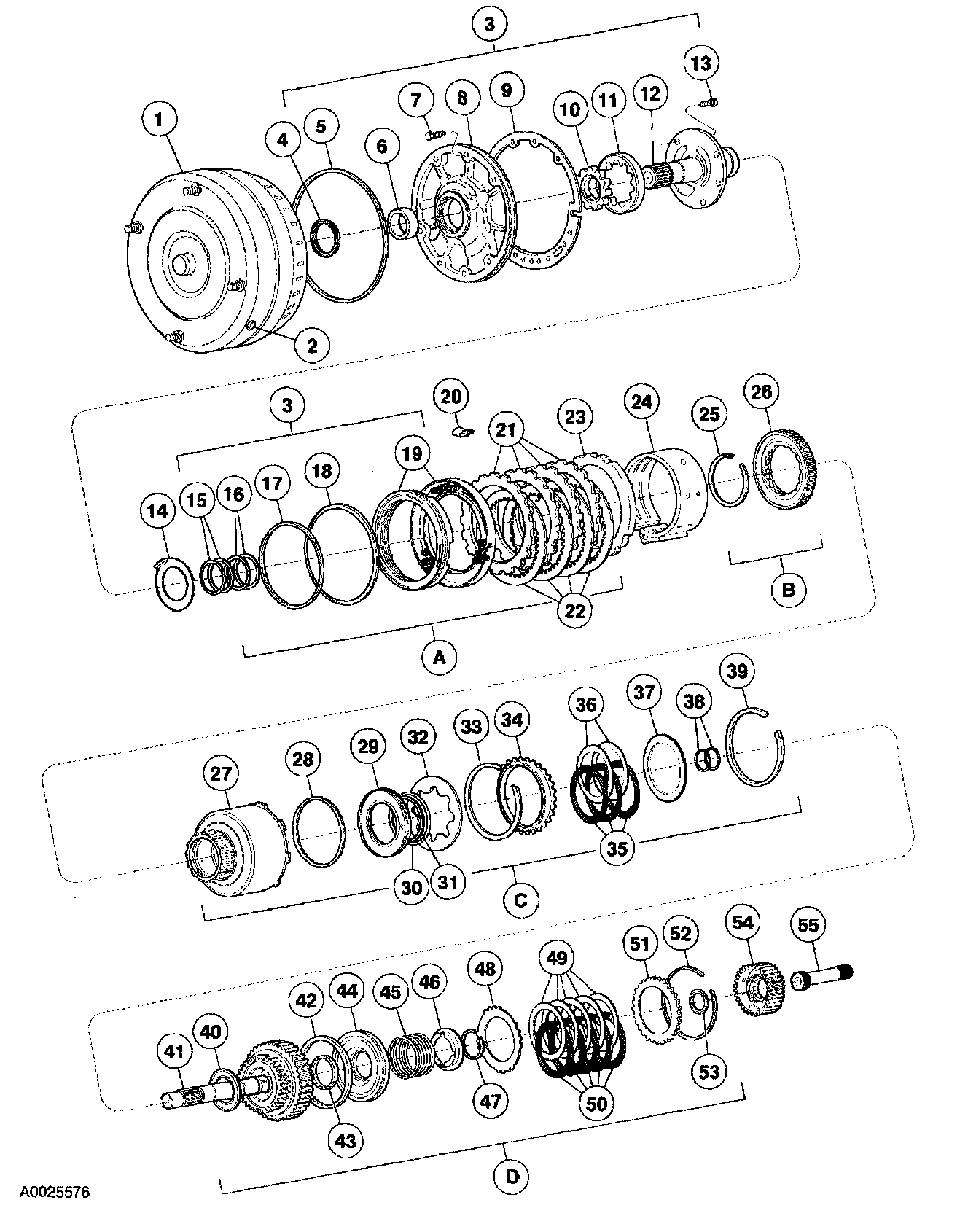

Part 1 of 6

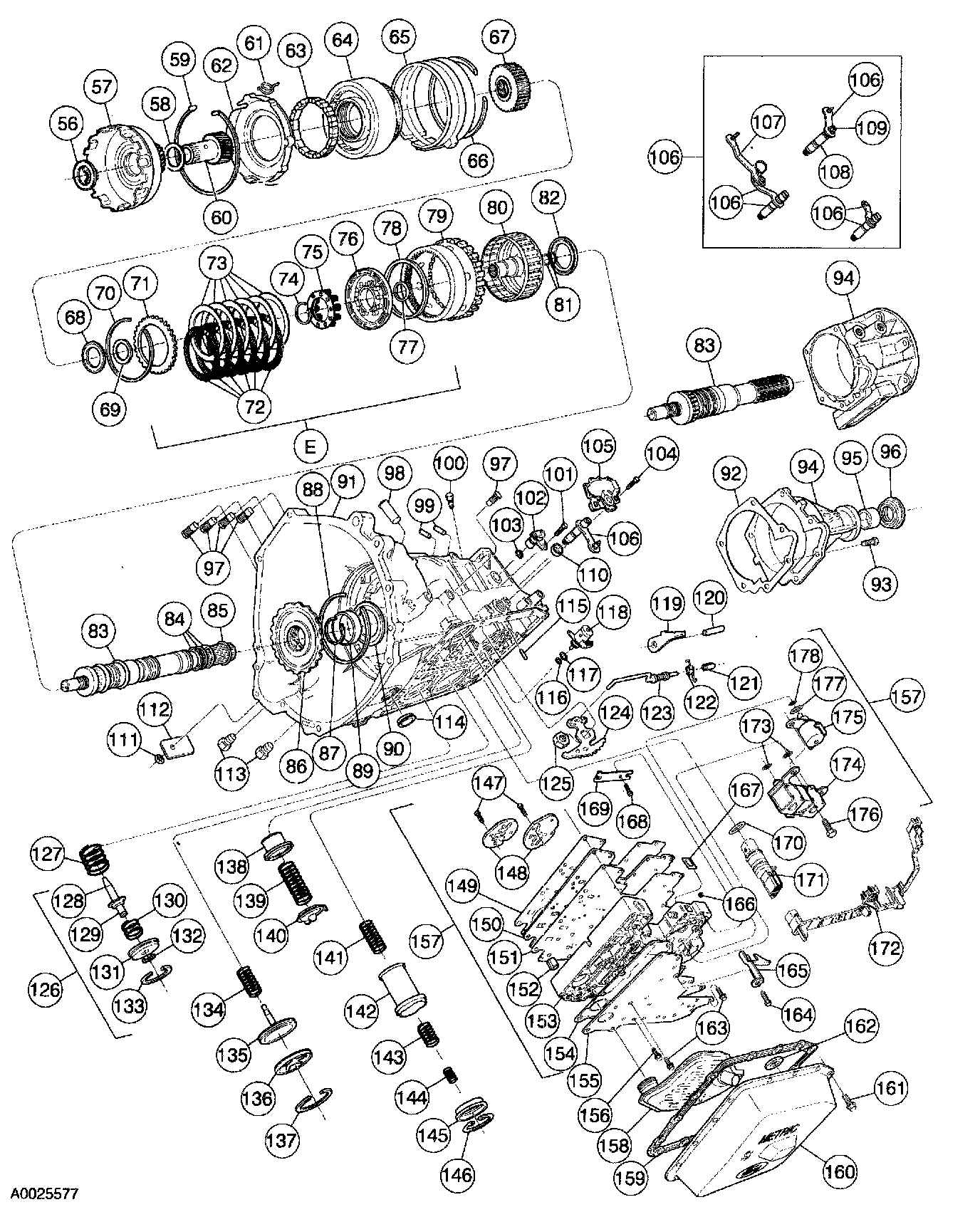

Part 2 of 6

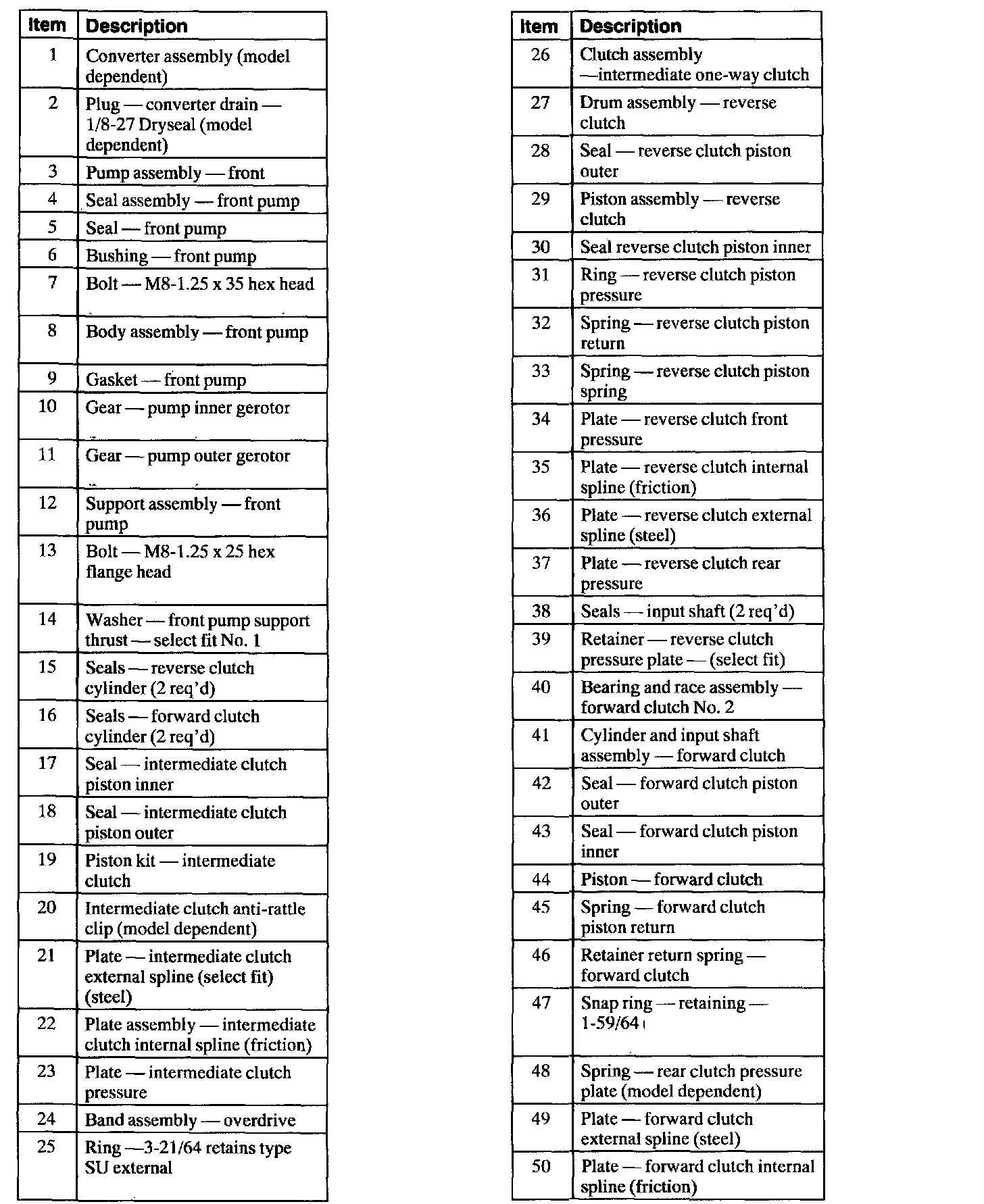

Part 3 of 6





Part 4 of 6

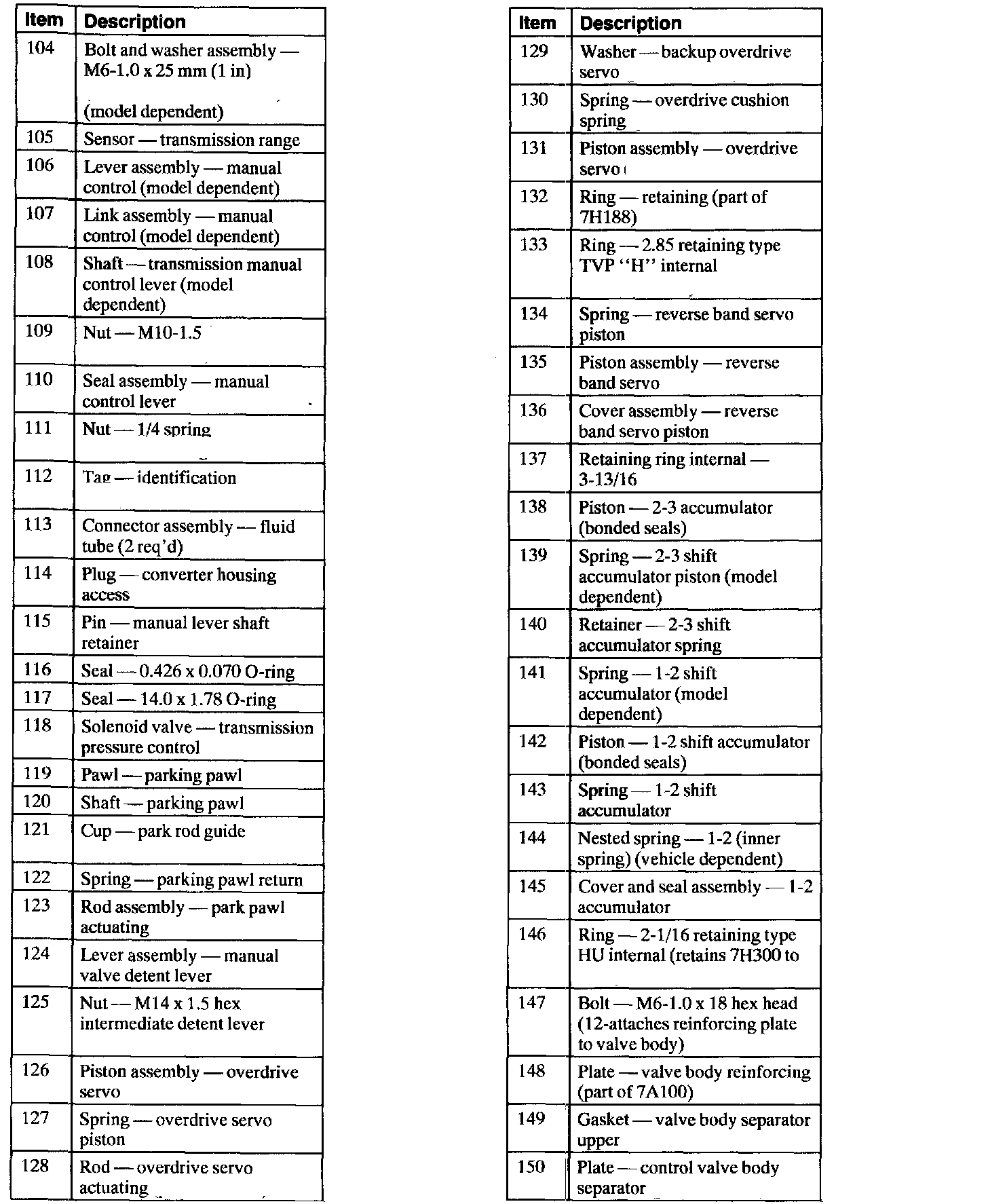

Part 5 of 6

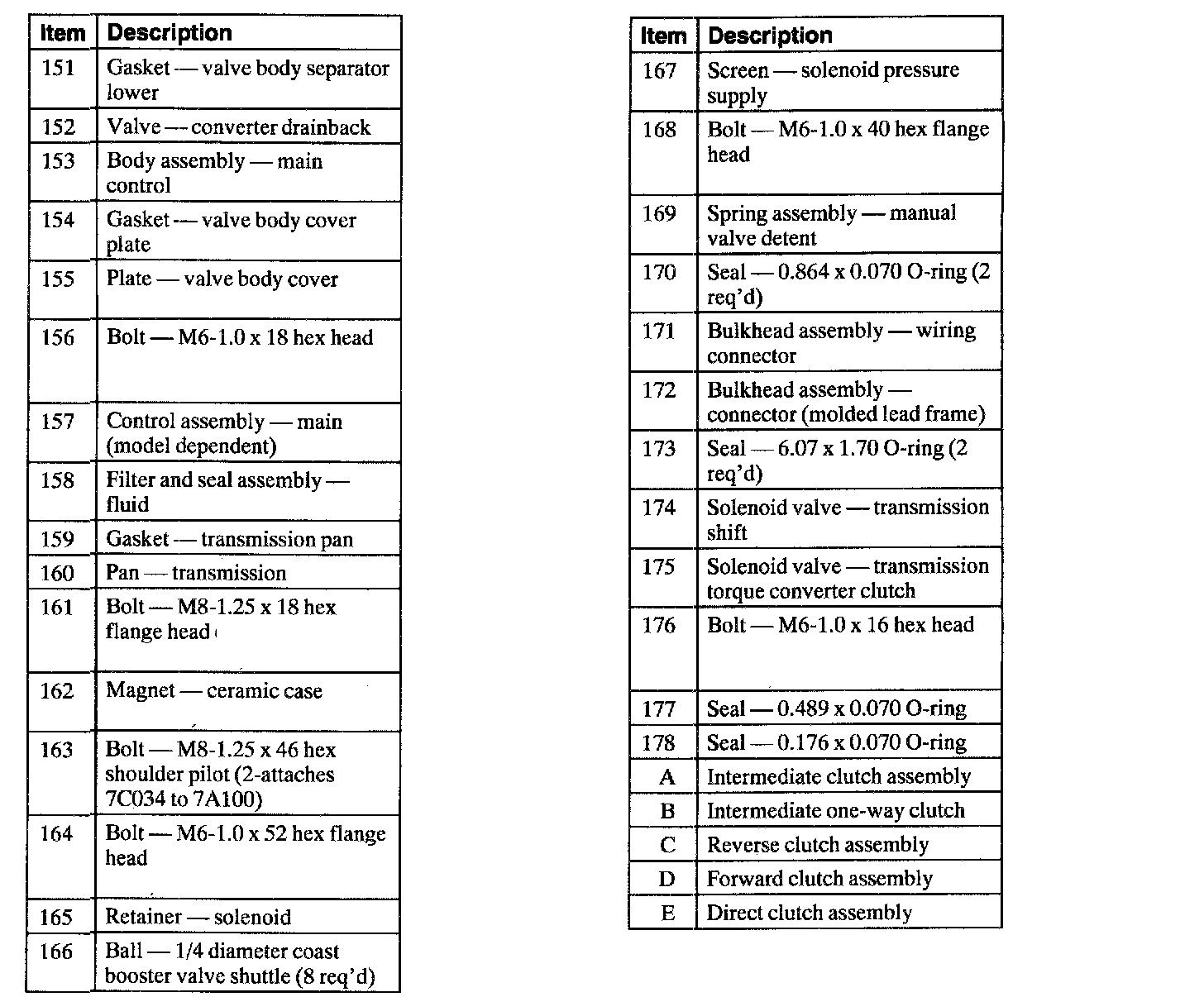

Part 6 of 6
