Control Assembly, HVAC

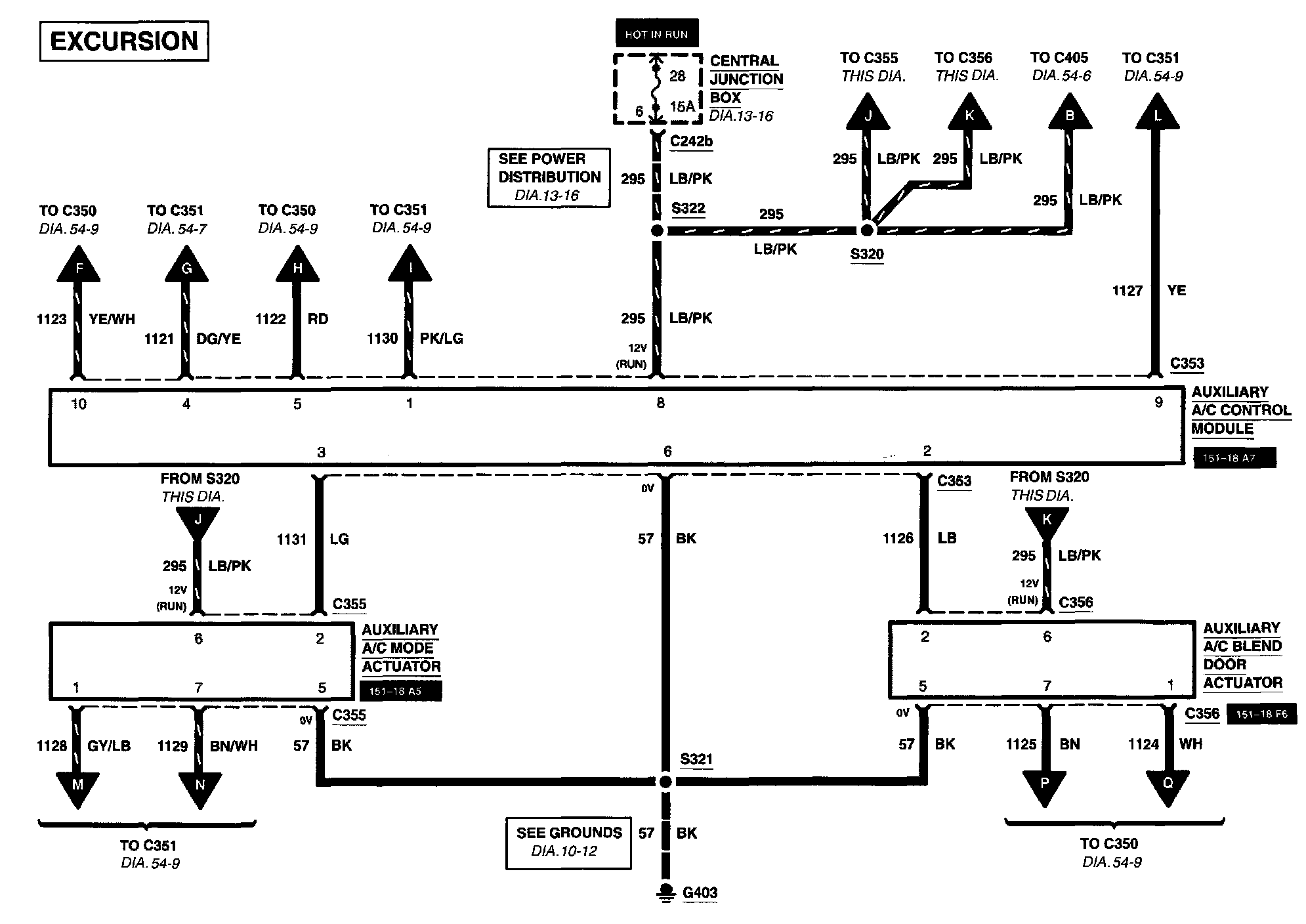

Diagram 54-1:

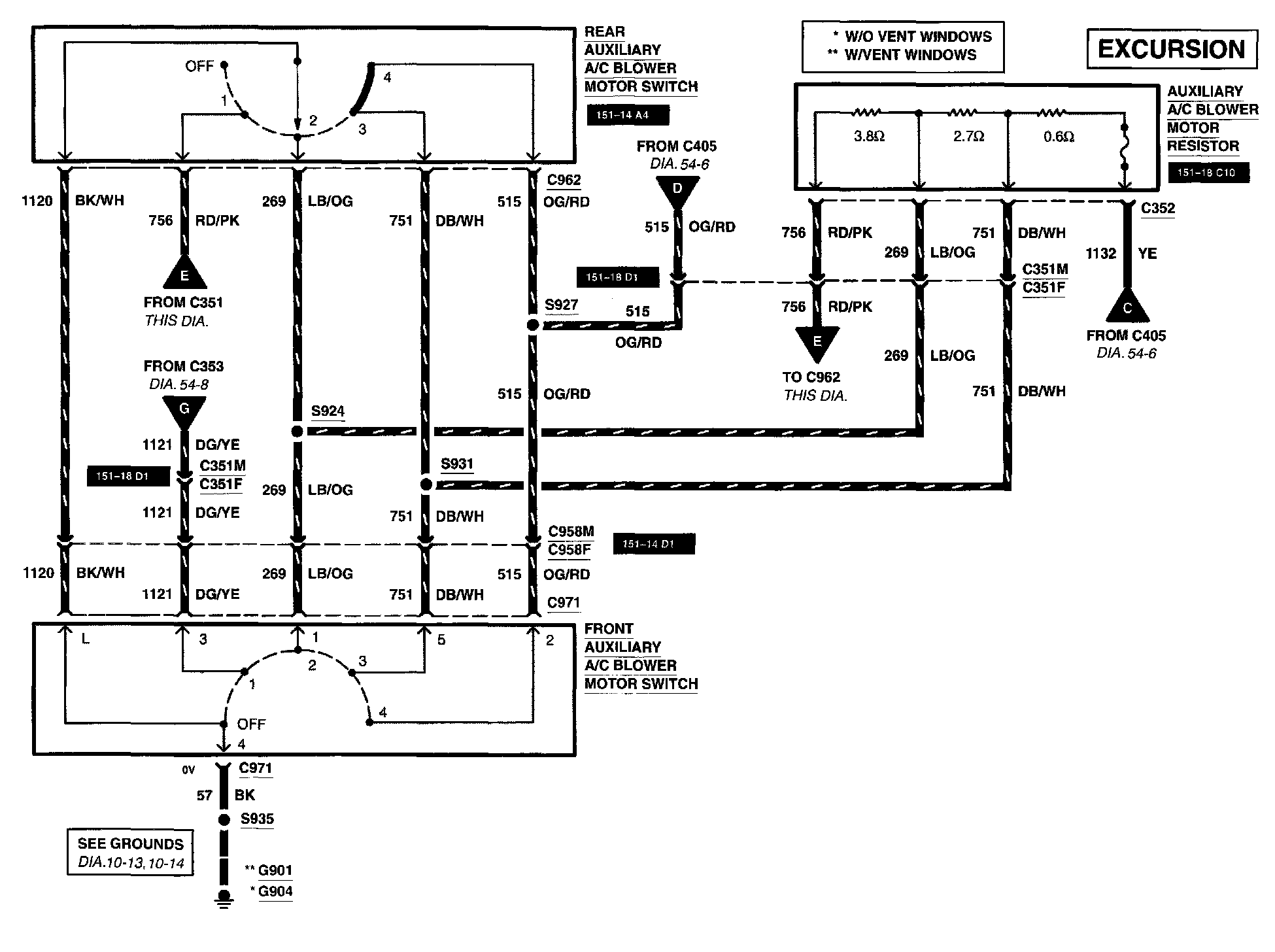

Diagram 54-2:

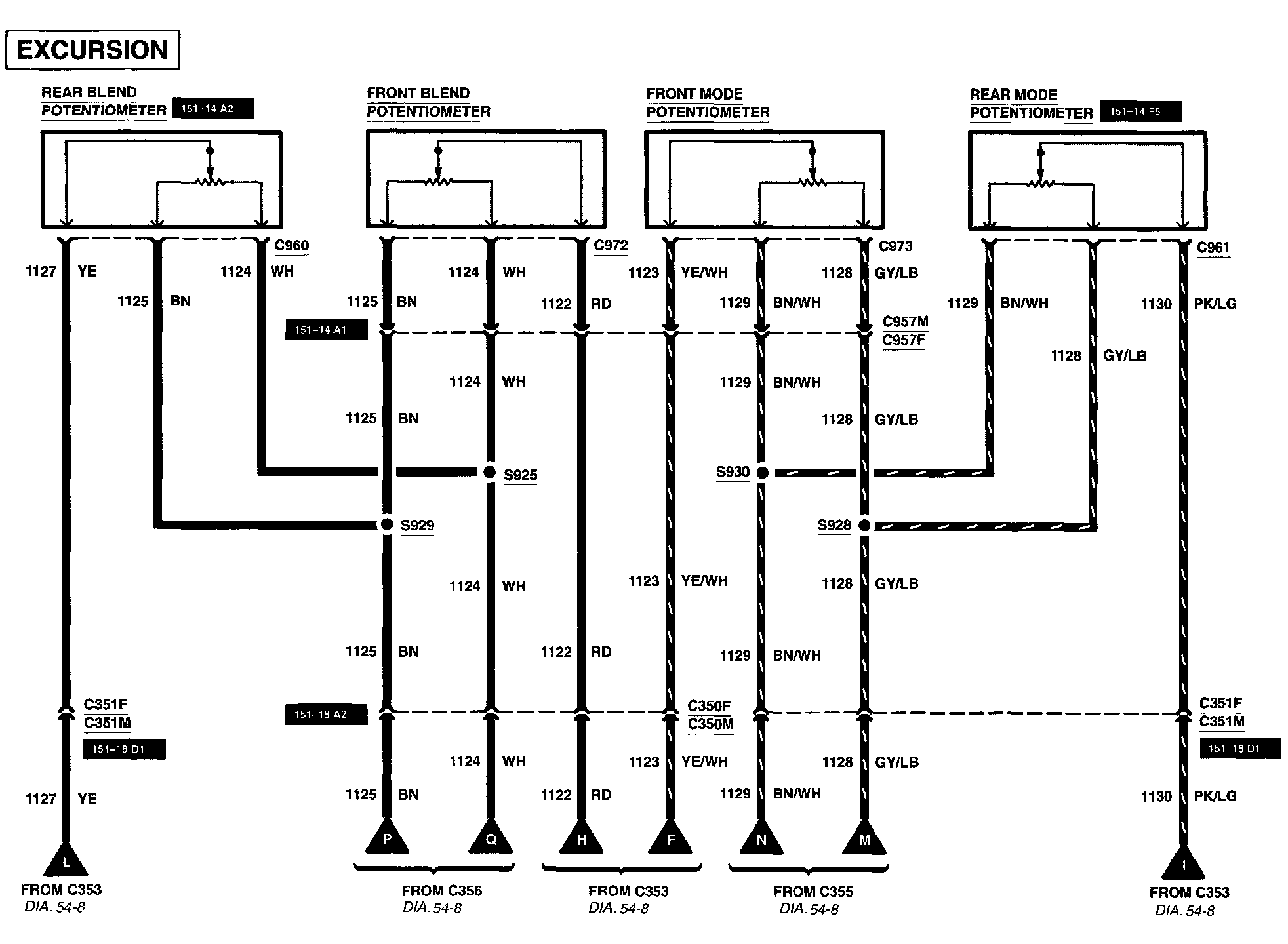

Diagram 54-3:

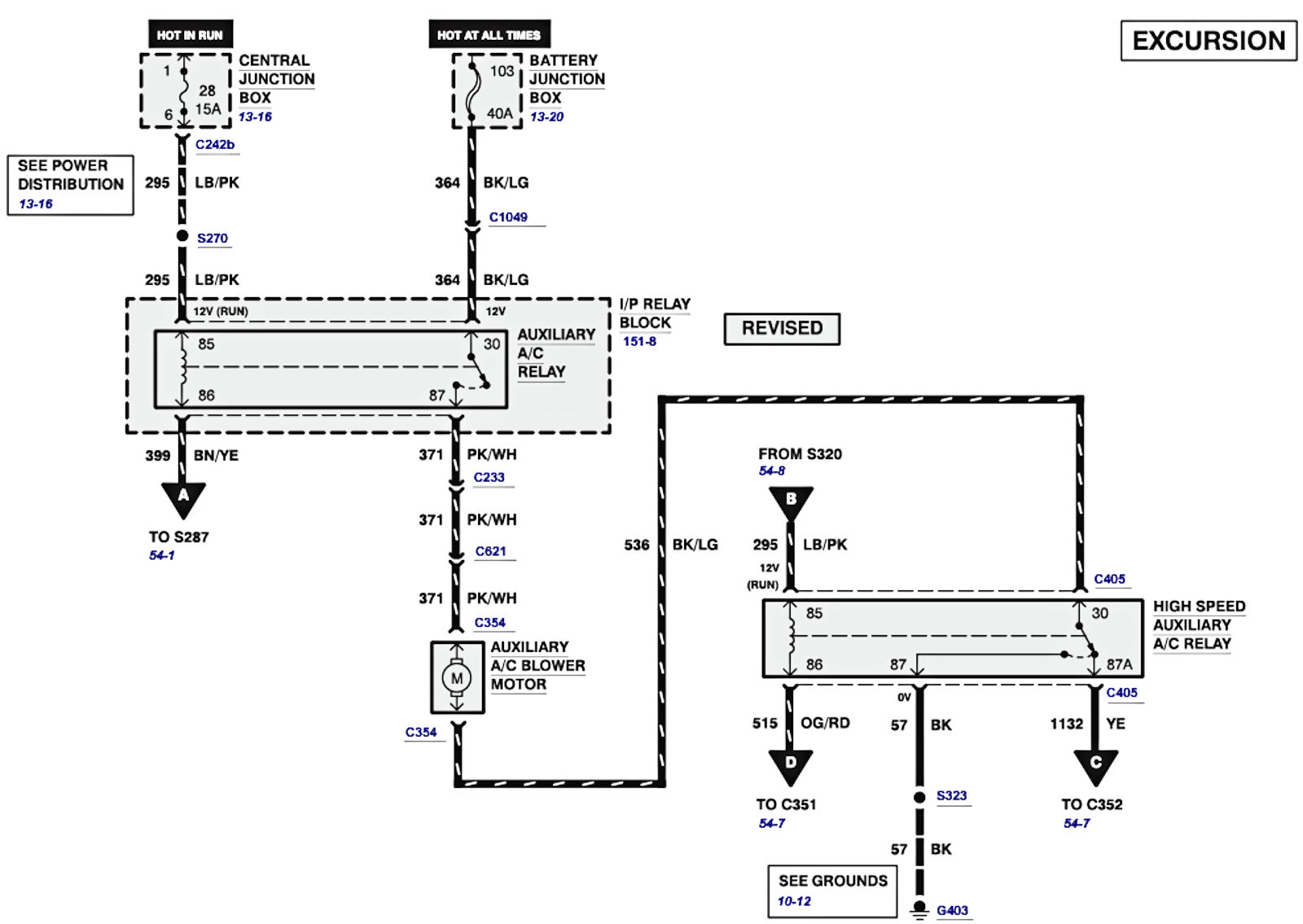

Diagram 54-6:
Diagram 54-7:
Diagram 54-8:
Diagram 54-9:
