Test F: All Windows Operate With Ignition Off

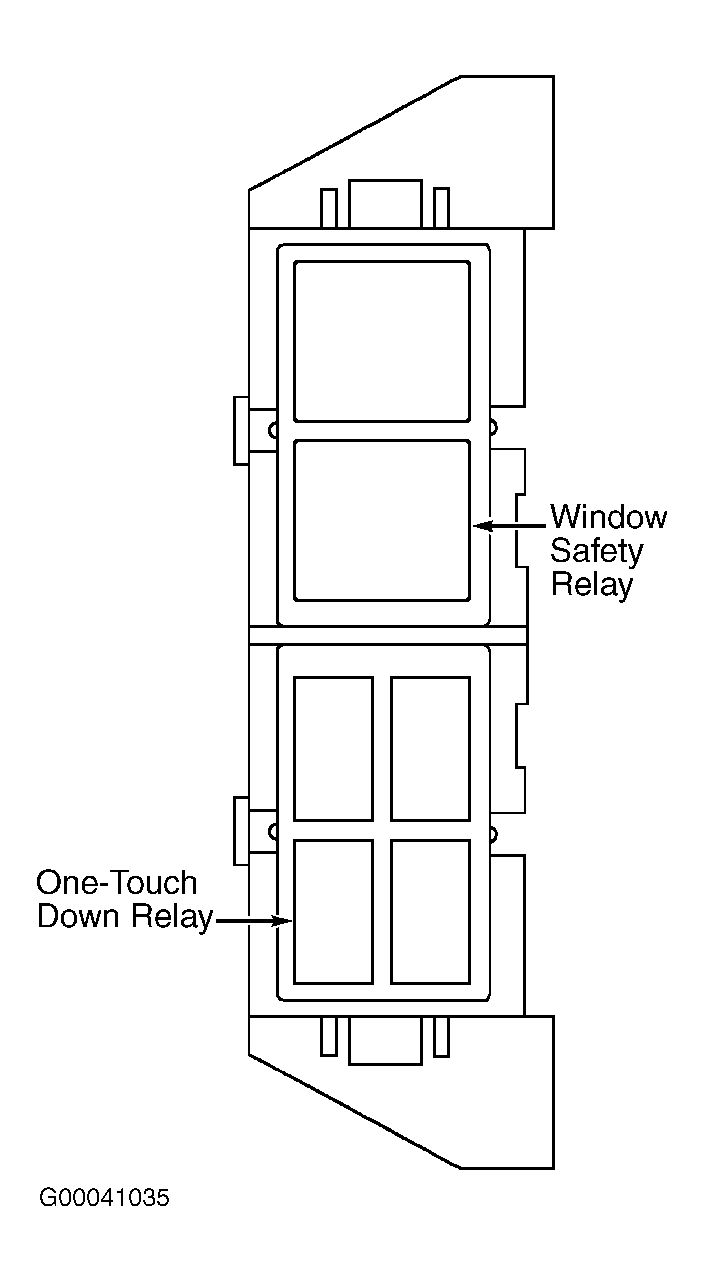

Remove window safety relay from relay box 1. See Figure . Check window safety relay. See WINDOW SAFETY RELAY  under COMPONENT TESTS. If window safety relay is okay, repair short to power in Light Blue/Black wire between window safety relay and one-touch down relay. If window safety relay is not okay, replace window safety relay. Clear DTCs and retest system operation.
