Passive Anti-Theft System (PATS) Transceiver: Notes

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

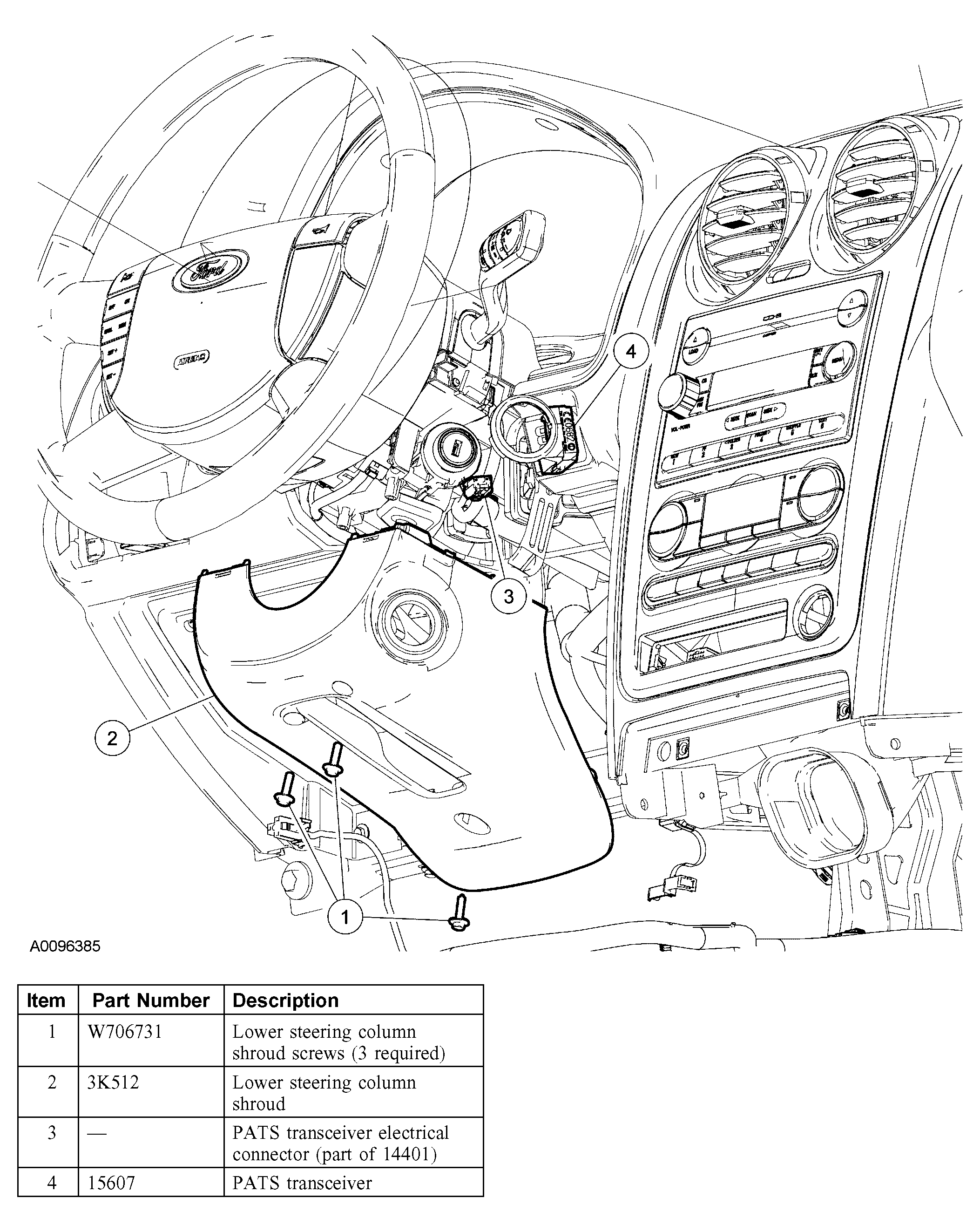

Fig 1: Removing/Installing Passive Anti-Theft System Transceiver Components
G03993006Courtesy of FORD MOTOR CO.
