Component Tests

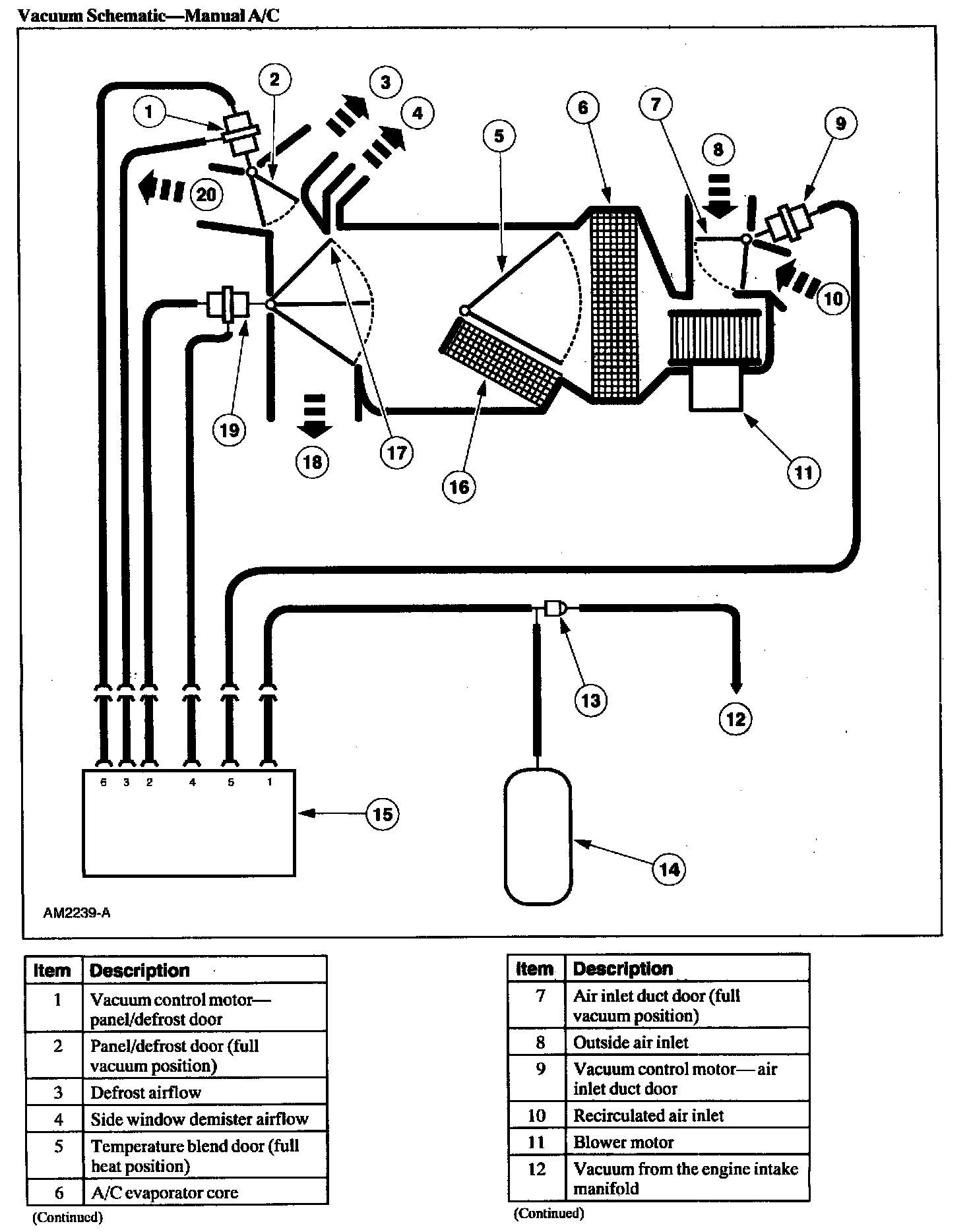

Vacuum Schematic - Manual A/C, Part 1:






Vacuum Schematic - Manual A/C (Legend Continued), Part 2:






Vacuum Connector End View - Manual A/C:






Vacuum Application Chart:
