EGR Monitor

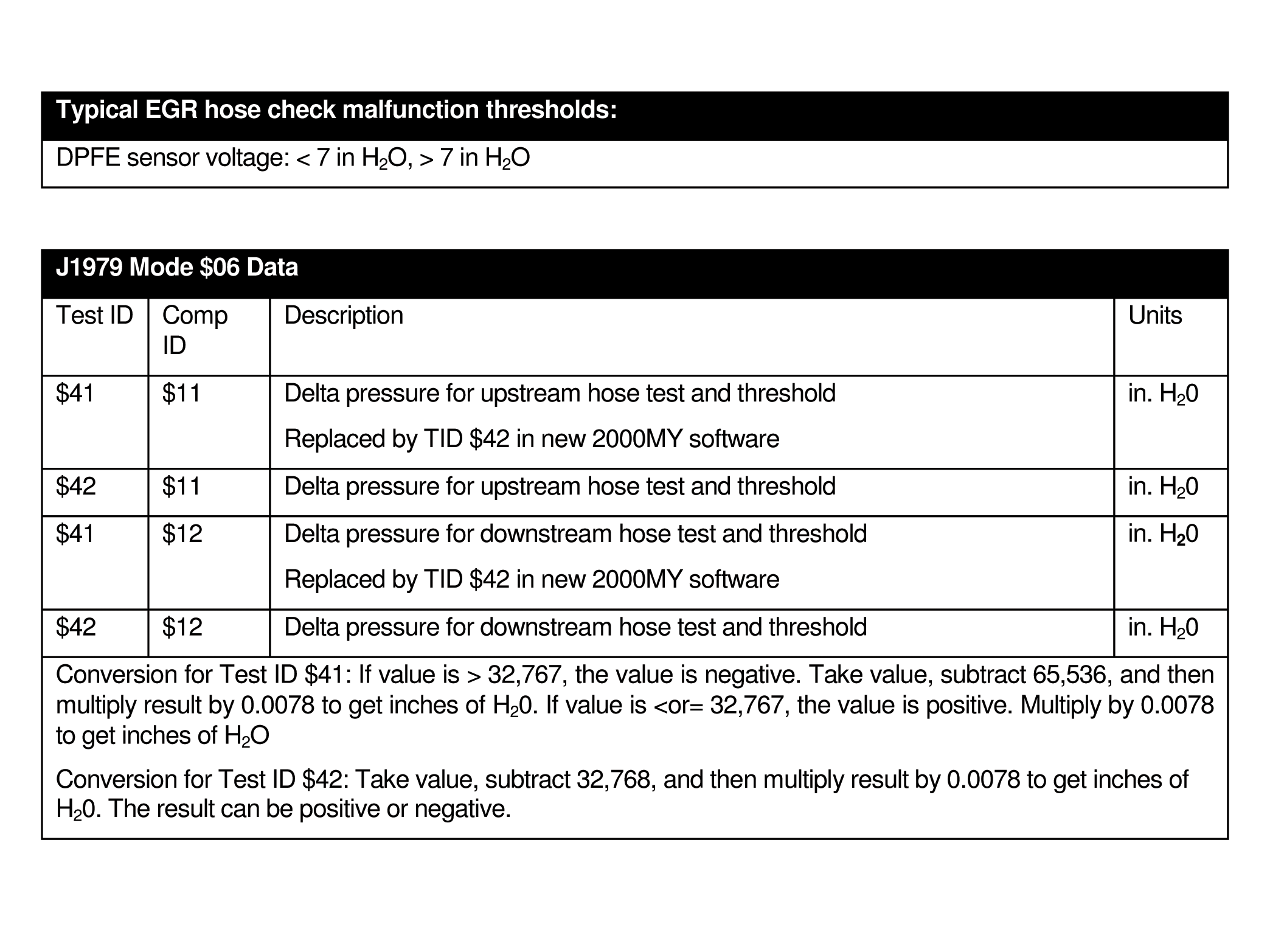

Fig 1: Mode $06 Data For EGR Hose Check Monitor
G00152265Courtesy of FORD MOTOR CO.

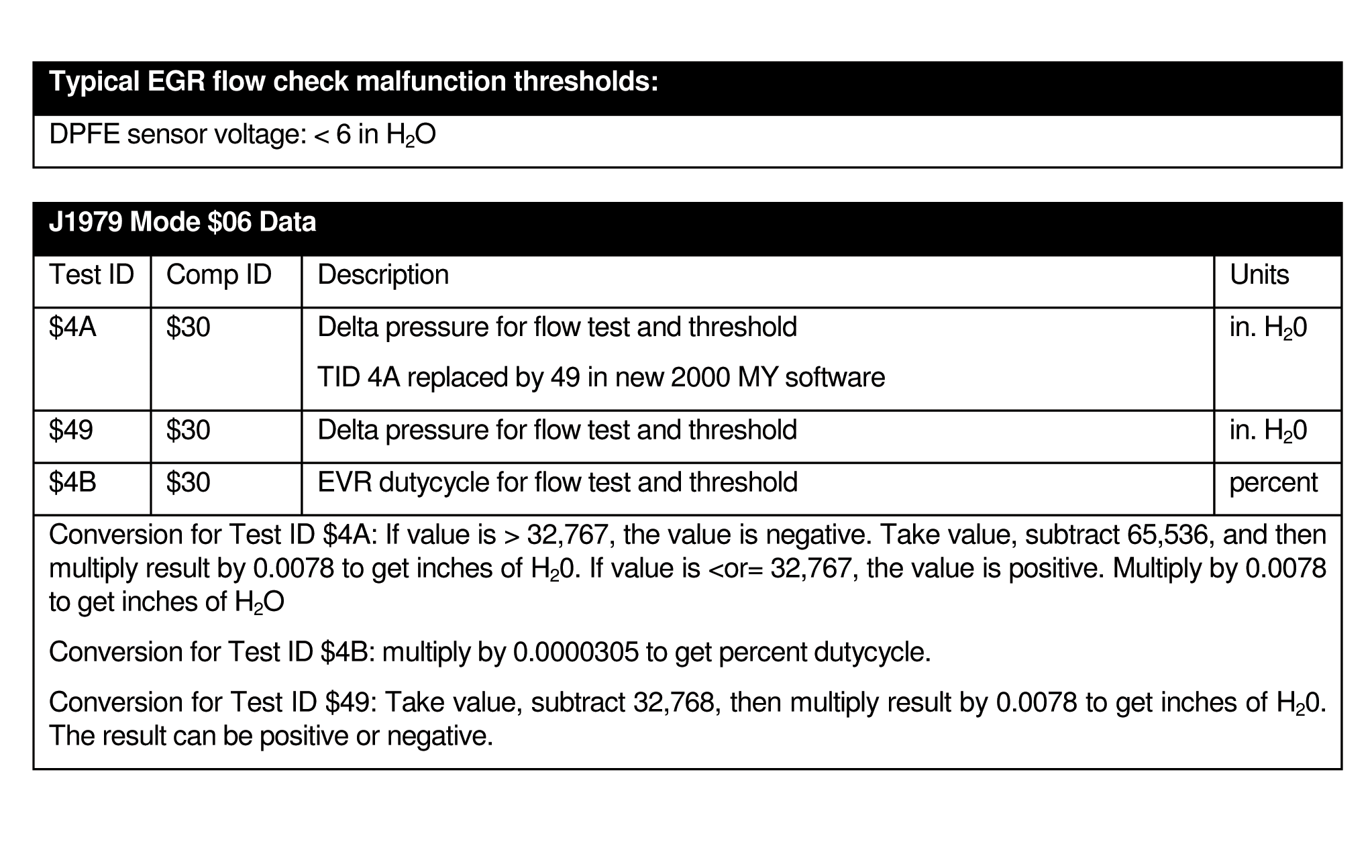

Fig 2: Mode $06 Data For EGR Flow Check Monitor (DPFE)
G00152266Courtesy of FORD MOTOR CO.

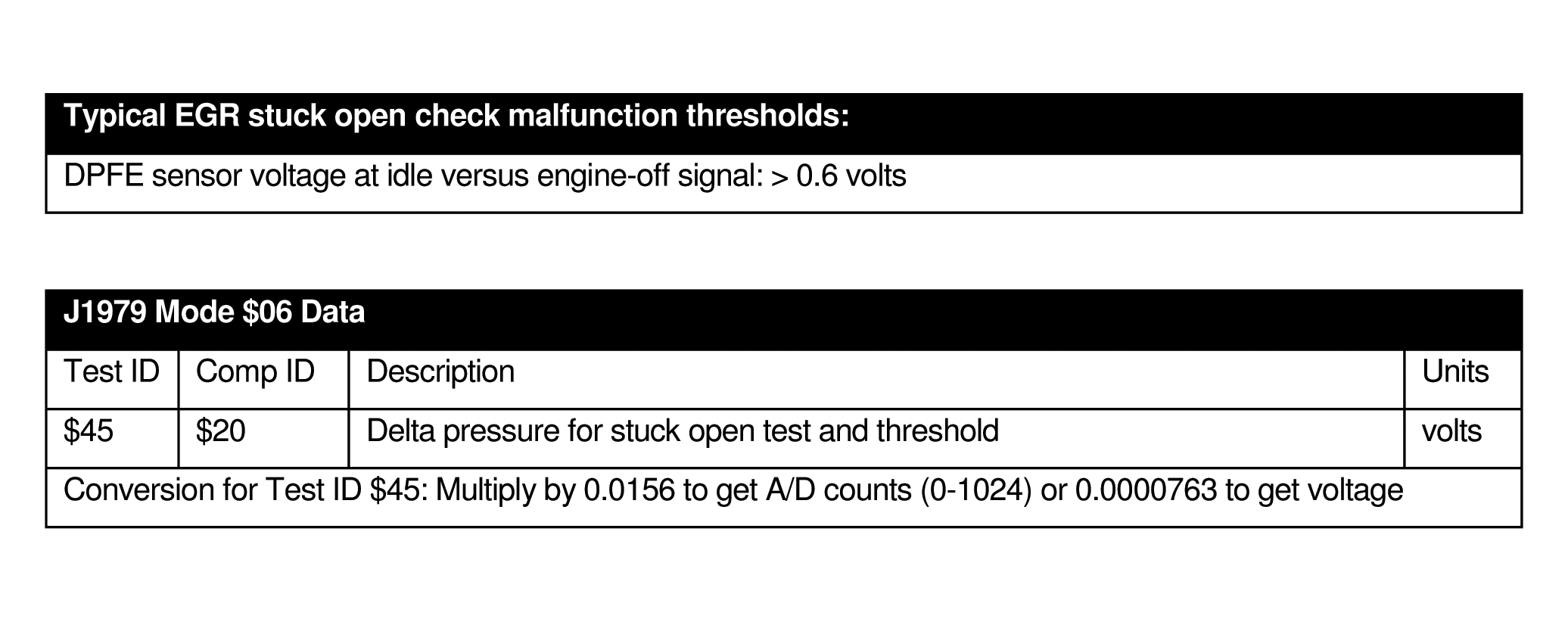

Fig 3: Mode $06 Data For EGR Stuck Open Monitor
G00152267Courtesy of FORD MOTOR CO.

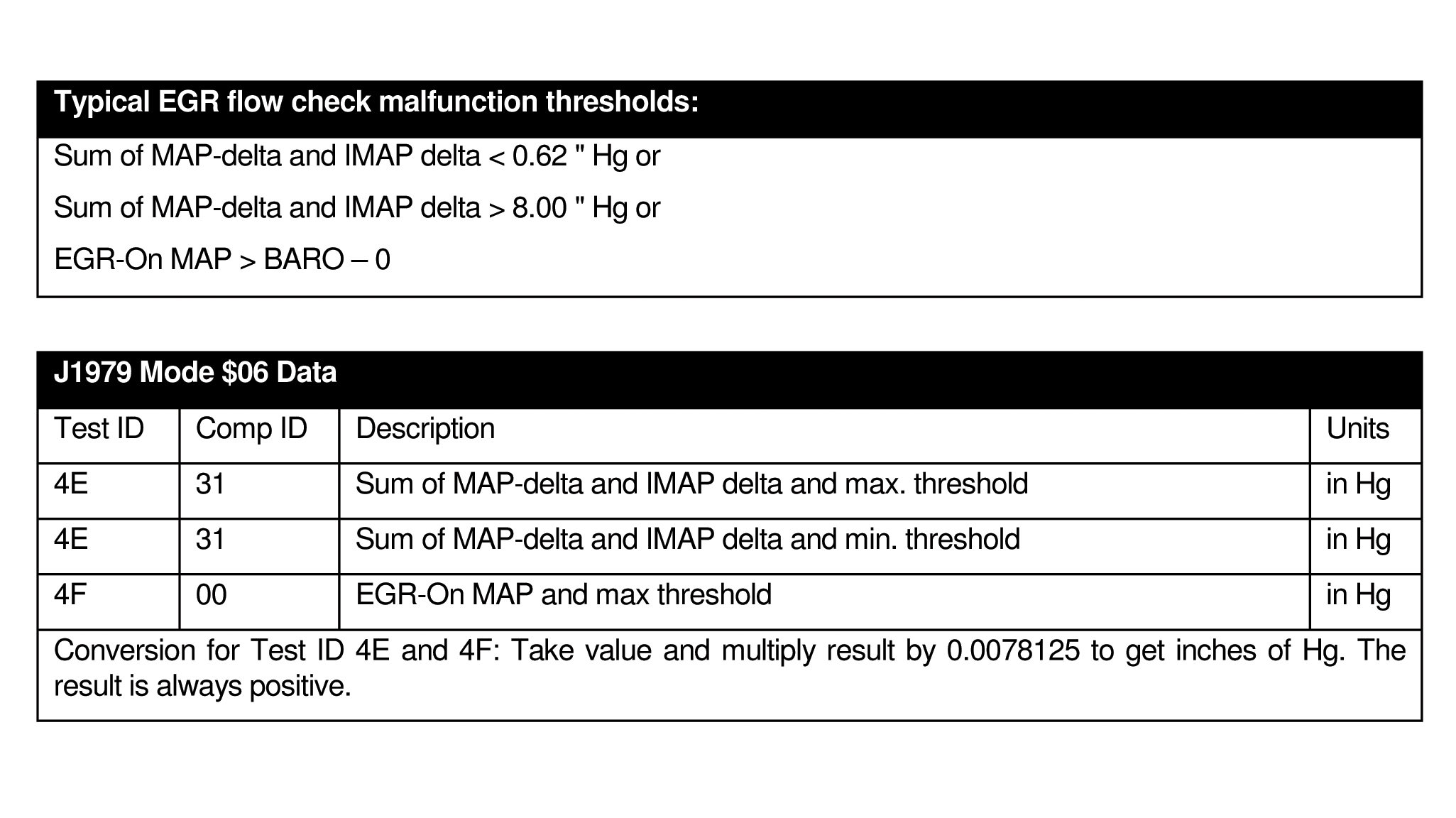

Fig 4: Mode $06 Data For EGR Flow Check Monitor (IMAP)
G00152268Courtesy of FORD MOTOR CO.
