Removal and Installation

NOTE: Prior to removal of the GEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the floor console. Refer to INSTRUMENT PANEL & CONSOLE .
Disconnect the GEM electrical connectors.

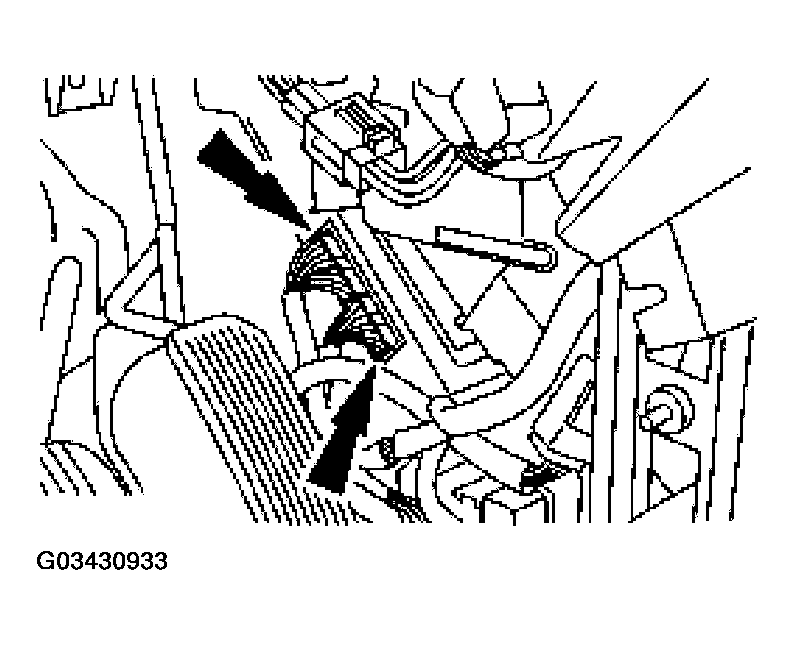

Fig 1: Identifying GEM Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the GEM
1. Pull back the insulation and remove the nuts.
2. Remove the GEM.
Fig 2: Removing GEM
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Configure the GEM. Refer to MODULE CONFIGURATION .
