Main Control Valve Body: Disassembly

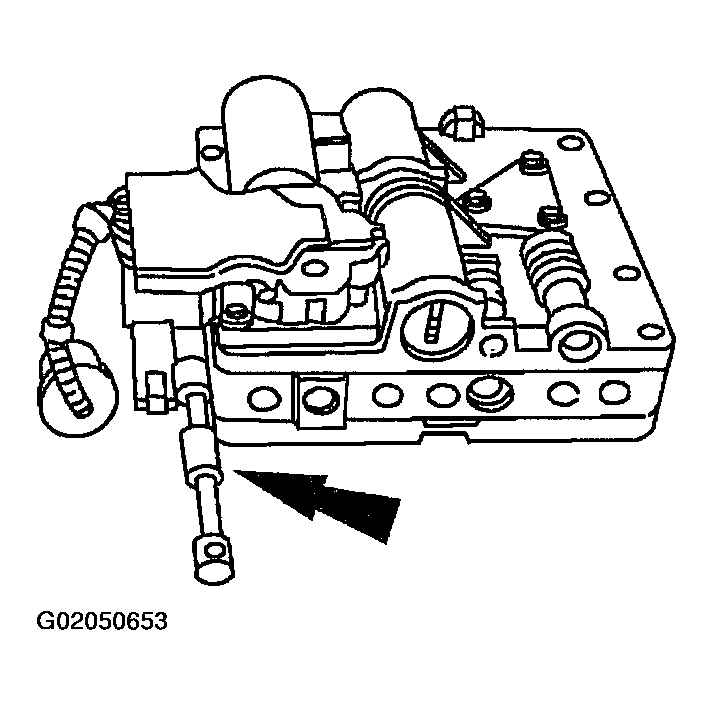

  1. Remove the manual valve.
    Fig 1: Removing Manual Valve
    G02050653Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not  attempt to remove the solenoid valve body wiring cover.

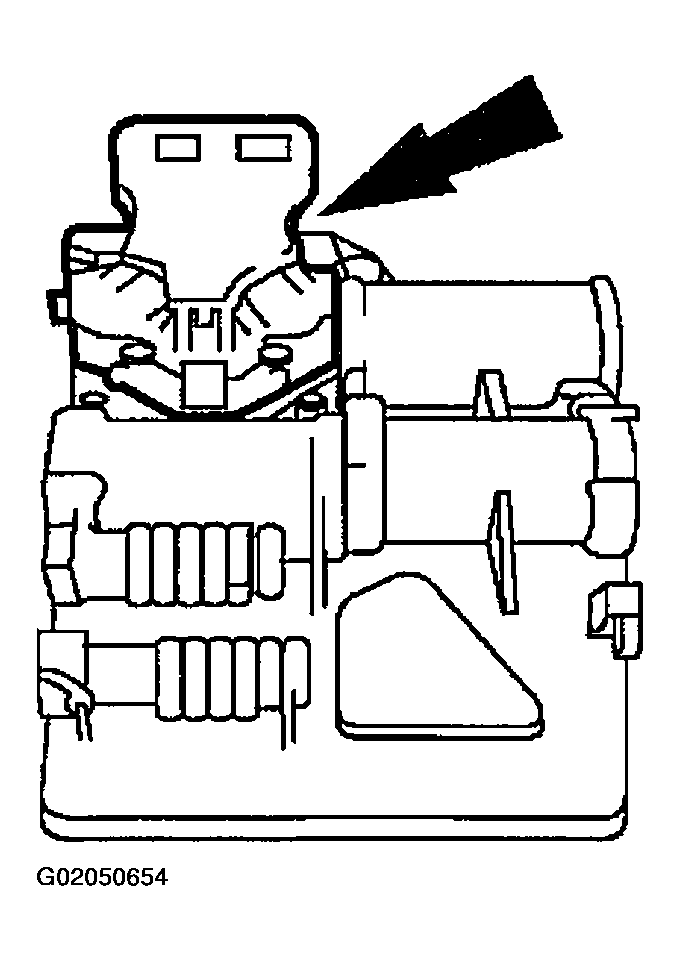

    Fig 2: Removing Two Solenoid Valve Body Bolts & The Solenoid Valve Body
    G02050654Courtesy of FORD MOTOR CO.
  2. Remove the two solenoid valve body bolts and the solenoid valve body.
  3. Remove and discard the solenoid valve body gasket.

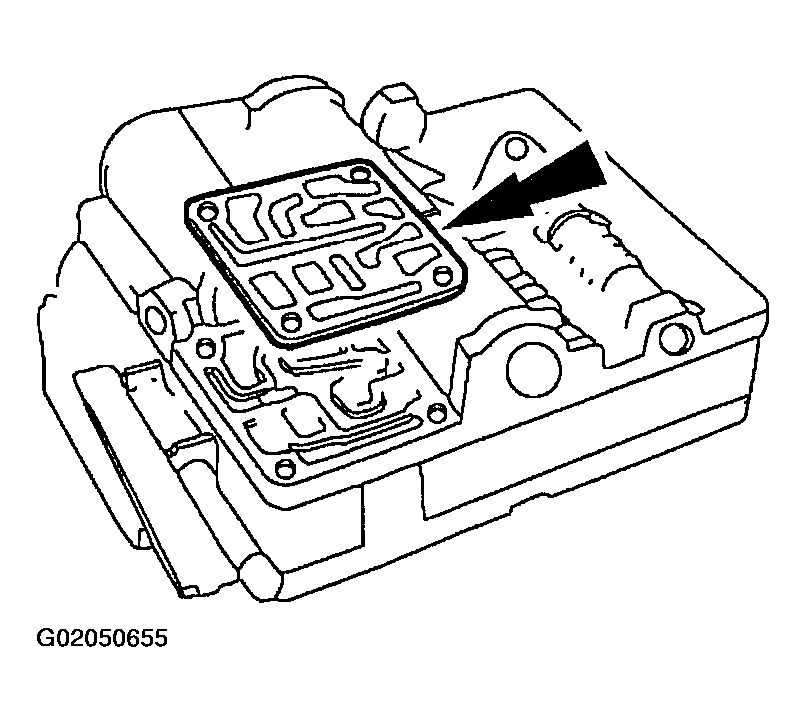

    Fig 3: Removing Solenoid Valve Body Gasket
    G02050655Courtesy of FORD MOTOR CO.
  4. Remove the three pressure tap plate bolts and the pressure tap plate.
    Fig 4: Removing Three Pressure Tap Plate Bolts & The Pressure Tap Plate
    G02050656Courtesy of FORD MOTOR CO.
  5. Remove and discard the pressure plate tap gasket.

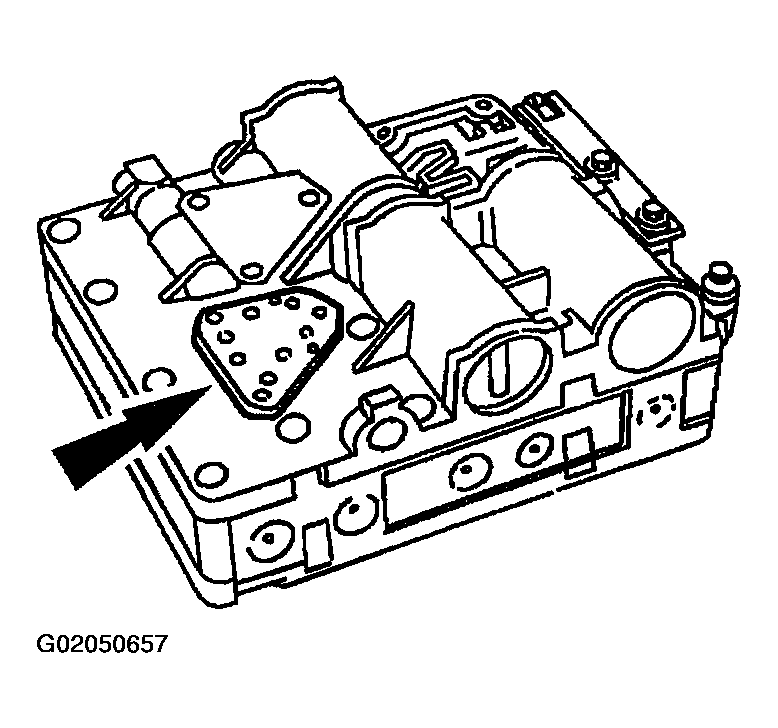

    Fig 5: Removing Pressure Plate Tap Gasket
    G02050657Courtesy of FORD MOTOR CO.
  6. Remove the control valve body to transfer plate bolts, and remove the manual valve detent spring assembly.
    Fig 6: Removing Control Valve Body To Transfer Plate Bolts
    G02050658Courtesy of FORD MOTOR CO.

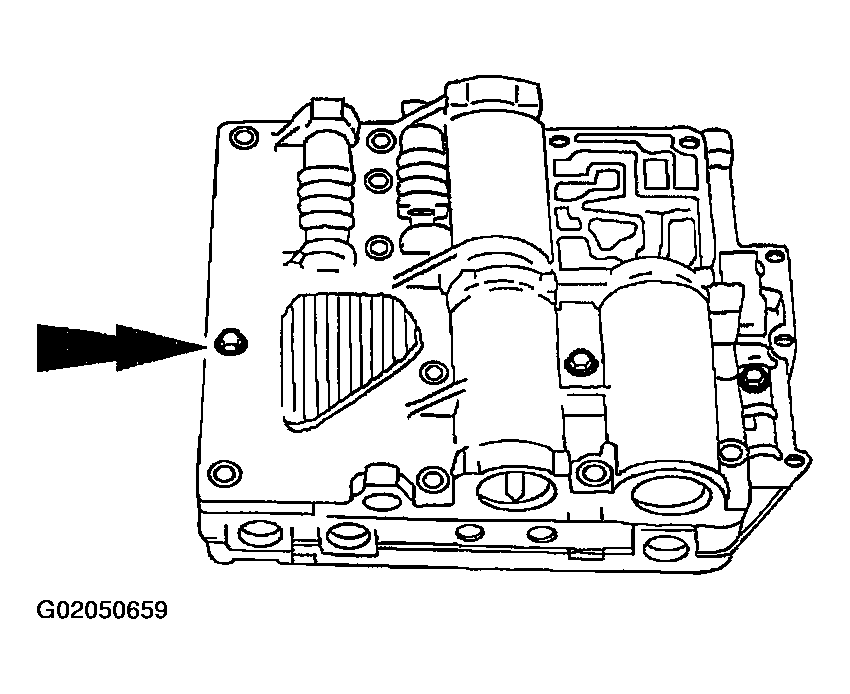

  7. Remove the accumulator body-to-transfer plate bolts.
    Fig 7: Removing Accumulator Body-To-Transfer Plate Bolts
    G02050659Courtesy of FORD MOTOR CO.
  8. Separate the accumulator body from the main control valve body.
    1. Remove the accumulator body assembly.
    2. Remove and discard the accumulator body separator gasket.
    3. Remove the accumulator body separator plate.
    4. Remove and discard the accumulator body separator gasket.
    5. Remove the main control valve body.

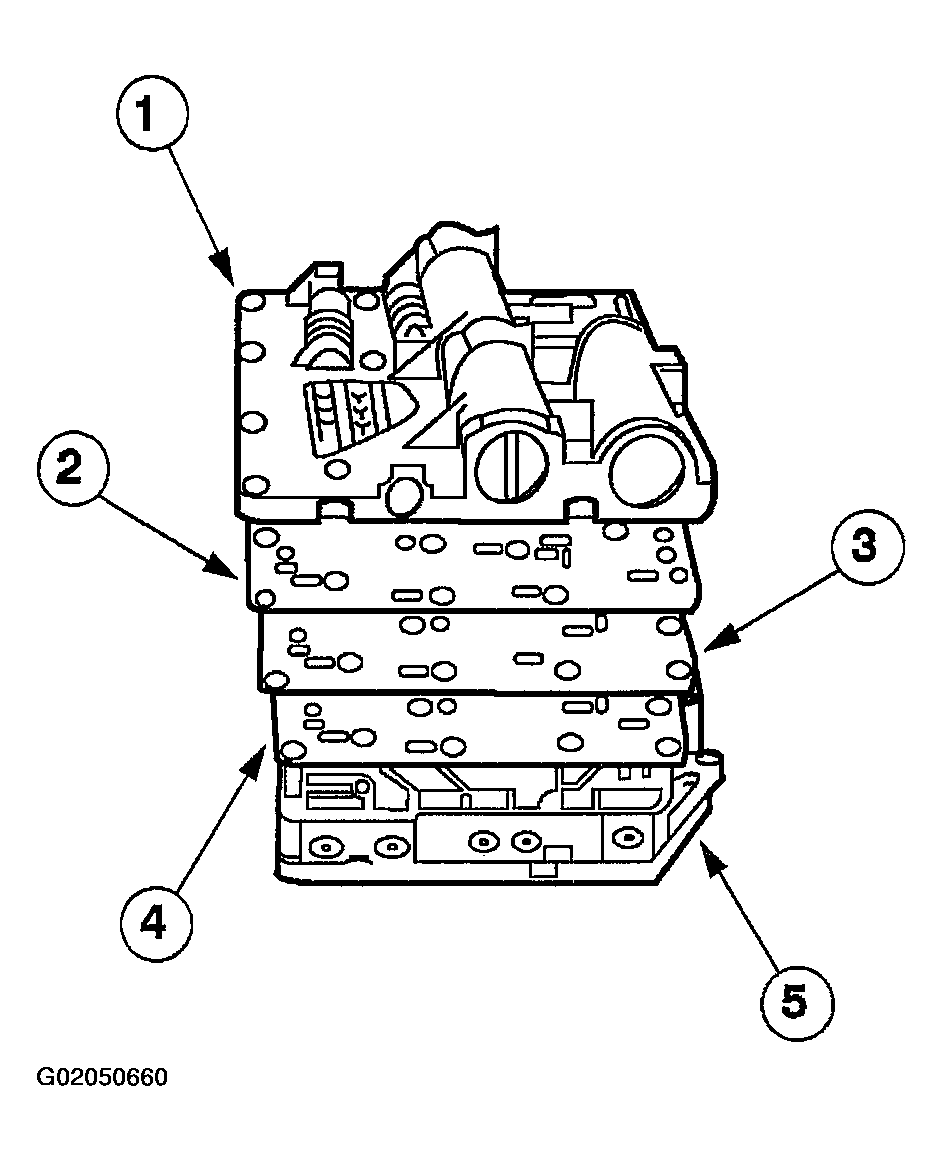

    Fig 8: Separating Accumulator Body From The Main Control Valve Body
    G02050660Courtesy of FORD MOTOR CO.
  9. Separate the transfer plate from the main control valve body.
    1. Remove the main control valve body.
    2. Remove and discard the valve body separator plate gasket.
    3. Remove the valve body separator plate.
    4. Remove and discard the valve body separator plate gasket.
    5. Remove the transfer plate.

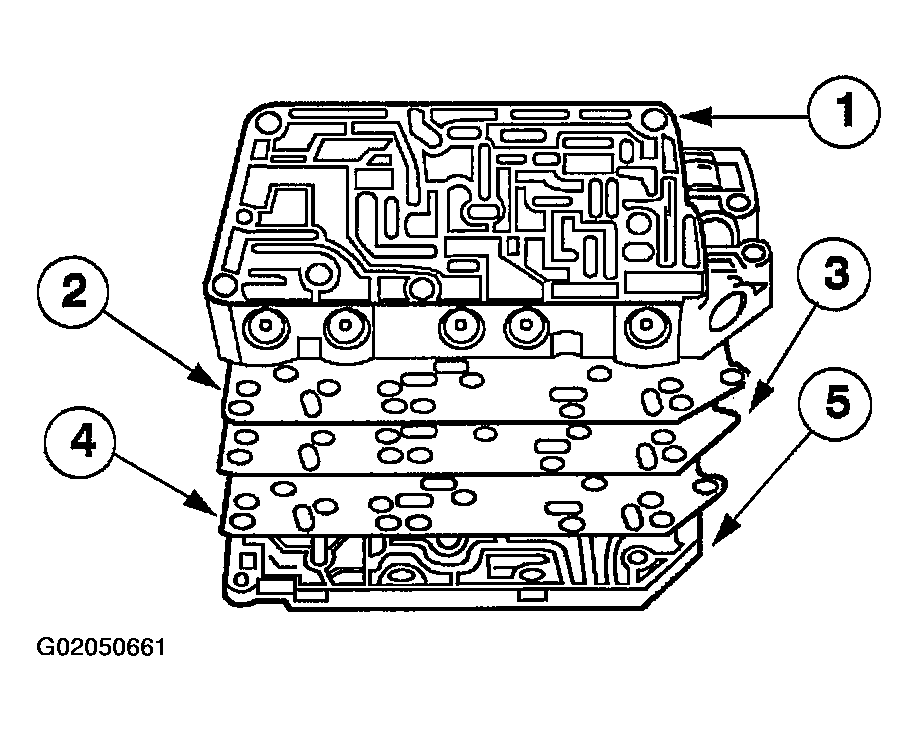

    Fig 9: Separating Transfer Plate From The Main Control Valve Body
    G02050661Courtesy of FORD MOTOR CO.
  10. Remove the intermediate and overdrive accumulator valve plug retaining plate from the accumulator body assembly.
    Fig 10: Removing Intermediate & Overdrive Accumulator Valve Plug Retaining Plate From Accumulator Body Assembly
    G02050662Courtesy of FORD MOTOR CO.
  11. Remove the intermediate and overdrive accumulator valve plug.
    Fig 11: Removing Intermediate & Overdrive Accumulator Valve Plug
    G02050663Courtesy of FORD MOTOR CO.
  12. Remove and discard the intermediate and overdrive accumulator plug seal.
    Fig 12: Removing Intermediate & Overdrive Accumulator Plug Seal
    G02050664Courtesy of FORD MOTOR CO.
    13. CAUTION: Remove, note location and clean one valve at a time to avoid incorrect installation.
  13. As necessary, disassemble the parts of the accumulator body and main control valve body assemblies.
    • Lubricate and reassemble the parts as soon as possible to avoid accidental damage or incorrect installation.
