Torque Converter Insert Check: Check

Install the oil pump drive shaft into the torque converter.

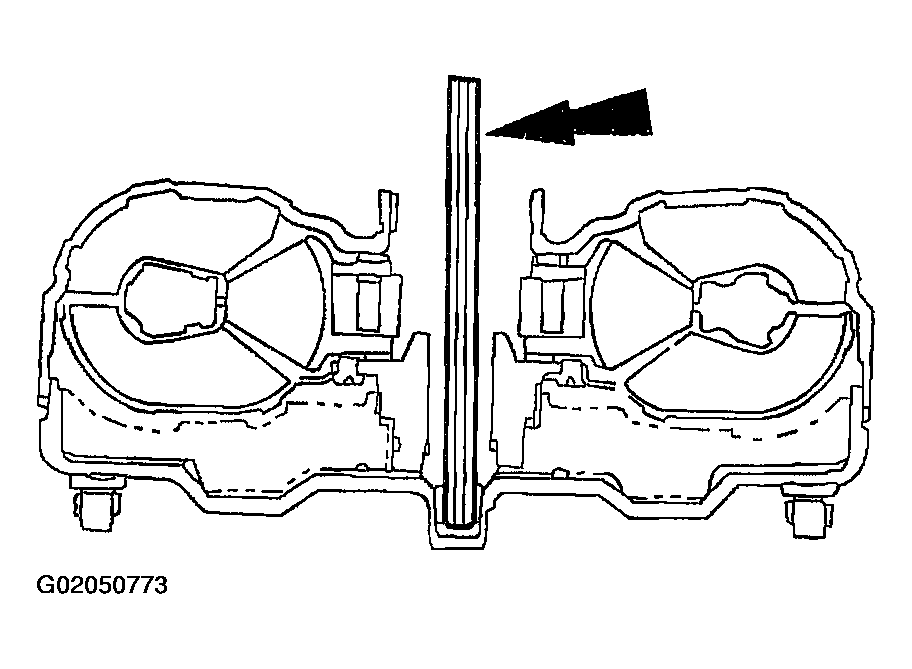

Fig 1: Installing Oil Pump Drive Shaft Into Torque Converter
Courtesy of FORD MOTOR CO.
Install a torque wrench with a 5/16 inch Allen head socket attached on the oil pump drive shaft.

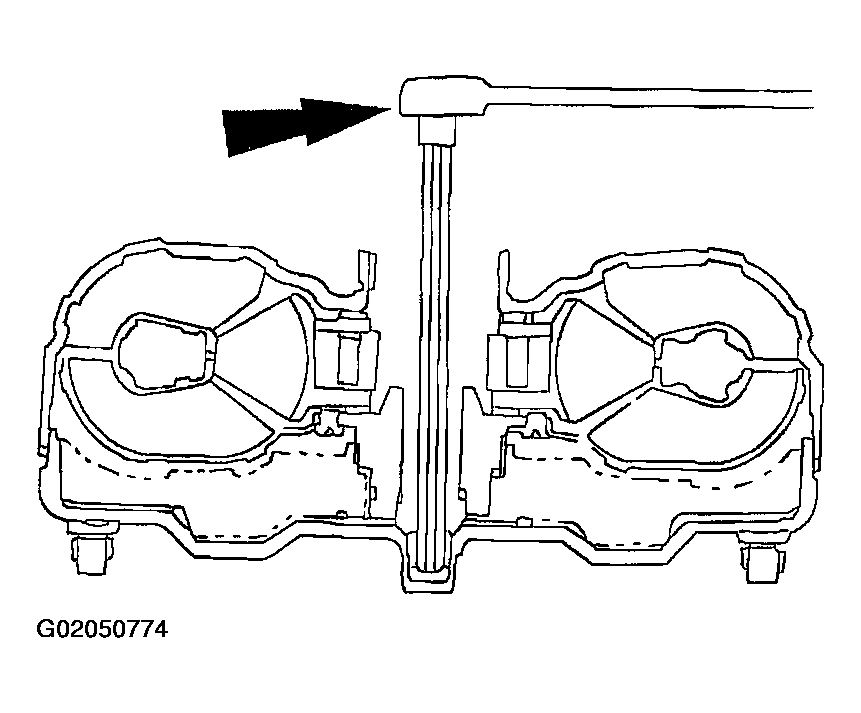

Fig 2: Installing A Torque Wrench On The Oil Pump Drive Shaft
Courtesy of FORD MOTOR CO.
Verify that the insert can hold torque.

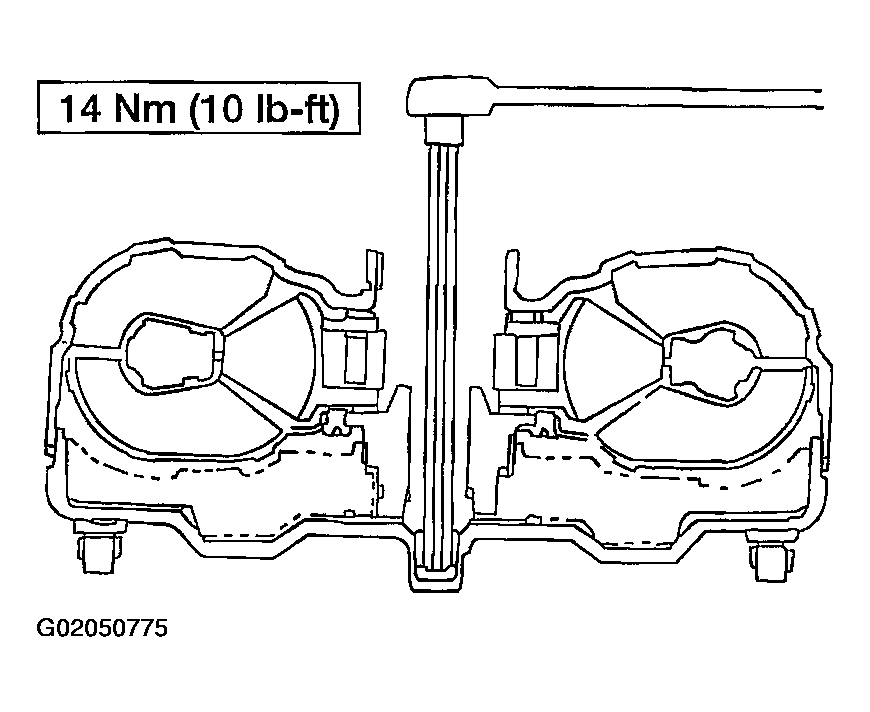

Fig 3: Verifying That The Insert Can Hold Torque
Courtesy of FORD MOTOR CO.
If the insert cannot hold the specified torque, install a new torque converter.
