Disassembly And Assembly Of Subassemblies: Piston: Disassembly

NOTE: If the connecting rod bearings are to be reused, each one must be identified so that it can be installed in its original position.

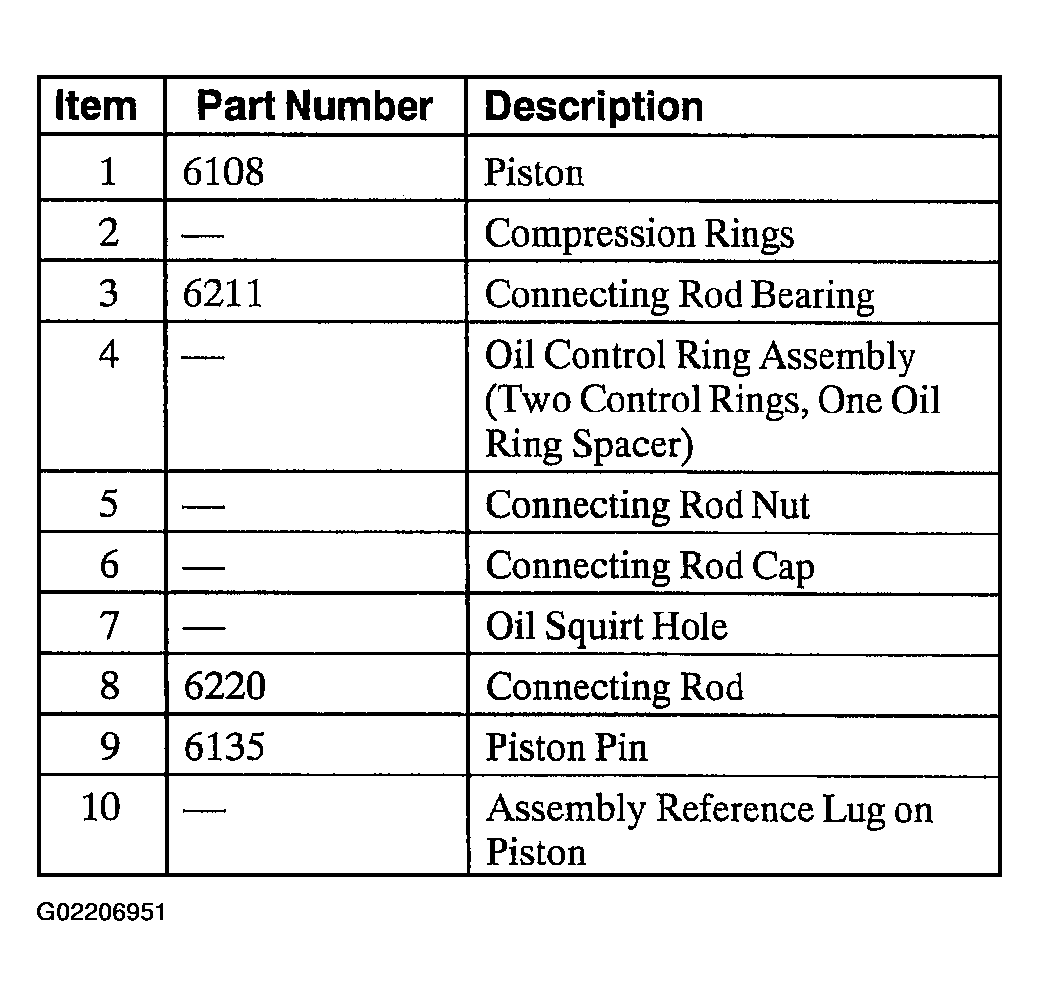

Fig 1: Parts Description Chart

Courtesy of FORD MOTOR CO.

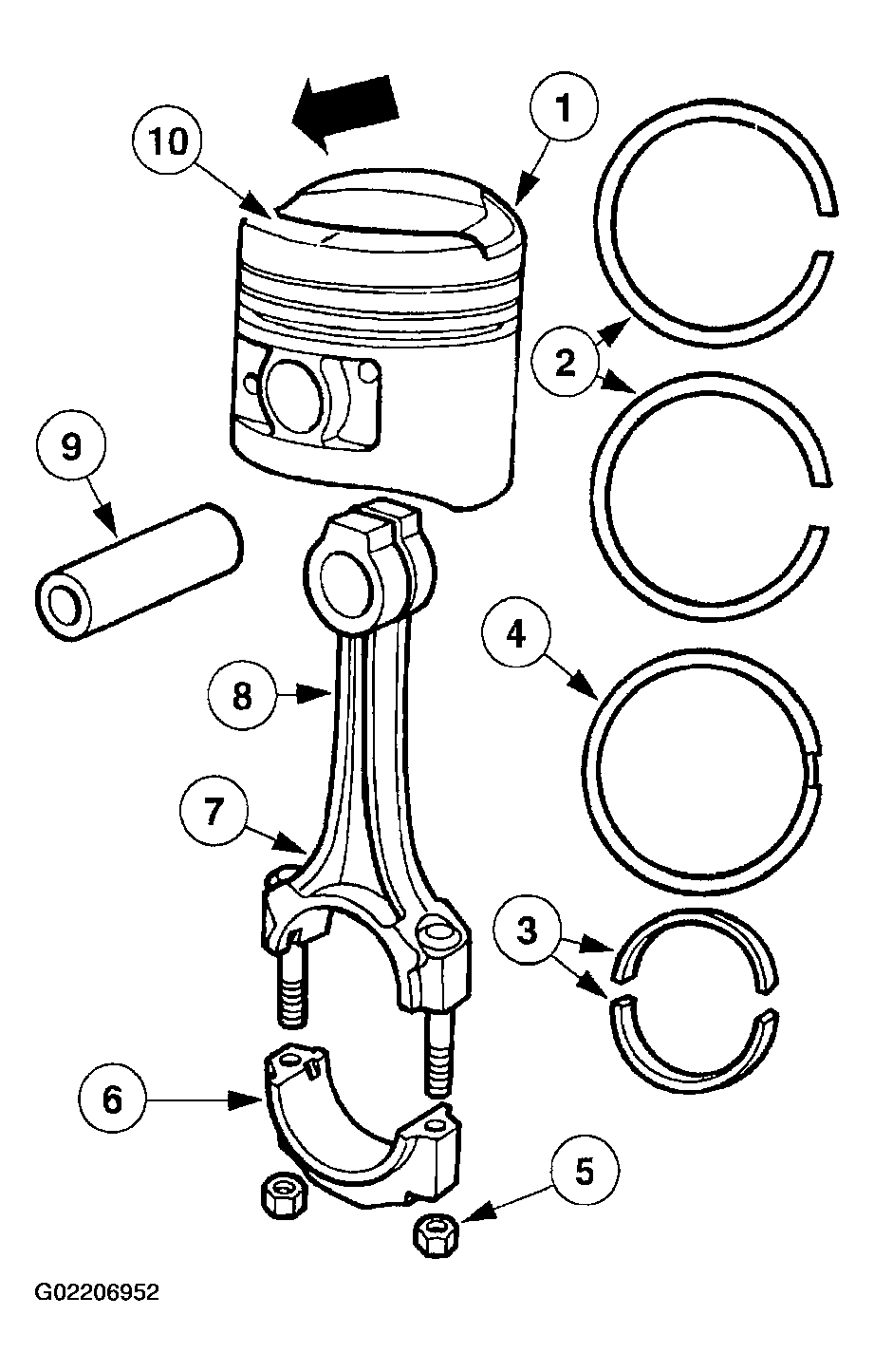

Fig 2: Exploded View Of Piston & Rod Components

Courtesy of FORD MOTOR CO.

Remove the connecting rod bearings from the connecting rod (6200) and the rod cap.
Remove the piston rings (6149) using a suitable piston ring expander.

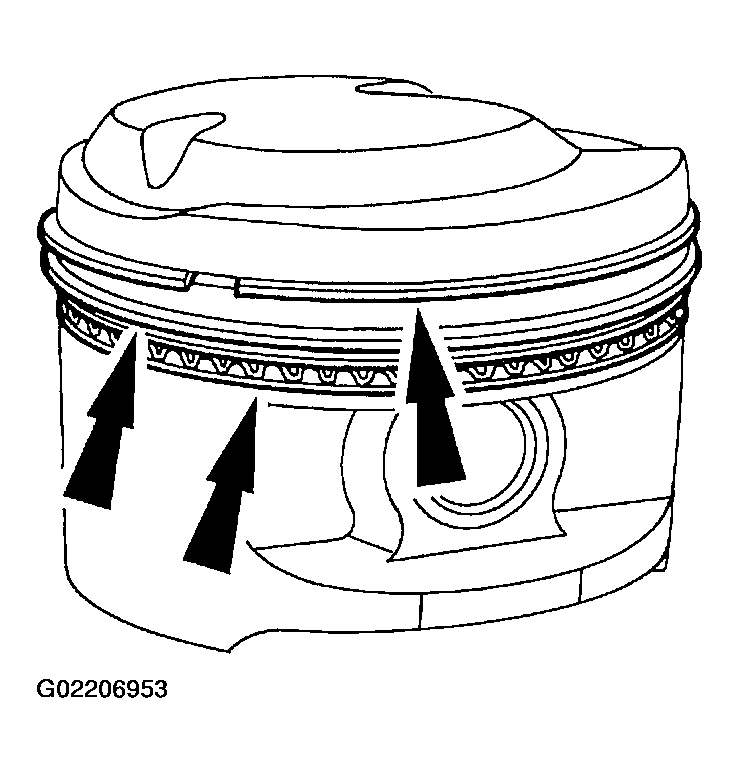

Fig 3: Removing Piston Rings Using Piston Ring Expander
Courtesy of FORD MOTOR CO.
Mark the pistons (6108) to make sure assembly with the same connecting rod and installation in the same cylinder from which they were removed.
Place (A) Sleeve in (B) Base and position (C) Alignment Pin into the center hole of Sleeve.

Fig 4: Positioning Alignment Pin Into Center Hole Of Sleeve
Courtesy of FORD MOTOR CO.
Position the piston pin (6135) over the alignment pin.

Fig 5: Positioning Piston Pin Over Alignment Pin
Courtesy of FORD MOTOR CO.
Place Driver into the bore of the piston pin and press the pin out of the connecting rod.

Fig 6: Placing Driver Into Bore Of Piston Pin
Courtesy of FORD MOTOR CO.
