Test H: Invalid Key Code From Encoded Ignition Key Transponder

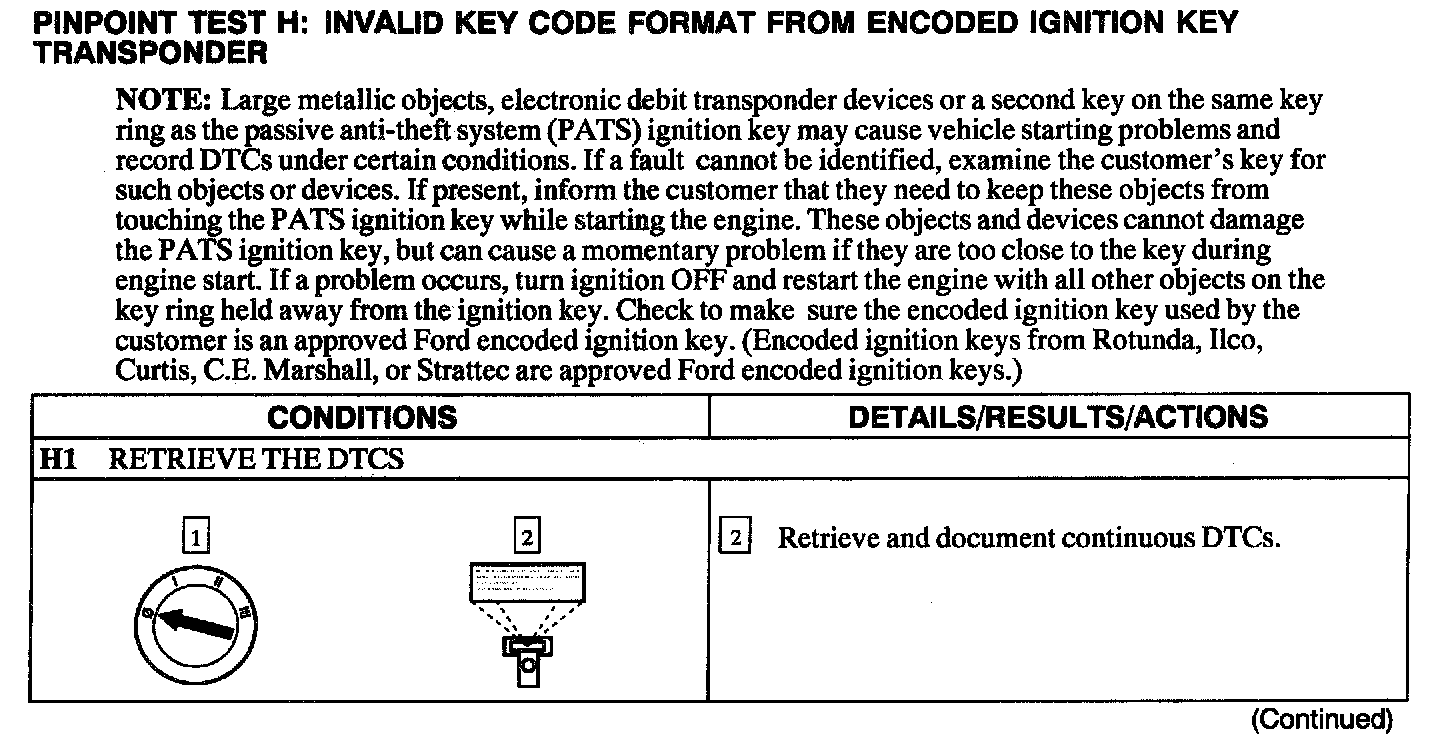

H1:

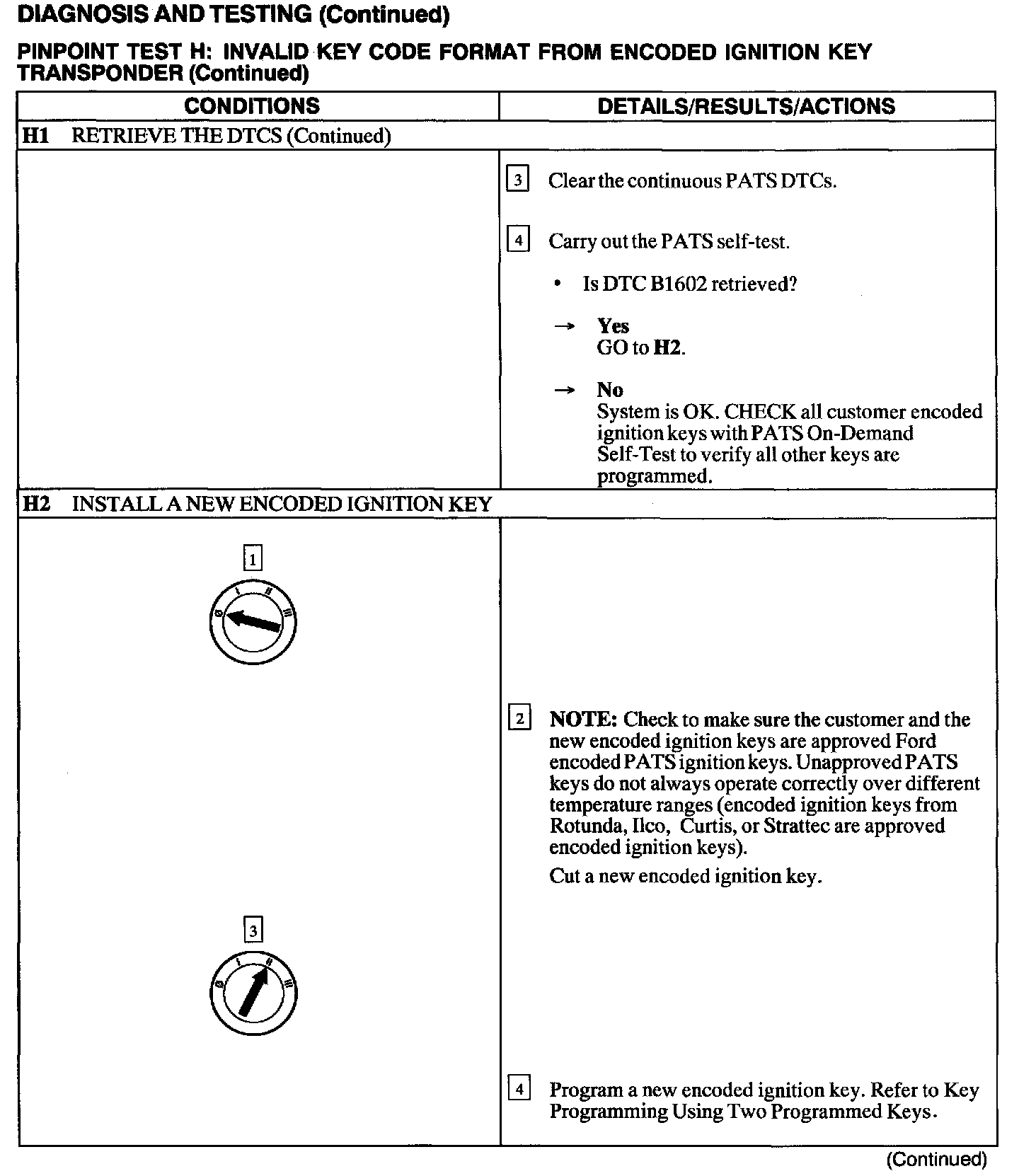

H1 - H2:

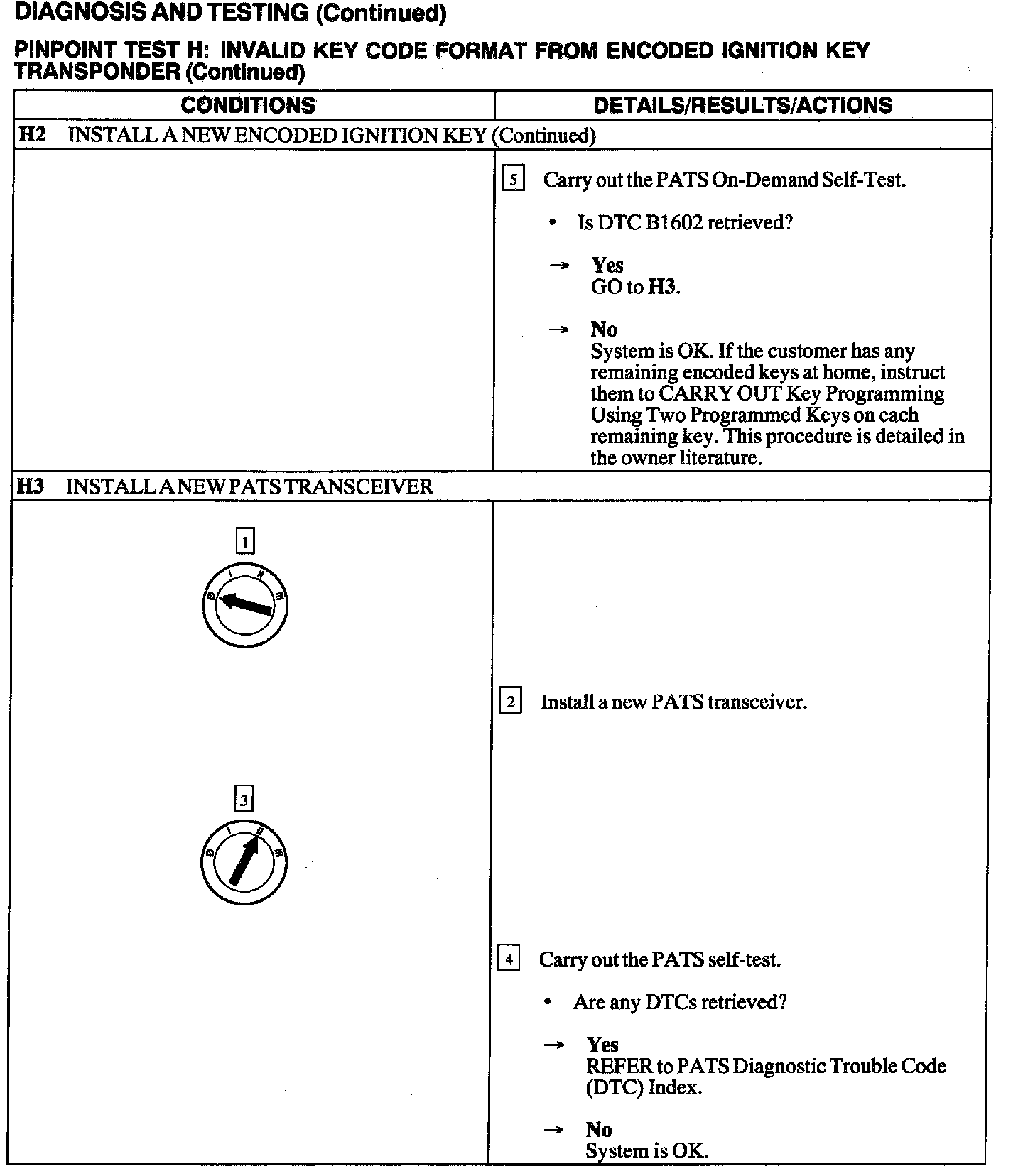

H2 - H3:





H: Invalid Key Code Format From Encoded Ignition Key Transponder
