Heating and Air Conditioning: Locations

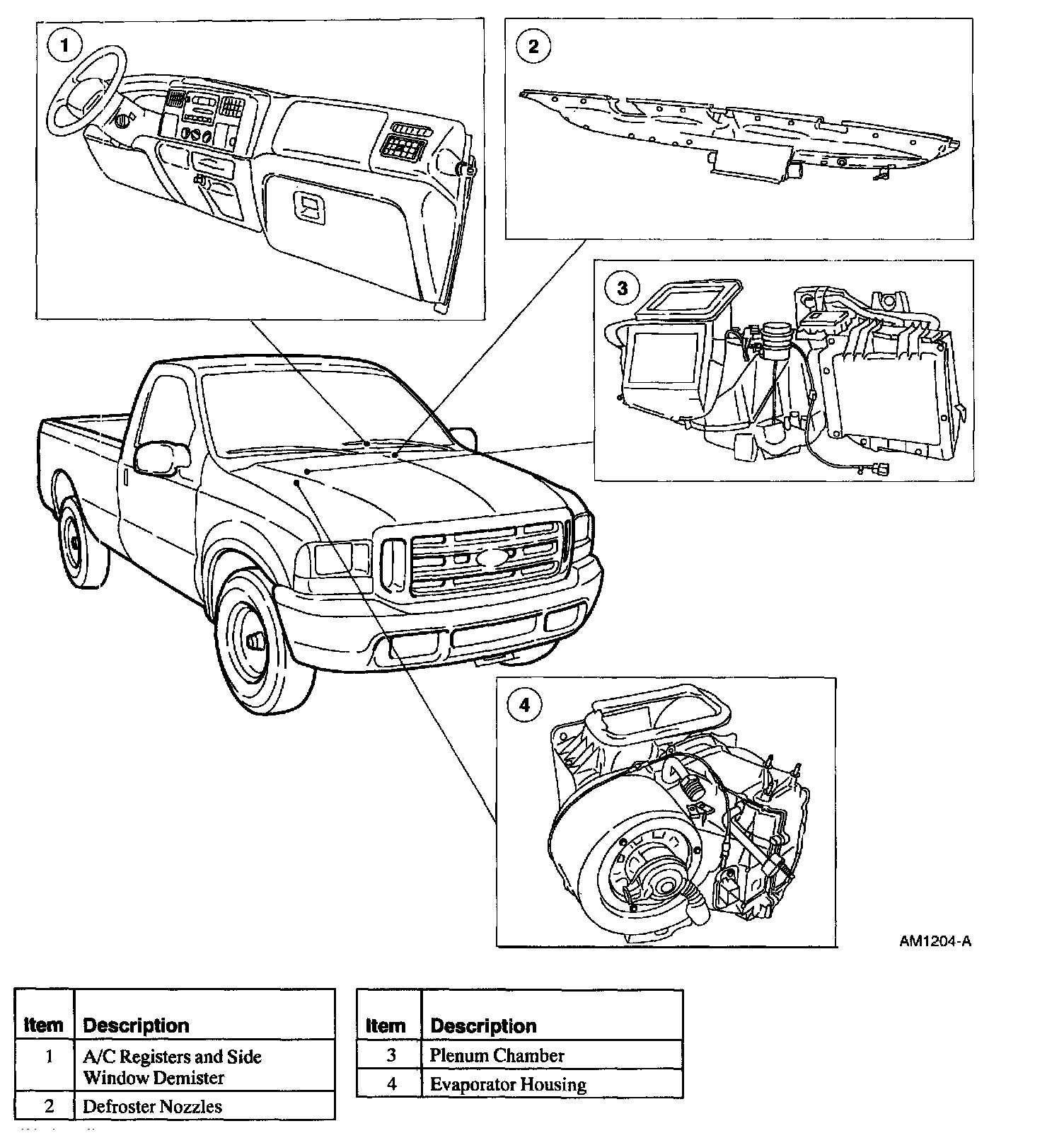

Air Distribution And Filtering:






Heating And Ventilation:

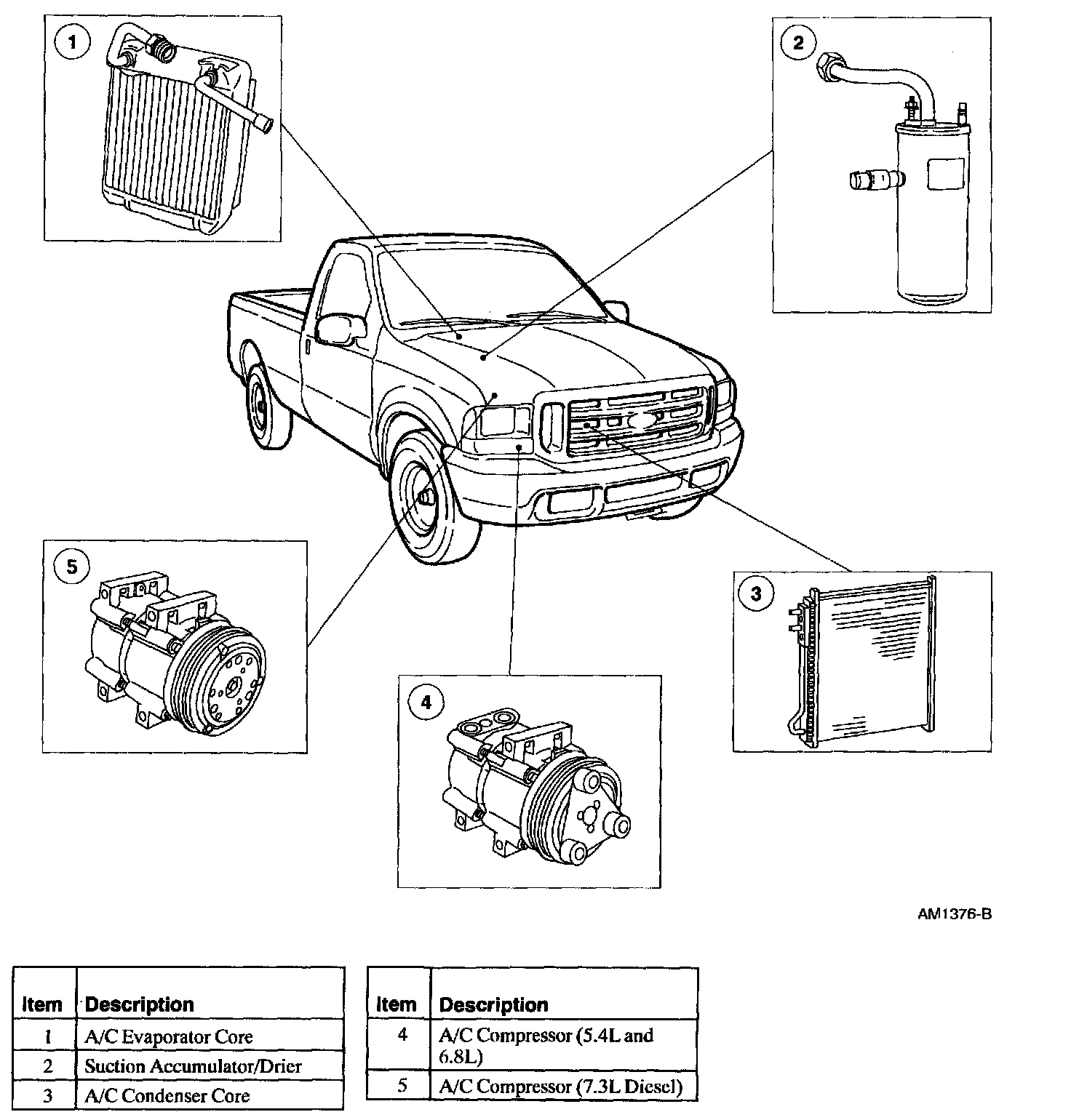

Component Locations:






Component Locations - Manual Climate Control, Part 1:






Component Locations - Manual Climate Control, Part 2:
