Test E: Parking Aid Module (PAM) Does Not Respond to the Scan Tool
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test E: Parking Aid Module (PAM) Does Not Respond to the Scan Tool

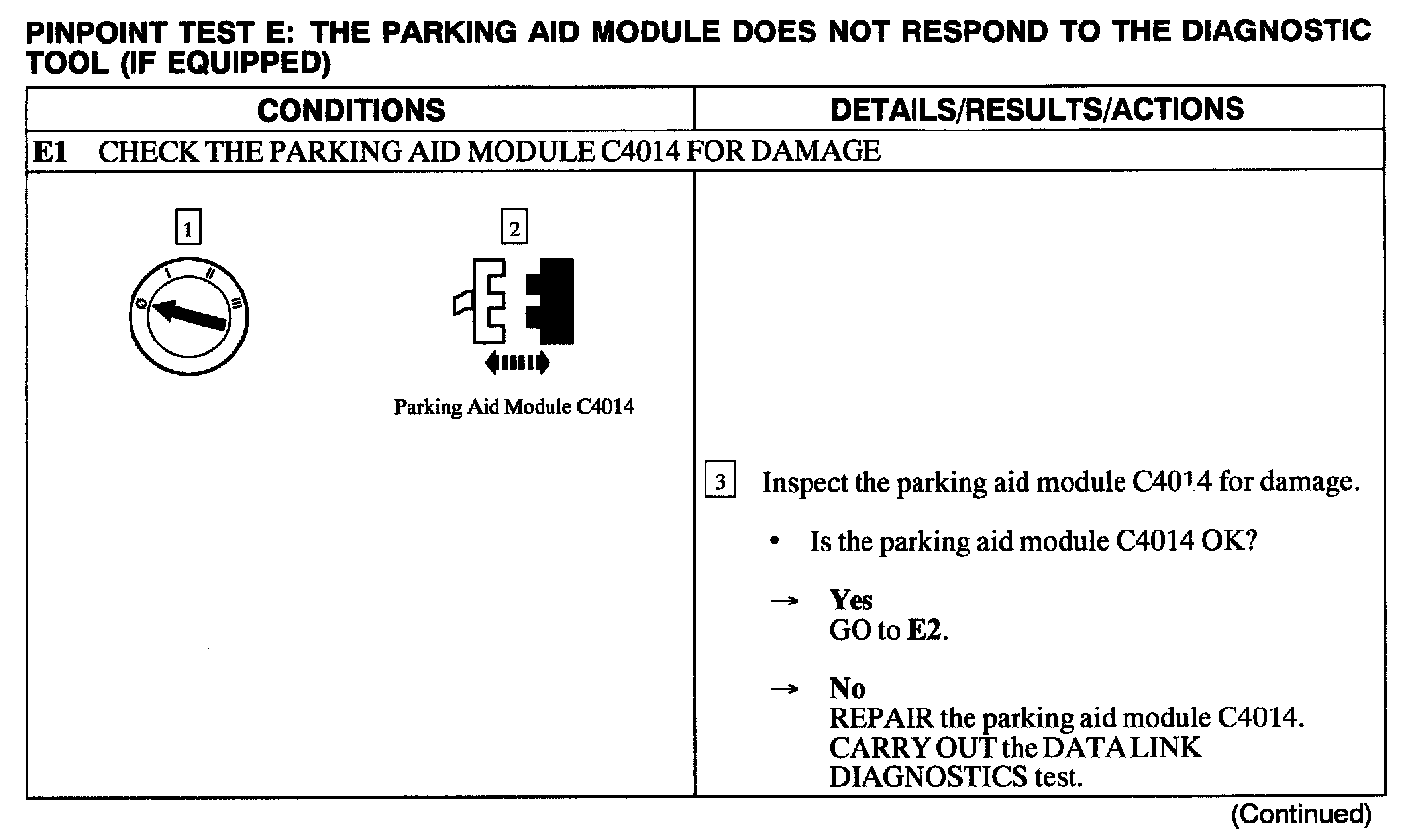

E1:

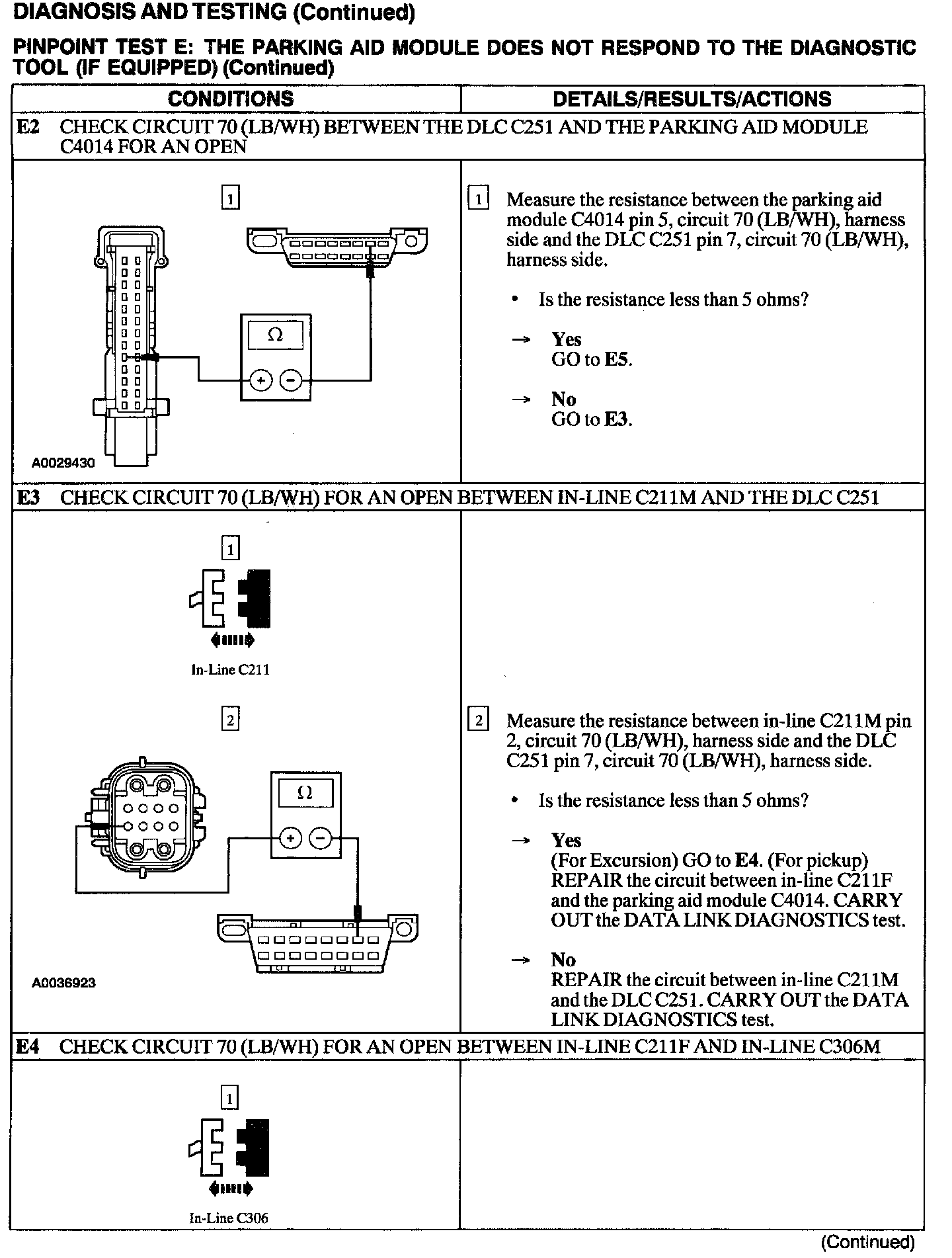

E2 - E4:

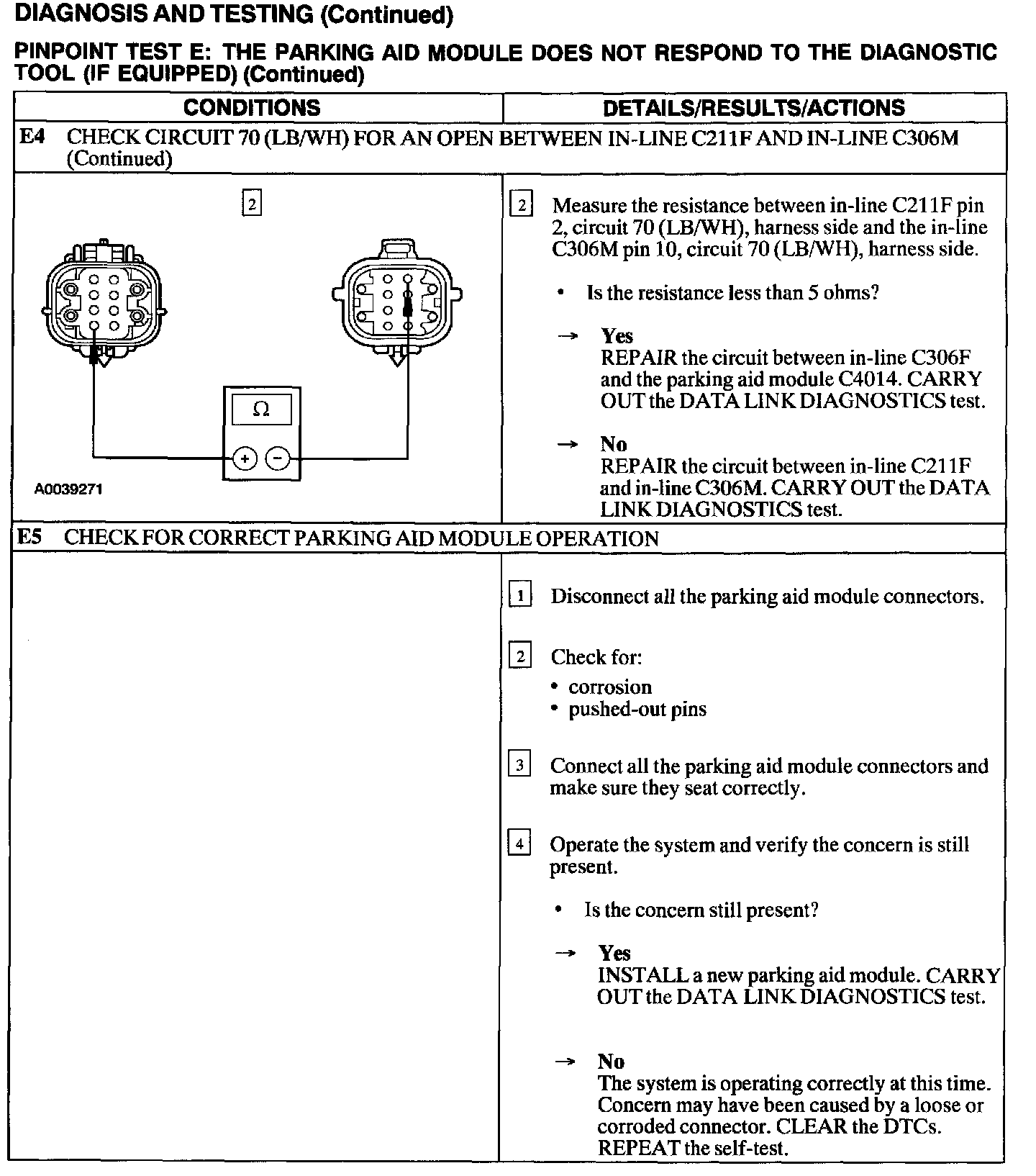

E4 - E5:
