Tests FF: Power Steering Pressure (PSP) Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Tests FF: Power Steering Pressure (PSP) Switch

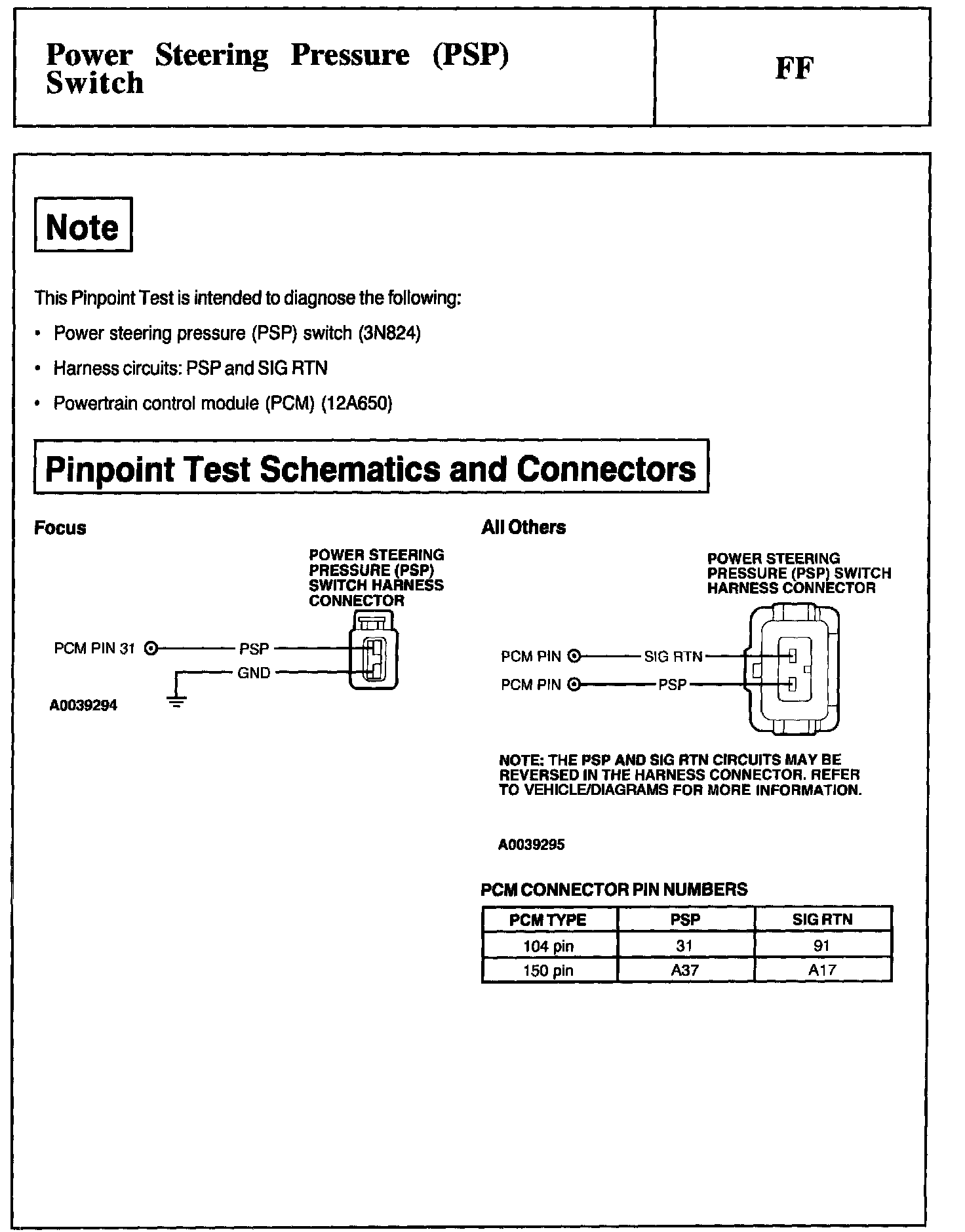

Note, Schematics and Connectors:

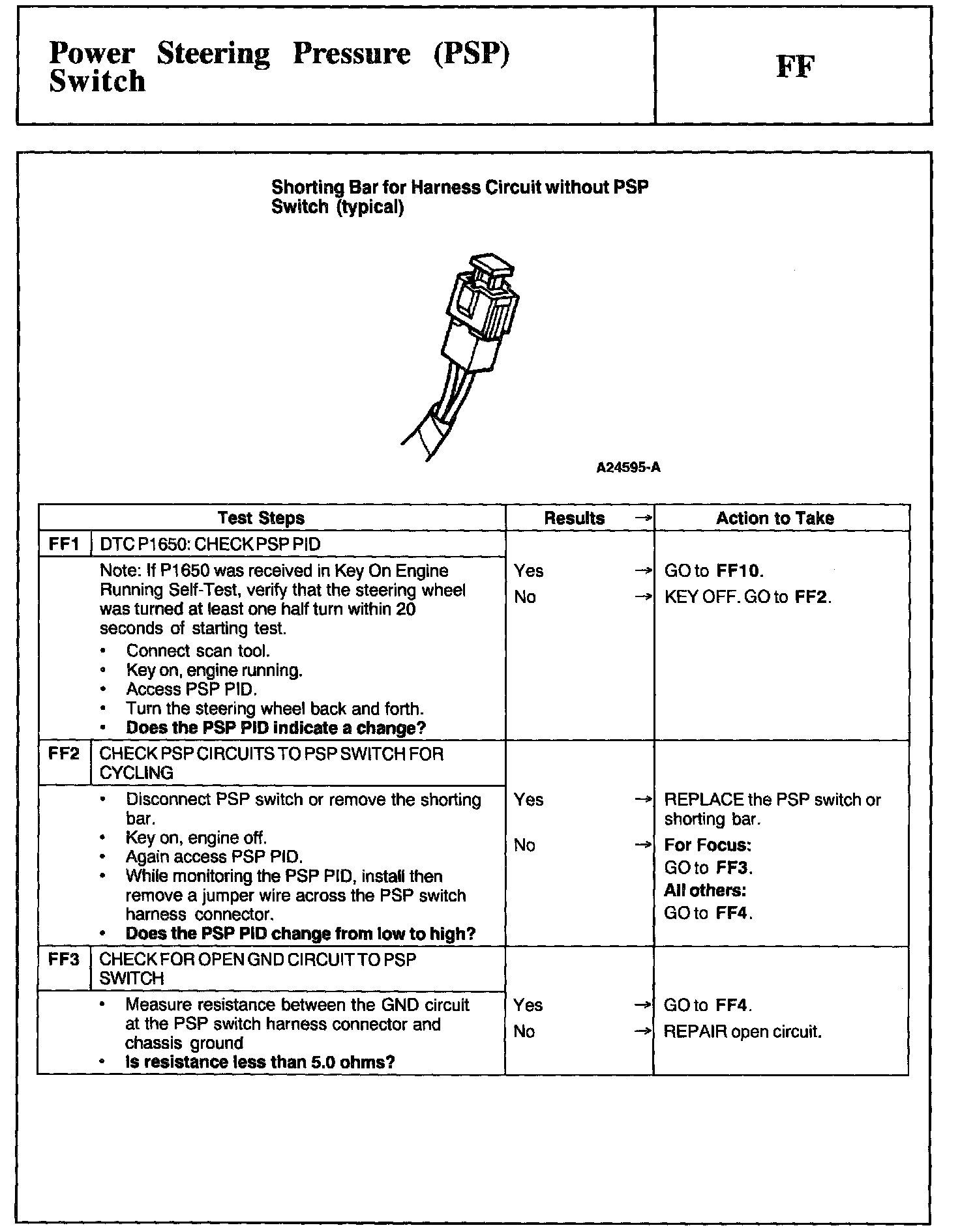

Schematic, Test FF1 - FF3:

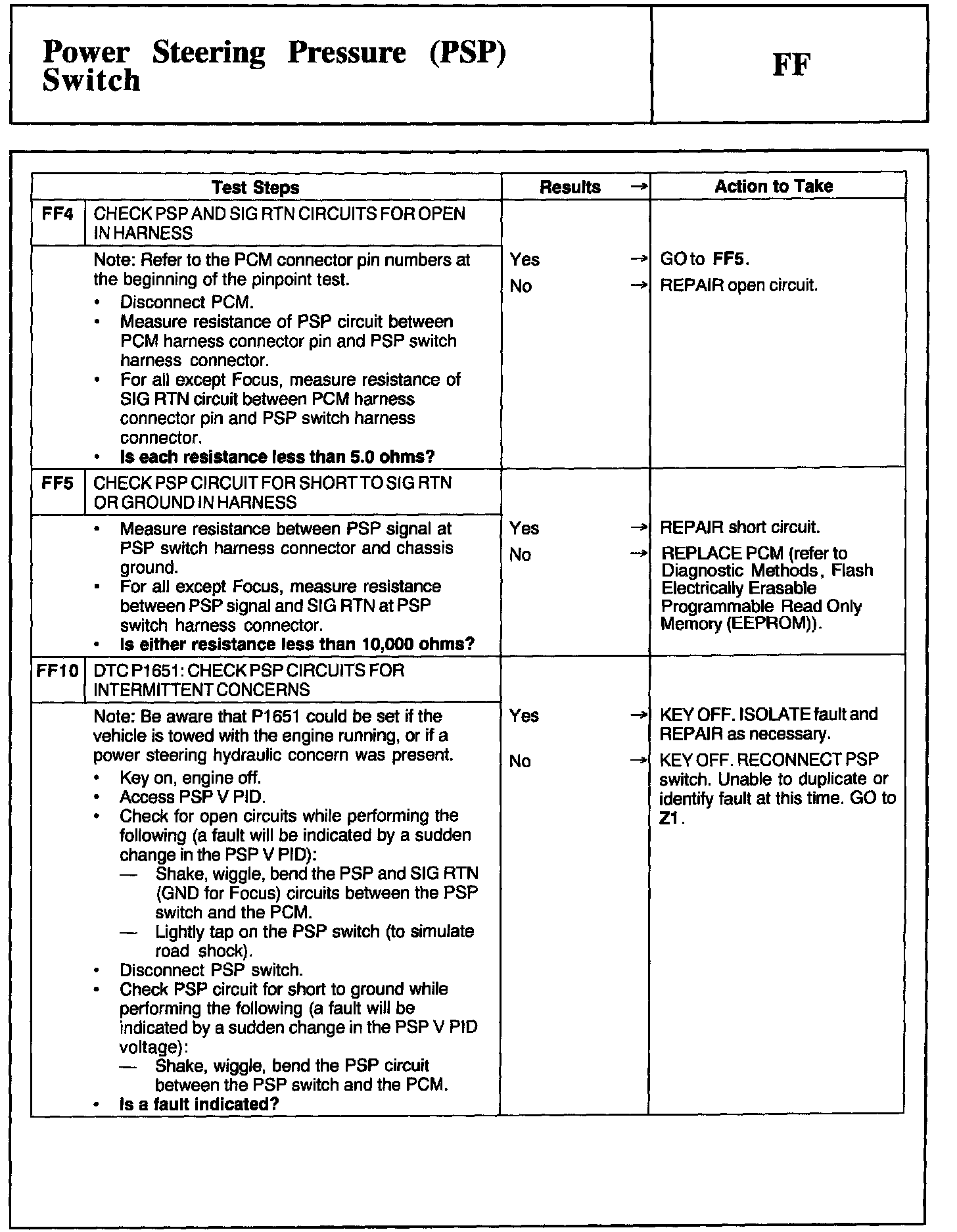

FF4 - FF10:
