Front Suspension

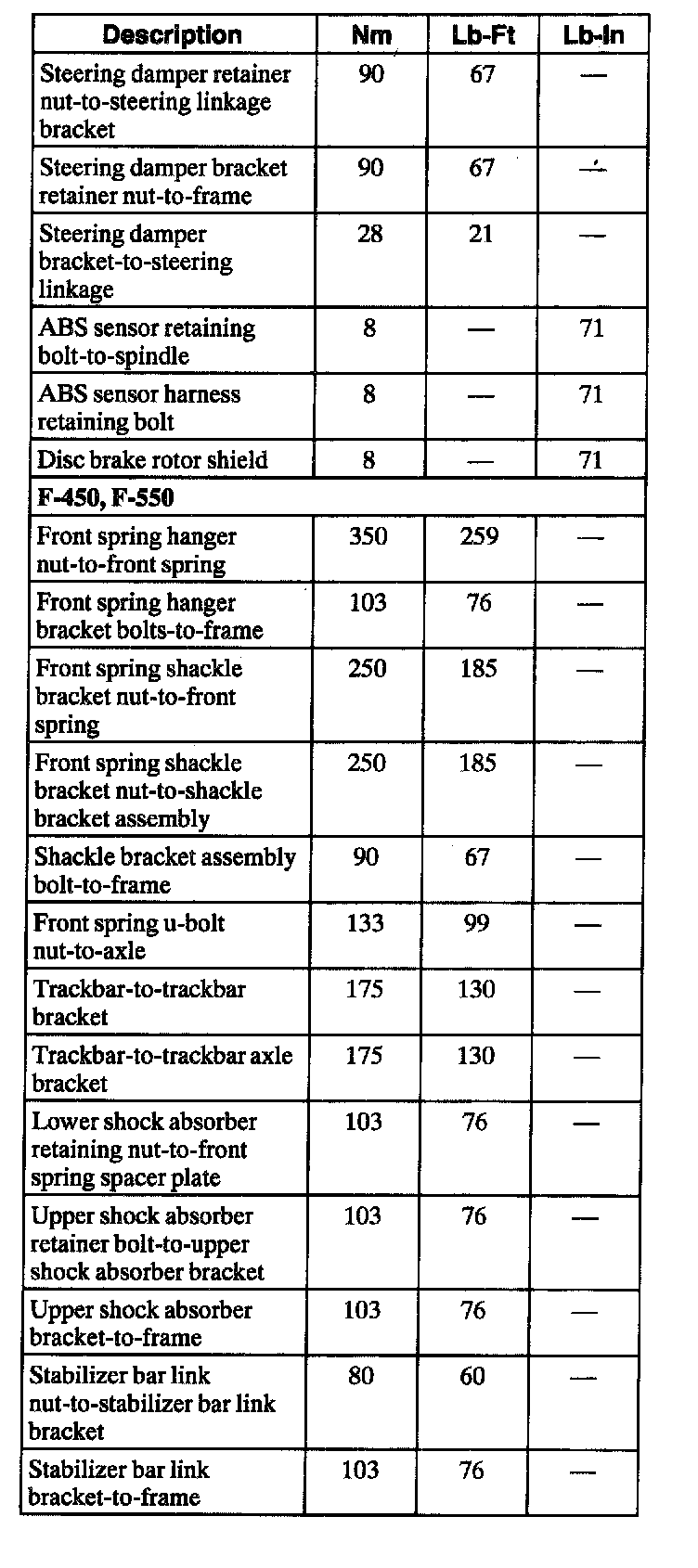

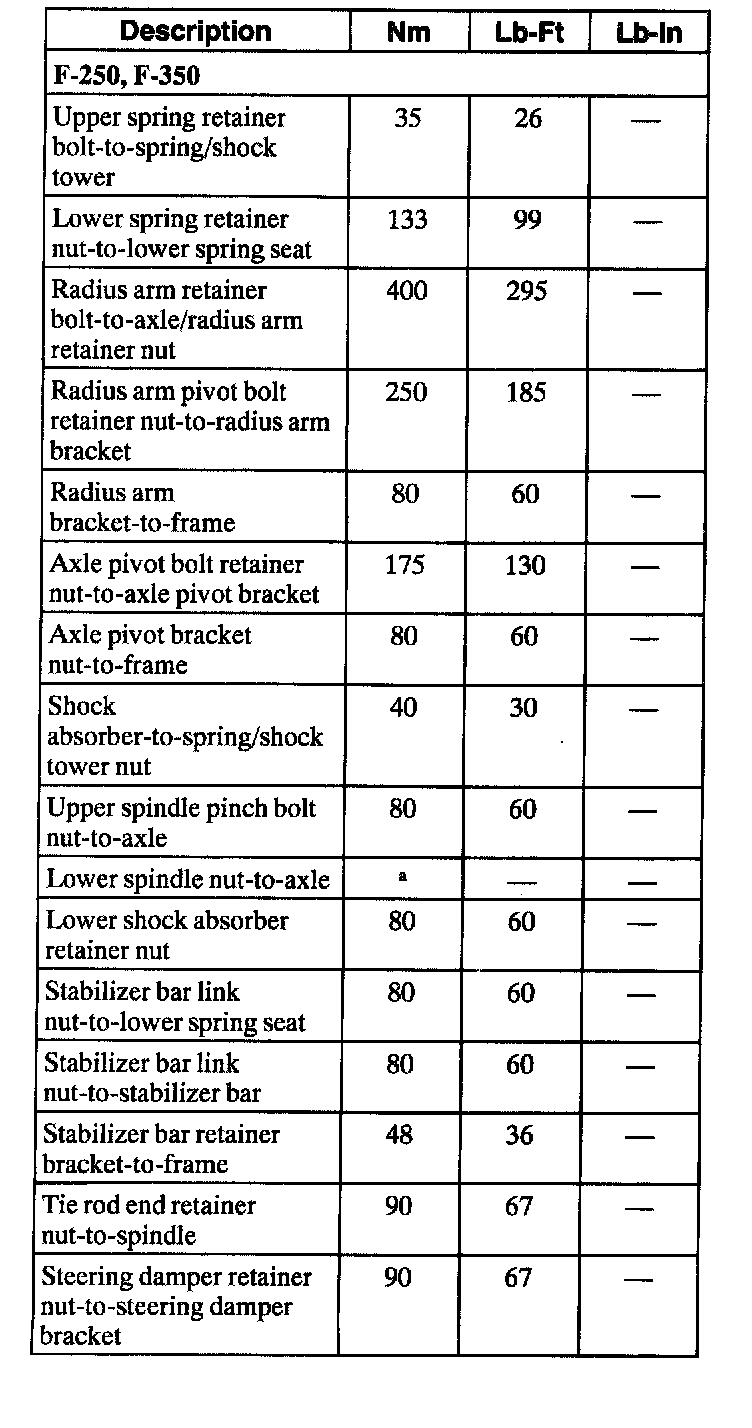

Torque Specifications





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4

a Refer to procedure.
