Test J: Charging Sys. Indicator Off-Ign. Switch In Run Position
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test J: Charging Sys. Indicator Off-Ign. Switch In Run Position

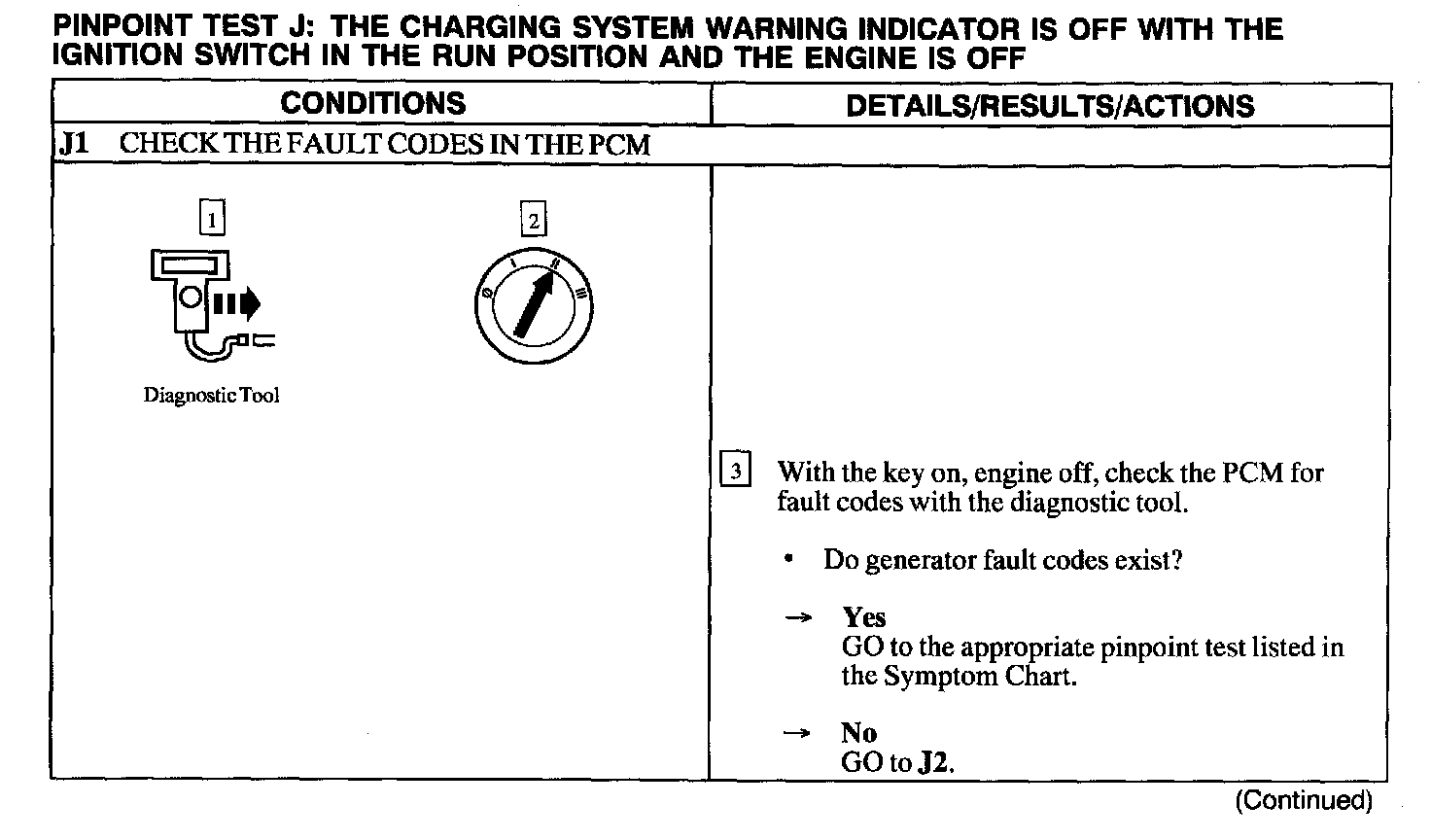

J1:

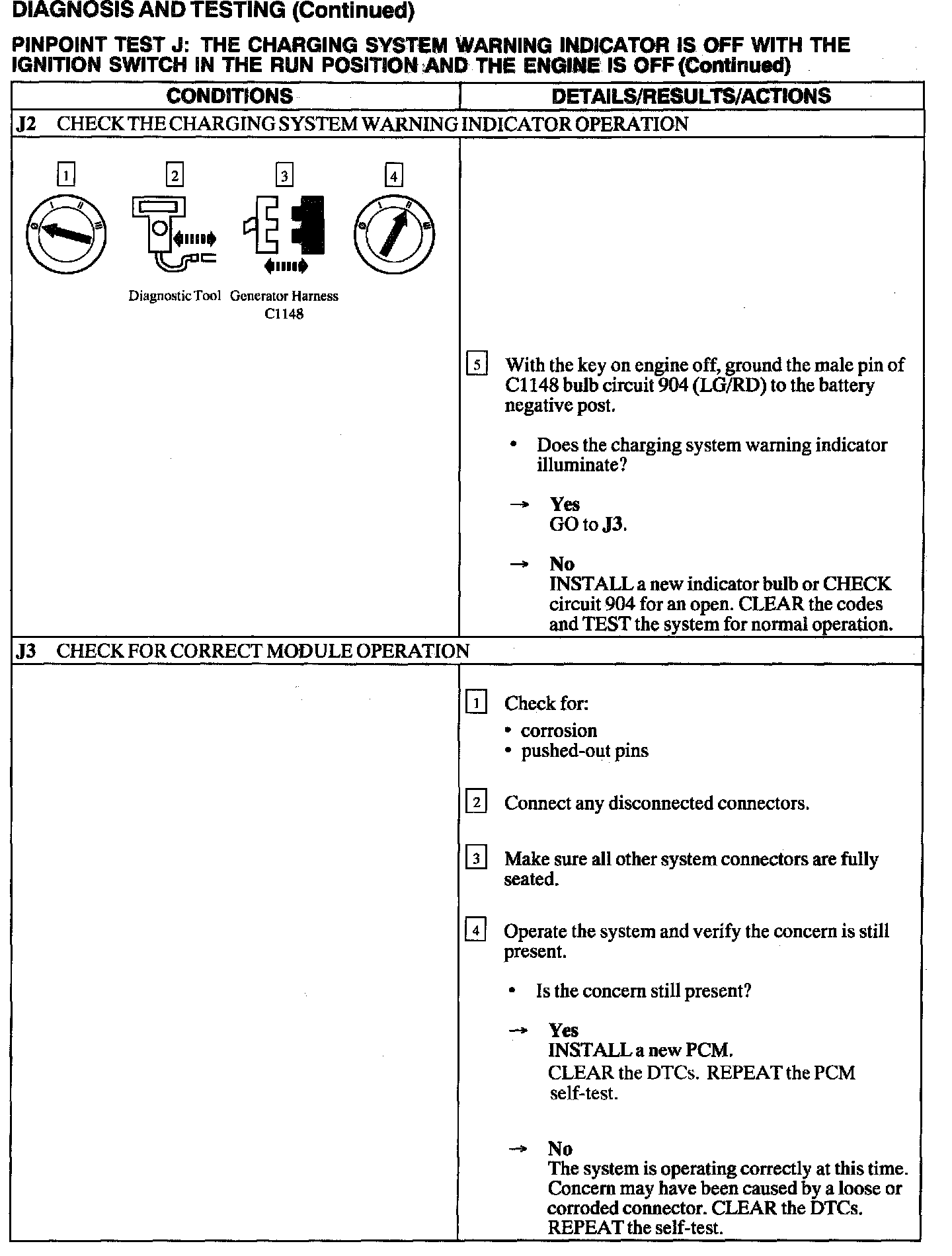

J2 - J3:
