Tests FA: Air Conditioning

Note, Remember:

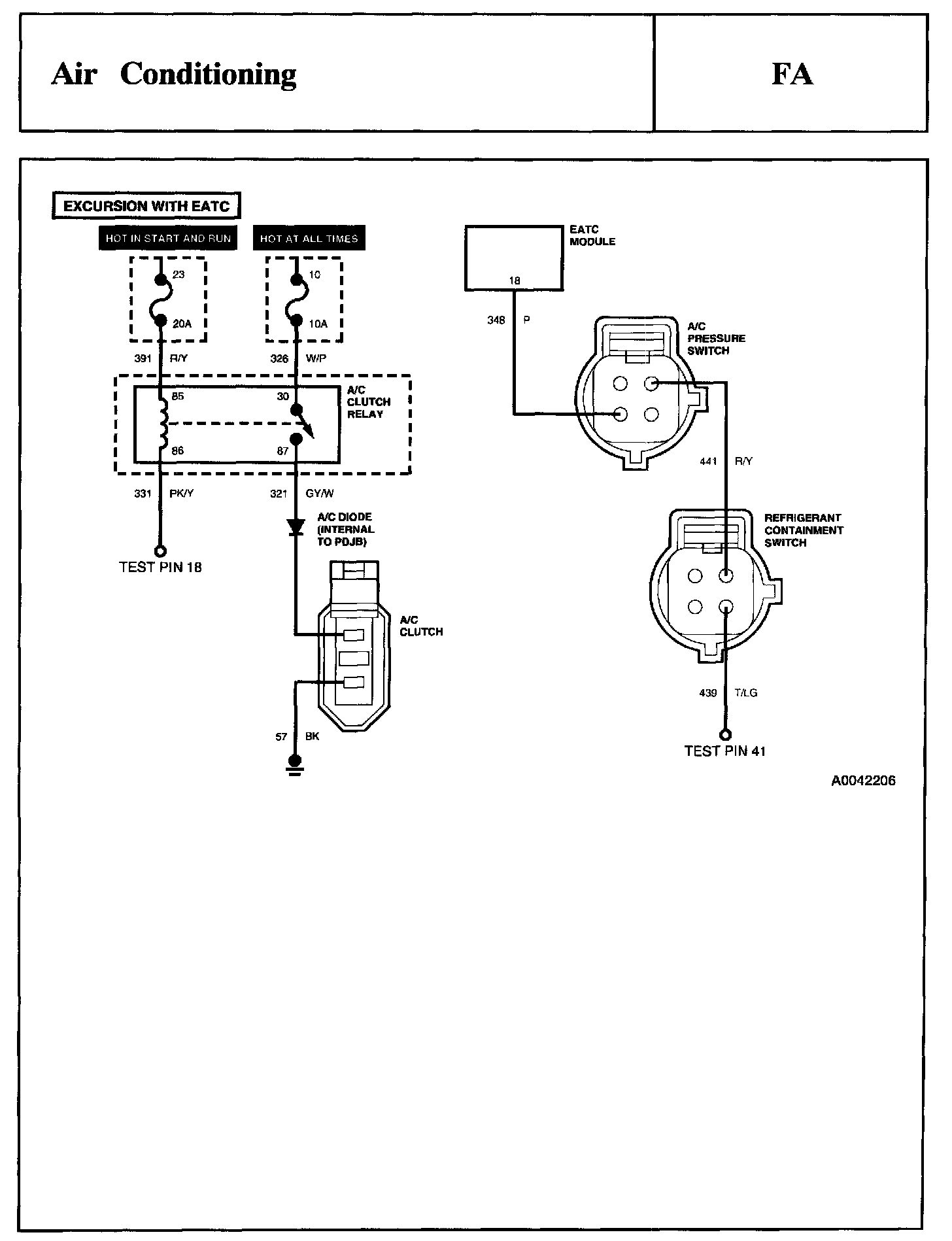

Test Schematic:

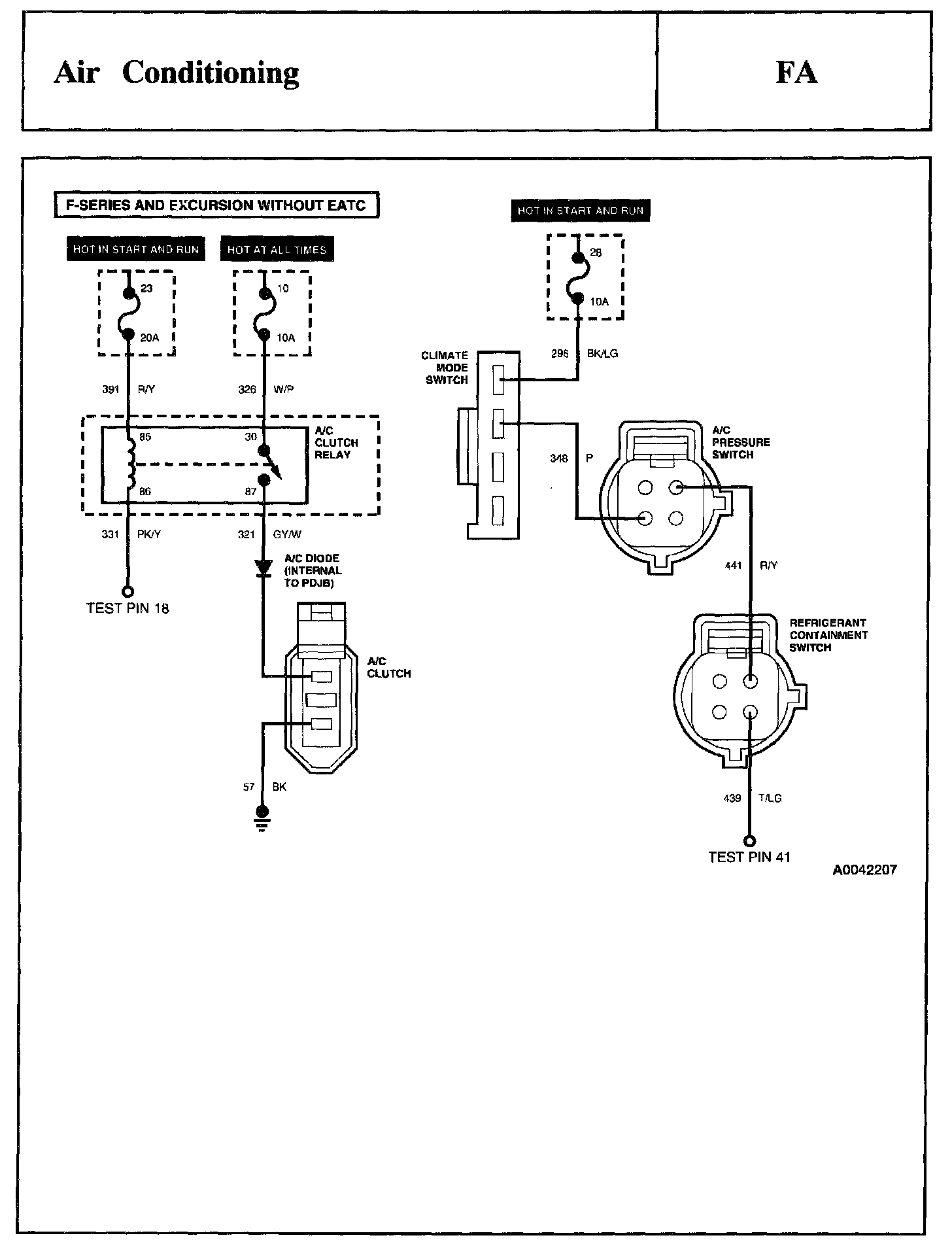

Test Schematic:

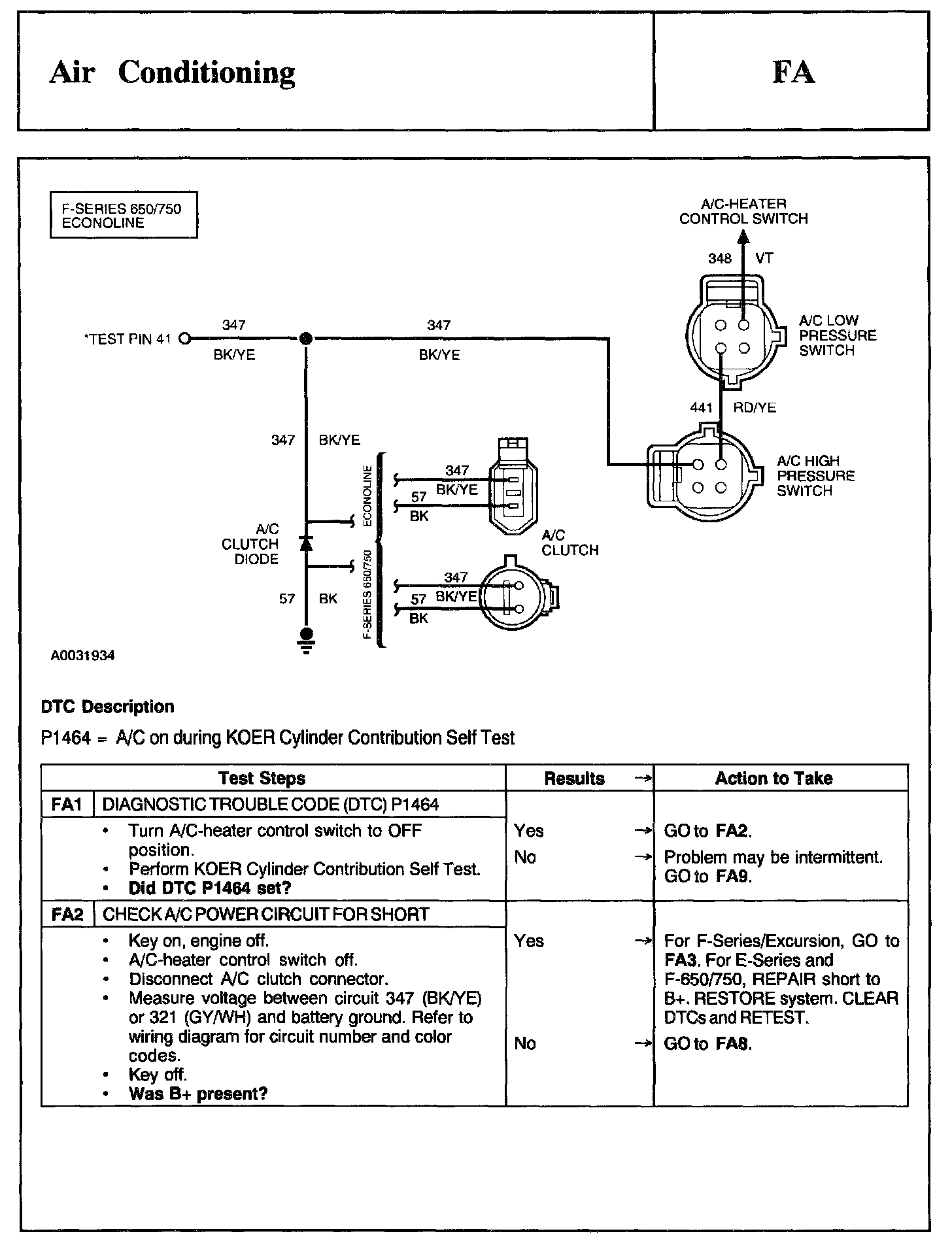

Schematic, Test FA1 - FA2:

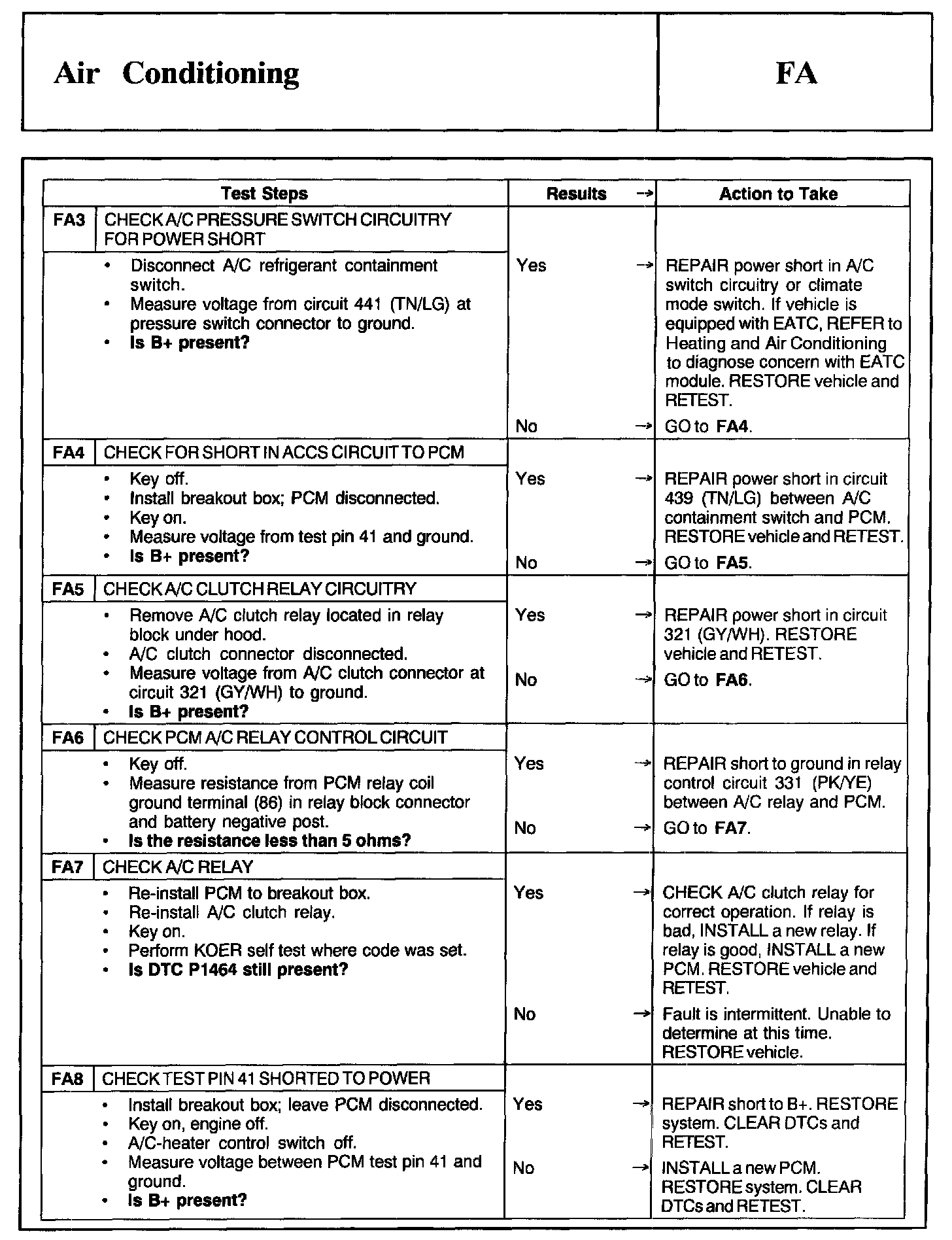

FA3 - FA8:

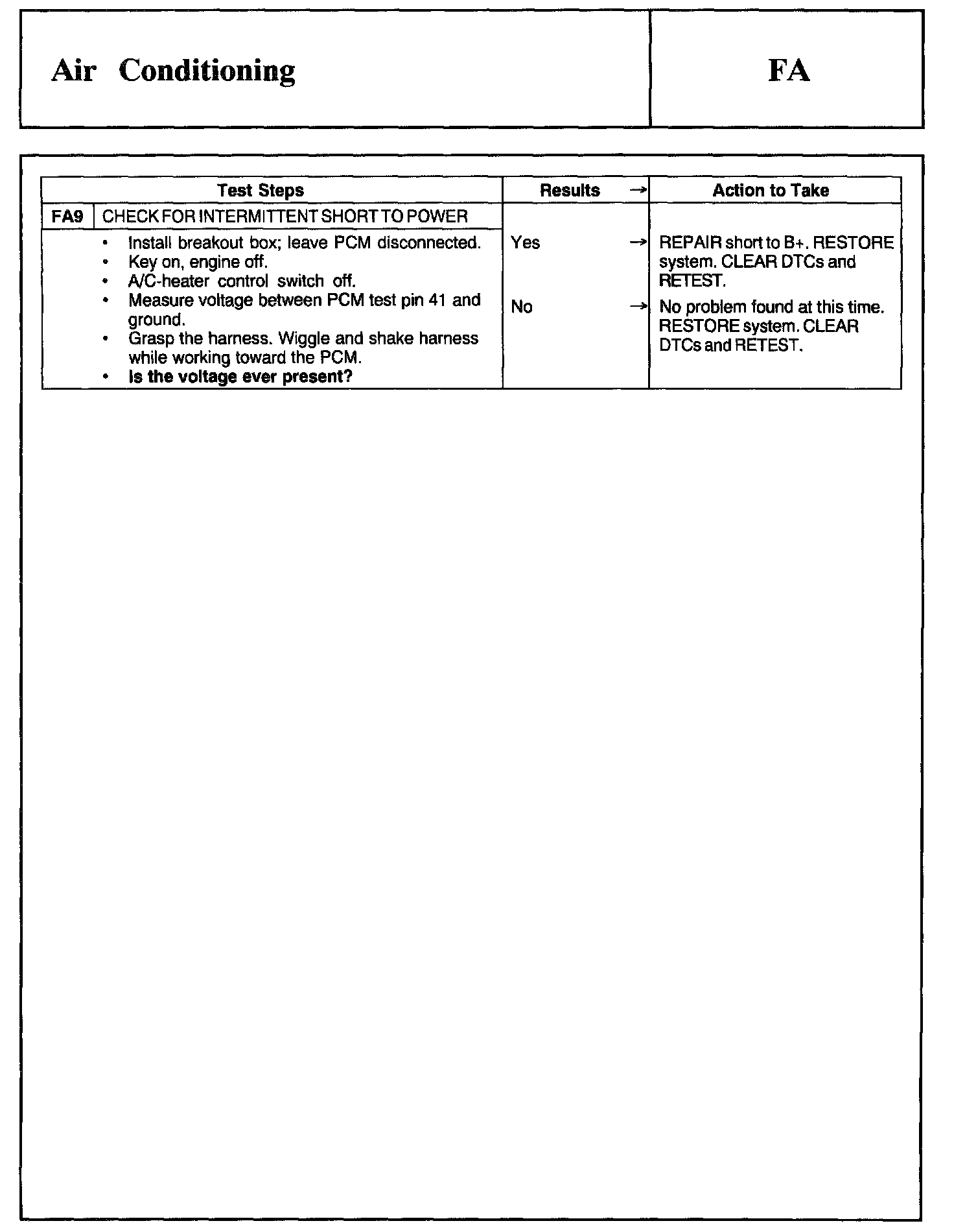

FA9:
