Tests FD: Brake Lamp Switch

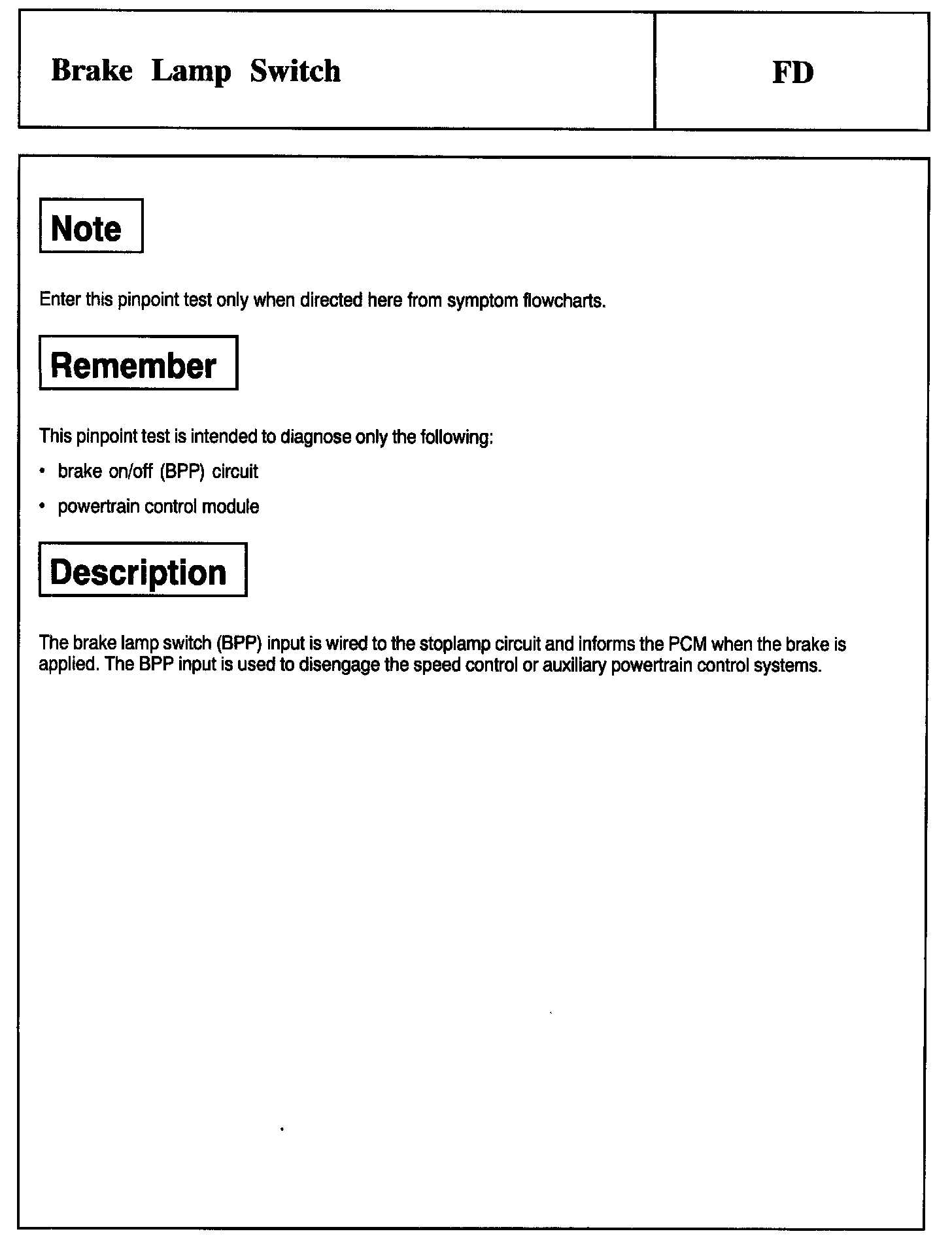

Note, Remember and Description:

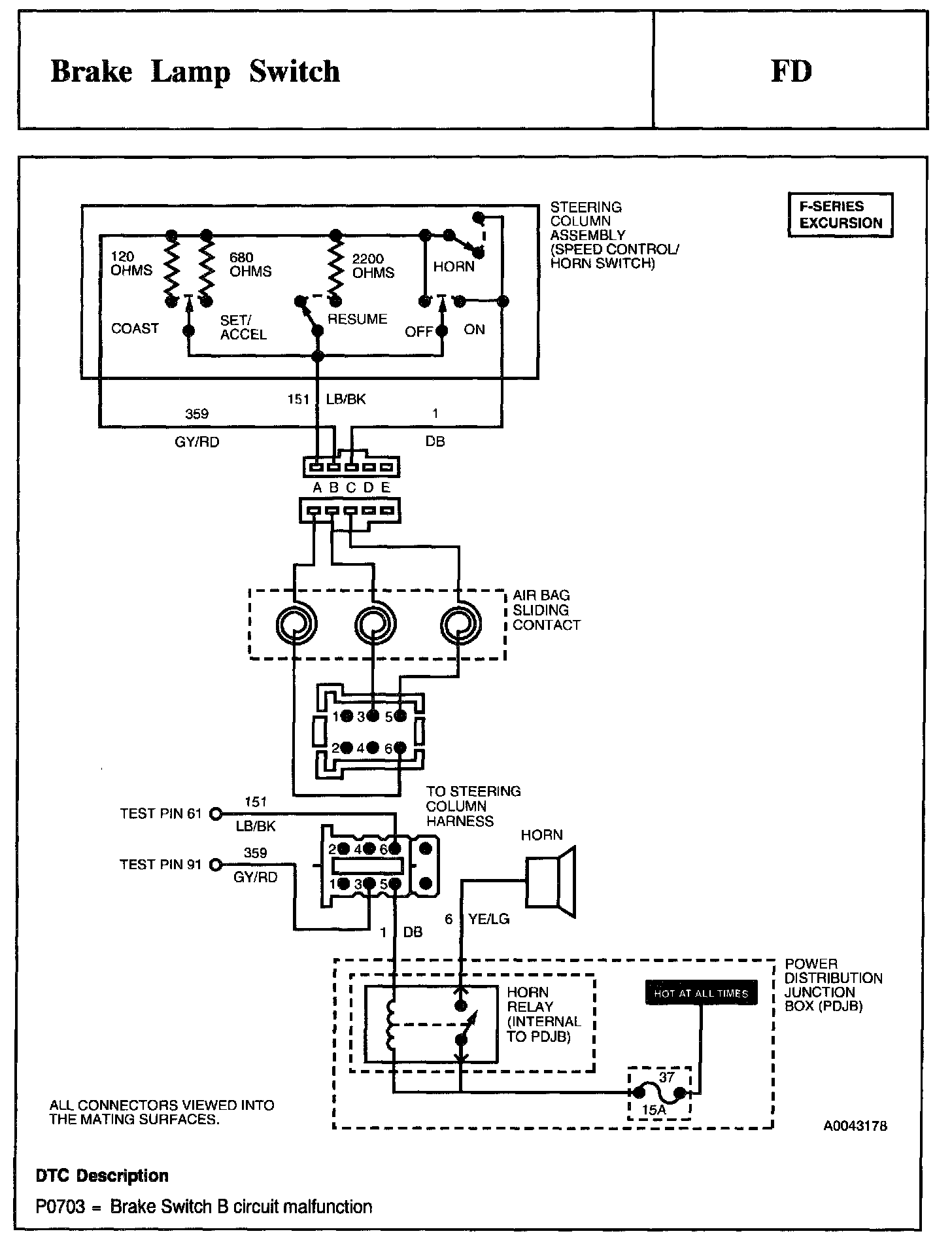

Test Schematic:

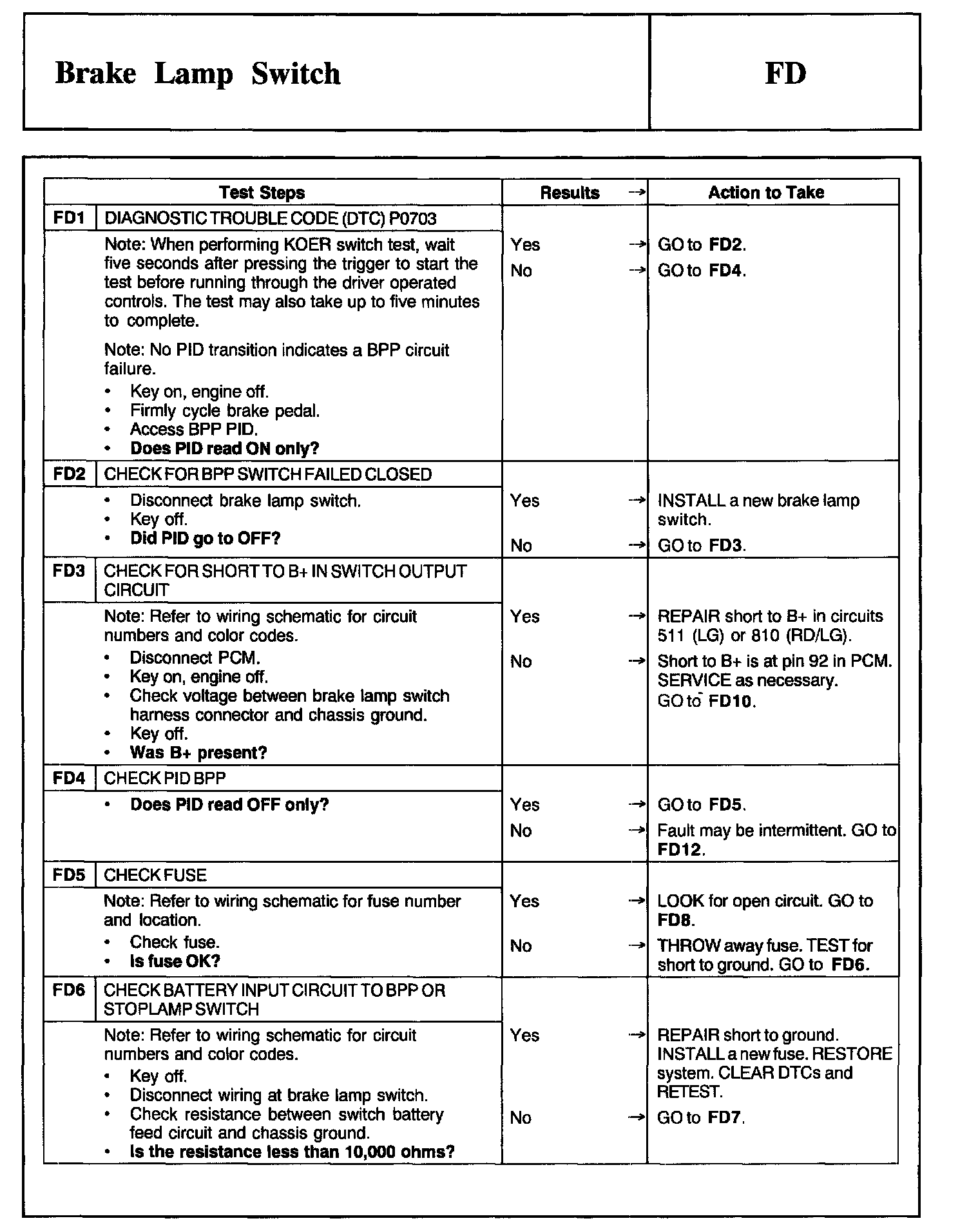

FD1 - FD6:

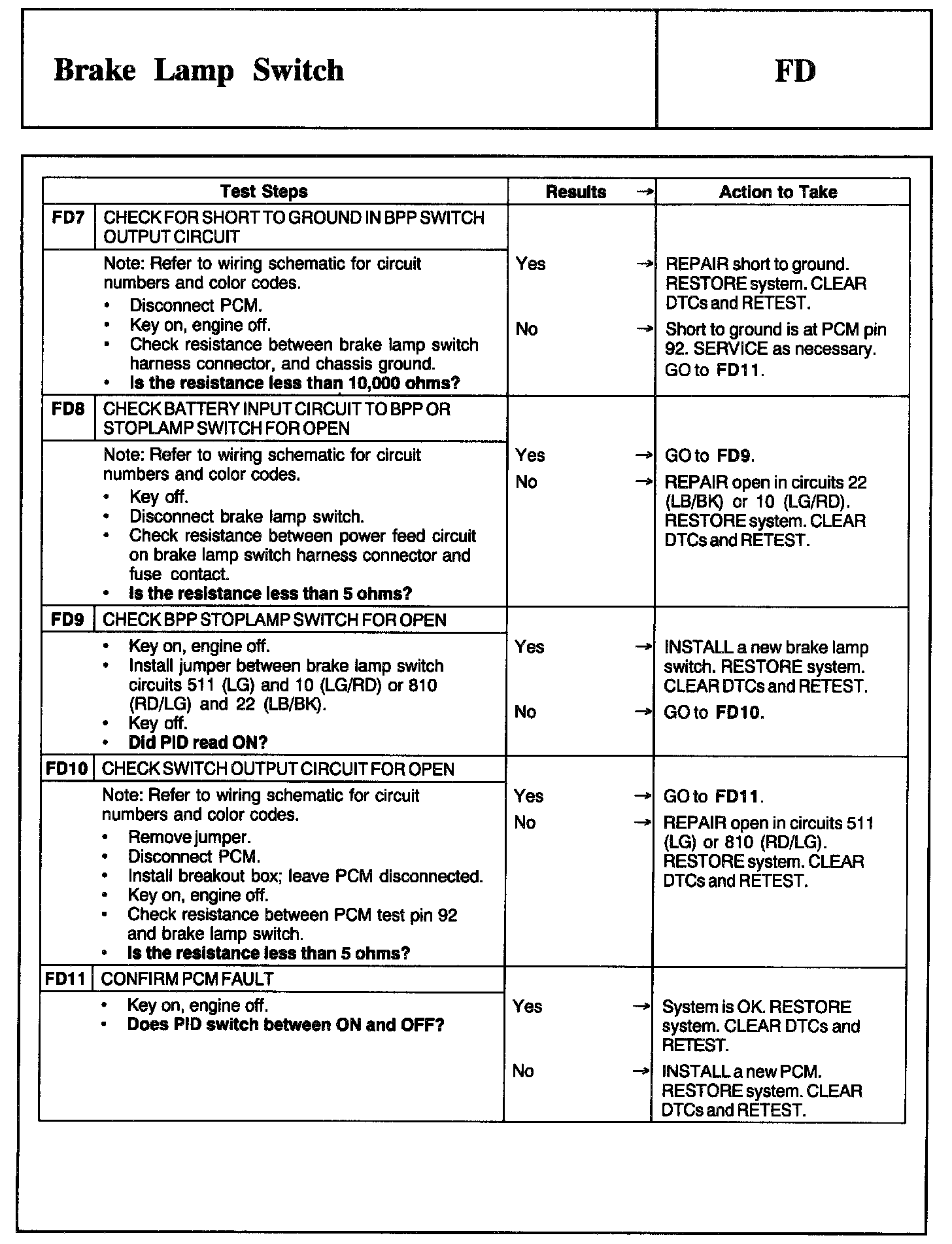

FD7 - FD11:

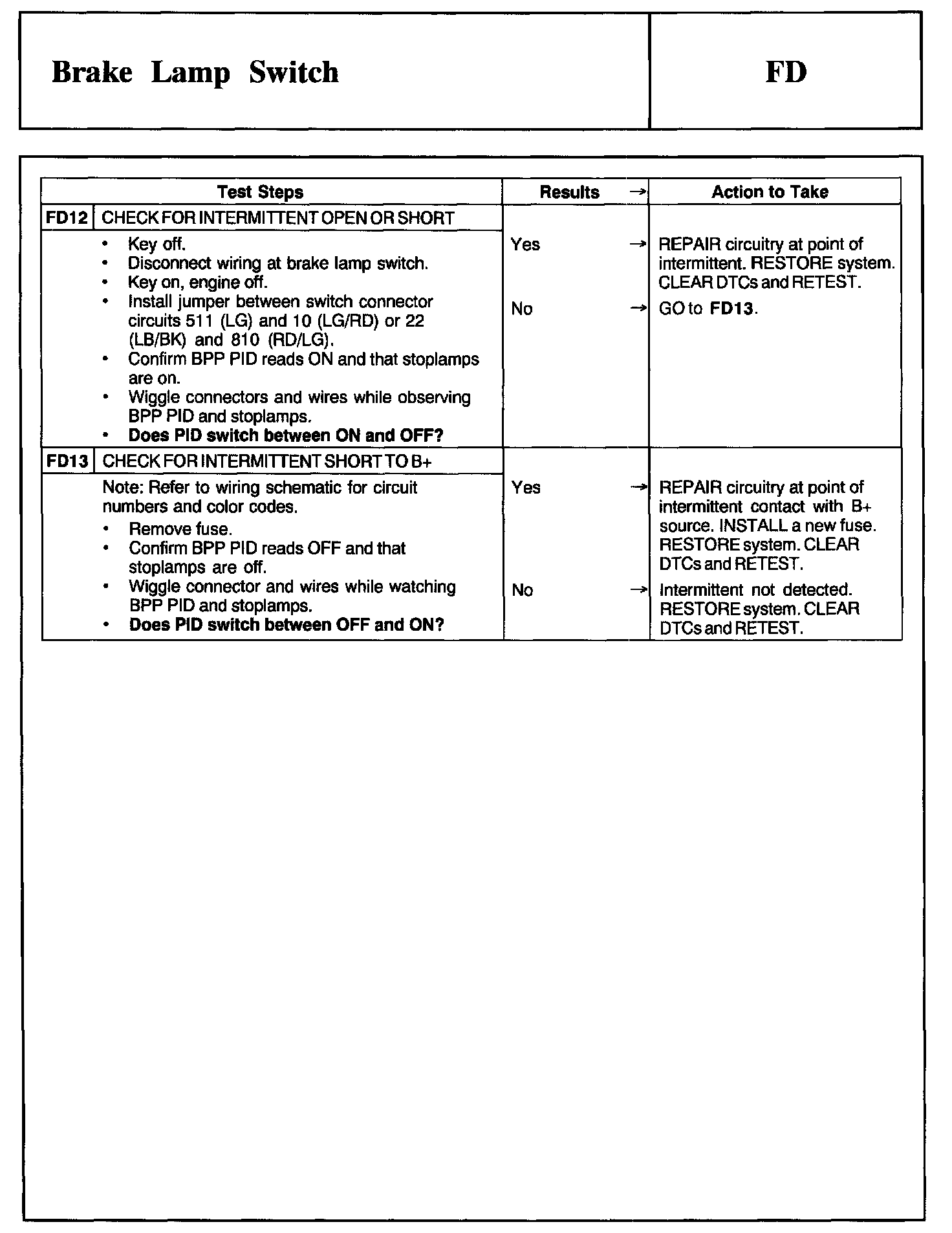

FD12 - FD13:
