Pinpoint Test C: Pinpoint Test C: The Transmission Control Switch/Indicator Lamp Not Operating Properly

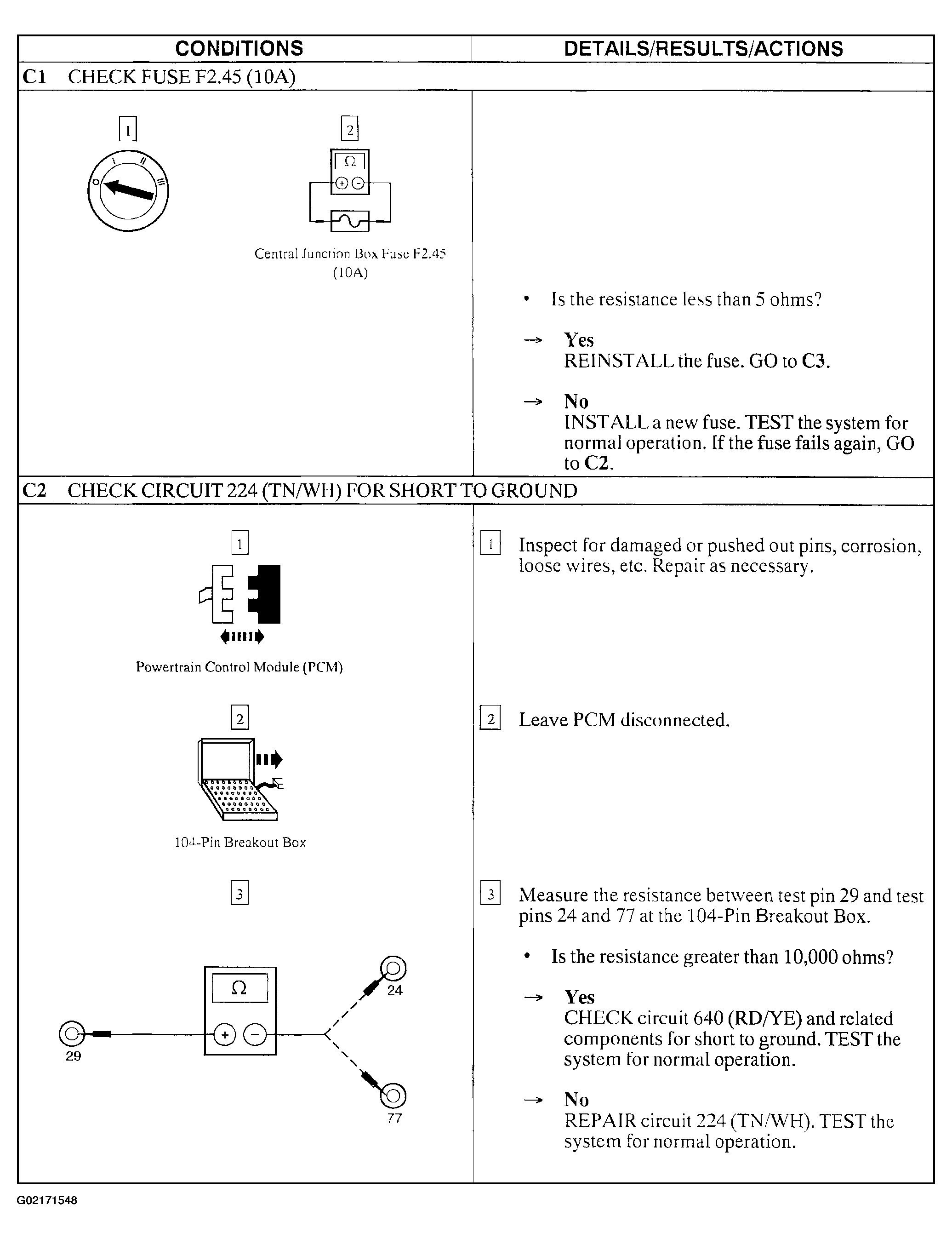

Fig 1: Pinpoint Test C: Pinpoint Test C: Transmission Control Switch/Indicator Lamp Not Operating Properly (C1-C2)
G02171548Courtesy of FORD MOTOR CO.

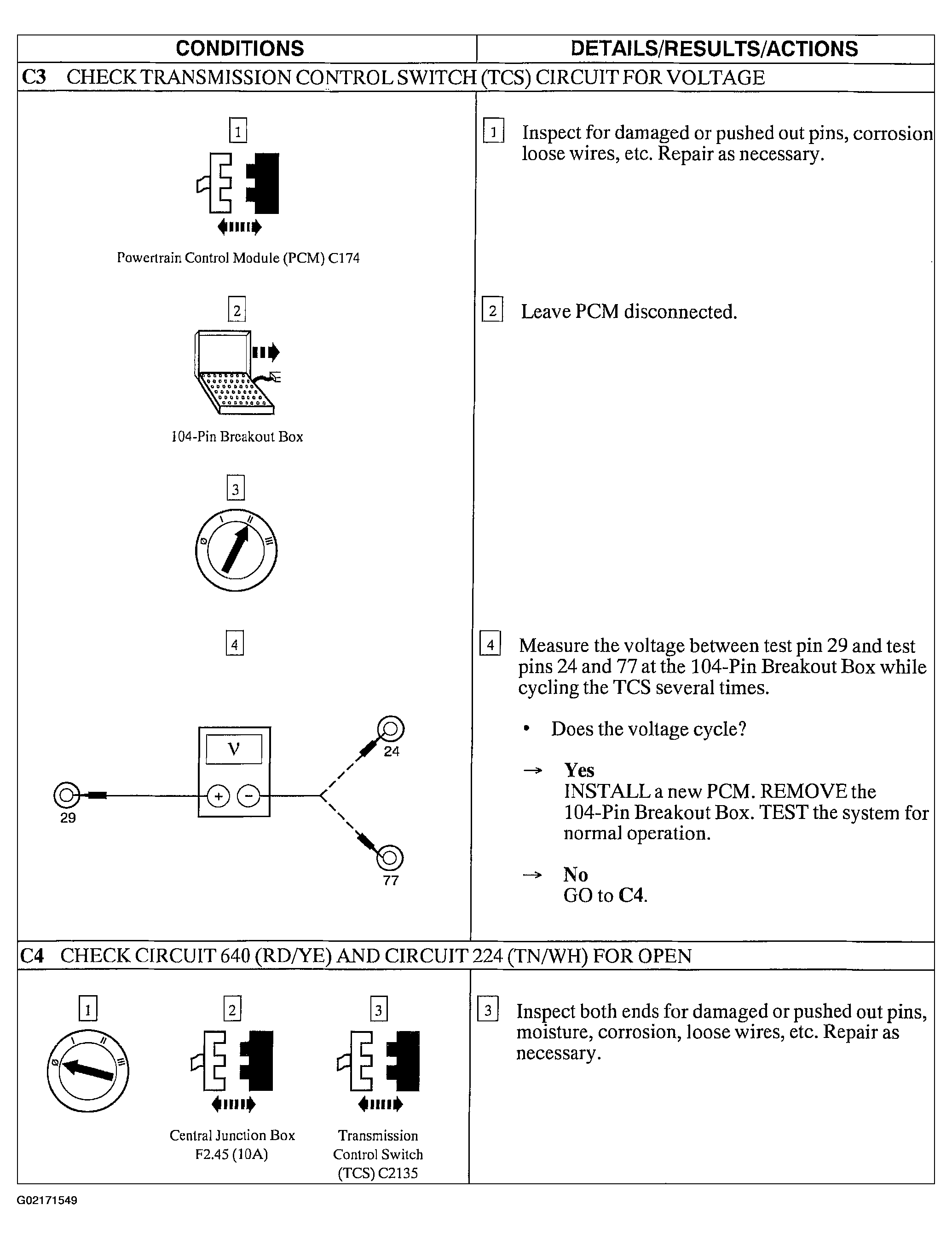

Fig 2: Pinpoint Test C: Pinpoint Test C: Transmission Control Switch/Indicator Lamp Not Operating Properly (C3-C4)
G02171549Courtesy of FORD MOTOR CO.

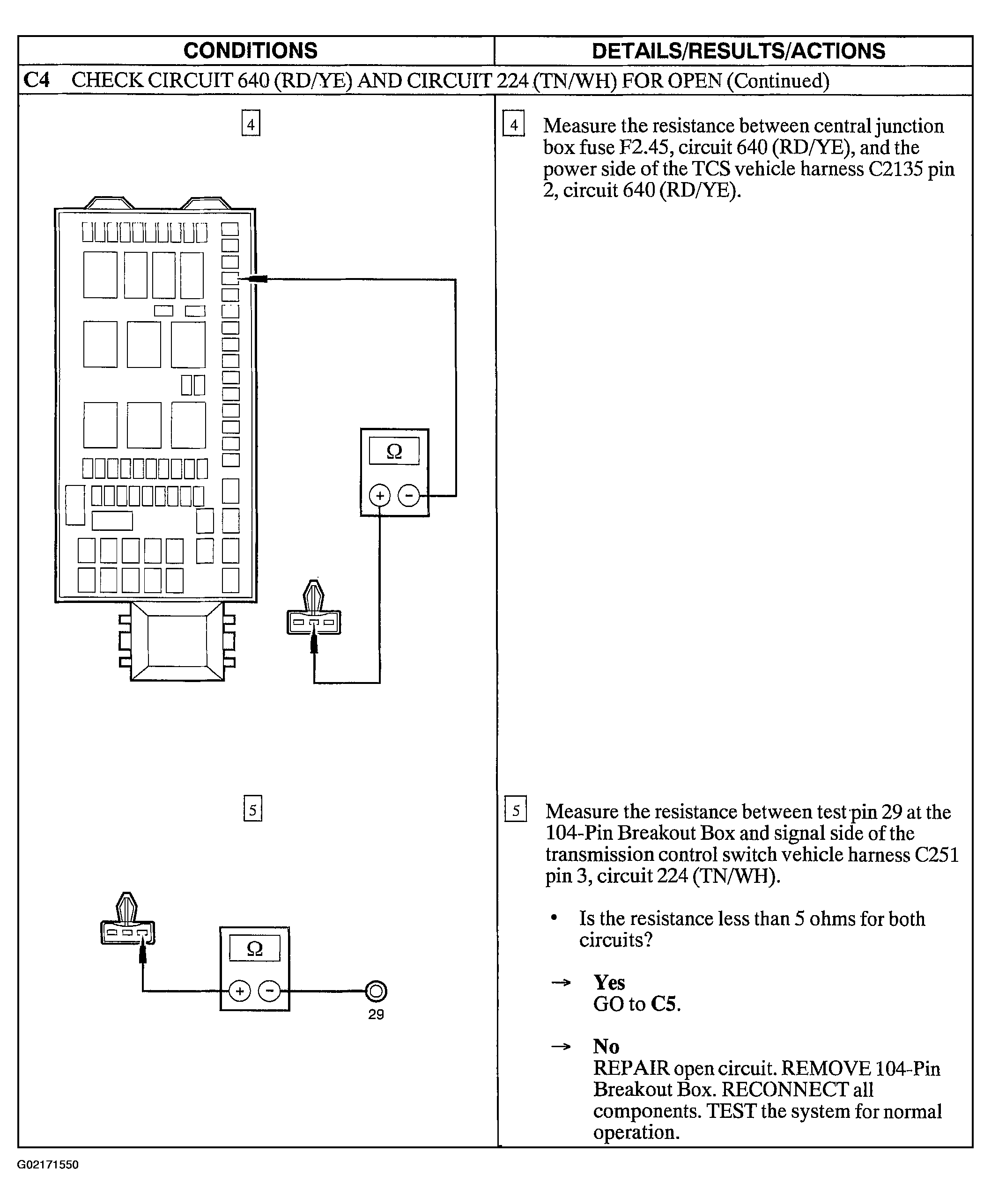

Fig 3: Pinpoint Test C: Pinpoint Test C: Transmission Control Switch/Indicator Lamp Not Operating Properly (C4 Cont.)
G02171550Courtesy of FORD MOTOR CO.

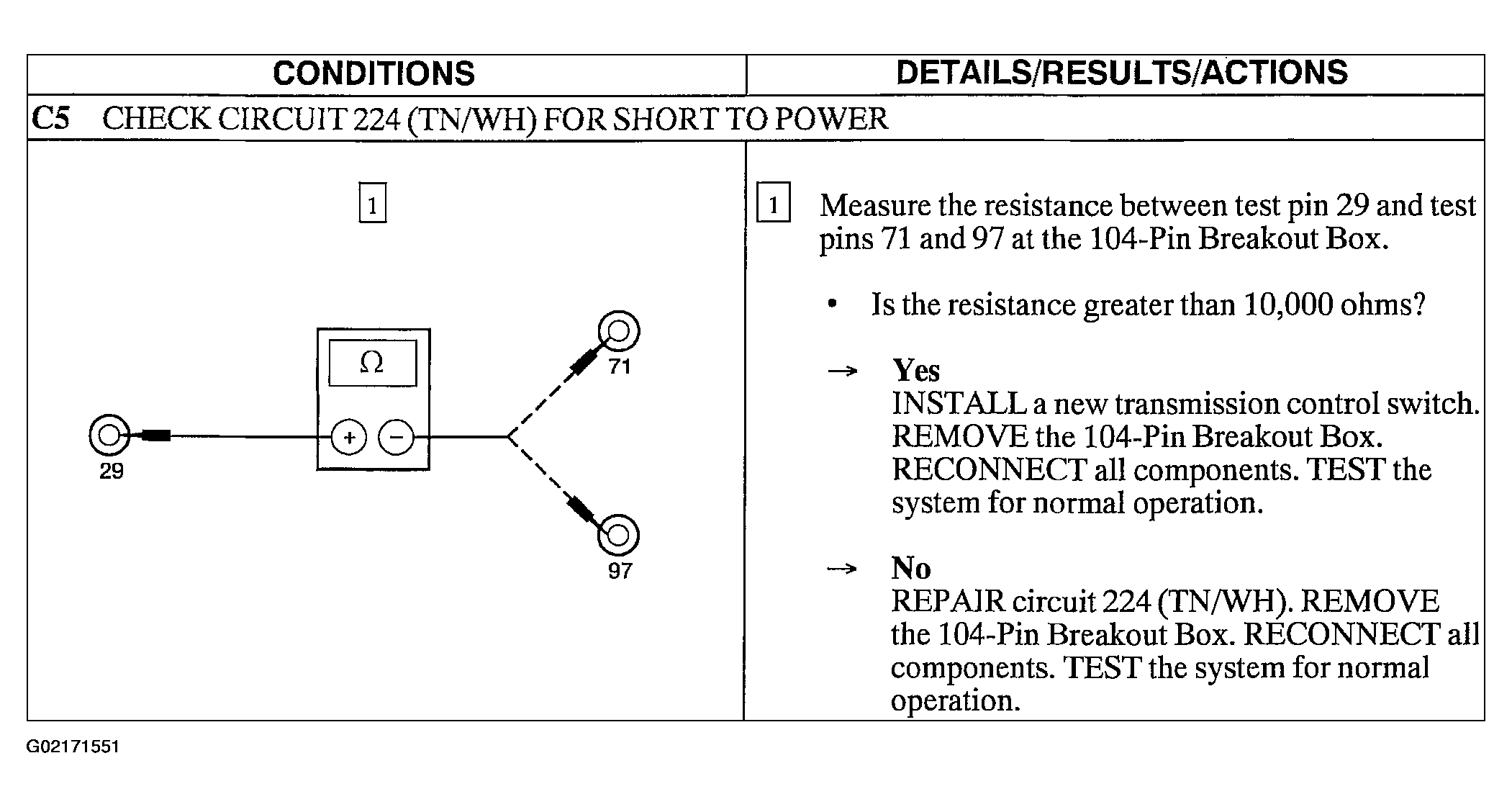

Fig 4: Pinpoint Test C: Pinpoint Test C: Transmission Control Switch/Indicator Lamp Not Operating Properly (C5)
G02171551Courtesy of FORD MOTOR CO.
