System Diagram

Disassembled Views





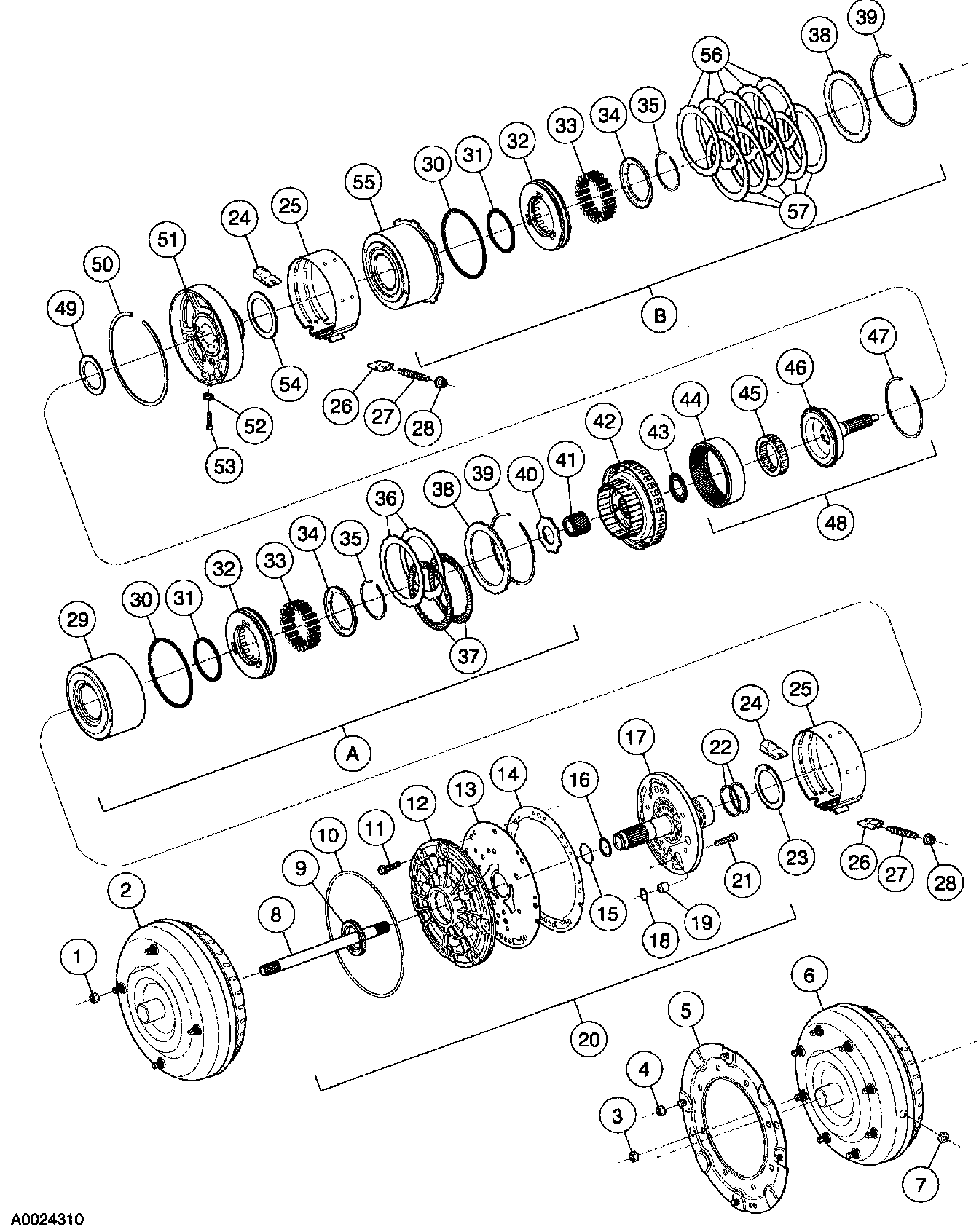

Part 1 of 6





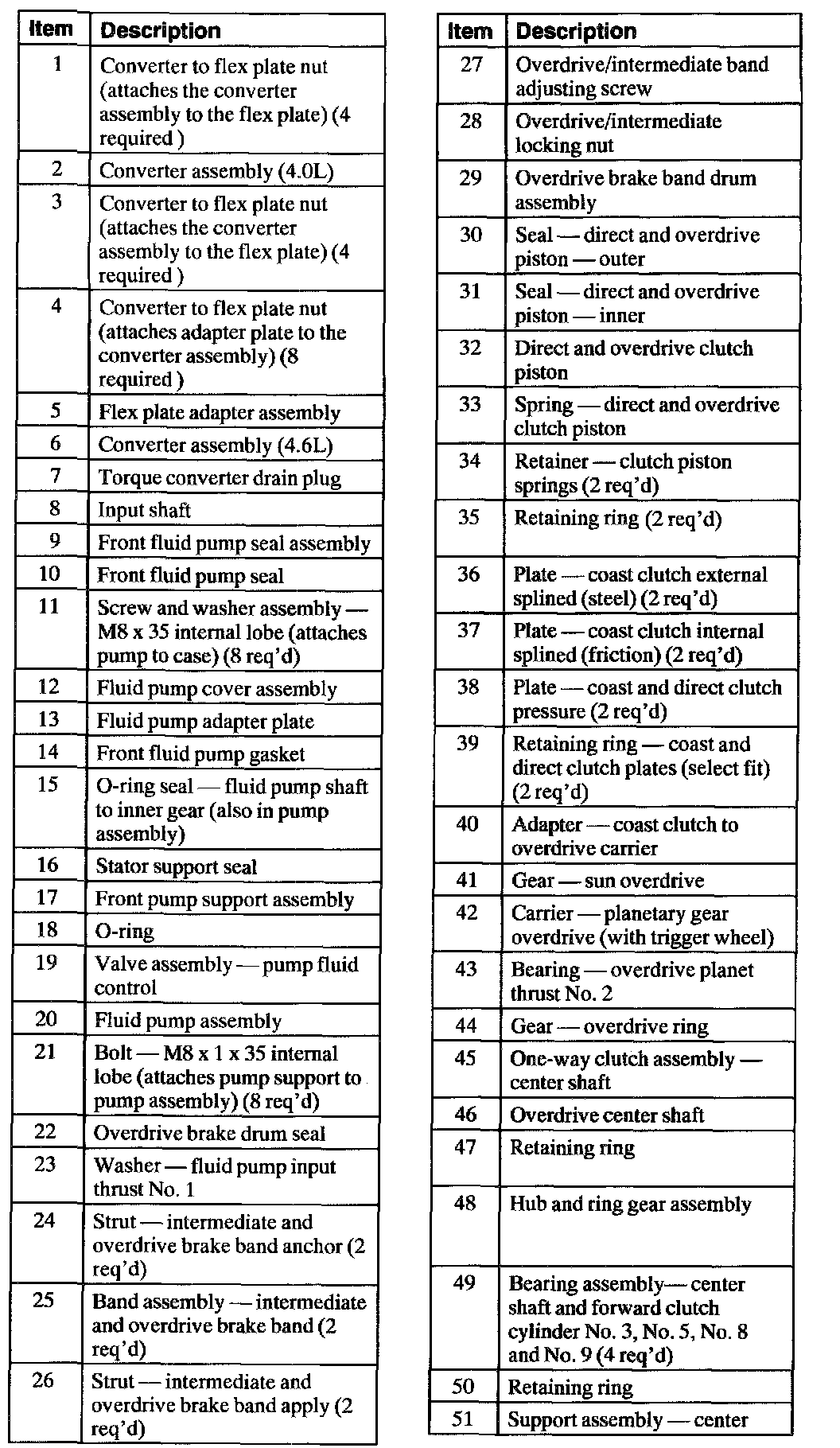

Part 2 of 6





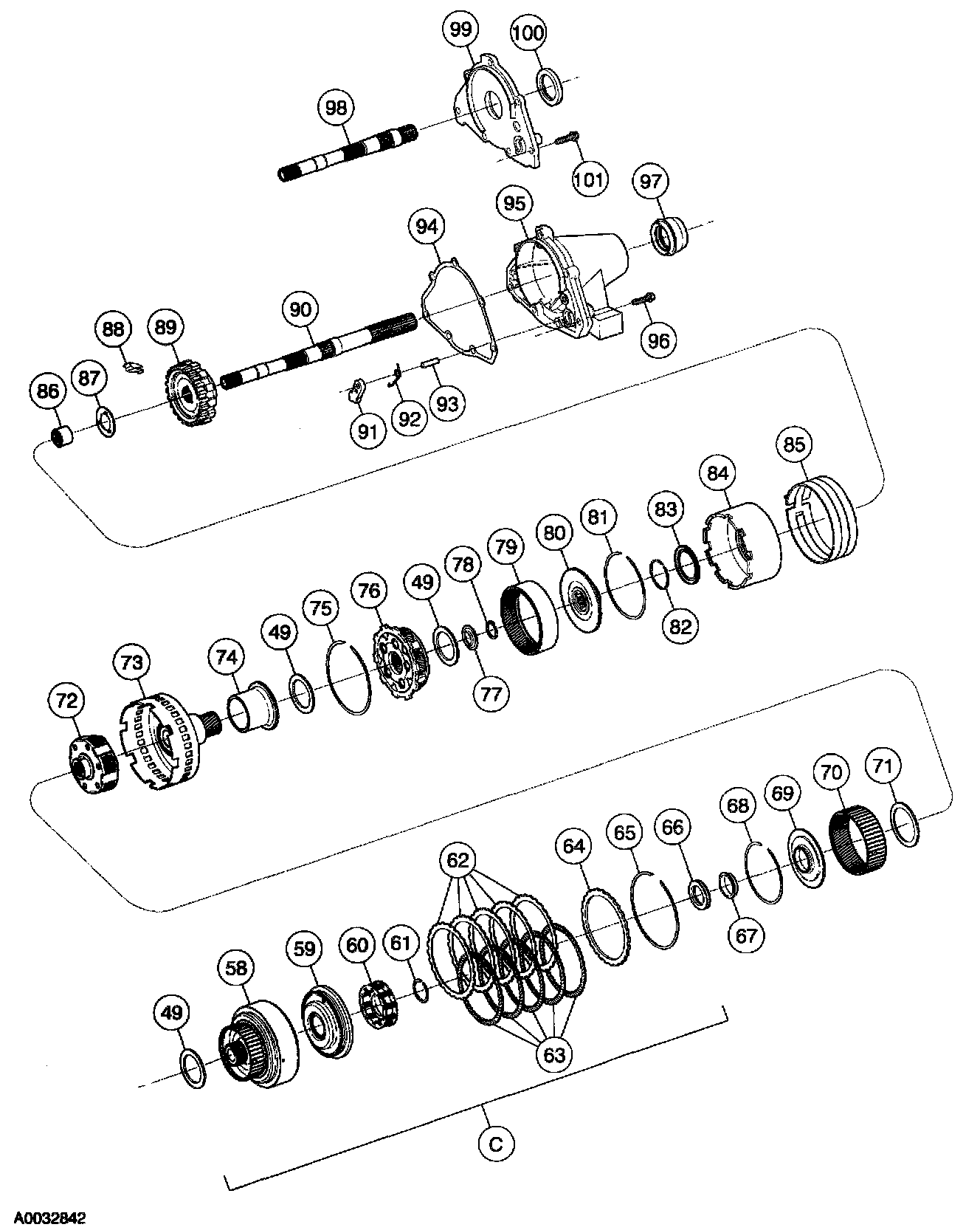

Part 3 of 6





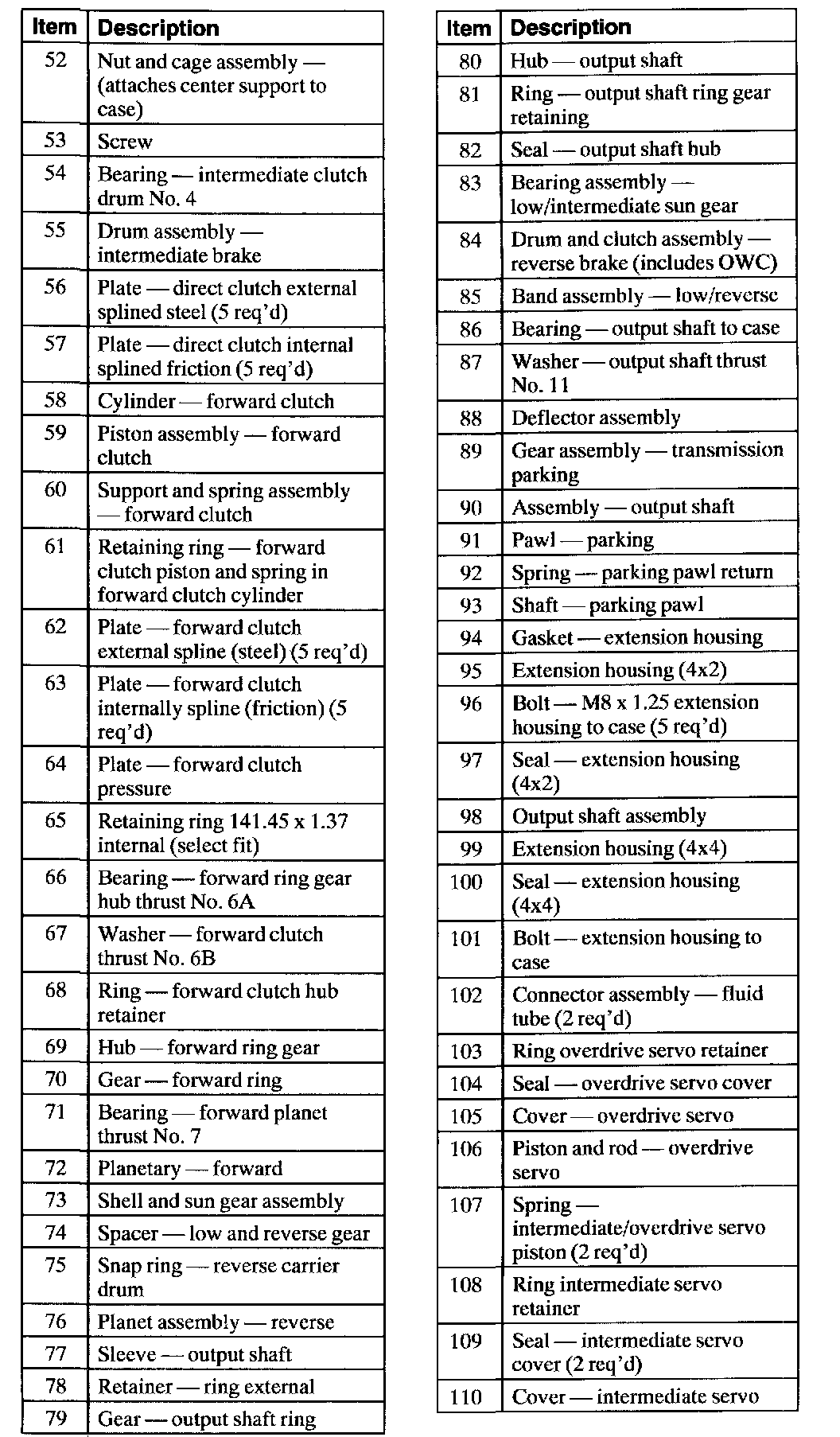

Part 4 of 6





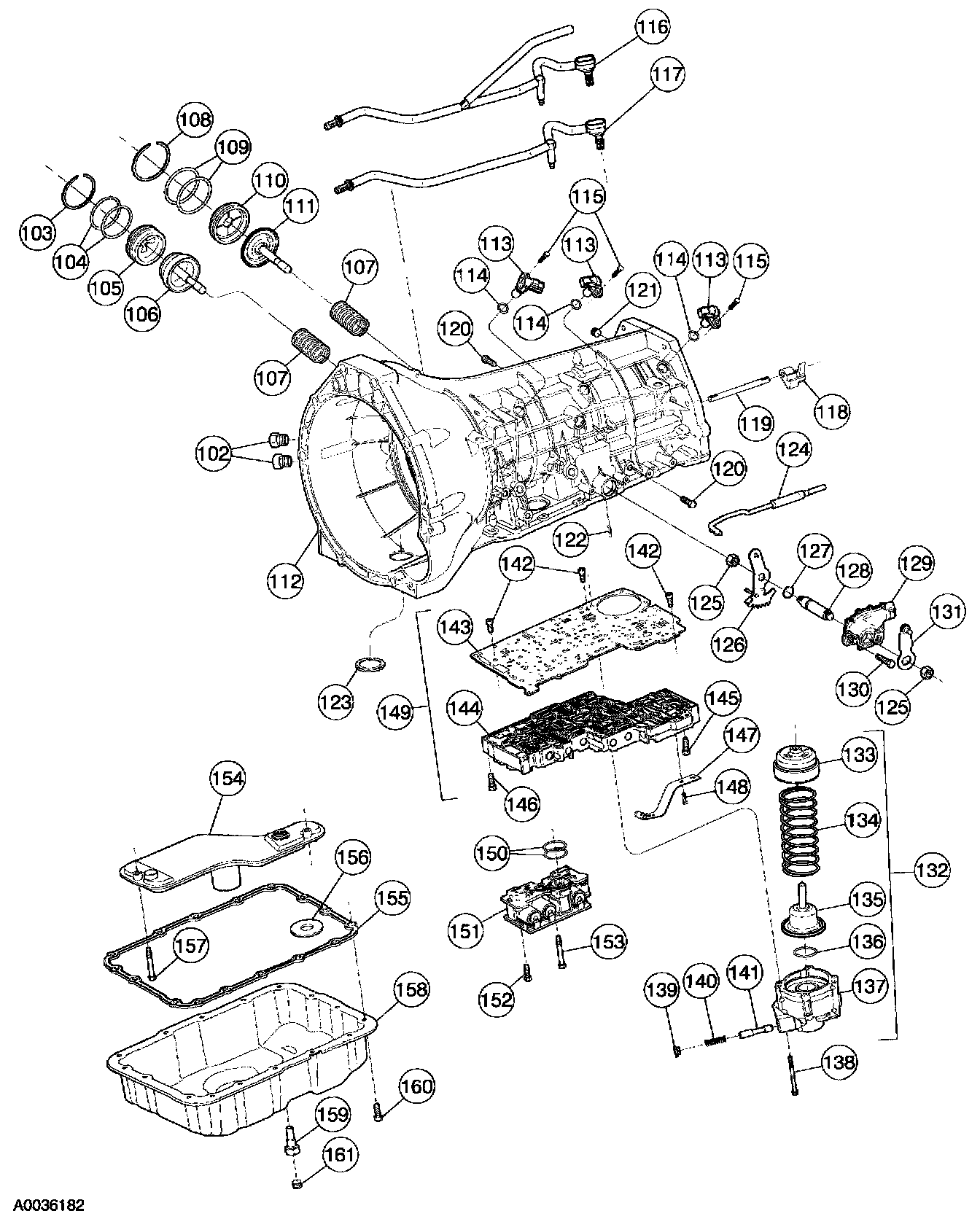

Part 5 of 6





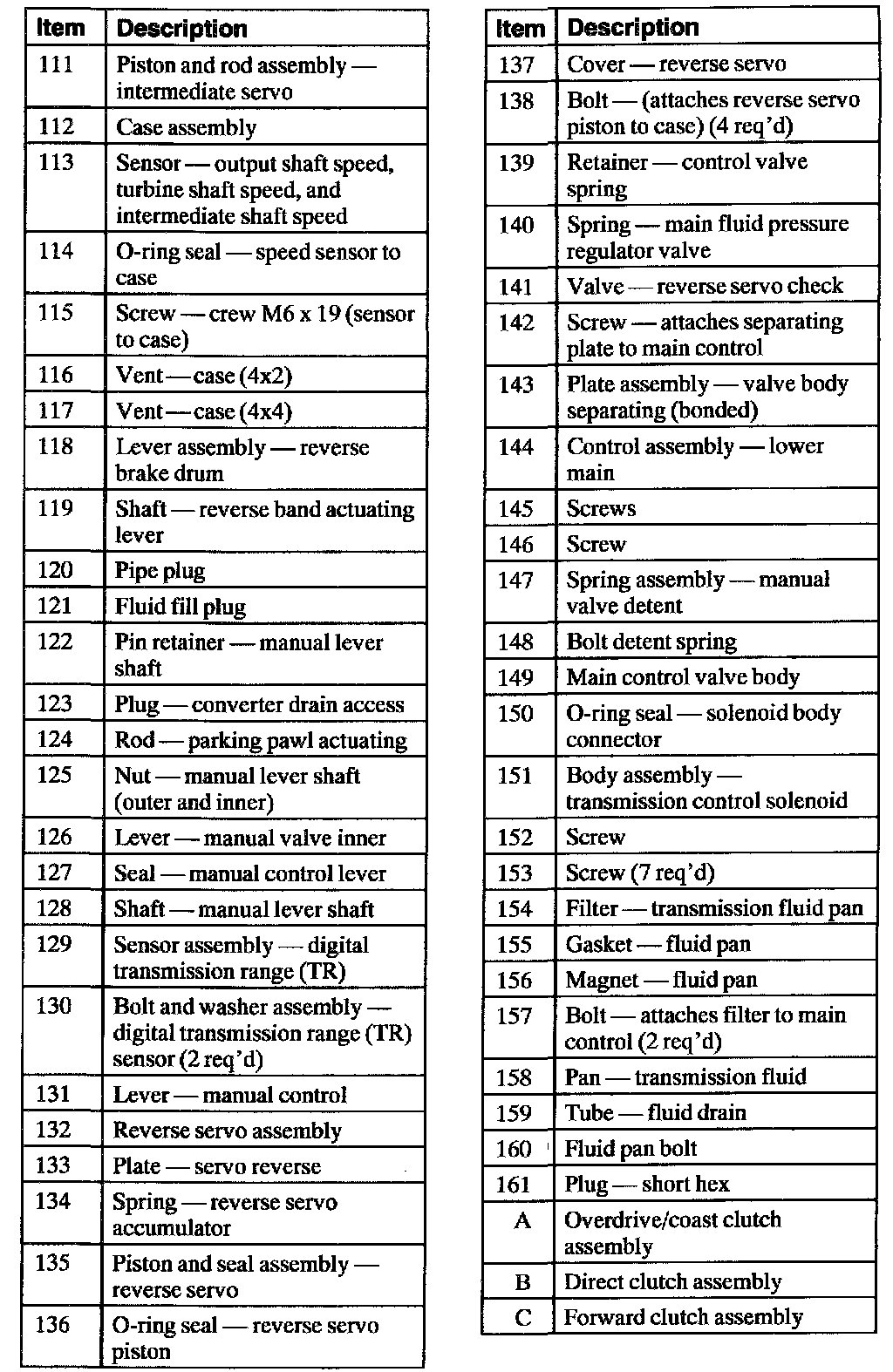

Part 6 of 6
