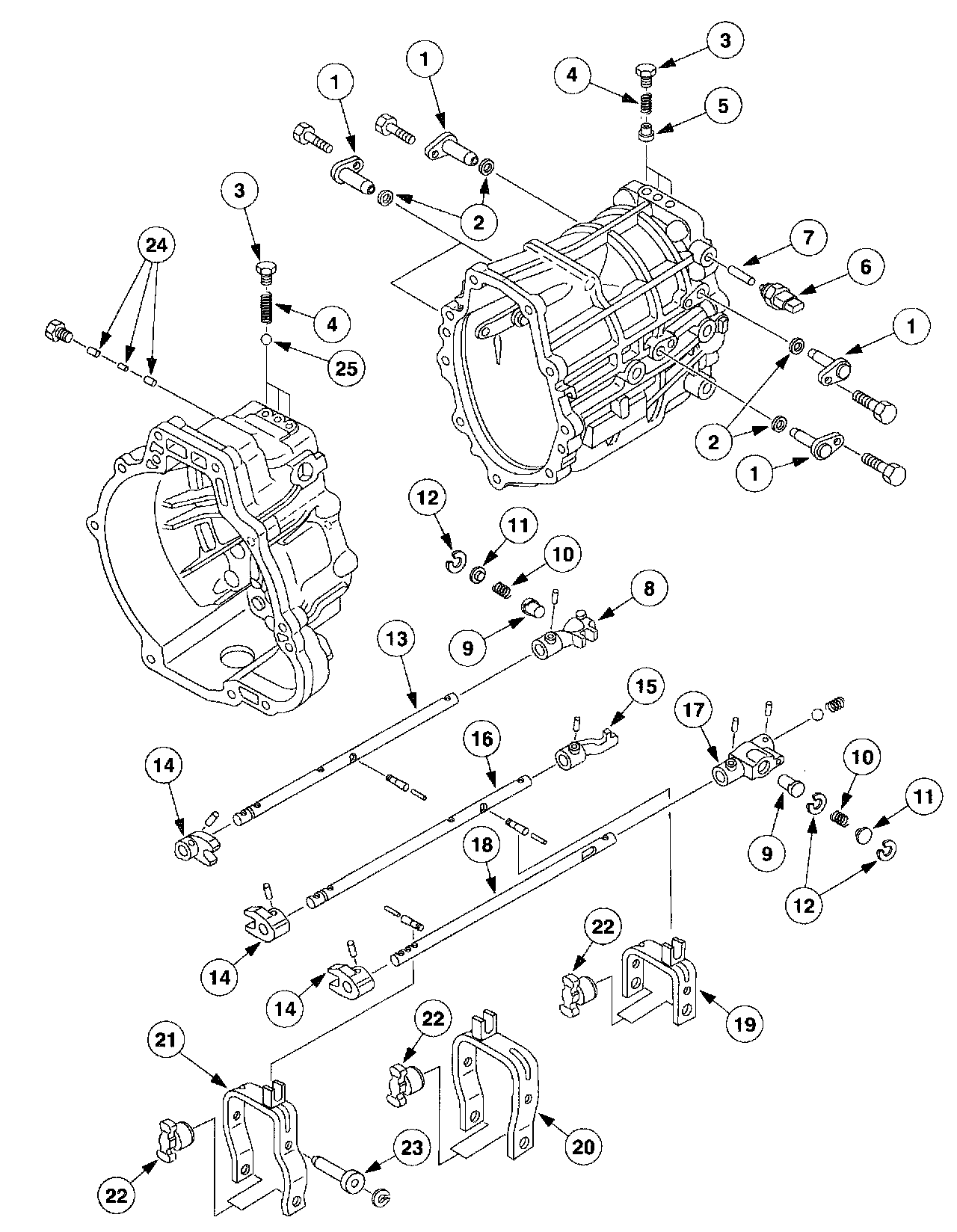

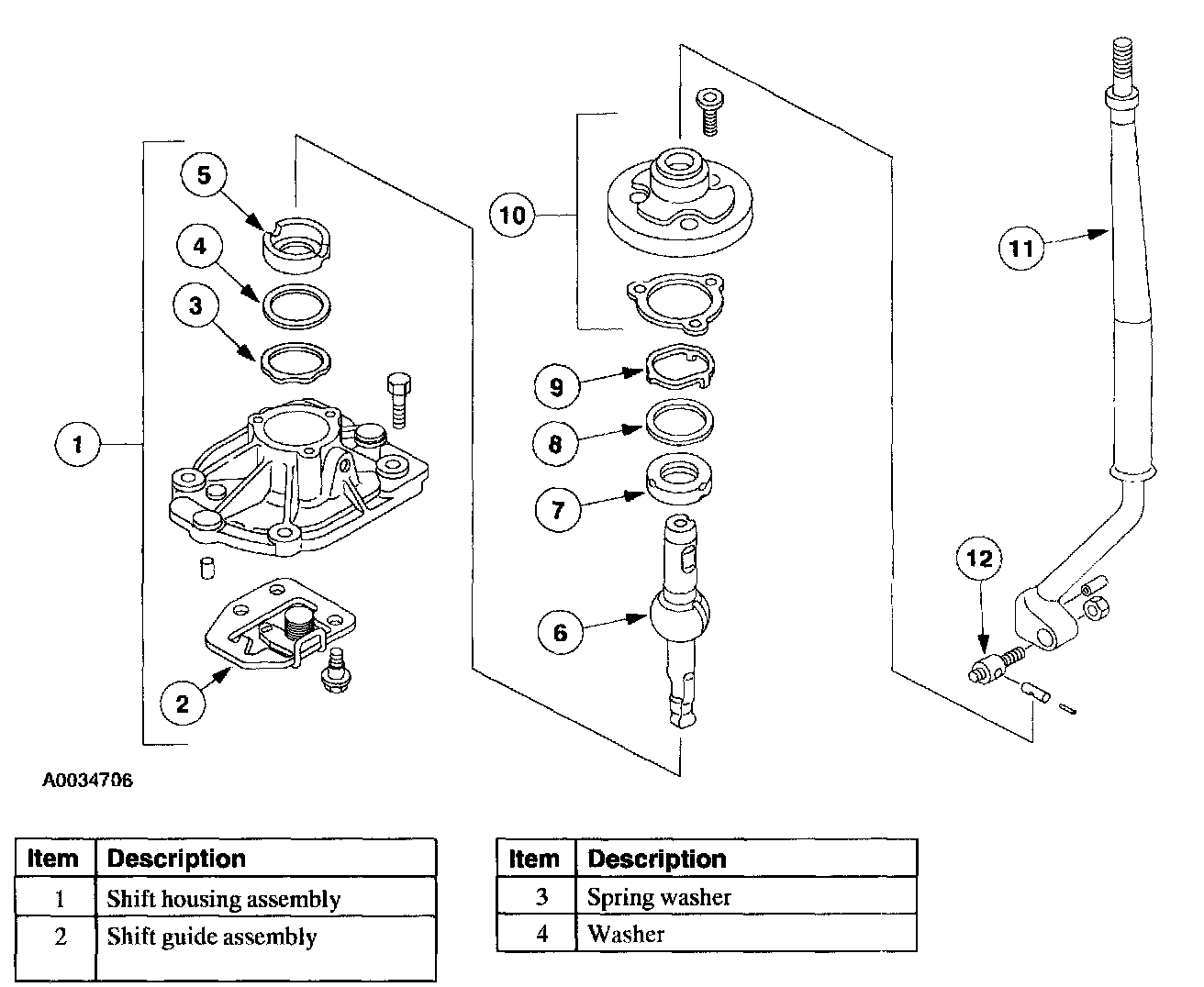

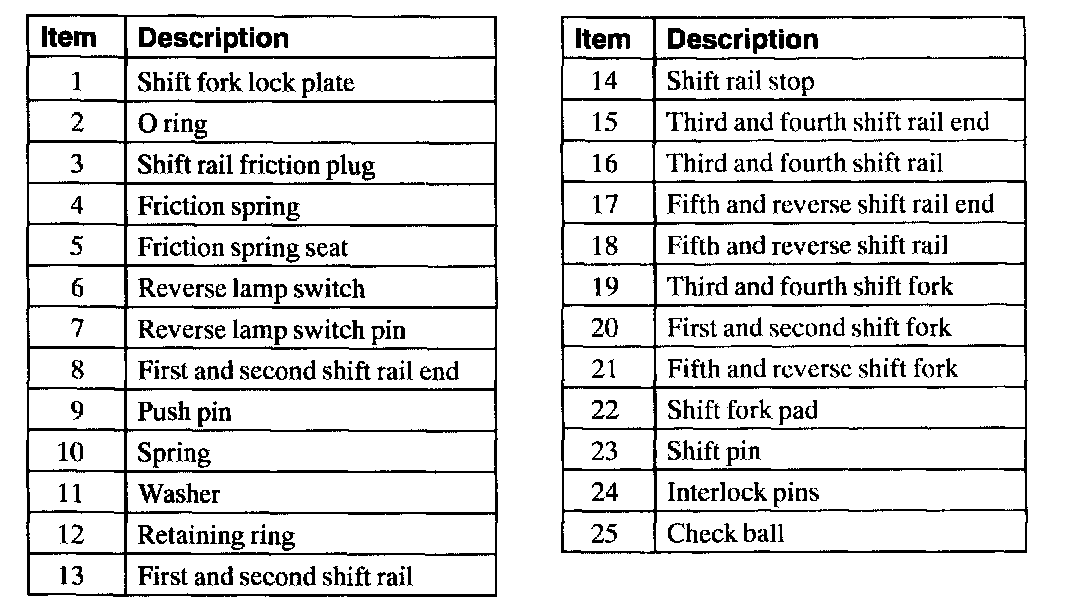

Transmission Shift Components - Disassembled View
Transmission Shift Components - Disassembled View
Part 1 of 4
Part 2 of 4
Part 3 of 4
Part 4 of 4
