Brake Pressure Switch: Locations

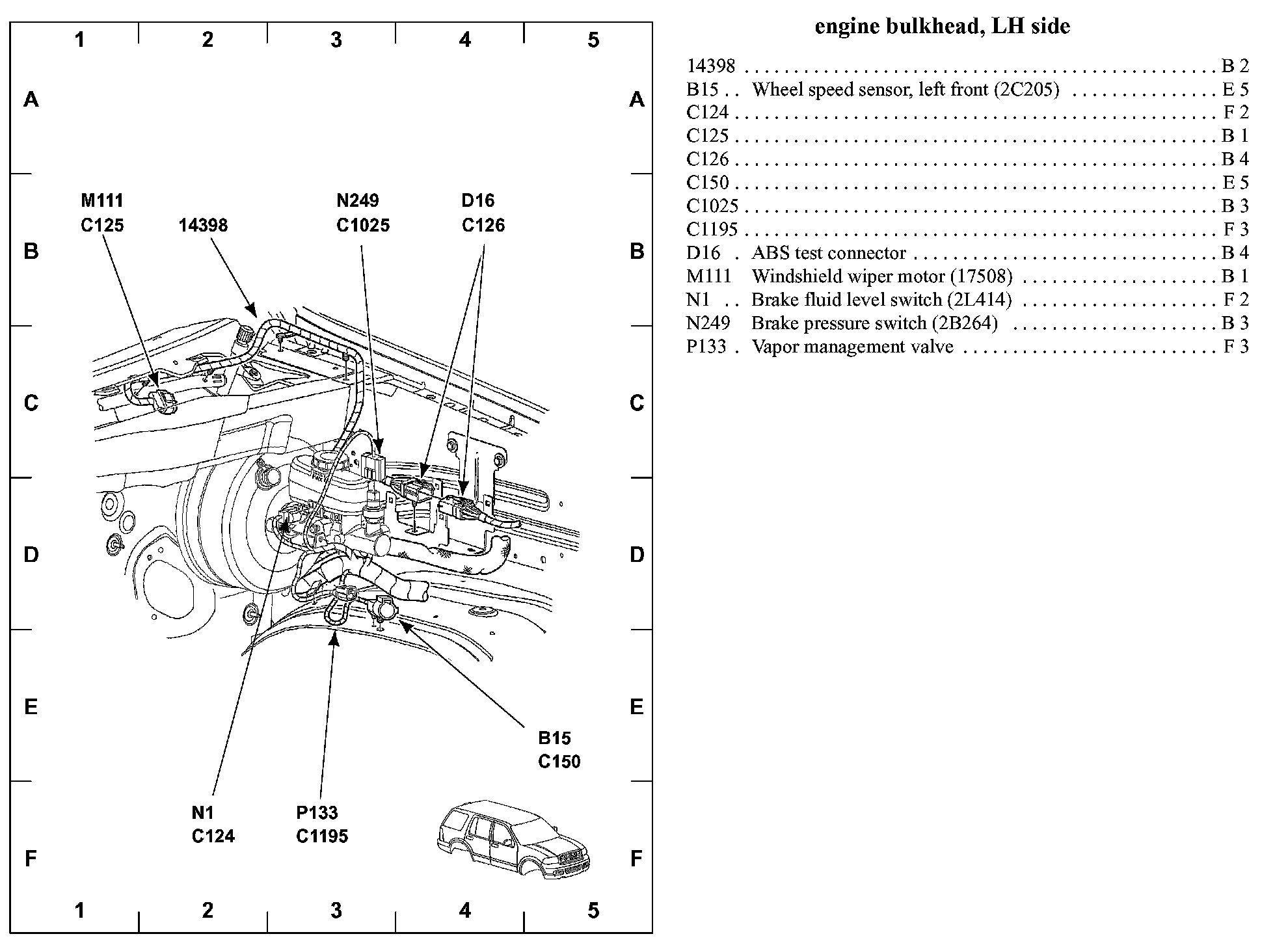

View 151-17 (Engine Bulkhead, LH Side):

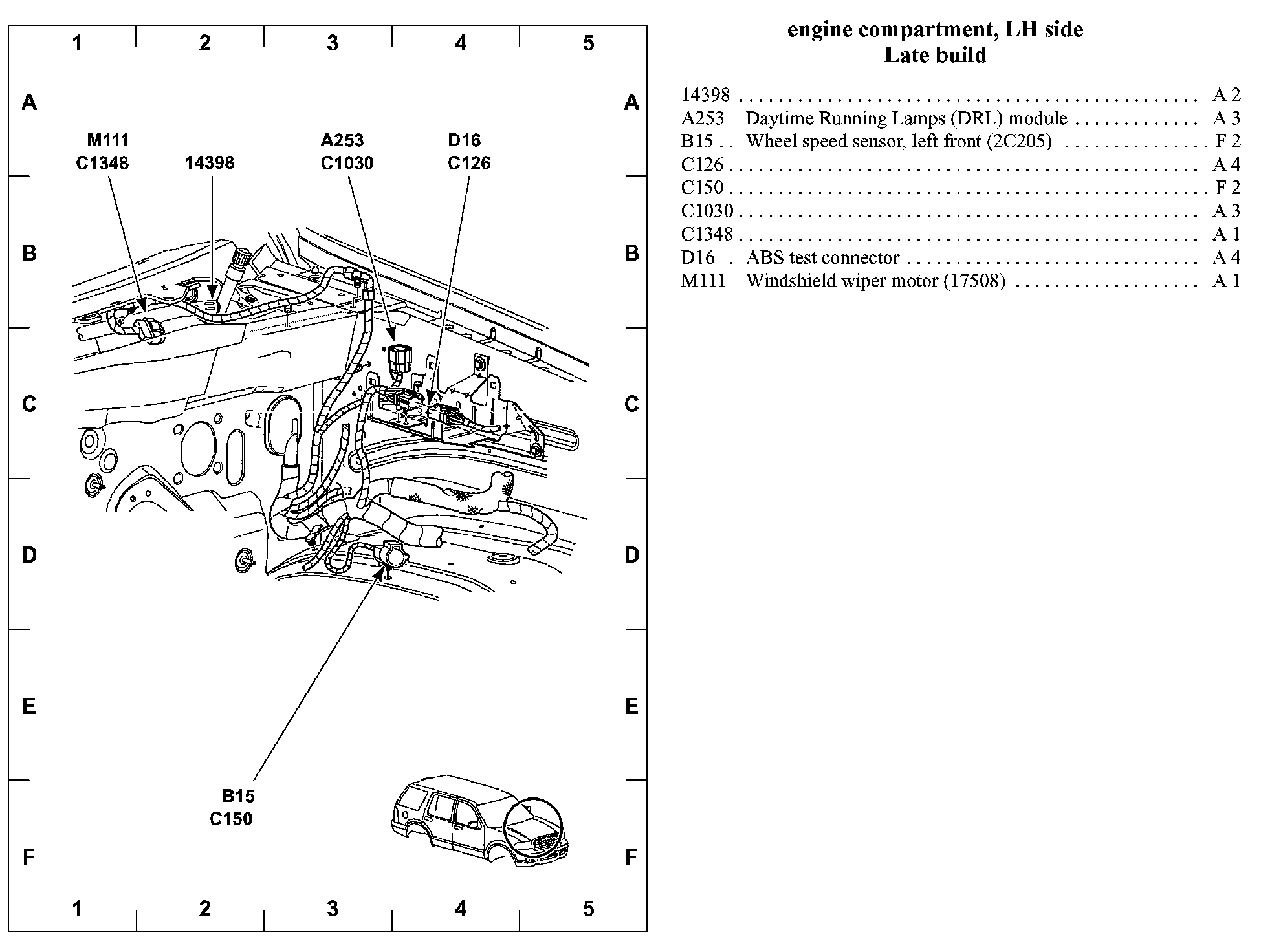

View 151-81 (Engine Compartment, LH Side Late Build):
