Test D: The Powertrain Control Module (PCM) Does Not Respond to the Diagnostic Tool
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test D: The Powertrain Control Module (PCM) Does Not Respond to the Diagnostic Tool
PINPOINT TEST D: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

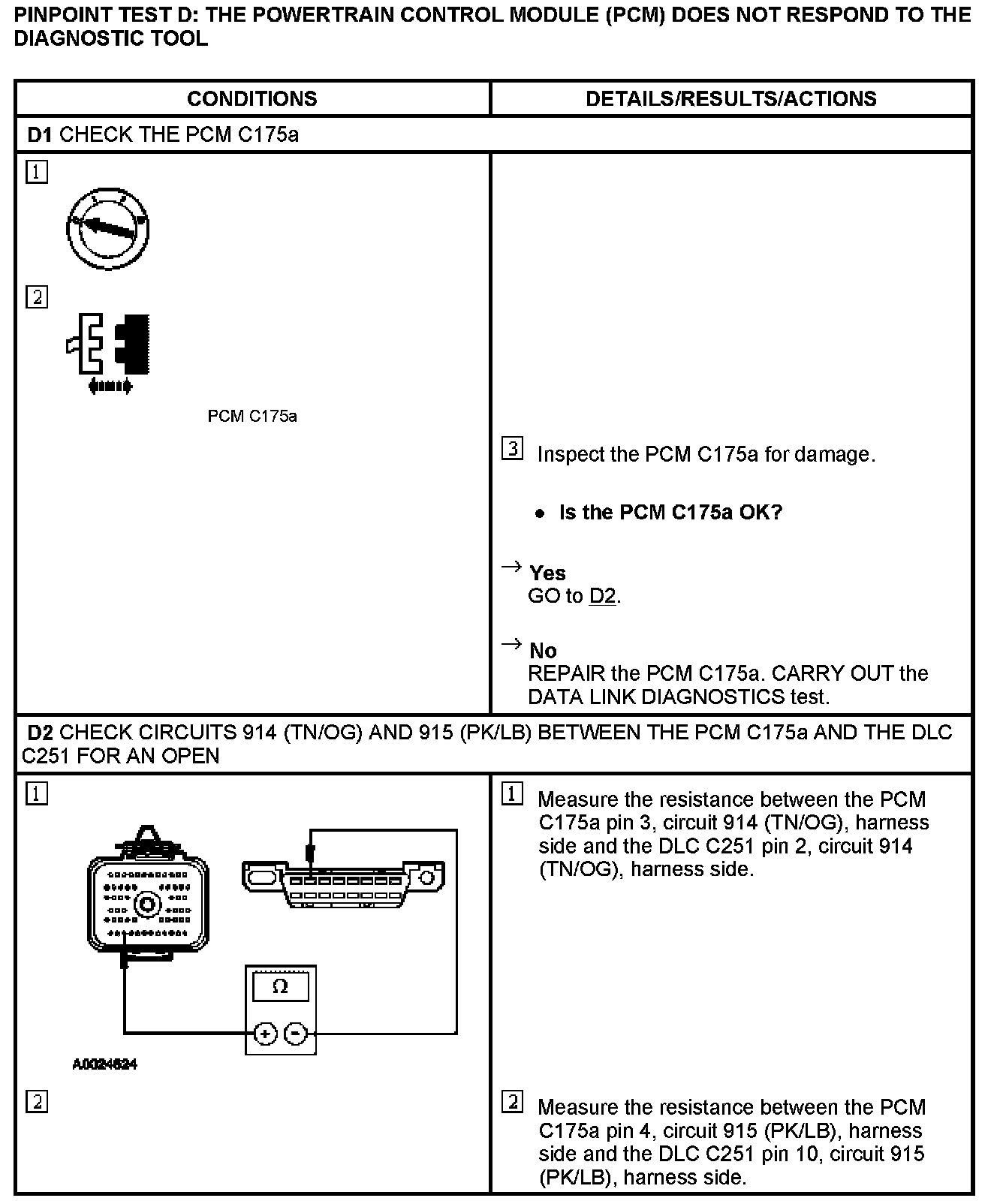

D1-D2:
D2-D3:

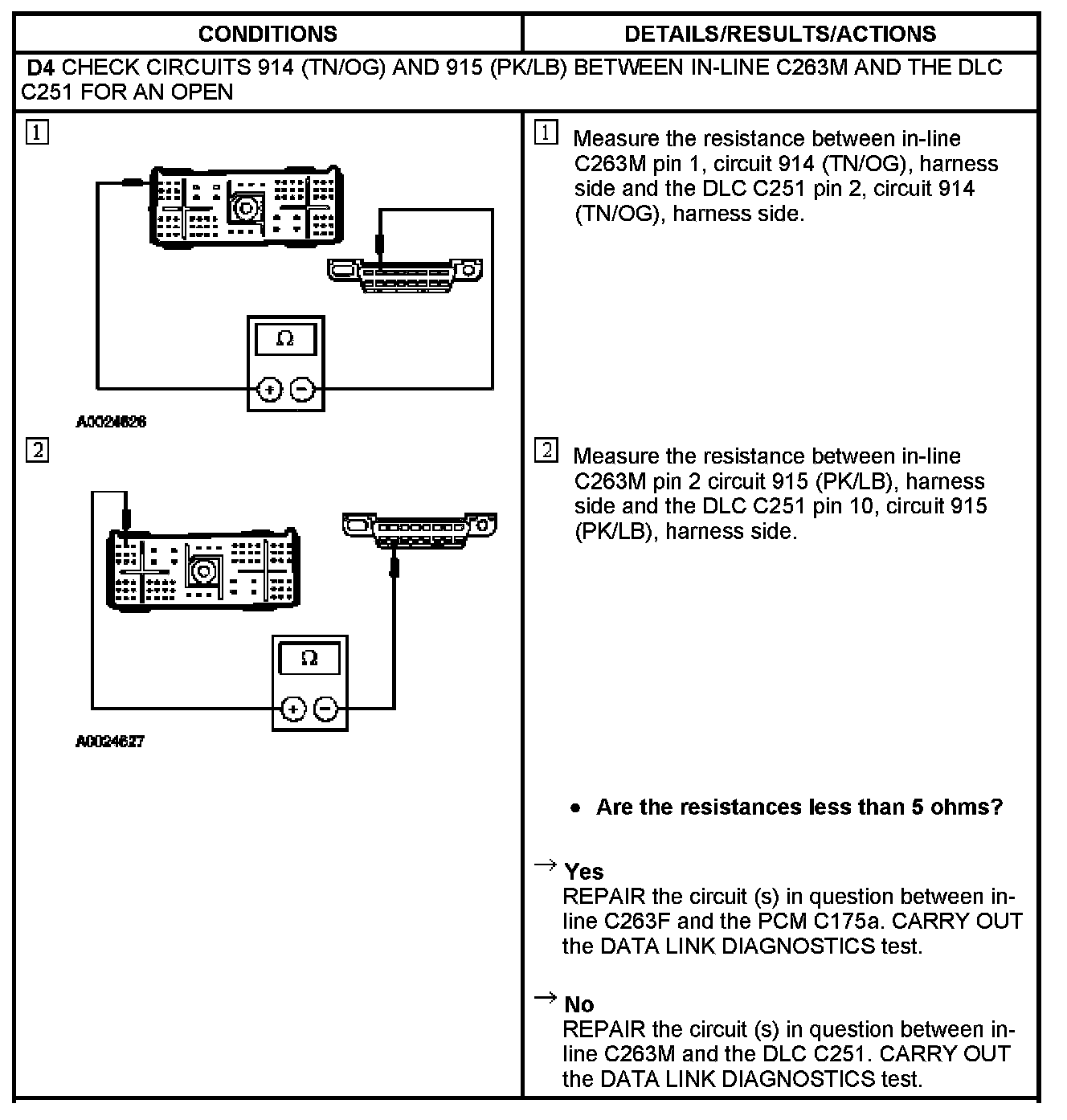

D4:
D5:
