System Specifications
Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear

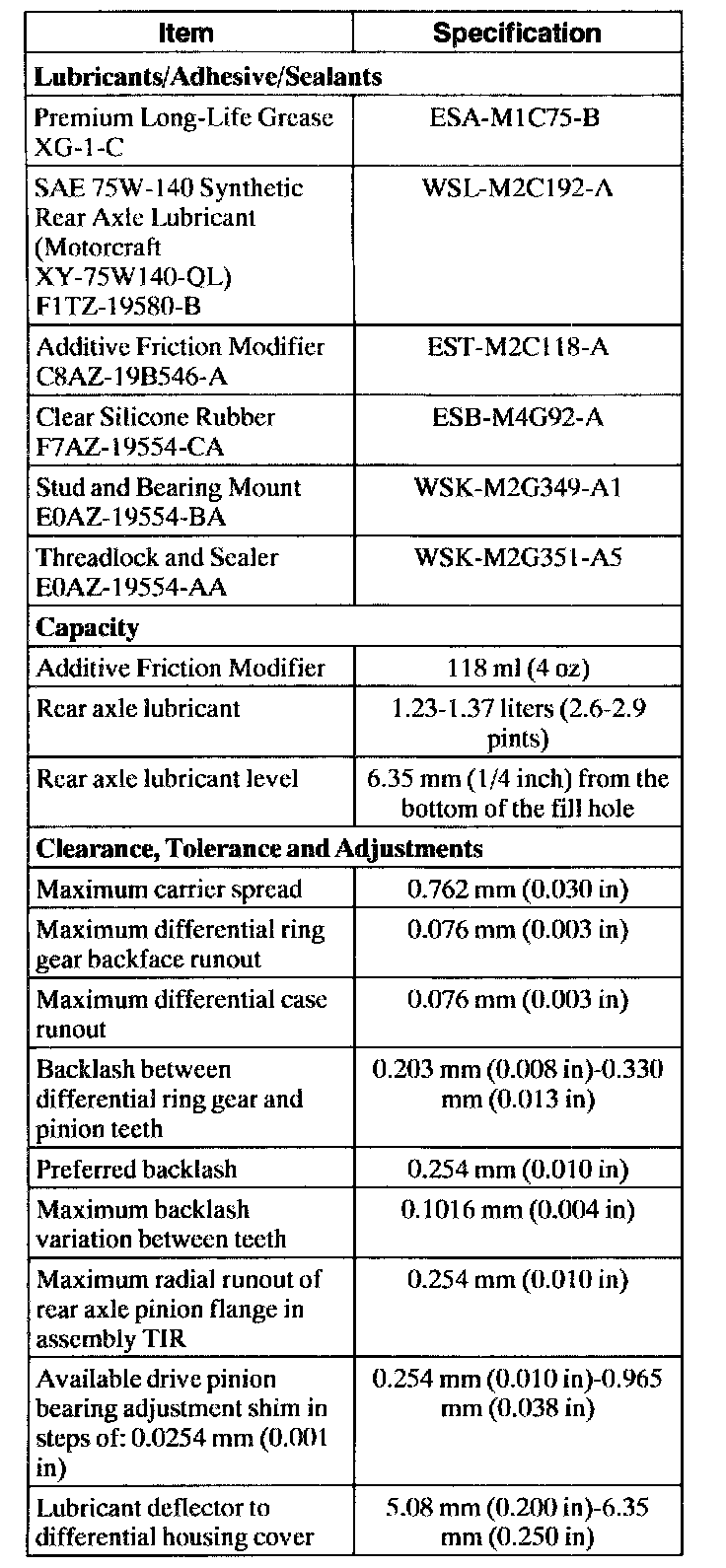

General Specifications

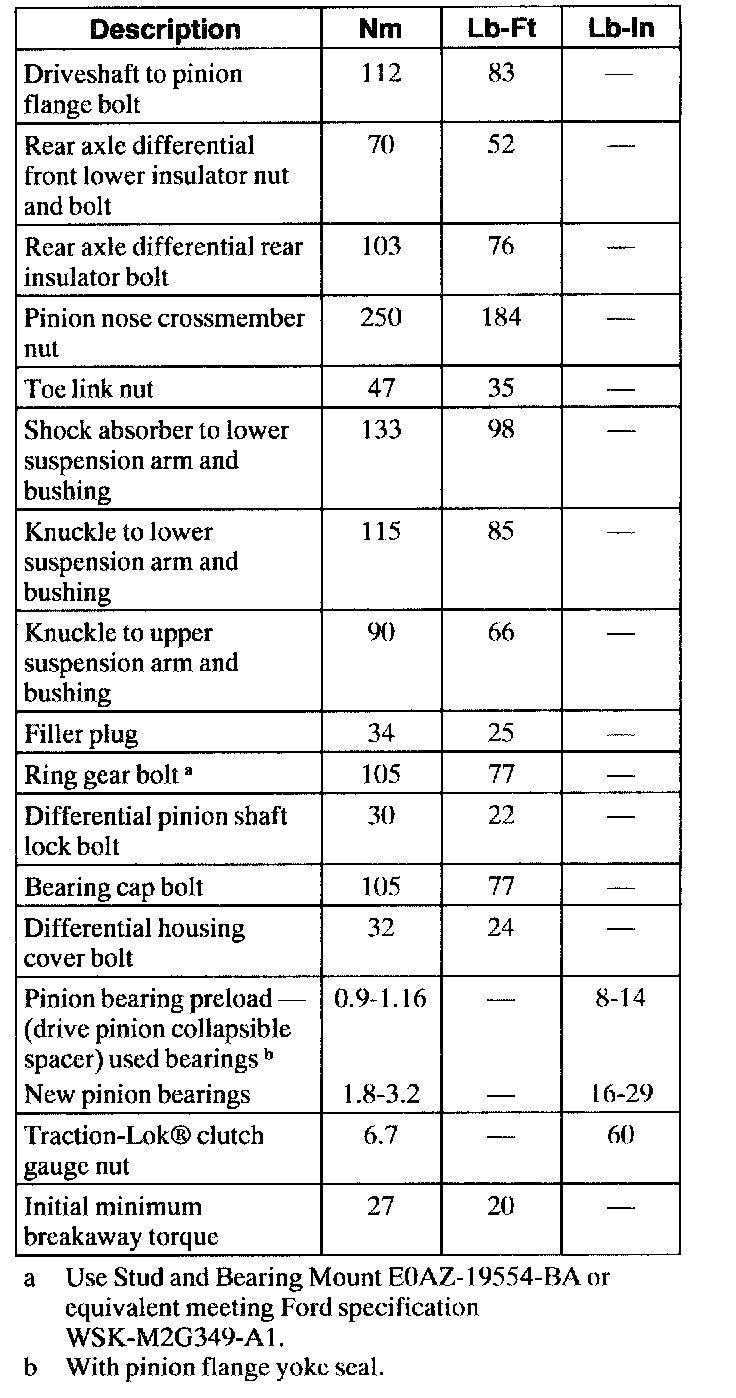

Torque Specifications
