Torque Specifications

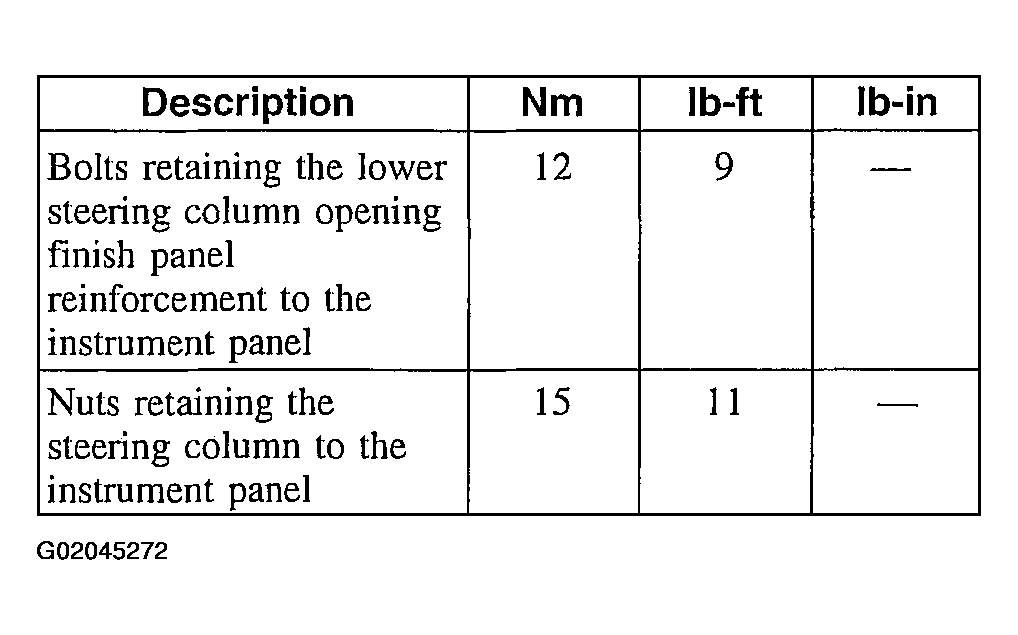

Fig 1: External Controls Torque Specifications (1 Of 2)
G02045272Courtesy of FORD MOTOR CO.

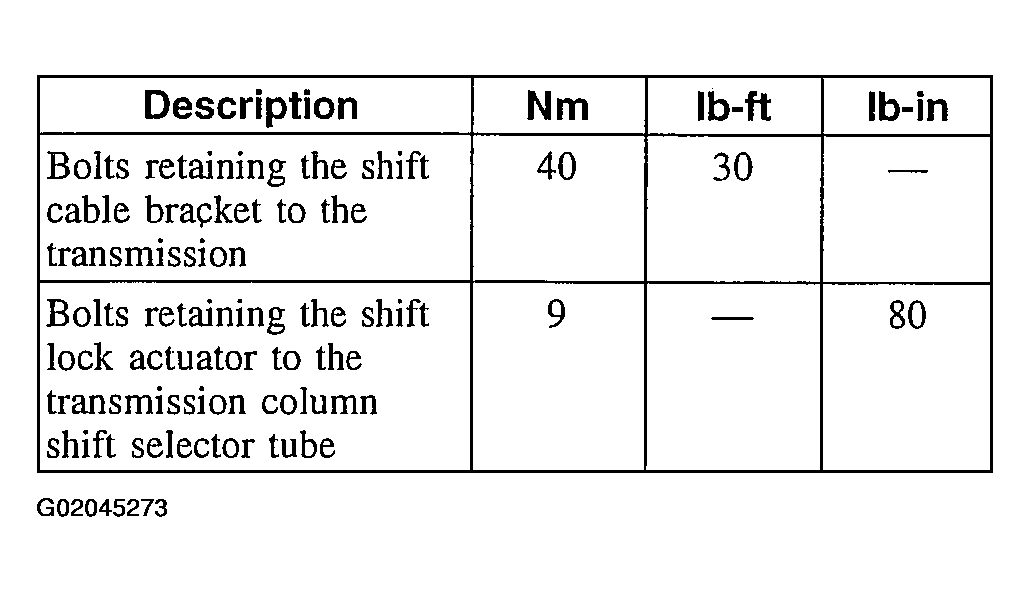

Fig 2: External Controls Torque Specifications (2 Of 2)
G02045273Courtesy of FORD MOTOR CO.
